Semi Automatic Pet bottle Blowing Machine,4 cavity auto feed the preform,auto dropping the bottle
-
Supplier: Taizhou Huangyan Yuqi Plastic Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Allina Cai -
Price: $6200.00 /set -
Min. Order: 1 set
| Voltage: | 380v; | After-sales Service Provided: | Overseas service center available; |
| Blow Moulding Type: | Stretch Blow Moulding; | Product name: | Semi Automatic Pet bottle Blowing Machine; |
| Application: | Bottle; | Supply Ability: | 200 Set/Sets per Month; |
| Plastic Processed: | PET; | Payment Terms: | T/T,Western Union,MoneyGram; |
| Warranty: | 1 Year; | Power(W): | 15kw; |
| Model Number: | YQ-4C--7; | Dimension(L*W*H): | 2100*590*1650(mm); |
| Brand Name: | YUQI; | After-sales Service Provided: | Online support,Video technical support; |
| Place of Origin: | Zhejiang China (Mainland); | Packaging Detail: | wooden; |
| Condition: | New; | Weight: | 800kg; |
| Automatic: | No; | Port: | ningbo; |
Semi Automatic Pet Bottle Blow Molding Machine,4 cavity auto feed the preform and dropping the bottle

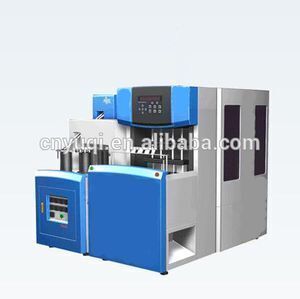

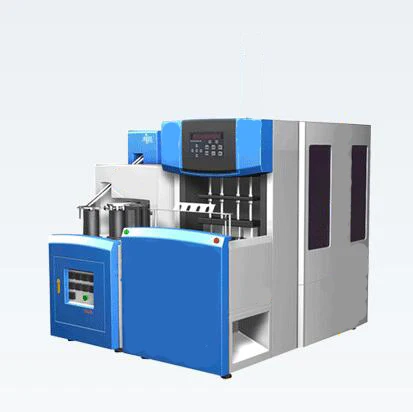

♥ Machine Picture
4 cavity Semi-automatic blow moulding machine is the latest high output semi-automaitc PET blow moulding machine. Comparing to the traditional machine design, thanks to new concept of automatic bottle discharging unit, the patented heating system and the preforms automatic loading design, The blow molding machine requires less manpower and reducing the work intension for the operator. This is an outstanding improvement in the PET Bottle blow molding industry.
TYPE | ITEM |
|
| |
YQ-4F | ||||
container
| Prouduct material |
| Pet | |
container volume | L | ≤2.5 | ||
theoretical output | Pcs/hr | 2500 | ||
max.bottle height | Mm | 365 | ||
max.bottle diameter | Mm | 90 | ||
Moulding | max.mould plate dimension(l*w) | Mm | 550 | |
max.mould thickness | Mm | 220 | ||
clamping force | Kn | 130 | ||
mould opening stroke | Mm | 370 | ||
air comppessor | working pressure | Mpa | 0.8-1.0 | |
air compressure for blowing | Mpa | 3.0 | ||
MAIN machine elecricity | power | Kw | 12 | |
voltage/frequency | v/hz | 380-240-110/50-60 | ||
machine size and weight | main machine | M | 1700*830*2050 | |
main machine weight | Kg | 1000 | ||
hearter | M | 2080*630*1380 | ||
hearter weight | Kg | 330 | ||
| ||||
♥ Description
1.Perfect function with economic investment.
2.Small size and compact construction with no space waste.
3.Easy to operate and maintain,operation by one person.
4.Saving power and uneasy to worn out.Adopting new double crank four bars to lock mould,the cross fixed. Providing high pressure blowing system.
5.We can provide performs and cap moulds for different bottles to meet customer's requirem
6.Automatic feeding and automatic dropping the bottles.
7.High output:1500-2500pcs per hour.

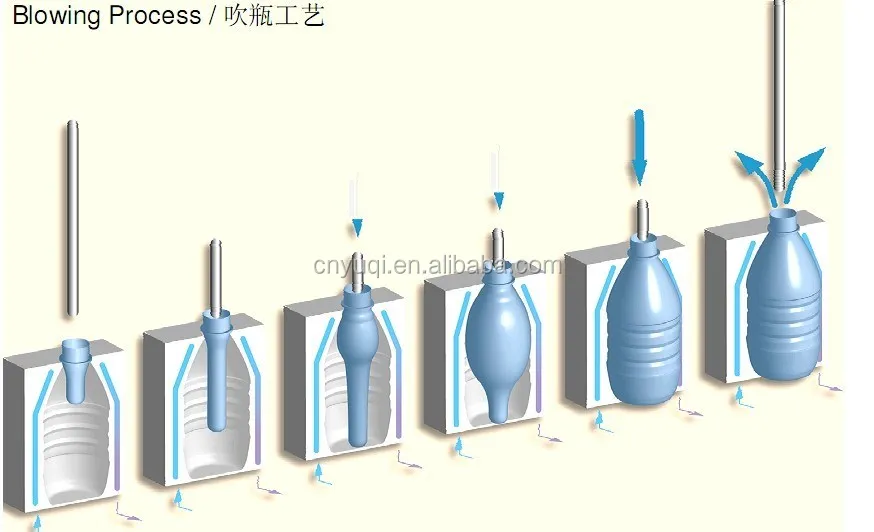

♥ Blowing Process

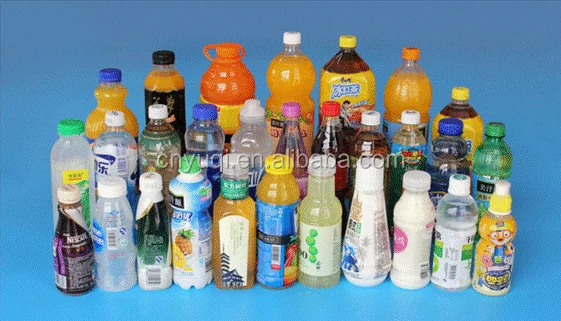

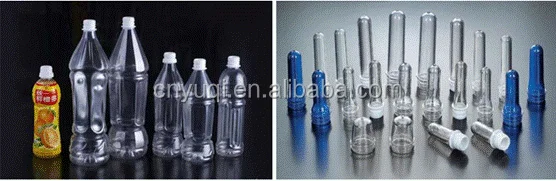

♥ Bottle Samples
♥ CEITIFICATION
♥ Why Choose Us
1. More than 10 years’ professional experience in plastic machine industry.
2. Fast delivery: Reply the mail and take action in 24 hour.
3. Strict quality control system and after-sales service. 1 year warranty .During warranty, we provide free of charge for repairing cost. Lifetime maintenance. After-sales department can provide life time maintenance service
4. Our price is competitive factory price.
5. Our products are sold to South America/North America/Mid-east etc.
6. We have our own design department and can OEM as your requirement
We can help you to design the product line , workshop and provide turn-key project
7. We will offer our technician for overseas bottle making machine installation and training service
We can also provide our Sales as translator to your site help the installation and Trainin
Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.
-
