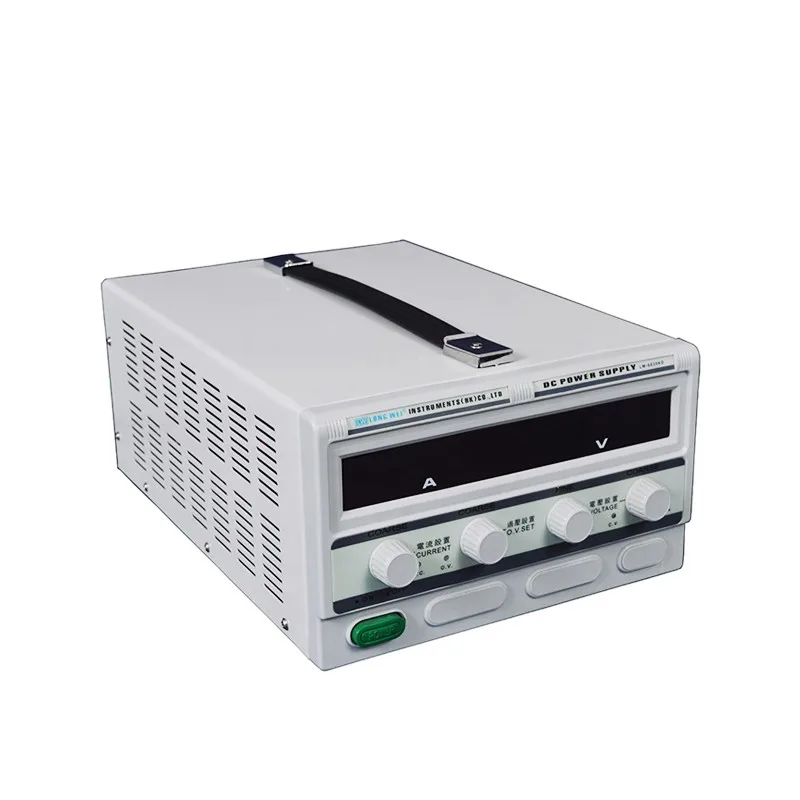

LW-6030KD 60V 30A Lab Testing Bench Variable Power Source Precision Digital Adjustable Switching DC Regulated Power Supply

Supplier: Shenzhen Kuaiqu Electronic Co., Ltd.
Region: Guangdong, China
Contact: Mr James Zhang
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Current stability:	≤0.5%;	Output Frequency:	50HZ/60HZ;
Brand Name:	Longwei;	Payments:	T/T/Western Union/Paypal;
Port:	FOB ShenZhen;	Load regulation:	≤0.5%;
Product name:	Adjustable Power Supply;	Supply Ability:	20000 Piece/Pieces per Month;
Place of Origin:	Guangdong China;	Output Current:	30A;
Input Voltage:	110V/220V;	Output Voltage:	60V;
Output Power:	1800W;	voltage stability:	≤0.2%;

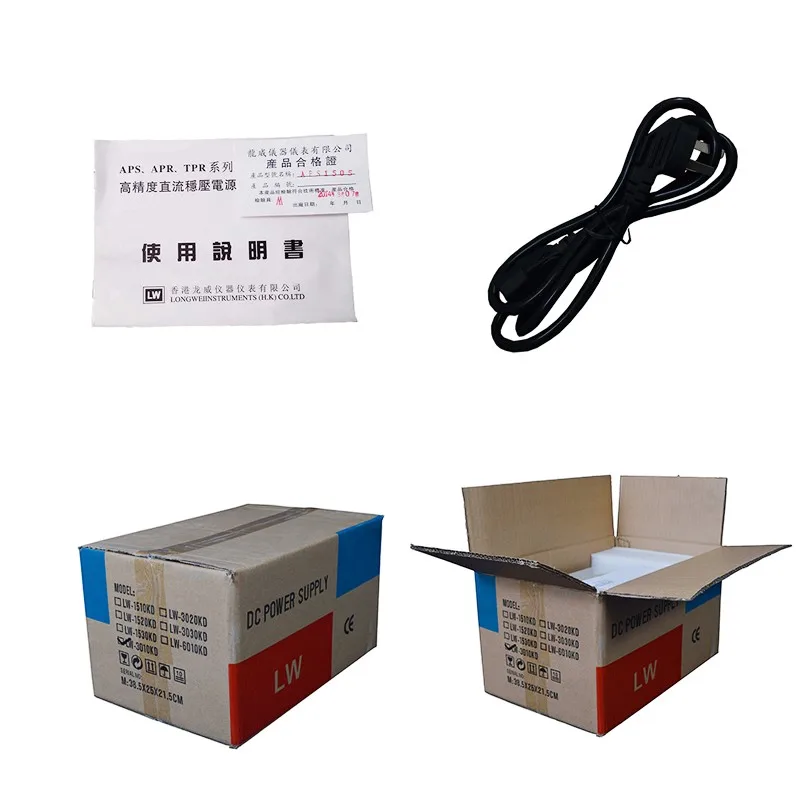

Packaging Detail:	Packaging Details: Netural packing/Customers packing are acceptable;	Test:	100% full load burn-in test;
Type:	Switching Power Supply;	Item name:	Dc Power Supply;
Output Type:	Single;	Model Number:	LW-6030KD;
Ripple noise:	≤1% (effective value);	Payment Terms:	T/T,Western Union;

LW-6030KD 60V 30A Lab Testing Bench Variable Power Source Precision Digitagl Adjustable Switching DC Regulated Power Supply

This serial single output switch power supply is a kind of DC regulated power supply with high efficiency and stability. It can be acted both as constant voltage as well as constant current dc power supply. For this serial power supply,it has perfect protection circuit, can be used in many areas.

Feature

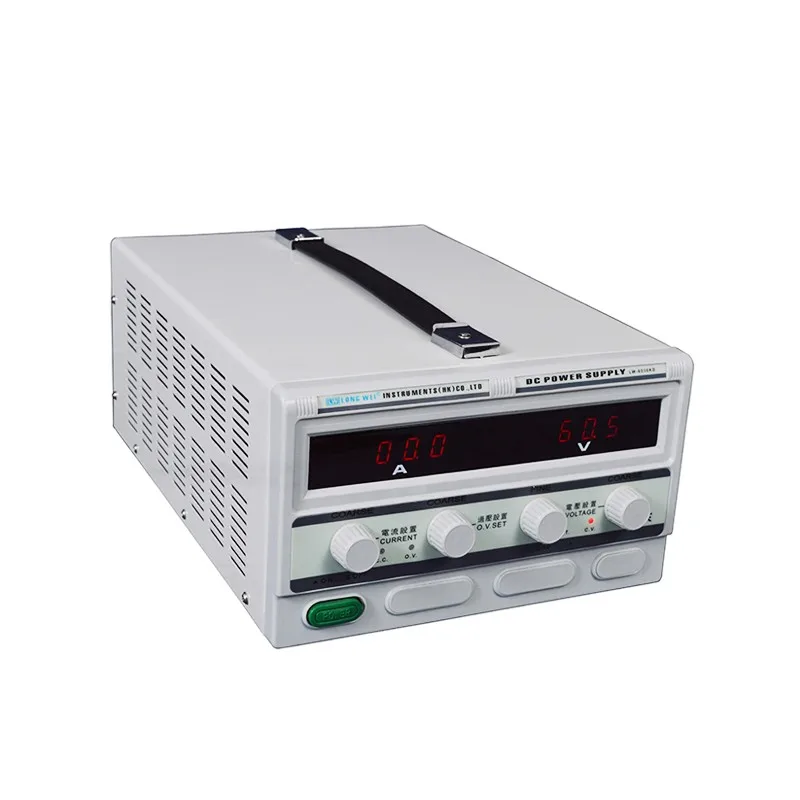

1. High-precision LED digital display, intuitive and clear.

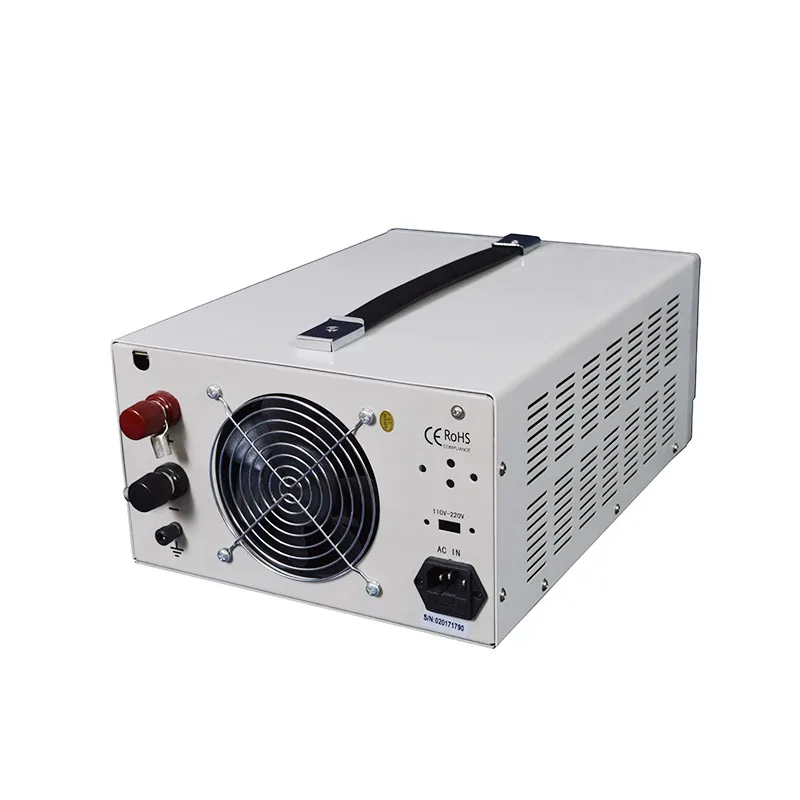

2. The intelligent temperature-controlled fan of 12 cm has excellent heat dissipation effect, effectively extending the life of the fan and reducing noise.

3. The use of advanced technology has effectively reduced the weight of the power supply and facilitated the movement of the power supply.

4. Multiple protection functions, adjustable over-voltage protection (OVP), current-limit protection (OCP), over-temperature protection (OTP), and over-power protection (OPP).

5. Plastic panel, more beautiful, handle design, more convenient to carry.

Application areas:

1. Charge the battery.

2. Car DVD, car audio.

3. Product aging, such as resistors, capacitors, relays, DC motors, etc.

4. Electrolysis, electroplating, PCB manufacturing.

5. Laboratory, factory, maintenance power supply.

6. All other occasions that require a DC regulated power supply.

Technology Parameter

Type	LW-6030KD
Input voltage	single-phase 220V±10% 50Hz or 110V±10% 60Hz
Output voltage	0-60V adjustable
Output current	0-30A adjustable
Working conditions	-10 C -40 C
relative humidity	< 90%
Storage conditions	-20 C-80 C
relative humidity	< 80%
Load stabilization	≤0.5%
Ripples and noises	≤1 %( RMS)
Surge Current	30A/115V, 60A/230V (cold-start)
Input Leakage Current	<0.7mA/230V
Withstanding voltage test
From input to output voltage	1.5KVAC/min
From input voltage to case	1.5KVAC/min
From output voltage to case	500VAC/min
