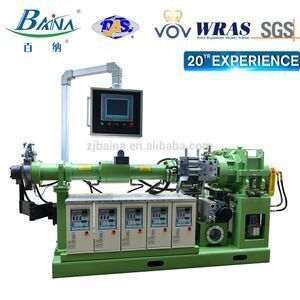

Chinese famous brand rubber extrusion machine cold feed rubber extruder
-
Supplier: Zhejiang Baina Rubber & Plastic Equipment Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Gallen Woo -
Price: $46000.00 /set -
Min. Order: 1 set
Product details
| Condition: | New; | Power(W): | 75 kw; |
| Packaging Detail: | wooden pallet; | Brand Name: | BAINA; |
| Delivery Detail: | 60 working days; | Screw diameter: | 90mm; |
| Supply Ability: | 10 Set/Sets per Month; | Payment Terms: | L/C,T/T; |
| Dimension(L*W*H): | 3200*1200*1620mm; | Type: | Rubber Extruder; |
| Weight: | 3500 kgs; | Screw speed: | 2-55; |
| Voltage: | Customer Request; | Place of Origin: | Zhejiang China (Mainland); |
| color: | based on customer demand; | L/D: | 20:1; |
| Model Number: | BNE90-01-00; | capacity: | 320kg/hour; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Gear reducer: | 18.5:1; |
| Vacuum system: | YES; | Condition: | New; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Warranty: | 2 Years; |
| Port: | Ningbo port,china; | Certification: | CE ISO SGS; |
Product Description
Chinese famous brand rubber extrusion machine cold feed rubber extruder
Parameter
Our production line has the model:
| Item | Quantity (set) |
| 1. 90 mm cold feed vacuum extruder+ Standard head | 1 |
| 2. 3 M high-temperature forming machine | 1 |
| 3. 8.9 m 12KW microwave vulcanization oven | 1 |
| 4. 8.9 M Hot air vulcanization oven | 2 |
| 5. 4 m Cooling water tank with drying | 1 |
| 6. Traction machine | 1 |
| 7. 16 P Chiller | 1 |
| 8. PLC control | 1 |
Various types of basic parameters:
| Item | Diameter of screw (mm) | L/D ratio | Speed of screw (r/min) | Driving power (KW) | Max output of production (kg/h) | Weight (kg) |
150mm 20D (vacuum) | 150 | 20:1 | 0-45 | 160 | 1000 | 6500 |
| 150mm 16D | 150 | 16:1 | 0-45 | 132 | 800 | 6500 |
120mm 20D (vacuum) | 120 | 20:1 | 0-50 | 110 | 700 | 5200 |
| 120mm 16D | 120 | 16:1 | 0-50 | 110 | 600 | 5200 |
90mm 20D (vacuum) | 90 | 20:1 | 0-55 | 55 | 320 | 3200 |
| 90mm 16D | 90 | 16:1 | 0-55 | 55 | 280 | 3200 |
75mm 20D (vacuum) | 75 | 20:1 | 0-55 | 37 | 160 | 1200 |
| 75mm 16D | 75 | 16:1 | 0-55 | 37 | 140 | 1200 |
| 50mm 12D | 50 | 12:1 | 2-70 | 7.5 | 50 | 600 |
