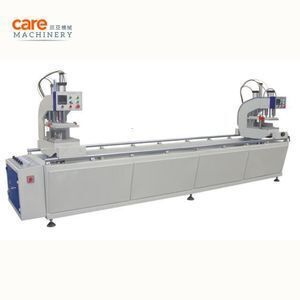

Double Head UPVC PVC Window Welding Making Machine

Product details
Production Capacity:100%;Warranty:1 Year;
Condition:New;Power supply:220V 50Hz;
Certification:ce;Applicable Material:PVC,UPVC;
Air pressure:0.5-0.8MPa;Packaging Detail:1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;;
Brand Name:Care;Weight:1200kg;
Welding length:400-3500mm;Power(W):2.5kw;
Dimension(L*W*H):4300x1100x1700mm;After-sales Service Provided:Online support,Video technical support;
Application:Weld Upvc Window;Supply Ability:20 Set/Sets per Month;
Welding scale:100x120mm;Applicable Industries:Building Material Shops,Manufacturing Plant,Construction works ;
Port:Qingdao Port;Product name:Double Headed Welding PVC Window Corner Fabrication Machine;
After-sales Service Provided:Engineers available to service machinery overseas;Voltage:380v;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Weight:1200kg;
Key Selling Points:Easy to Operate;Input Power:2.5kw;

Double Head UPVC PVC Window Welding Making Machine

Product parameter

 It is a special machine for welding PVC/UPVC/Plastic /Vinyl doors and windows. It can weld and the combination, programming control and pneumatic driving system are used to achieve the high reliability, easy operation and large processing range, The 4 heads can work individually, simultaneously or combinative.


Power 2.5kw
Voltage220V/50HZ
Air pressure0.5-0.8MPa
Welding profileH=20-120mm, W=0-120mm
Welding length400-3500mm
Dimension4300x1100x1700mm
Weight1200kg



Product detail



Products Features



1,Suitable for welding common PVC profile,color coated PVC profile and laminated PVC profile(single side seamless welding optional).
2,Adopt programmable logic controller (PLC) ensures the machine running more stable and reliable.
3,Double pressing function ensures higher welding strength.
4,The pressure of front and back clamper is adjusted separately, so as to improve the planeness of the welding corner.
5,The heads are operated individually, together.
6,Second head can move horizontally, so that realize various kinds of welding combination.
7,The second head can be used for welding variable angle with the special mold and the angle range from 30°~180°.(optional).
8,Ultra big welding scale customization available.
