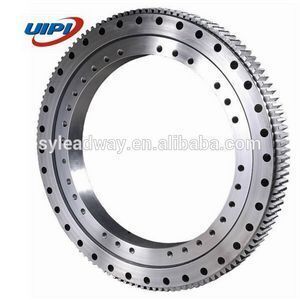

1 Year Warranty Swing Bearing for Komatsu Excavator

Supplier: Shenyang Leadway Machinery Equipment Co., Ltd.
Region: Liaoning, China
Contact: Ms Christina Guan
Price: $900.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Service:	Design, Manufacturing, Customized;	Gear Options:	External Gear Only;
Material:	GB42CrMo(DIN42CrMo4/BS708A42/AISI4140);	Product Name:	1 Year Warranty Swing Bearing for Komatsu Excavator;
Port:	Shanghai;	Packaging Detail:	Before warpping, every slewing bearing should be painted rust-preventive lubricant. 1st: plastic film 2nd: kraft paper 3rd: blue blet 4th: International Standard Wooden Case for by Sea or by Air;
Bearing type:	Single Row Four Point Contact Slewing Bearing;	Certificate:	API Q1 & ISO9001:2008;
Core Hardness:	245-275 HB;	Raceway Hardness:	55-60HRC;
Seals Type:	Rubber Sealed;	Supply Ability:	100 Piece/Pieces per Month 1 Year Warranty Swing Bearing for Komatsu Excavator;
Type:	Slewing Bearing;	Brand Name:	Leadway;
Place of Origin:	Henan China (Mainland);	Model Number:	OEM;
Brand Name:	UIPI;	Application:	For Crane Attachment;
Product Number:	EGSBM 945 734 56/ 9E-1B20-0844-0585-1;	Feature:	Four Point Contact;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Product Description

Swing bearings are large-sized bearings which can accommodate a combined load, i.e., radial loads and tilting moment.

They are usually provided with holes for fixing bolts; internal, external or no gear; and lubrication holes and seals, which allow

a compact and economical arrangement. In additon they often enable the elimination of many components necessary in the

classical bearing arrangement.

Product Name	1 Year Warranty Swing Bearing for Komatsu Excavator
Model Number	EGSBM 945 734 56
Reference Number	PSL 9E-1B20-0844-0585-1
Application	For Crane Attachment
Gear Option	External Gear Only
Seal Type	Rubber Sealed
Features	Single Ball Four point contact
Brand	Leadway
Outer diameter:	944.88 mm (37.2")
Inner diameter:	734.06 mm (28.9")
Height:	55.88 mm (2.2")
Axial play:	0.00 mm~0.20 mm
Radial play:	0.00 mm~0.20 mm
Core hardness:	245~275 HB
Raceway Hardness:	55 ~ 60 HRC
Raceway Effective depth	≥2.5 mm
Material:	GB42CrMo (DIN42CrMo4/BS708A42/AISI4140)
Standard	EN 10204 2.2; EN 10204 3.1.B ; EN10204 3.1.C
Heat treatment	Quenching and tempering Raceway induction quenching
Operating Temperature	-40℃ to +50℃
Grease	EP2 lubricating lithium grease
Weight	66.2 KGS
Place of Origin	Luoyang, Henan, China
Certificate	API Q1 Certificate (American Petroleum Institute) Quality Assured Firm Qualified to be used in Petroleum machinery equipment. ISO9001:2008 Certificate
Services	OEM Service, Customized Service, Design Service

Applications

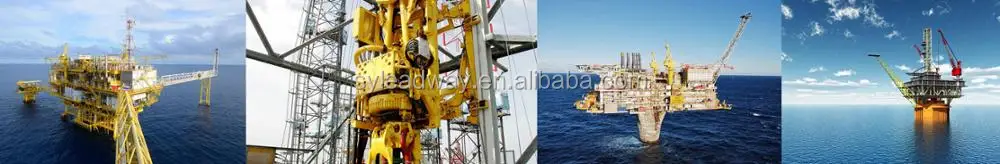

Leadway’ facility manufactures large diameter ball and roller bearings, and our slewing bearings have proven effectiveness in many applications such as below:

Combining compactness, accuracy, smooth operation with relative high rigidity, together with simple mounting and operation reliability are qualities that allow use of these bearing in all industrial branches.
