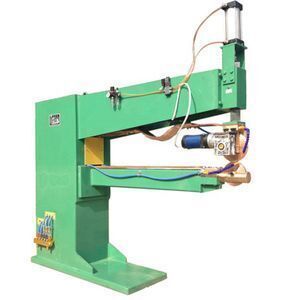

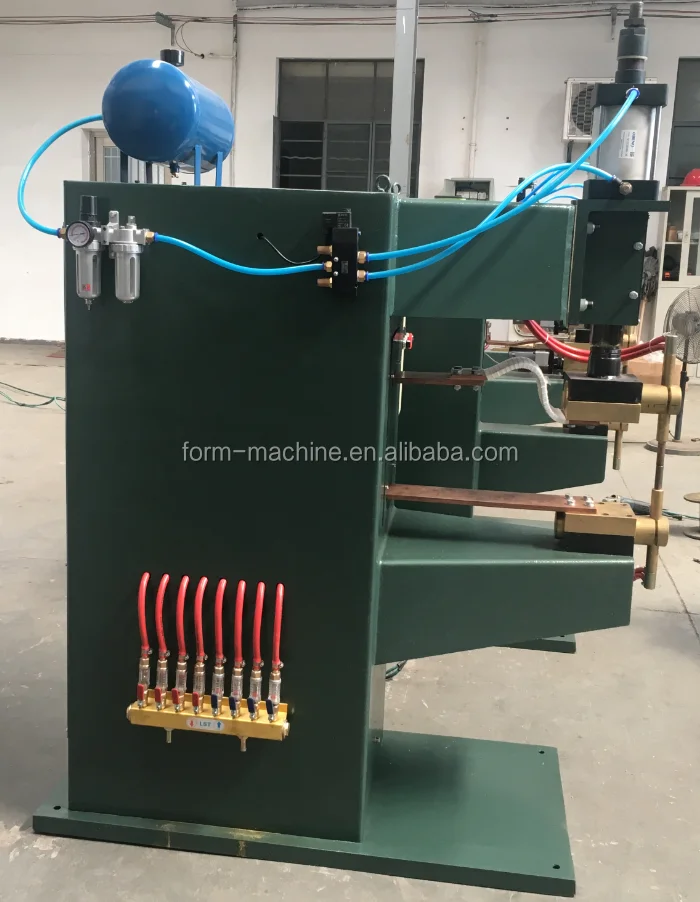

costly water can making Rolling welding machine,Seam welder FN-75 with high quality

Supplier: Metform (Shanghai) Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr Chartter Xu
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	ISO9001:2008;
Welding Mode:	dock;	Voltage:	380V/240V/220V;
Welding Diameter:	80mm;	Name 2:	seam welding machine, rolling welding machine, Seam welder FN-75;
After-sales Service Provided:	Online support,Video technical support;	Power(W):	1.5KW;
Weight:	390kg;	Dimensions:	1688800600;
Arm length:	350mm;	Condition:	New;
Port:	shanghai;	Brand Name:	metform;
model:	FN-75;	Usage:	welding can;
key word:	seam welding machine;	Rated input capacity:	75KVA;
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant;	Warranty:	1 Year;
product name:	seam welding machine, rolling welding machine, Seam welder FN-75;	Supply Ability:	100 Set/Sets per Month Rolling welding machine;
Forming Time:	1MIN;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Packaging Detail:	fumigation-free wooded box for Rolling welding machine;	Place of Origin:	Shanghai China;
max. Thickness of metal sheet:	2+2mm;	brand name:	Metform Machinery;

costly water can making Rolling welding machine,Seam welder FN-75 with high quality

Product Description

Metform machinery longitudinal seam welders provide a solution to these problems. They optimize the welding process, reduce welding costs and improve theweldingquality They are designed for the straight line welding of all weldable materials in thicknesses varying from 0.1 mm to 10 mm. Thicker materials can be accommodated using Metform 's unique mandrel adjustment capability.Adopt key pressure structure. Equal stable clamping and cooling effect. Crossbeam and welding cart supply precise welding. Used for high quality

and low deformation longitudinal beam welding. In most cases, butt joint design welding seam.

Rated input capacity 50KVA

Rated input voltage 1-380V/50HZ

Rated load cycle 50%

Max.input capacity 50KVA

Max.short circuit current 93A

Max.pressure of electrode 600kgf

The flow of cooling water 6L/min

Arm length 350mm(can be customized)

max. Thickness of metal sheet: 1.2+1.2mm

Model NO.	FN-35	FN-50	FN-75	FN-100	FN-150
Rated primary voltage	380V	380V	380V	380V	380V
Rated capacity	35KVA	50KVA	75KVA	100KVA	150KVA
Rated primary current	95A	135A	200A	265A	400A
Secondary no load voltage	5.3V	6.0V	6.3V	7.0V	7.5V
Adjust method	electrodeless adjust
Duty cycle	50%	50%	50%	50%	50%
Max. welding thickness(mm)	0.5+0.5	1.5+1.5	2.0+2.0	2.5+2.5	3.0+3.0
Max. force electrodes	3000N	3000N	4700N	6100N	10000N
Throat depth	Negotiation
The distance of the electrodes	Negotiation
Welding speed	2m/min	2m/min	1.5 m/min	1.5 m/min	1.5 m/min
