High Quality Aluminum Flexible Duct Machine Manufacturer

Supplier: Metform (Shanghai) Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr Chartter Xu
Price: $11000.00 / 1 - 4 sets
$10000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Maximum shrinkage capacity (diameter) (mm):	110 mm	Health status:	new
Main selling point:	competitive price	payment terms:	L/C,Western Union,D/A,T/T,MoneyGram
Minimum order quantity:	1 set	Showroom location:	not any
Packaging Details:	Hyward Packaging Aluminum Flexible Duct Machine	port:	Shanghai
Power (kW):	7.5	Core Components Warranty:	1 year
port:	Shanghai	Function:	Tube forming
Mechanical test report:	if	Material/Metal Finishing:	Aluminum, carbon steel
place of origin; place of origin:	China	Maximum shrinkage capacity (thickness) (mm):	0.4 mm
Packaging Preview:		brand:	Equipment
Warranty:	1 year	Video external inspection:	if
Core components:	PLC, bearing, gearbox	color:	optional
Marketing Type:	normal product	Strip width:	36mm
Weight (kg):	700	product name:	Aluminum Flexible Duct Machine
control:	touch screen	Supply capacity:	10 aluminum flexible duct machines per month
automation:	semi-automatic	Voltage:	220V/380V/415V/440V/custom
place of origin; place of origin:	Shanghai	Applicable industries:	Building material stores, manufacturing plants, mechanical repair shops, construction works
Raw materials:	Sheet/Platform Rolling

Product Description

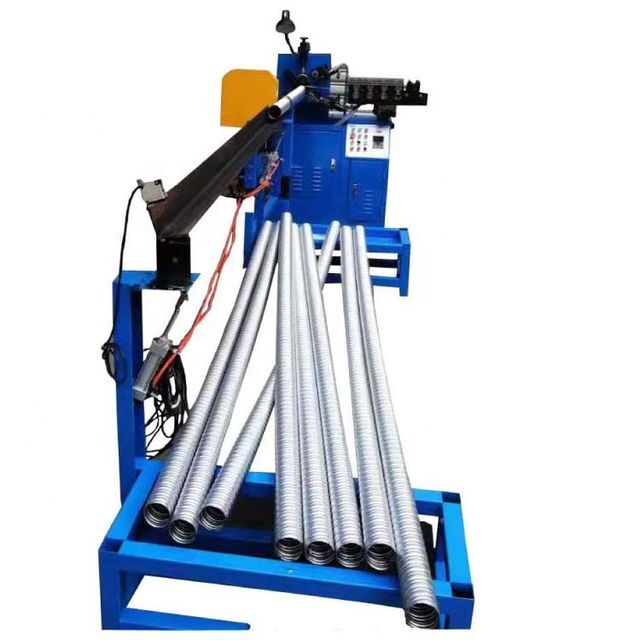

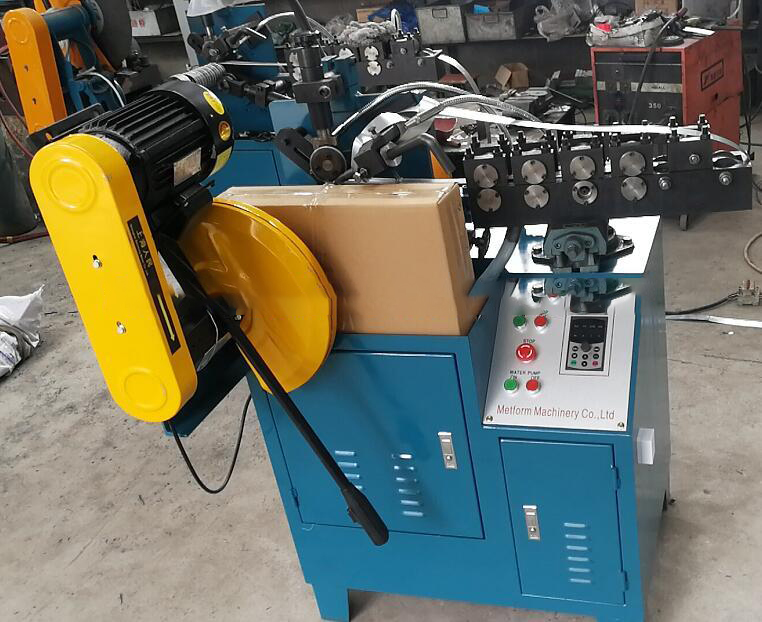

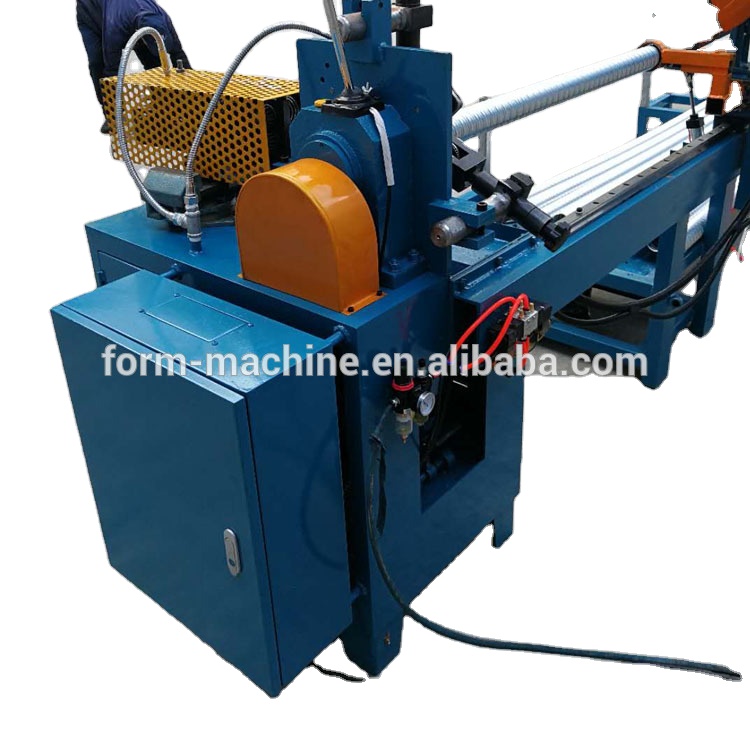

Post-tensioning duct machine

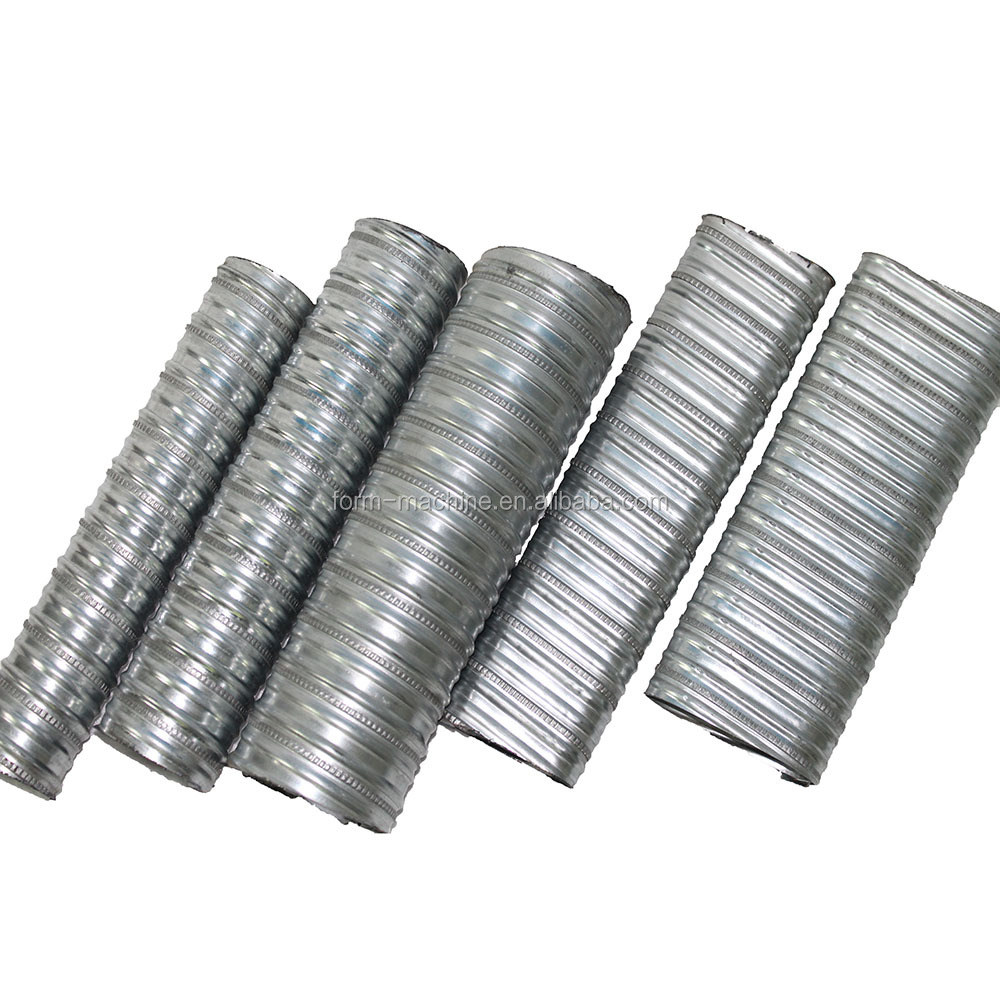

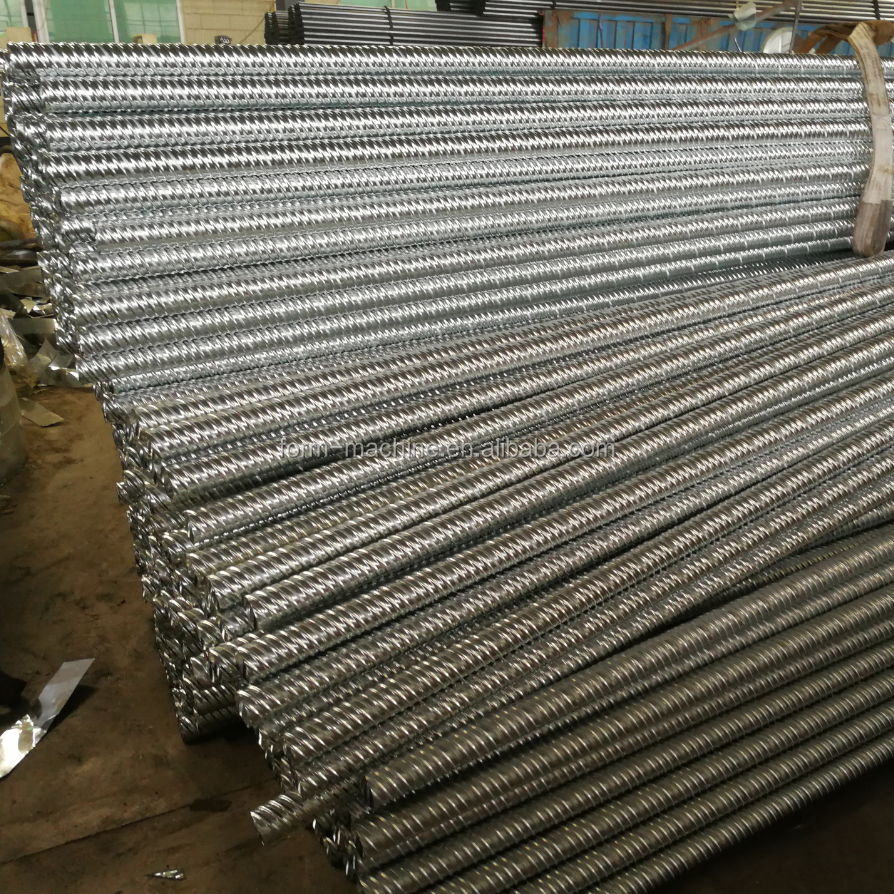

With the metform post-tensioning pipe machine, flexible pipes for the construction industry to leave space under concrete are produced.

Due to the grooves, crush resistance is provided. Due to the flexibility of the piping, additional equipment such as elbows is not required.

Use larger diameter pipes to tighten to connect flexible pipes. The upper diameter channel acts as a casing, thus extending the length of the pipes by connecting them to each other.

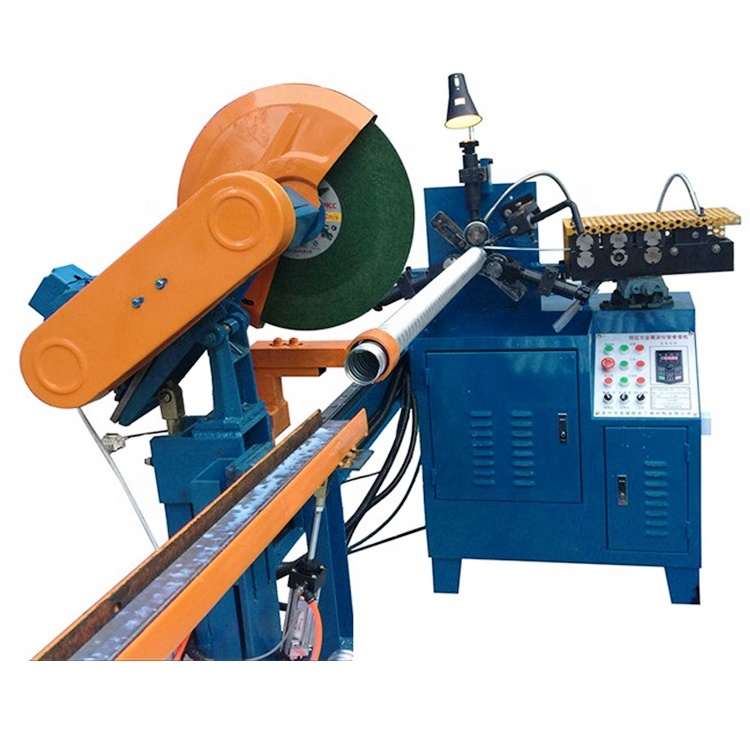

The flexible cutting process will use a saw in the machine for cutting. Faster and more cost-effective.

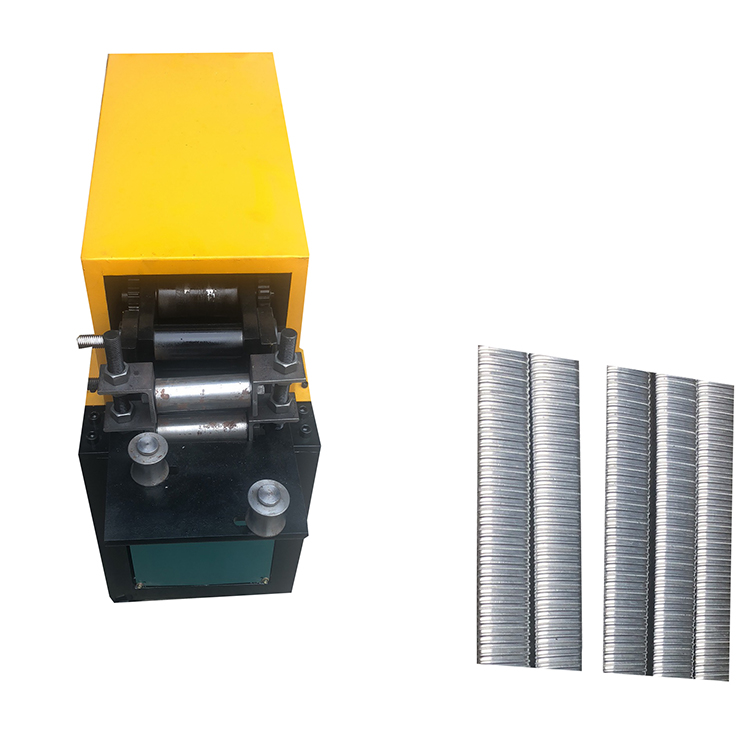

Flat tube machines are also available. as follows.

Model	ST02-110	ST02-135
Strip width	36mm fixed	36mm
Strip thickness	0.2-0.35mm	0.2-0.5mm
Pipe diameter	φ30-φ110	φ30-φ130
Pipe distance	28mm	28mm
Fitting pattern	double lock	double lock
weight	500kg	700kg
Dimensions	160013001600mm	160013001600
Tube rolling speed	13.5m/min (max)	10.5m/min (max)
Main motor: model	Y112M-4	Y112M-4
strength	4.5kW	7.5kW
Rotating speed	1440r/min, frequency conversion control	1440r/min, frequency conversion control
Number of beads	4	4
Cutting Motor: Model	Y90L2	Y90L2
strength	1.5KW	1.5kW
Rotating speed	2840 rpm	1280 rpm
Lubrication Cooling Electric Oil Pump: Model	DB-12A	DB-12A
strength	80W	80w
flow	12L/min	12L/min
Voltage	380V	380V
