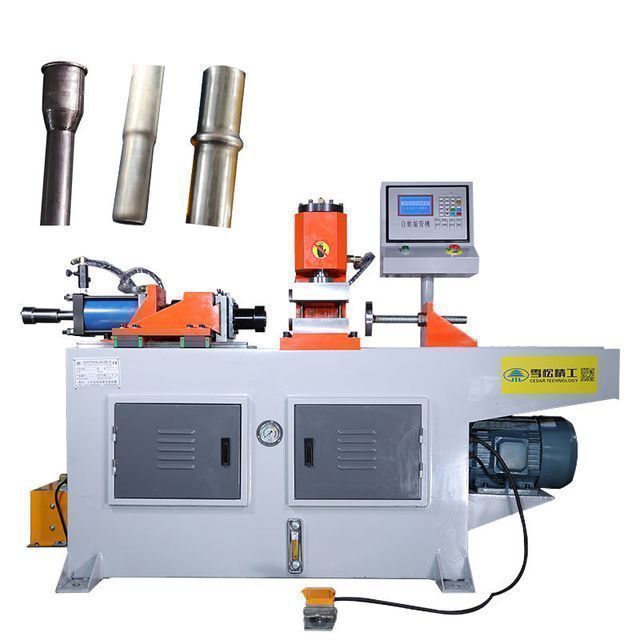

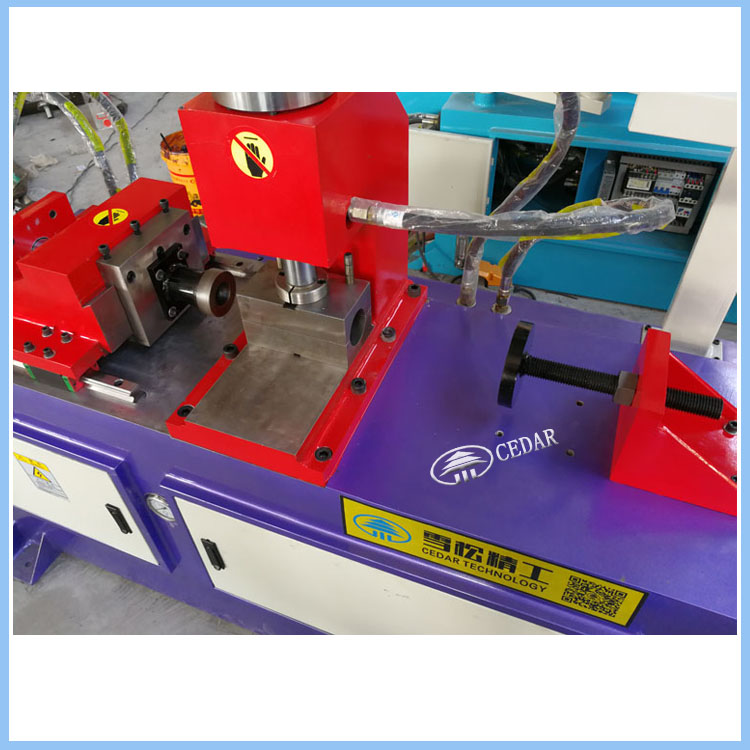

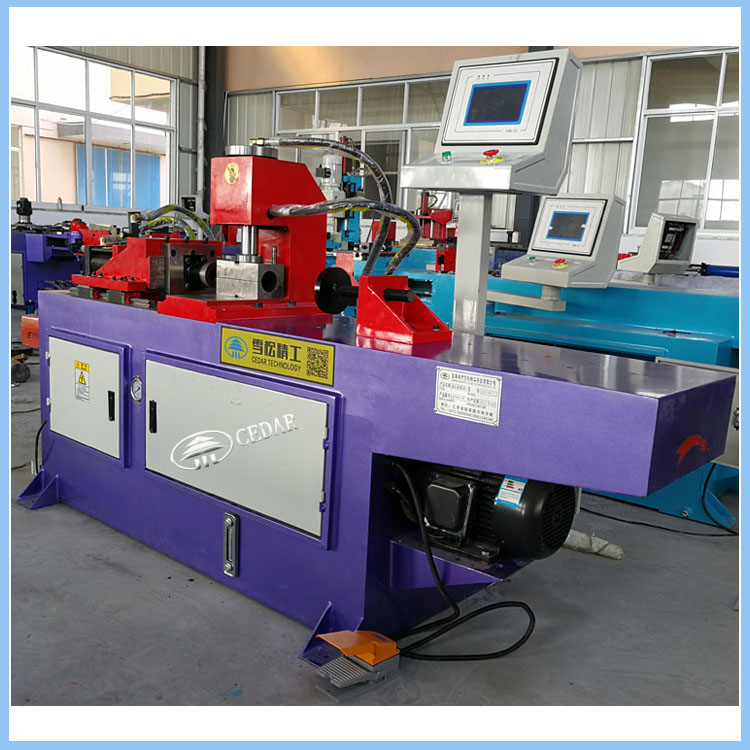

China Suzhou Tube End Forming Machine Tapered Tube Reducer For Reducing Expansion Flanging

Supplier: Zhangjiagang City Cedar Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms Shelly SHI
Price: $4500.00 / 1 - 4 sets
$4200.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Power (kW):	4	Packaging Details:	plywood case
Mechanical test report:	if	Video external inspection:	if
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Marketing Type:	New Products 2021

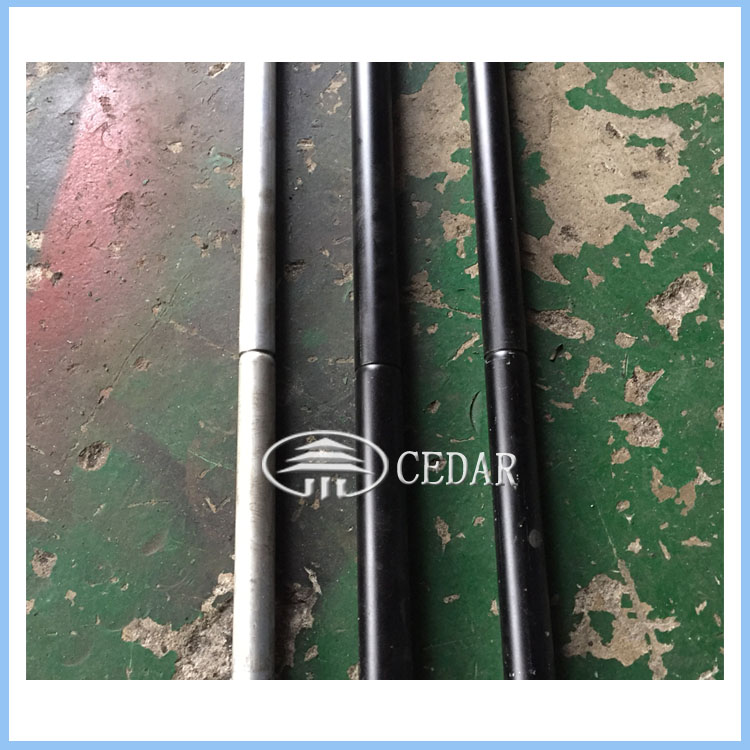

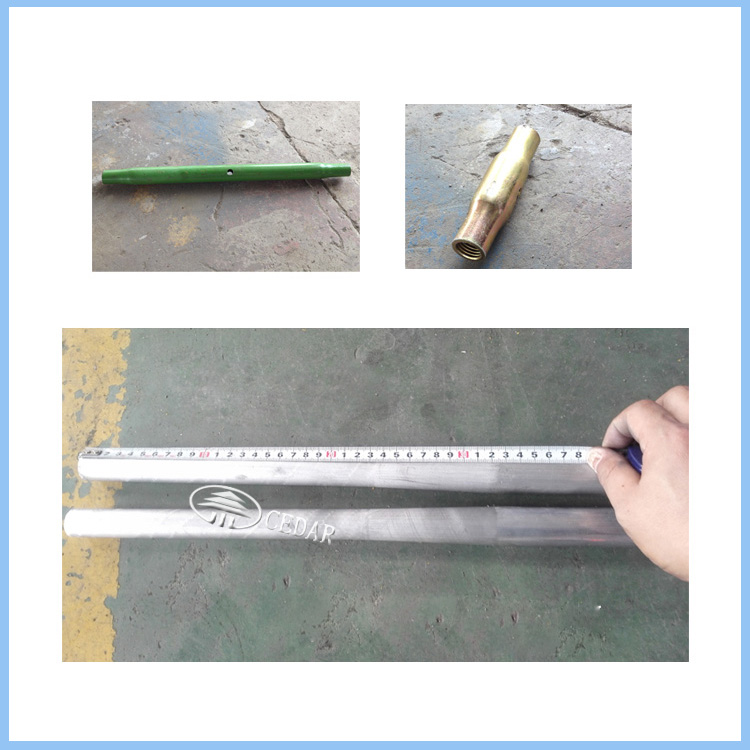

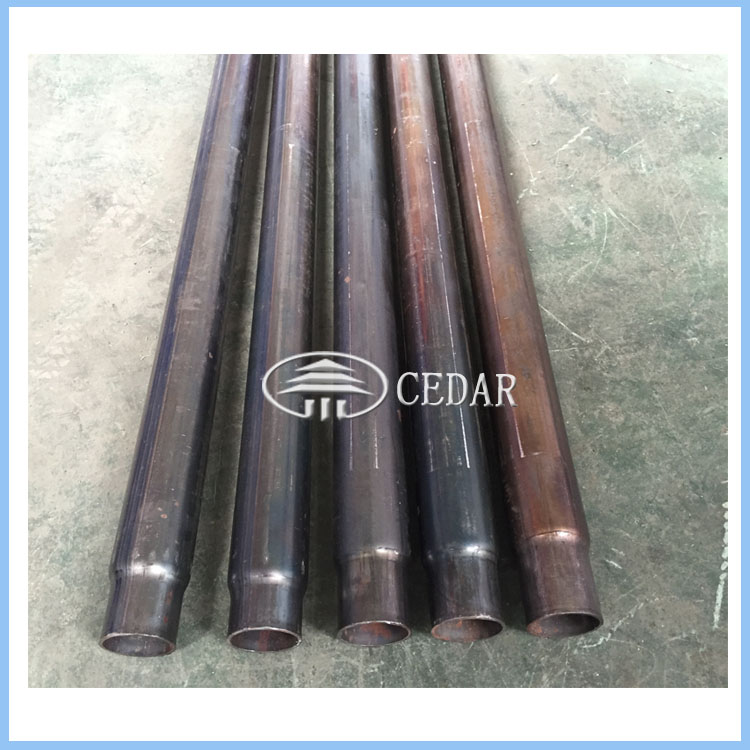

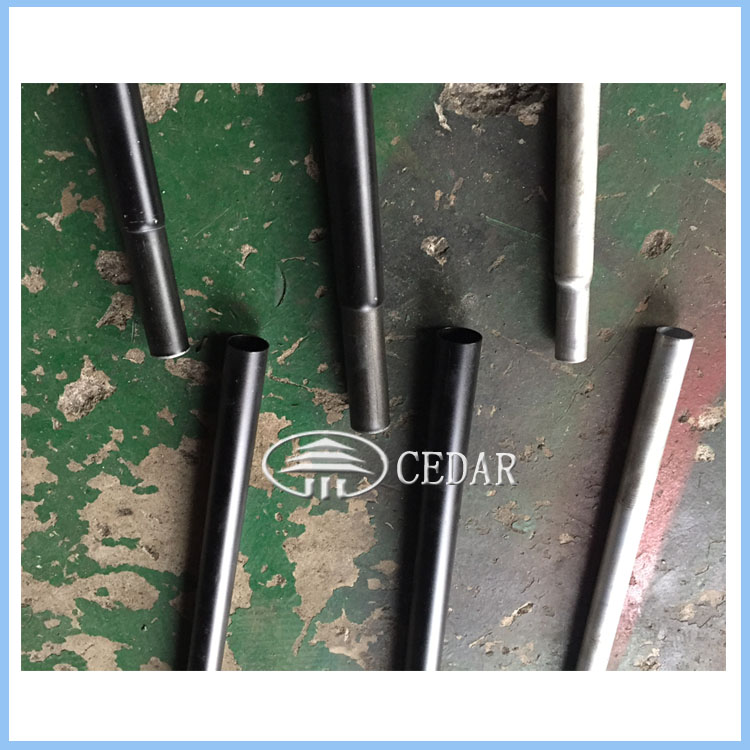

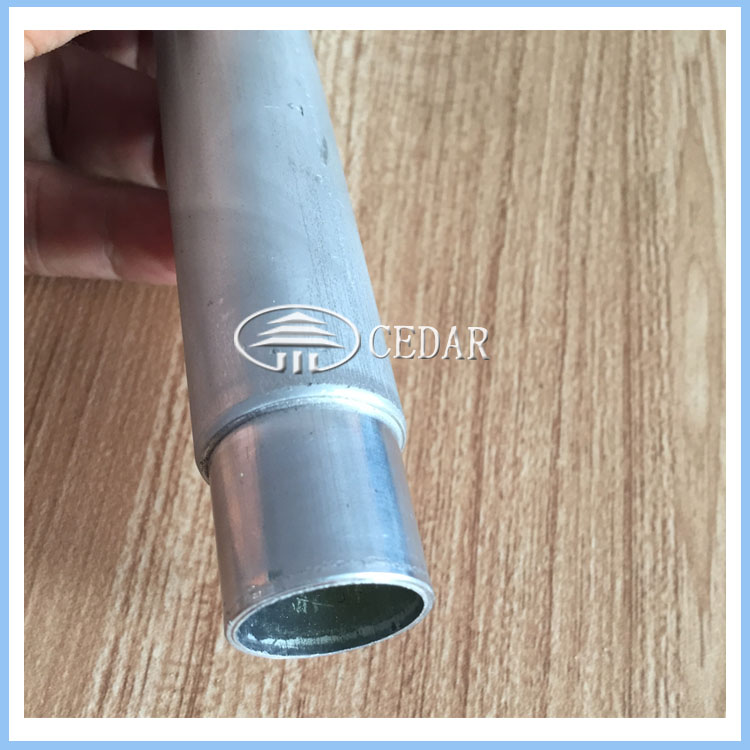

Function:	Shrink tube, expand tube, expand tube	application:	Pipe joints, batons, pipe covers, chair legs
Maximum shrinkage (thickness) (mm):	2.5 mm	Material/Metal Processing:	Stainless steel, aluminum, aluminum alloy, carbon steel
Maximum shrinkage capacity (diameter) (mm):	40 mm	After-sales service provided:	Engineers available to service machinery overseas
brand:	cedar	port:	Shanghai
Warranty:	1 year	Oil output:	14Mpa
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Other, Advertising company	Speed of work:	110MM in3-4sec
maximum. Tube shrinkage length (mm):	100	Showroom location:	not any
Weight (kg):	1050	year:	2021
Health status:	new	Raw materials:	pipeline
Main selling points:	automatic	Oil:	Use 32# engine oil and YA-N46 hydraulic oil
Type of machine:	Tube End Forming Machine	Additional services:	Machining, End Forming, Forging
place of origin; place of origin:	Jiangsu, China	automation:	automatic
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Core component warranty:	1 year
Name:	Suzhou pipe end forming machine taper shrinking machine

Precautions:

1. When the machine is working, it is forbidden to enter its action area.

2. The operator should stand within the range of the emergency stop switch.

3. The unit must run exclusively;

4. Please turn off the power when the machine fails.

5. Keep the machine and environment clean;

6. For safety reasons, please turn off the power when installing the mold.

7. Check the oil level on the oil level before use, and keep the hydraulic oil level above 2/3.

8. Put the machine on a firm ground and adjust the level to make the machine more stable.

9. Check the steering of the motor, if it turns in the wrong direction, adjust the wiring.

10. When the machine is automatic, please confirm the accuracy of the input data.

11. When using the button, please touch it lightly and do not press it hard.

Model\Specification	TM value40	TM value60	TM value80	TM100
Maximum Applicable Fittings	40×2.0MM	60×3MM	80×3.5MM	100*3.5
Maximum working stroke	110mm	120mm	130mm	150mm
Oil output	14Mpa	14Mpa	14Mpa	20Mpa
Speed of work	110MM in3-4sec	110MM3-4 seconds	110 mm in3-4 sec	100 inches 3-4 seconds
Machine size (CM)	200×55×130	220×70×150	240×90×160	300×120×180
Machine size	4.0 kW	5.5kW	7.5 kW	11KW
Oil pump capacity	19L	23L	29L	33L
machine weight	About 700KG	About 1300KG	About 2000KG	About 26000KG

FAQ

choose us

Q: How to quickly choose the most suitable product for me?

A: You can check it on the product page, or contact customer service +8618021646346 and inform the following details: What machine do you need? The size, thickness, material, and processing requirements of the workpiece, it is best to have a drawing of the workpiece, and we will provide more professional machines according to your requirements.

payment method

Q: What's your payment terms?

A: We support TT such as T/T, L/C, 30% in advance, and 70% balance before shipment.

delivery guarantee

Q: What's the delivery time?

A: Usually in stock, if you need to order jigs and molds, we usually make it within 7-15 working days. For customized products, please contact customer service to determine the specific time.

Guarantee of use

Q: When I first bought this machine, I didn't know how to use it. what do I do?

A: We will send English manual, installation and operation video with the equipment. If you still have questions, we can chat by phone, Whatsapp, Wechat and email.

quality assurance

Q: How to guarantee the quality?

A: We have factories. We are industry experts and have been in business for over 10 years. We always adhere to the policy of "high quality, full service".

warranty service

Q: How long is the warranty period?

A: Within one year from the date of delivery, if the parts are faulty or damaged

(Except for wearing parts due to quality problems), our company provides it free of charge.

Company visit

Q: How can we contact your company?

A: Our company is located in Zhangjiagang City, Jiangsu Province, near Shanghai. You can fly directly to PVG Airport or Shanghai Hongqiao Airport. Welcome to visit our company.
