90 - 315mm hdpe pipe butt fusion welding machine plastic pipes and fittings hydraulic butt welding machine

Supplier: Hebei Boda Plastic Technology Co., Ltd.
Region: Hebei, China
Contact: Mr David Xue
Price: $1800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	shanghai,qingdao,tianjian;	G.Weight/PKG:	220Kg;
Volume:	1.07CBM;	Brand Name:	MM-Tech;
Payment Terms:	L/C,D/P,T/T;	Supply Ability:	1000 Set/Sets per Month Hdpe Hydraulic Butt Fusion Welding Machine /pe Pipe Welding Mach;
HDPE Pipe Welding Machine Color:	Red\Blue\Green;	Pipe size(mm):	90,110,125,140,160,180, 200,225,250,280,315;
Input Voltage:	220V;	Pressure adjustable Ranges:	0-6.3Mpa;
Power:	5.85kw;	Place of Origin:	Hebei China (Mainland);
After-sales Service Provided:	Engineers available to service machinery overseas;	For Application Range:	315-630MM;
Condition:	New;	Packaging Detail:	wooden case;
Warranty:	2 Years;	Model Number:	SWT-B450/200H,SWT-B500/200H,SWT-B630/315H;
Heating plate max. temp:	270°C;	Certification:	CE ISO;
Dimensions:	945645680mm;	Product Name:	butt welding machine;
Usage:	Tube Welding Machine;	After-sales Service Provided:	Field installation, commissioning and training;

Product Description

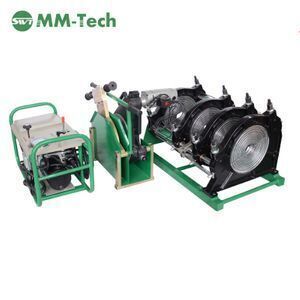

SWT-B315/90H Hydraulic Butt Fusion Welding Machine

Application and Features

1.Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
2.Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
3. Removable PTFE coated heating plate with high accurate temperature control system;
4. Electrical planing tool.
5. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
6.Low starting pressure ensures reliable welding quality of small pipes.
7.Changeable welding position enables to weld various fittings more easily.

8.High accurate and shockproof pressure meter indicates clearer readings.

9.Separate two-channel timer records time in soaking and cooling phases.

Optional parts:
1. Tube end device for short flange.

2. Data logger.

Technical Parameters

Pipe size(mm)	90,110,125,140,160,180, 200,225,250,280,315	Heating plate max. temp.	270°C
Working voltage	220V,50/60Hz	Heating plate power	3.0KW
Temp. deviation in surface (170-250°C)	<±7°C	Hydraulic unit power	0.75KW
Pressure adjustable Ranges	0-6.3Mpa	Planing tool Power	1.1KW
G.Weight/PKG	220Kg	Total power	4.85KW
Package	3Wood Case	Volume	1.07CBM
