SWT-V160/63H HDPE butt fusion Welding Machine HDPE, PP, PPH, PPR, MPDE & polymer pipes

Product details
Brand Name:MM-Tech;Weight:130KG;
Selling Units:Single item;ORIGINAL:China;
DELIVERY:OCEAN SHIPPING;Usage:welding plastic pipe and fittings HDPE,PP,PVDF;
Package Preview:;Place of Origin:China;
PIPE SIZE:63-160 mm;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
PAYMENT:western union,PayPal, T/T;Package Type:WOODE CASES;
Certification:ISO;Applicable Industries:Energy & Mining,Advertising Company;
Power of Heating Plate:1.2KW;Warranty:2 Years;
Tube Diameter:63-160MM;Voltage:220V;
Single gross weight:130 KG;PACKAGE:WOODEN CASES;
Temperature Range:0℃~270℃;Single package size:95X65X68 cm;

HDPE PIPES & FITTINGS BUTT FUSION WELDING MACHINE,butt welding of plastic pipes,Full automatic butt fusion welding machine with thermal printer,HDPE PIPE JOINTING MACHINE,Polypropylene pipes thermofusion welding equipment,



As our welding machine is weight and air freight is very expensive ,


so we just provide free shipping with you by sea .


If you  prefer to by air , Pls tell us before payment so that  we can charge the air freight for you .


Thank you in advance .

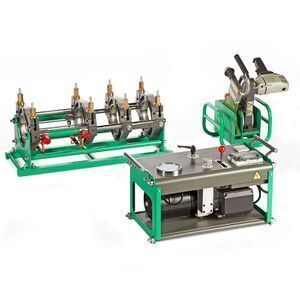

SWT-V160H (63-160mm) Hydraulic Butt Fusion Machine


SWT-V160H is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without
any additional equipment by simply adjusting the clamps drag bar.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.

Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

V160 includes:

*A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
*A Teflon coated heating plate with separate temperature control system;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.

Available options:

Data logger;
Support roller;
Stub end holder;
Different inserts (single insert, ISO inserts).


Welding Range63mm~160mm
Reducing Inserts63mm-75mm-90mm-110mm-125mm- 140mm
Ranges of applicationPE,PP and PVDF
Working voltage~220V±10%,50/60Hz
Total power2.95 kW
planning tool1 kW
 heating plate 1.2 kW
hydraulic unit motor0.75 KW
Environment temperature-10° ~ 45°

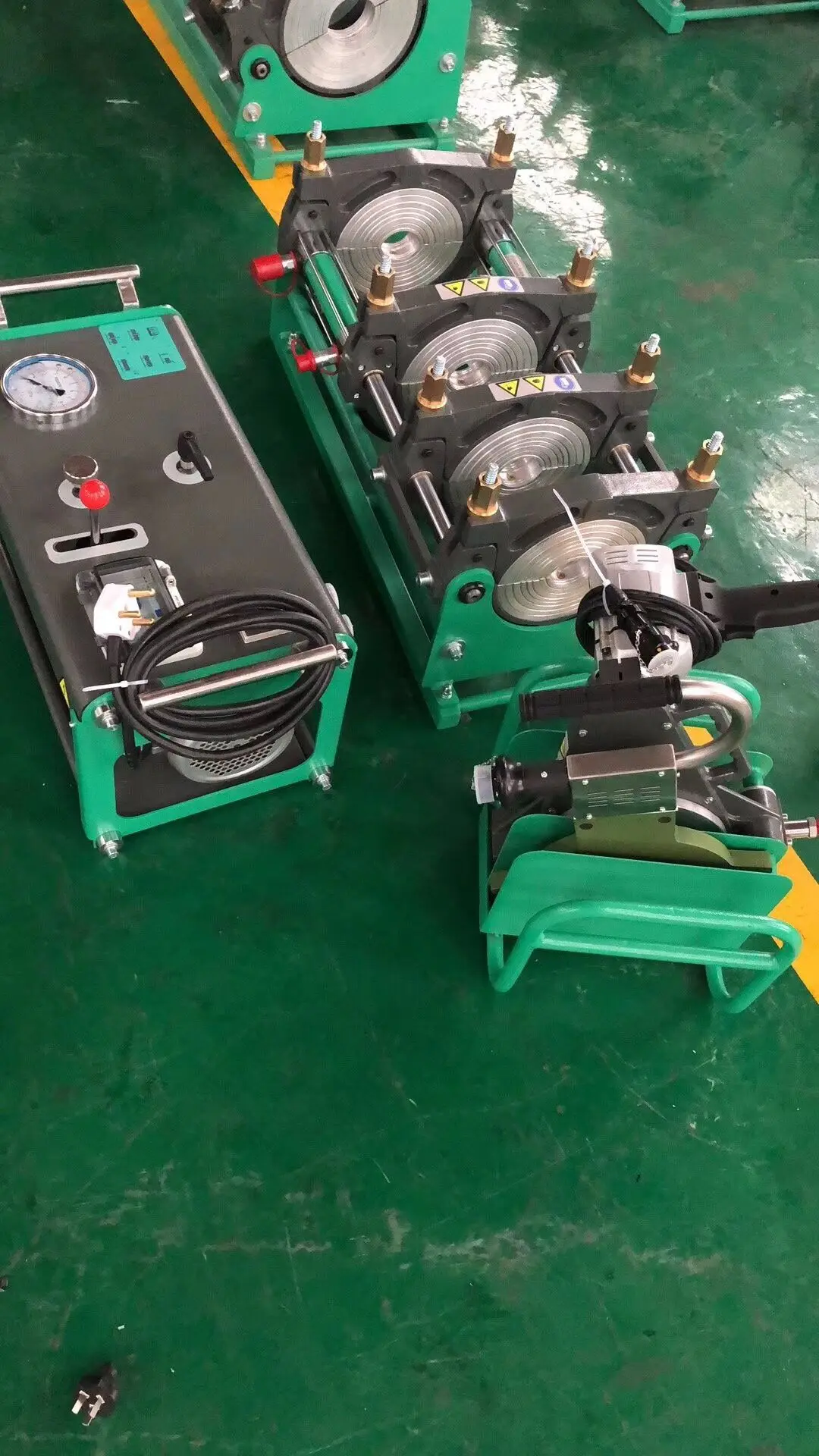

 Images of high density polyethylene Pipe Jointing Machine:

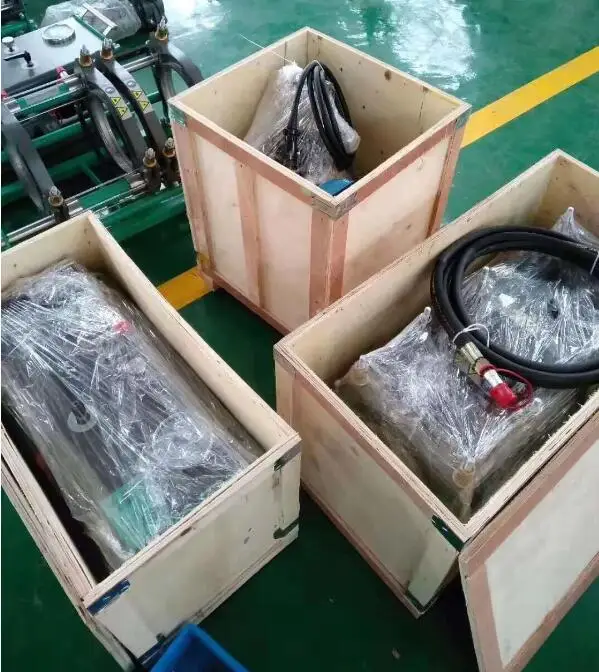

Packaging of Butt-fusion jointing of polyethylene (PE) pipes:

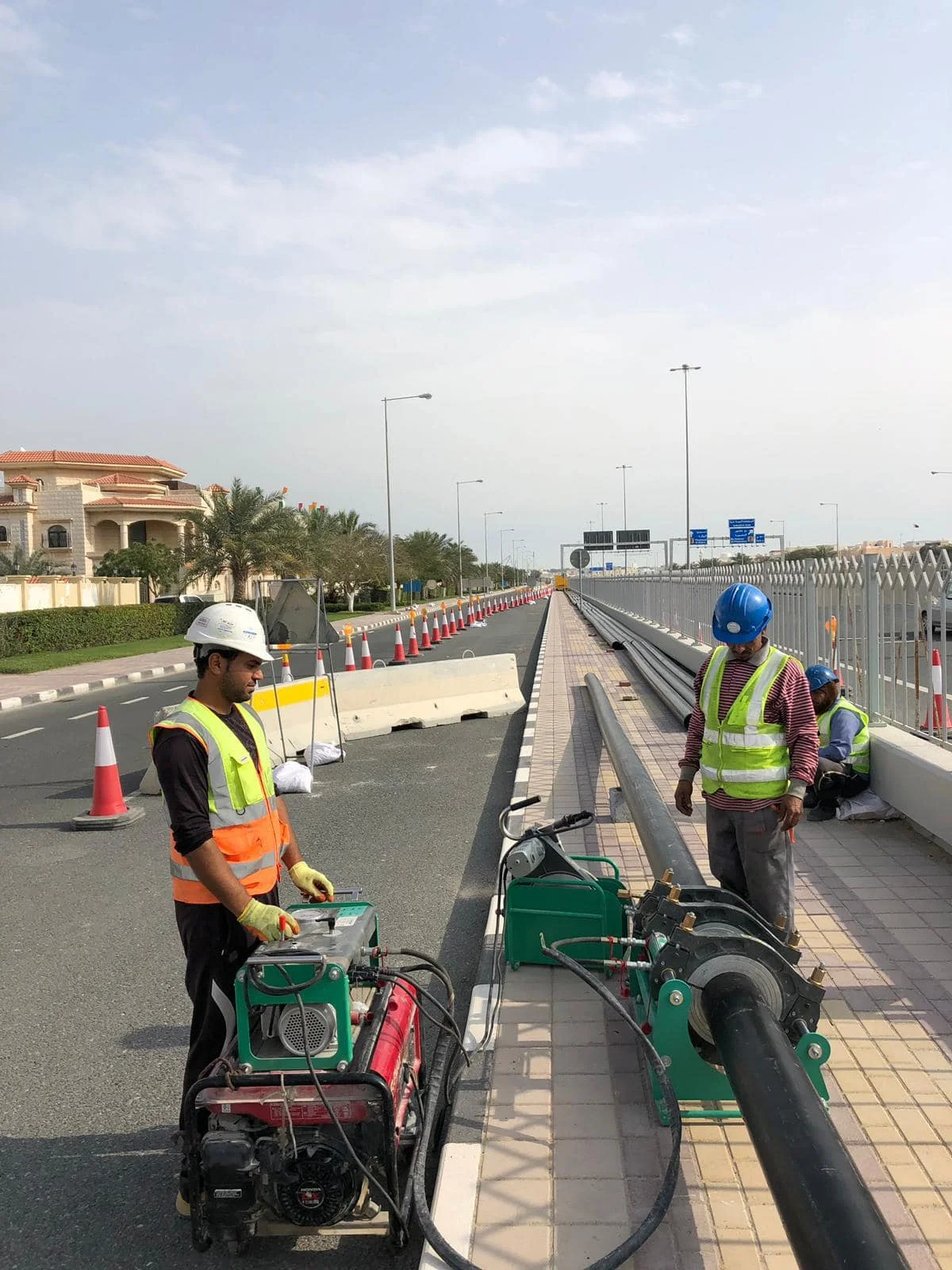

Application of welding of polyethylene piping by thermofusion :

hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE,PP, and PVDF.

automatic butt welding machine can be operated in any complex work condition.

thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.
