pvc pipe welding machine price list

Product details
Applicable Industries:Energy & Mining,Advertising Company;Certification:ISO;
Dimensions:1CBM;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Temperature Range:0℃~270℃;Package Type:WOODE CASES;
Power(W):5350;Single gross weight:220 KG;
Voltage:220V;Package Preview:;
Usage:welding plastic pipe and fittings HDPE,PP,PVDF;Place of Origin:China;
Condition:New;PAYMENT:western union,PayPal, T/T;
Single package size:95X66X65 cm;Tube Diameter:3-12 inch;
Voltage:220V;Warranty:2 Years;
Frequency:50/60Hz;PIPE SIZE:3-12 inch;
Selling Units:Single item;ORIGINAL:China;

BUTT FUSION WELDING MACHINE are also called HDPE PIPE JOINTING MACHINE ,Polypropylene pipes thermofusion welding equipment,hydraulic termofusion joining for polyethylene pipes and pipe fittings,HDPE Butt Welding Equipment,Butt Welders,butt fusion welder.



As our welding machine is weight and air freight is very expensive ,


so we just provide free shipping with you by sea .


If you  prefer to by air , Pls tell us before payment so that  we can charge the air freight for you .


Thank you in advance .


 Consists of basic frame, hydraulic unit, electric planning tool,heating plate, support for planning tool and heating plate.


Product Overview

SWT-V315H (3"-12") Hydraulic Butt Fusion Machine

SWT-V315H is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without
any additional equipment by simply adjusting the clamps drag bar.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.

Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

SWT-V315H includes:
*A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
*A Teflon coated heating plate with separate temperature control system;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.
Available options:
Data logger;
Support roller;
Stub end holder;
Different inserts (single insert, ISO inserts).

Welding ranges: plastic pipes3inch-12inch
Reducing Inserts3inch-4inch-5inch-6inch-8inch-10inch-12inch
Ranges of applicationPE,PP and PVDF
Working voltage~220V±10%,50/60Hz
Total power 5.35 kW
Planning tool1.1 kW
 Heating plate 3.5 kW
Hydraulic unit motor0.75 KW
Environment temperature-10° ~ 45°

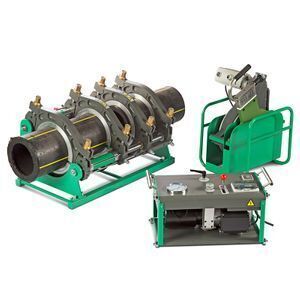

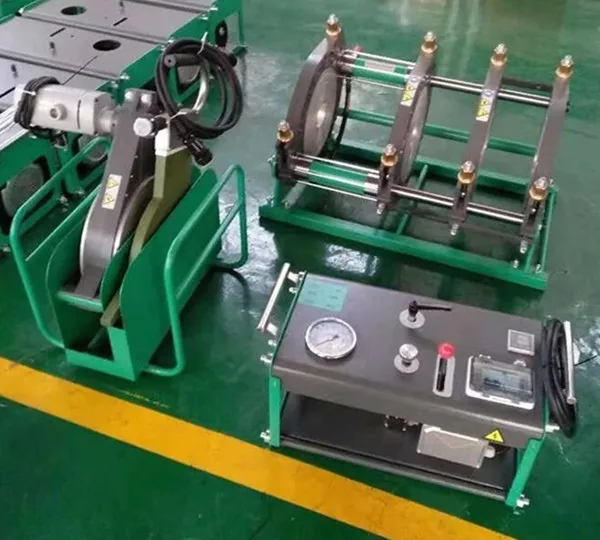

  Images of high density polyethylene Pipe Jointing Machine:


Packaging of Butt-fusion jointing of polyethylene (PE) pipes:



Application of welding of polyethylene piping by thermofusion :

hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE,PP, and PVDF.

automatic butt welding machine can be operated in any complex work condition.

thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.
