water type mould oil heating plastic injection mold temperature controller
- 1300.00 set
| After-sales Service Provided: | Video technical support,Online support; | Controller: | microcomputer; |
| Transfer Medium: | Heat-Transfer Oil; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Temperature Range: | 30~200 degree; | Internal Piping Size: | 6mm; |
| Heating power: | 9 Kw; | Loading Distance: | 30 m; |
| Brand Name: | XIECHENG; | Voltage: | 380V/50Hz/3Phase as usual; |
| Color: | Black and white or customized; | Supply Ability: | 500 Set/Sets per Month; |
| Port: | Jiangmen/Guangzhou/Shenzhen; | Weight: | 55kg; |
| Application: | plastic industrial mold hea; | Dimension(L*W*H): | 739*310*643mm; |
| Condition: | New; | Usage: | plastic industry; |
| Packaging Detail: | Standard wooden case or customized; | Applicable Industries: | Manufacturing Plant; |
| Warranty: | 1 year; | Certification: | CE; |
| Application: | plastic industrial mold heater; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
| Place of Origin: | Guangdong China; | Temperature Control Accuracy: | +/- 0.1 degree; |
| Pump Flow: | 45 L/min; | Type: | Water Temperature Machine; |
| Power(W): | 9000W; | Safety setting: | 6 protection; |

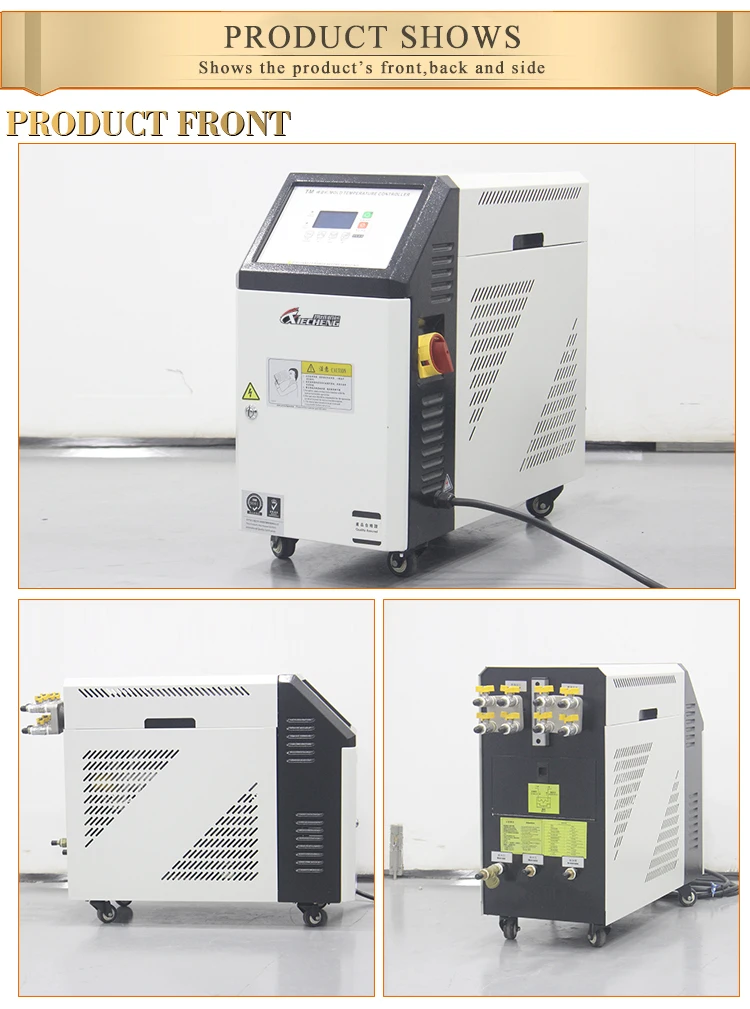

water type mould oil heating plastic injection mold temperature controller

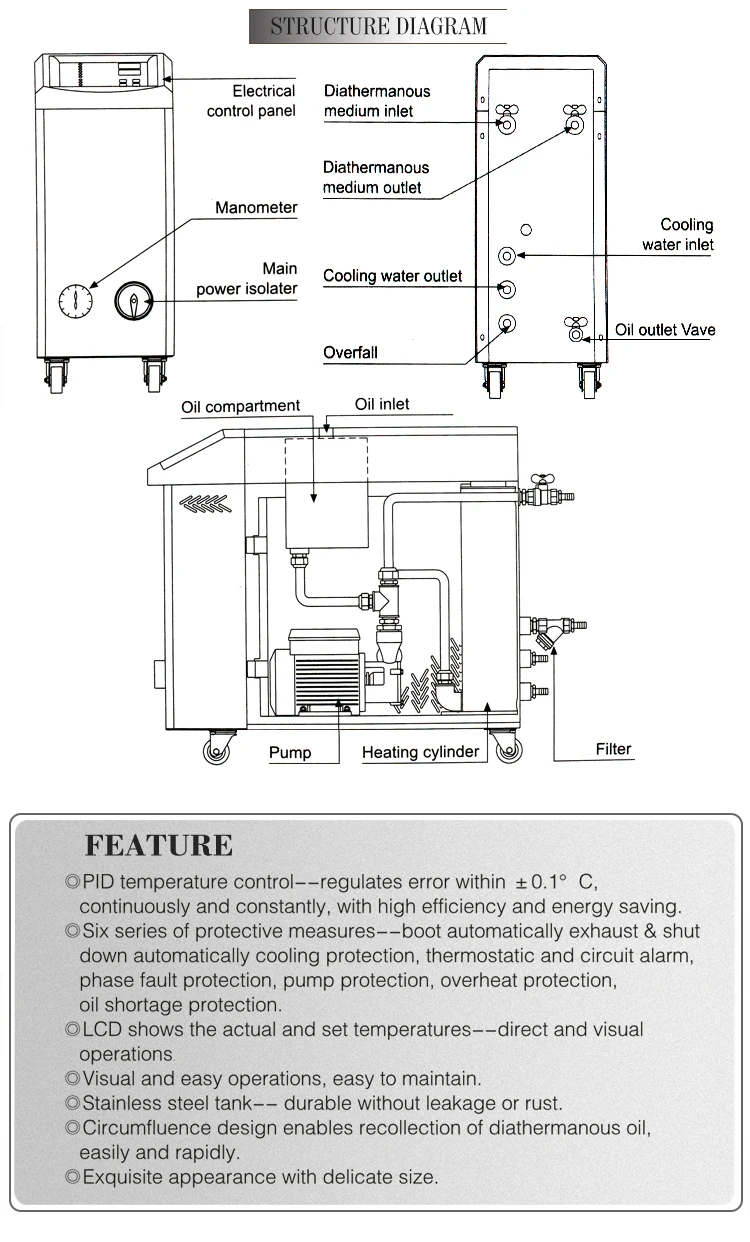

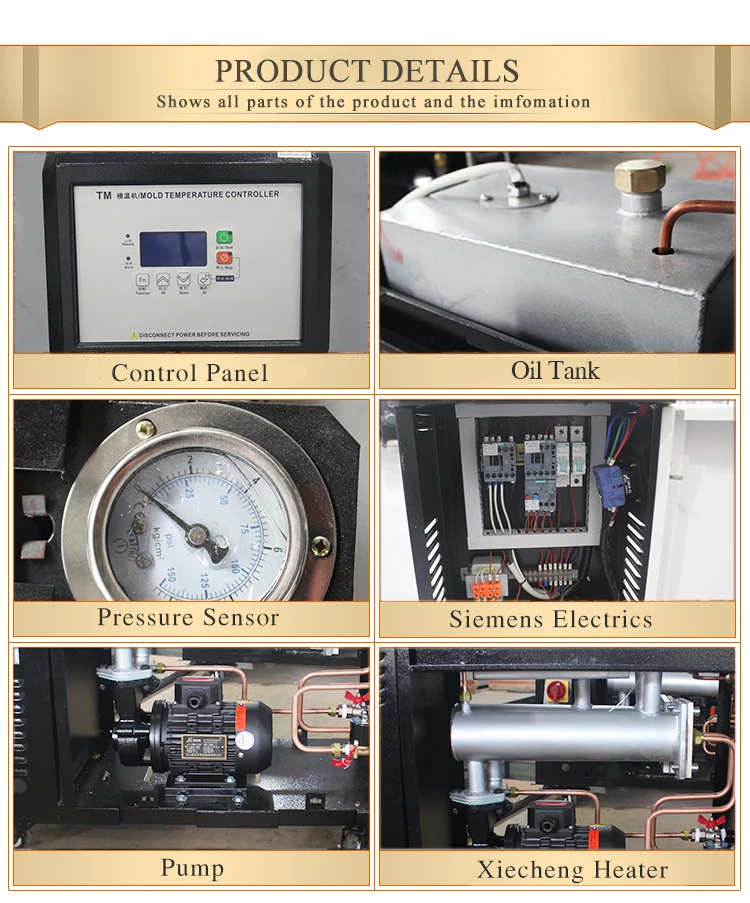

standard oil mould temperature controller
1.PID temperature control – regulates error within + 0.1°C,continuously and constantly, with high efficiency and energy saving.
2.Six series of protective measures – boot automatically exhaust & shut down automatically cooling protection, thermostatic and circuit alarm, phase fault protection, pump protection, overheat protection, oil shortage protection.
3.LCD shows the actual and set temperatures – direct and visual operations.
4.Visual and easy operations, easy to maintain.
5.Stainless steel tank – durable without leakage or rust.
6.Circumfluence design enables recollection of diathermanous oil, easily and rapidly.
7.Exquisite appearance with delicate size

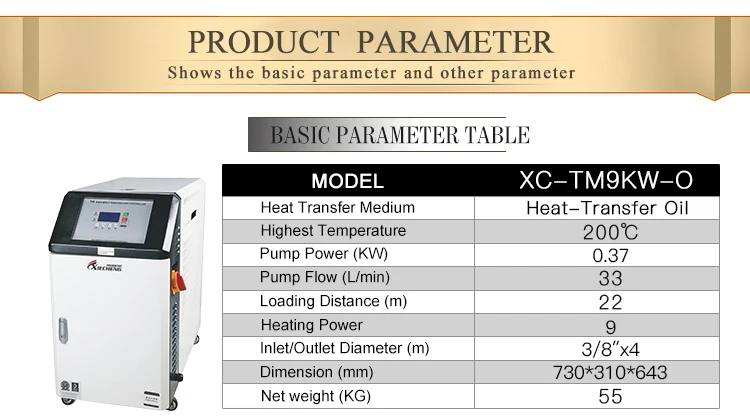

Model | XC-TM9KW-W | XC-TM12KW-W | XC-TM18KW-W | XC-TM24KW-W | XC-TM36KW-W | XC-TM60KW-W |
heat transfer medium | water | |||||
highest temperature | 1000C | |||||
Pump power(kw) | 0.37 | 0.75 | 1.5 | 1.5 | 2.2 | 3.75 |
Pump flow(L/min) | 42 | 56 | 160 | 160 | 315 | 380 |
Throw of pump | 28 | 38 | 27 | 27 | 26 | 35 |
Heating power | 9 | 12 | 9*2 | 12*2 | 12*3 | 60 |
Inlet of medium | 3/8'(6mm)*4 | 3/8'(6mm)*4 | 1'*1 | 1'*1 | 1.5"*1 | 1.5"*1 |
Dimension(mm) | 739*310*643 | 739*310*643 | 990*520*983 | 990*520*983 | 1090*520*983 | 1380*530*1083 |
Net weight(kg) | 46 | 50 | 65 | 100 | 110 | 135 |
