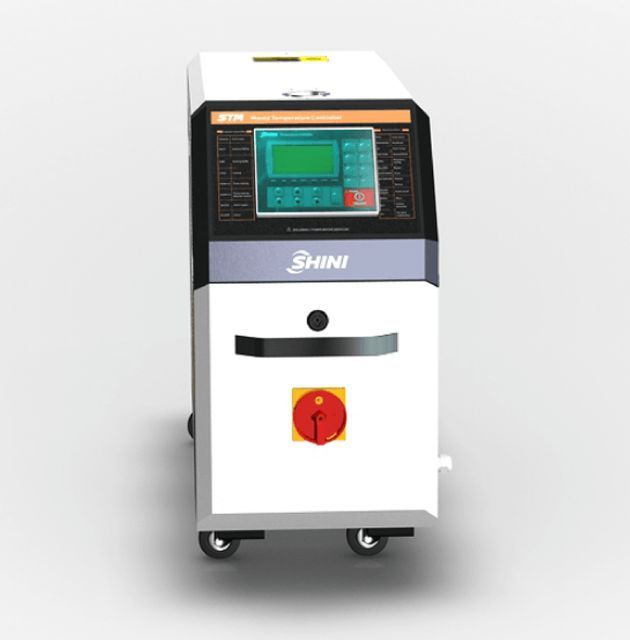

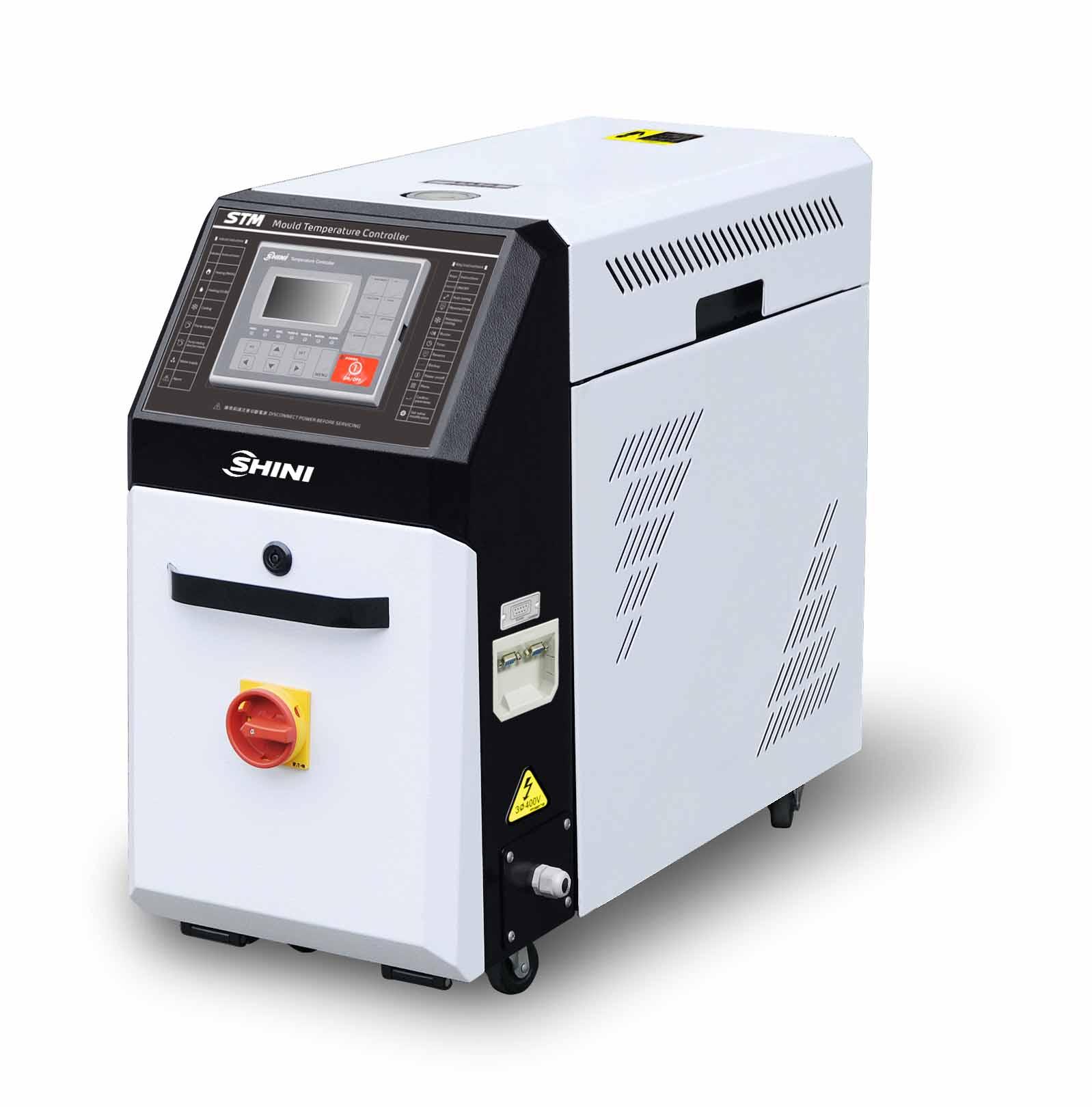

Shini STM-910W Industrial Mold Temperature Controller/Plastic Water Mold Heater/Temperature Regulator a eau
-
Supplier: Shini Plastics Technologies (dongguan), Inc. -
Region: Guangdong, China -
Contact: Mr Alan Chen -
Price: $65.00 /set -
Min. Order: 1 set
Product details
| Marketing Type: | normal product | After-sales service provided: | Free spare parts, online support |
| application: | Precise control of mold water temperature | Core component warranty: | 6 months |
| type: | water temperature machine | Warranty: | 1 year |
| Packaging Details: | Carton with plywood base for full case loads. Optional shipping for LCL shipments is worth packing in plywood cases. | product name: | plumbing controller |
| Local service location: | Turkey, United Kingdom, United States, Italy, Vietnam, Philippines, Brazil, Peru, Indonesia, India, Mexico, Russia, Spain, Thailand, Malaysia, South Korea, Chile, United Arab Emirates, Colombia, Sri Lanka, South Africa, Ukraine | Temperature control accuracy: | +/- 0.5 degrees Celsius |
| Name: | Mold temperature control unit | Applicable industries: | Manufacturing plant, injection molding plant |
| After warranty service: | online support, spare parts | Supply capacity: | 500 sets per month |
| Voltage: | 400V50Hz3Ph | Certification: | CE certification |
| payment terms: | wire transfer | temperature range: | up to 120 degrees Celsius |
| brand: | faith | Mechanical test report: | if |
| Main selling points: | Remote monitoring | Heat transfer medium: | clean water |
| Package preview: | Health status: | new | |
| Showroom location: | Turkey, USA, Italy, Vietnam, Philippines, Brazil, India, Mexico, Russia, Spain, Thailand, South Korea, South Africa, Ukraine | Origin: | China |
| Video shipment inspection: | not available | Core components: | Water seals and heaters |
| strength: | 9 kW | port: | Shenzhen |
Product Description
STM-W series water heaters are used to heat molds and maintain temperature, but they can also be used in other similar applications. The high temperature water from the mold returns to the cooling water tank and is cooled by indirect cooling (for high temperature models) or direct cooling (for standard models). Then it is pressurized by a high-pressure pump, sent to a heating tank, and finally sent to a constant temperature mold. HANYOUNG thermostats can maintain an accuracy of ±1°C.
STM-607W |
STM-607WD |
STM-910W |
STM-910WD |
STM-1220W |
STM-2440W |
STM-3650W |
user's guidance
1) Connect the STM inlet/outlet hose to the mold.
2)Connect water to cooling/water input
3)open all the balls
4)Turn on the main power.
5) Press the ON/OFF POWER key of the controller to enter the initial screen.
6) Press the MENU key to enter the menu selection interface, press the ◄/► key to control the setting menu, press the SET key to enter the setting interface,
2)Connect water to cooling/water input
3)open all the balls
4)Turn on the main power.
5) Press the ON/OFF POWER key of the controller to enter the initial screen.
6) Press the MENU key to enter the menu selection interface, press the ◄/► key to control the setting menu, press the SET key to enter the setting interface,
feature

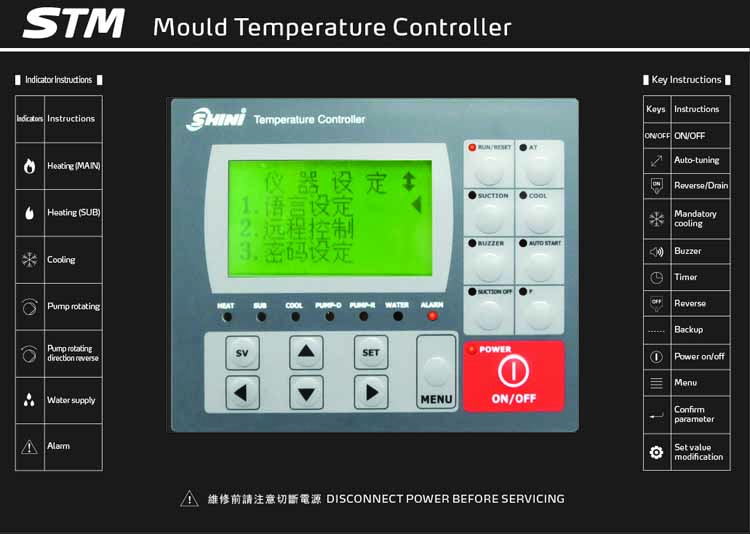

* The controller adopts 3.2" LCD, which is easy to operate.
* Equipped with 7-day automatic start/stop timer design. The LCD screen can be switched between Chinese and English. Temperature units can be converted between Fahrenheit and Celsius.
*PID multi-stage temperature control system, the accuracy of mold temperature can reach ±0.5℃.

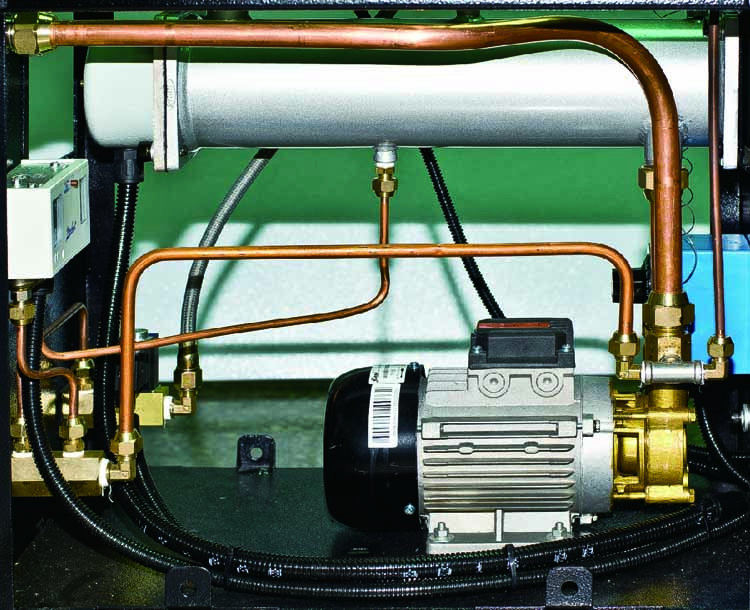

* High-efficiency water circulation pump can meet the temperature control requirements of precision molds and mold circuits
Small diameter for precise control and efficient heat transfer. The inside of the pump is made of stainless steel to avoid explosion.
* Power supply reverse phase protection, water pump overload protection, overheat protection, low liquid level protection and other multiple safety devices
Protection that automatically detects abnormal performance and indicates it with visible alerts.
* For standard STM-W, the heating temperature can reach 120°C.
* Equipped with high pressure protection, safety pressure relief, automatic water supply and exhaust.
* Direct cooling, excellent cooling effect. The automatic water supply device directly cools down the temperature to the set value.
* Adopt Ethernet communication function to realize online centralized monitoring.
* Equipped with 7-day automatic start/stop timer design. The LCD screen can be switched between Chinese and English. Temperature units can be converted between Fahrenheit and Celsius.
*PID multi-stage temperature control system, the accuracy of mold temperature can reach ±0.5℃.
* High-efficiency water circulation pump can meet the temperature control requirements of precision molds and mold circuits
Small diameter for precise control and efficient heat transfer. The inside of the pump is made of stainless steel to avoid explosion.
* Power supply reverse phase protection, water pump overload protection, overheat protection, low liquid level protection and other multiple safety devices
Protection that automatically detects abnormal performance and indicates it with visible alerts.
* For standard STM-W, the heating temperature can reach 120°C.
* Equipped with high pressure protection, safety pressure relief, automatic water supply and exhaust.
* Direct cooling, excellent cooling effect. The automatic water supply device directly cools down the temperature to the set value.
* Adopt Ethernet communication function to realize online centralized monitoring.
Size Information
This design specification
Model STM- | maximum. temperature. | pipeline Heater(kW) | Pump Power (kW) (50/60Hz) | maximum. Pump Flow(L/min) (50/60Hz) | maximum. Pump pressure (bar) (50/60 Hz) | heating tank number | heating tank capacity (big) | cool down method | Dimensions (mm) (height x width x depth) |
607W | 120°C | 6 | 0.55/ 0.63 | 27/30 | 3.8/5 | 1 | 3.0 | direct | 620×320×755 |
607WD | 6×2 | 0.55×2 /0.63×2 | 27×2/ 30×2 | 3.8/5 | 2 | 3.0×2 | 655×590×760 | ||
910W | 9 | 0.75 /0.92 | 42/50 | 5.0/6.4 | 1 | 3.0 | 620×320×745 | ||
910WD | 9×2 | 0.75×2 /0.92×2 | 42×2/ 50×2 | 5.0/6.4 | 2 | 3.0×2 | 655×590×760 | ||
1220W | 12 | 1.5/1.9 | 74/84 | 6.2/7.2 | 1 | 3.0 | 630×320×775 | ||
2440W | twenty four | 2.8/3.4 | 90/90 | 8.0/10.2 | 2 | 7.4 | 820×360×937 | ||
3650W | 36 | 4.0 | 100/100 | 8.0/8.0 | 3 | 13.2 | 964×467×1011 |
