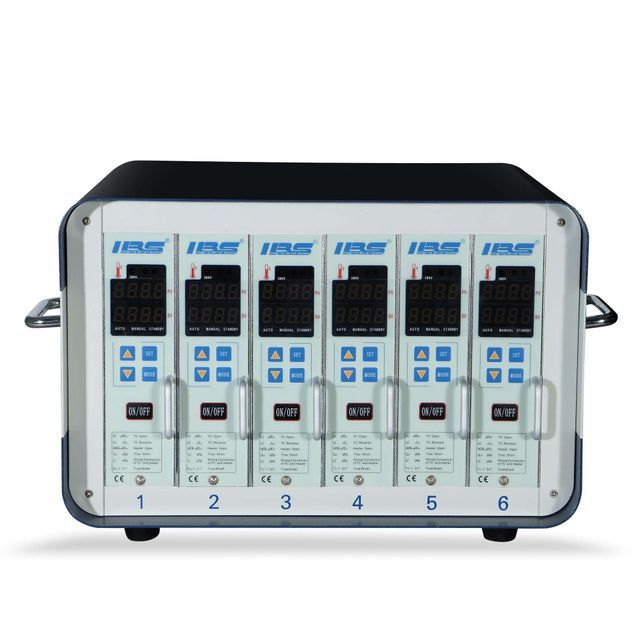

YUDO controller standard 6 zone best price hot runner temperature controller system model

Supplier: Shenzhen Ibs Electronic Co., Ltd.
Region: Guangdong, China
Contact: Mr Siyu huang
Price: $750.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	After-sales service provided:	Does not provide overseas services
Thermocouple Type:	J/K	temperature range:	45°C-550°C
application:	Injection molding machine, hot runner molding, plastic injection molding machine	Dimensions (LWH):	480315240mm
brand:	irritable bowel syndrome	Temperature control accuracy:	0.1%
Origin:	Guangdong, China	Health status:	new

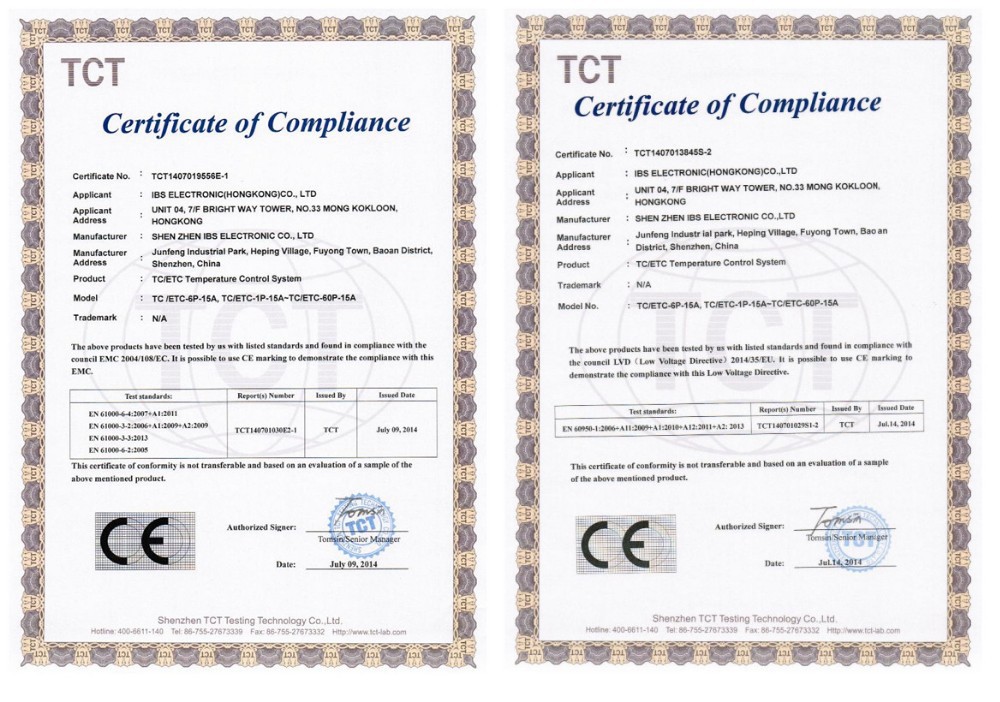

Delivery Details:	7 days after payment received	Certification:	CE/ISO9001
color:	blue	payment terms:	wire transfer
port:	Shenzhen	size:	Zone 1-12 international standard size
strength:	15A 3500W/220V or 1650W/110V	product name:	Hot runner system temperature controller
Packaging Details:	1. Strong international standard wooden case. 2.1 sets per box 3. Complete controller with 3m output cable	weight:	28 kg
model:	DXC-ETC	type:	Control machine temperature
Supply capacity:	10000 pieces per month	Voltage:	220V/380V

Hot runner mold

Specification:

Ambient temperature:	32°F to 131°F (0°C to 55°C)
Relative humidity:	10%-95%
Delivery temperature:	-40°F to 158°F (-40°C to 70°C)
power supply	AC185V-245V, 50/60HZ
Thermocouple Type:	J/K
Temperature unit:	°C/°F
Temperature control range:	45°C to 550°C
Temperature Test Accuracy	+3%
Repeated temperature measurement accuracy:	+0.1%
Repeated temperature measurement accuracy:	+0.5%
T/C cooling compensation:	dynamic tracking
Noise Suppression:	Common mode rejection ratio>100DB,
Sampling frequency	10HZ(100ms)
One point load:	15A
F1, F2, F3, F4:	250V-15A (special fuse)

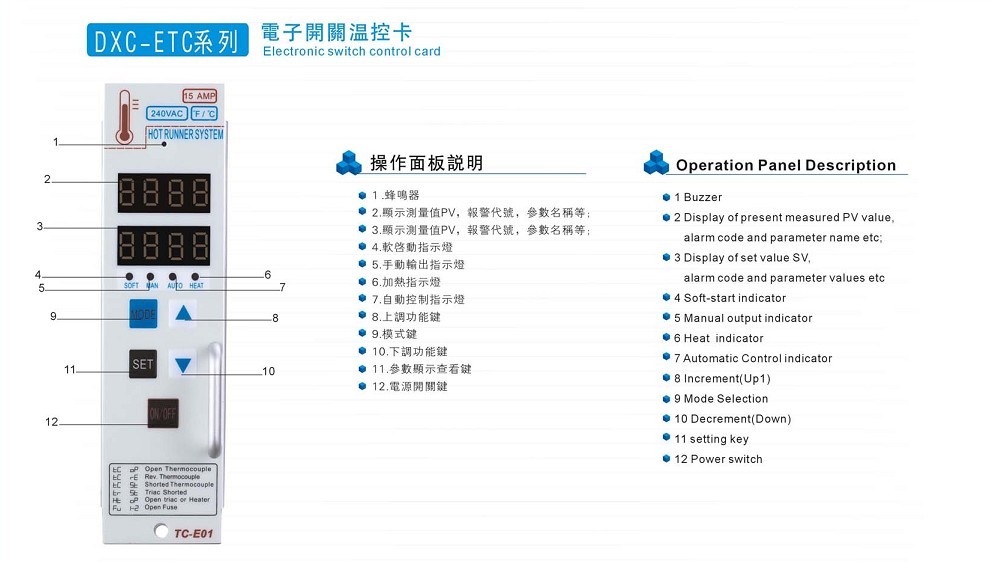

Function details:

Using FUZZY PIDD control technology, when PID parameters are not set, it can automatically sense any heating mode, which greatly improves the working ability

In order to prevent the influence of ambient temperature during measurement, the inner and outer rings are used to dynamically track the ambient temperature. The cold compensation of the outer ring thermostat dynamically eliminates the influence of the environment on the measurement circuit through the precision voltage of the inner ring. Make control measurements more precise
The controller can easily detect T/C reversal or T/C open circuit, and operate according to the error message and control mode when the problem is detected.
Heater Current Monitor
soft start function
Temperature deviation alarm
Manual output method
contactless transmission
Overall error indicator to easily find the cause of errors
The rated current of the output module is 15A per point
Simple, intuitive and user-friendly operation interface
Plug-in module design for easy maintenance;
An external radiator is used to efficiently dissipate heat from the heater.

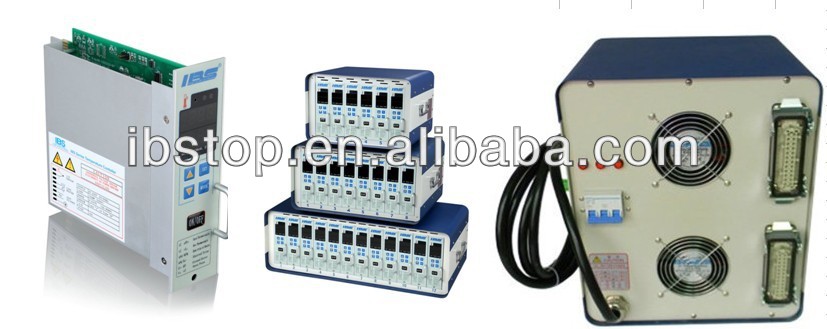

picture:

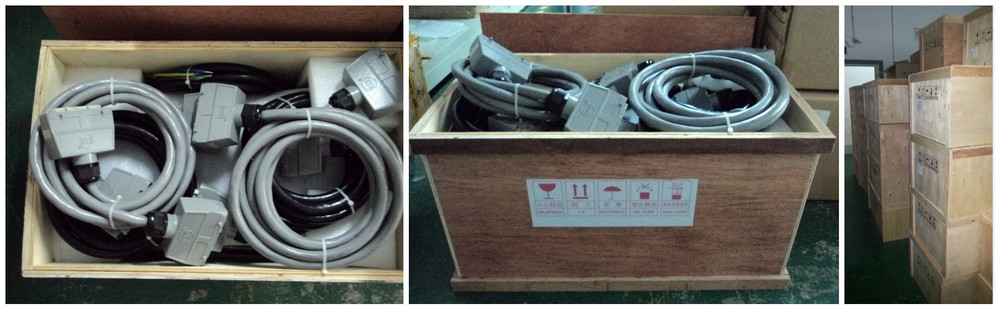

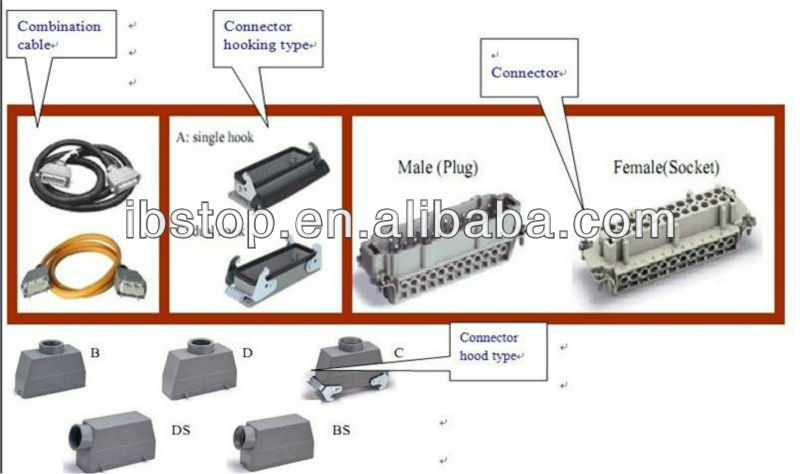

IBS DXC-ETC hot runner controller accessories:

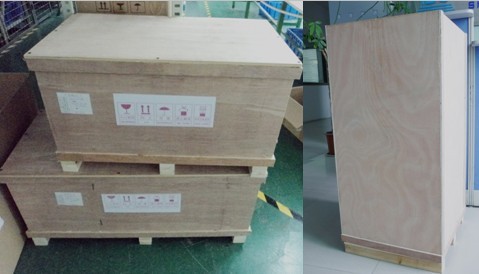

Packaging Details:

Box Dimensions and Weight:

Controller model	support area	Controller box size only	Package Size	Gross weight/KG
DXC-ETC-2P-15A	2 zones	177315240	320450350MM	14
DXC-ETC-4P-15A	Zone 3-4	278315240	320450350MM	18
DXC-ETC-6P-15A	Zone 5-6	378315240	430400400MM	twenty four
DXC-ETC-8P-15A	Zone 7-8	480315240	520400400MM	28
DXC-ETC-12P-15A	District 10-12	682315240	750380450MM	37
