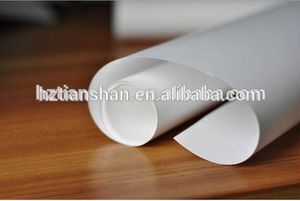

Porous PTFE membrane filter disc

Product details
Place of Origin:Zhejiang China;color:white;
Delivery Detail:5-10days;Application3:lab testing;
Shape:roll;Packaging Detail:box and then put into cartoon;
certificate:SGS;Payment Terms:T/T,Western Union;
width:270mm;Brand Name:Tianshan filter;
Type:Hydrophilic and Hydrophobic;Supply Ability:3000 Roll/Rolls per Day;
mode:roll membrane;Application4:disc membrane;
Application1:Gas filter;Model Number:RM;
Application2:industrial filtration equipment;Port:Shanghai or Ningbo;

                    Porous PTFE membrane filter disc



Product Description







Membrane

Porous PTFE membrane filter disc

Support

PP

Color

White

Filter Surface

Plain

Thickness, μm

150~250

Diameter

Disc: Φ13, Φ25, Φ47, Φ50, Φ60, Φ90, Φ100, Φ106, Φ142, Φ150, Φ200, Φ250, Φ293, Φ300

Roll: 270 mm, 300 mm

Pore Size, μm

0.01(for air), 0.05, 0.1, 0.22, 0.45, 1.0, 3.0, 5.0, 10

Maximum Operating Pressure

Forward: 4.2 bar @ 23 °C; 1.5 bar @ 85 °C

Flow Rate

Liquid

Air

0.22 μm

≥ 6 mL/min/cm2 at 1 bar

≥ 3.5 L/min/cm2 at 1 bar

0.45 μm

≥ 30 mL/min/cm2 at 1 bar

≥ 7 L/min/cm2 at 1 bar

Integrity Test-60% IPA/water bubble point at 23 °C

0.22 μm

≥ 1000 mbar

0.45 μm

≥ 600 mbar

Bacterial Retention

Passed the bacterial challenge testing using Brevundimonas diminuta(ATCC19146)(0.22 μm) / Serratia marcescens (ATCC14041)(0.45 μm) at a minimum challenge concentration of 1 x 107 CFU/cm2.

Non-Fiber Releasing

Meets the criteria for a “non-fiber releasing” filter as defined in 21 CFR 210.3 (b) (6).

Sterilization

By autoclave at 123°C or EO

Bacterial Endotoxins

< 0.5 EU/ml as determined by the LAL test











Application





China Factory wholesale Hydrophobic and Hydrophilic PTFE roll membrane



Usage:

1.dustrial filtration equipment

2. Disc membrane
