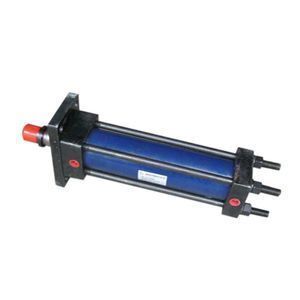

Double acting hydraulic cylinder

Supplier: Weifang Haode Power Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr. Gao Lifeng
Price: $50.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	polywood case or as your requirement;	Product name:	hydraulic pressure of one pole of double functions;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;	Place of Origin:	Shandong China;
Brand Name:	DEYILI;	Body Material:	Steel;
Supply Ability:	300 Set/Sets per Month;	Maximum Stroke:	Requirements;
Shaft Diameter:	20mm-500mm;	Power:	Hydraulic;
Structure:	Piston Cylinder;	Model Number:	HD80250;
Port:	Qingdao or Tianjin;	Color:	Requirements;
Standard or Nonstandard:	Nonstandard;	Delivery Detail:	7-15days;

Product performance and characteristics of double acting hydraulic cylinder

1Free lubrication: The product uses oil-bearing self-lubricating bearings, the piston rod without lubrication

2.Adjustable cushioning: Cylinder terminal is also equipped with adjustable cushion, the cylinder is smooth when no change in the direction of (customer orders need to specify the company's special order)

3.Installation of various forms: a variety of installation accessories for customers to choose according to the use requirements

4. High temperature resistance: high temperature sealing material can be used to make the cylinder in the 180 ° C high temperature conditions work properly (customer orders to be special instructions to the company ordered)

5. Magnetic: The cylinder piston to install a permanent magnet, which can trigger the sensor mounted on the fuel tank sensors to sense the movement of the cylinder position (the customer orders to be special instructions to the Company);

6.Adjustable stroke: the piston rod end is equipped with an adjustable nut, the cylinder is adjustable in its range of travel (thrust F1 = tension F2)

7. Derived diversity: the original basis of the derivative derived from a variety of non-standard products in order to meet customer needs a variety of use requirements.

Ordering instructions

Users can according to their own needs and requirements of the sample within the company's arbitrary order,as the following detail

1. Bore & Rod Dia. ( inch or mm)

2. The closed & opened length (Stroke)

3. Mounted Type: like bearing or clevis

4. Working & Testing Pressure

5. The oil port size, thread size

6. Assembling way & distance

7. Drawing or blueprint is enough for quotation

If you don’t have that information, please let us know the features of hydraulic cylinder you want to achieve, then offer our project to you

HSG- free jar(the piston type)of hydraulic pressure of one pole of double functions
Bore	φ40,φ50,φ63,φ80,φ100,φ125,φ160,φ200,φ 250 and other Non-standard size customized
Rod diameter	20, 25, 32, 40, 50, 63, 80, 100, 125 and other Non-standard size as customized
Stroke of rod	Bore 40,50<1500mm,Bore 63,80,100,125<2000mm,Bore 160,200,250<3000mm, More than the provisions of the middle of the trip to install the support device
working pressure	0.3mpa-31.5mpa
connection way of the end of the cylinder rod	1=whorl outside the end of the pole, 2=whorl inside the end of the pole(diameter of jar ≥63), 3=pole of threaded rod of earrings with the end of pole of head earrings with the bush, 4=pole of threaded rod inside the pole of hair earrings with the bush(diameter of jar ≥63), 5=pole of threaded rod outside the end of pole of head earrings with the ream axle, 6=pole of threaded rod inside the end of pole of head earrings with the ream axle(axletree ≥63), 7=integral cylinder rod earring with the bush (diameter=40,50), 8=integral cylinder rod earrings with the ream axle(diameter=40,50)
way of connection of jar lid	L-whorl type(diameter of the jar≤φ80),K-card key(wanted diameter ≥φ80)
buffer position	0=without buffering. 1=with buffer at the end of jar. 2=with buffer at the end of the jar(diameter of jar 40 50 63 without buffering, Ψ=2 with buffer only at the end of the jar)
connection way of the oil mouth	1=interior whorl
Work Environment	-10°to +80
OEM/ODM	Accepted
