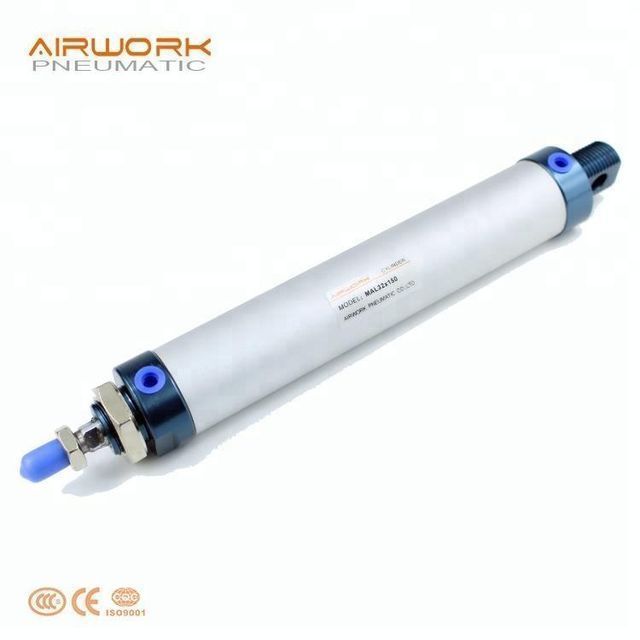

MAL standard miniature aluminum alloy material piston type miniature cylinder
- 4.57 10 - 99 pieces
- 2.29 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Body material: | aluminum | place of origin; place of origin: | China |
| Operating temperature: | -5~70℃ | Proxy type: | Double acting |
| Port size: | M5, 1/8" | Core component warranty: | 6 months |
| buffer mode: | air cushion | Mechanical test report: | not available |
| Warranty: | 6 months | sensory switch: | CS1-F, CS1-U, CS1-S |
| Applicable industries: | Manufacturing plants, machinery repair shops | port: | Ningbo, Shanghai |
| strength: | pneumatic | Core components: | sealing ring |

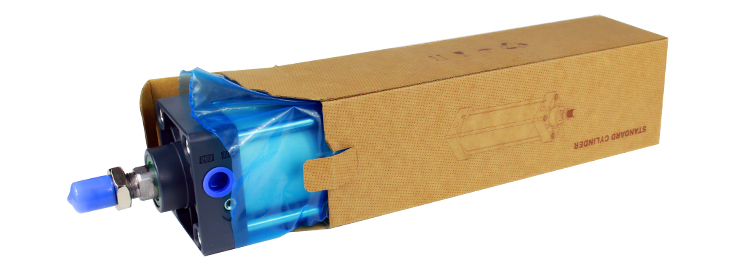

| brand: | aerial work | Packaging Details: | carton |
| Work pressure: | 0.1-0.9Mpa | Pressure resistance: | 1.35 MPa |
| Magnetic ring: | with | structure: | Piston cylinder |
| Supply capacity: | 1000 pieces per day | Standard or non-standard: | standard |
| Marketing Type: | normal product | Video shipment inspection: | not available |
| Weight (kg): | 1 | Working medium: | Purifying air |
| payment terms: | L/C, Western Union, T/T | State of health: | new |
| product name: | Aluminum alloy mini cylinder |

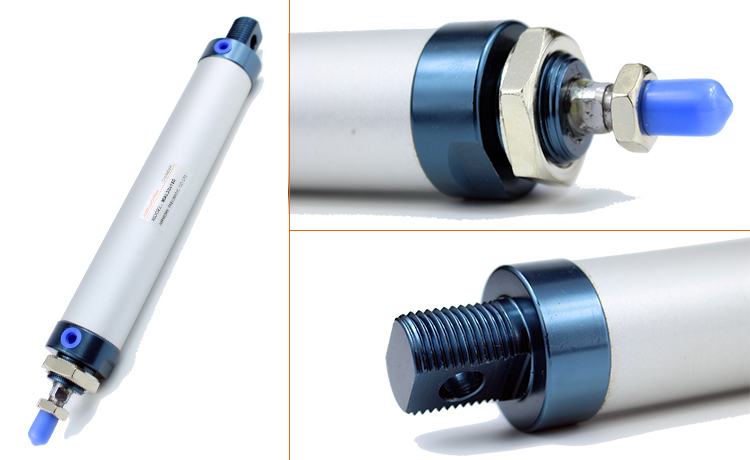

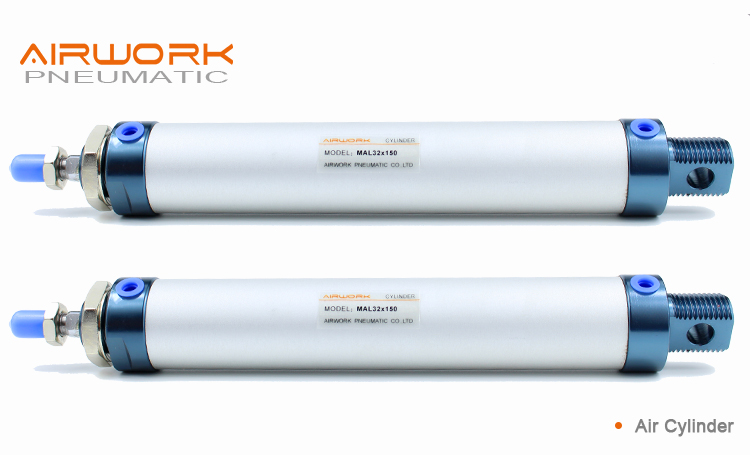

MAL standard miniature aluminum alloy material piston type miniature cylinder
| Bore (mm) | 16 | 20 | 25 | 32 | 40 |
| action mode | Double acting | ||||
| working media | Purifying air | ||||
| work pressure | 0.1~0.9Mpa(1-7kgf/cm2) | ||||
| withstand voltage | 1.35Mpa(10.5kgf/cm2) | ||||
| Operating temperature | -5~70℃ | ||||
| buffer mode | air cushion | ||||
| port size | M5 | 1/8" | |||
| body material | aluminum alloy | ||||
|

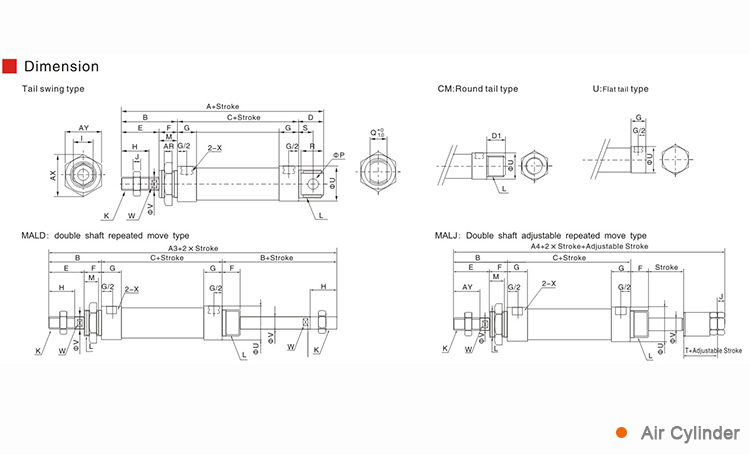

Bore (mm) |
A sort of | A3 | Z4 | Second | C | Ding | D1 | Second | f | G | h | I | Jay |
| 16 | 107 | 131 | 137 | 40 | 51 | 16 | 16 | twenty four | 16 | 10 | 16 | 10 | 5 |
| 20 | 131 | 150 | 147 | 40 | 70 | twenty one | 12 | 28 | 12 | 16 |
20 |
12 |
5 |
| 25 | 135 | 158 | 154 | 44 | 70 | twenty one | 14 | 30 | 14 | 16 | twenty two | 17 | 6 |
| 32 | 141 | 158 | 154 | 44 | 70 | twenty one | 14 | 30 | 14 | 16 | twenty two | 17 | 6 |
| 40 | 143 | 162 | 160 | 46 | 70 | 27 | 14 | 32 | 14 | 16 | twenty four | 19 | 7 |
| 50 | 170 | 64 | 70 | 36 | 42 | twenty two | 16 | 32 |
|
Bore (mm) |
Potassium | large | Meter | ΦP | ask | R | small | u | V | x | Augmented Reality | ax | what |
| 16 | M6X1 | M16X1.5 | 14 | 6 | 12 | 16 | 10 | twenty two | 6 | M5 | 6 | 25 | twenty two |
| 20 | M8X1.25 | M22X1.5 | 10 | 8 | 16 | 19 | 12 | 30 | 10 | 1/8 | 7 | 33 | 29 |
| 25 | M10X1.25 | M22X1.5 | 12 | 8 | 16 | 19 | 12 | 34 | 12 | 1/8 | 7 | 33 | 29 |
| 32 | M10X1.25 | M24X2.0 | 12 | 10 | 16 | 25 | 15 | 39 | 16 | 1/8 | 8 | 37 | 32 |
| 40 | M12X1.25 | M30X2.0 | 12 | 12 | 20 | 25 | 15 | 49 | 16 | 1/8 | 9 | 47 | 41 |
| 50 | M16X1.5 | M36X2.0 | 20 | 16 | 20 | 35 | twenty one | 55 | 20 | 1/8 |
