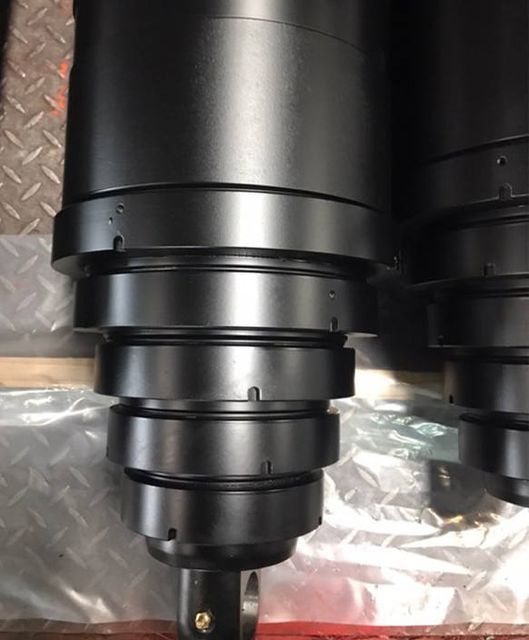

Four-stage single-acting telescopic hydraulic cylinder for dump truck

Four-stage single-acting telescopic hydraulic cylinder for dump truck

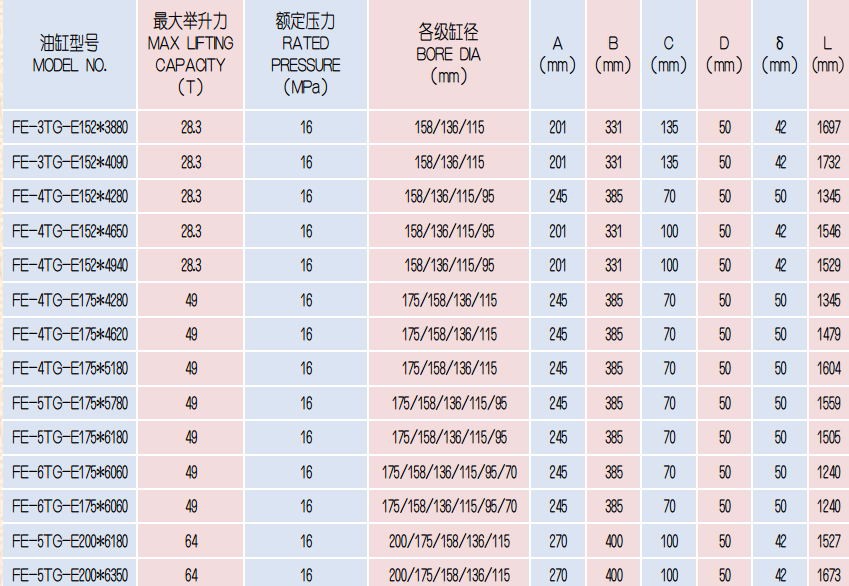

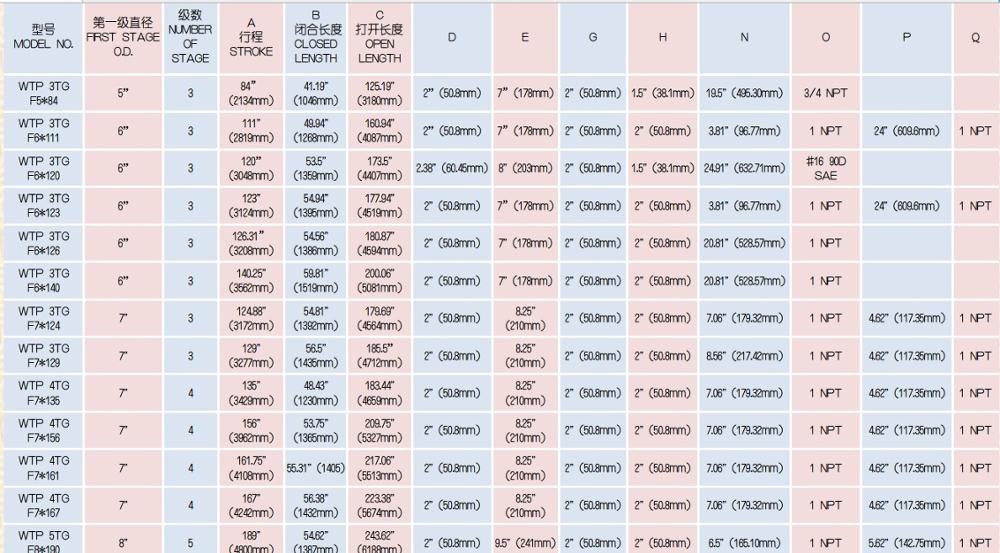

Technical Parameters:

____________________________________________________________________________________

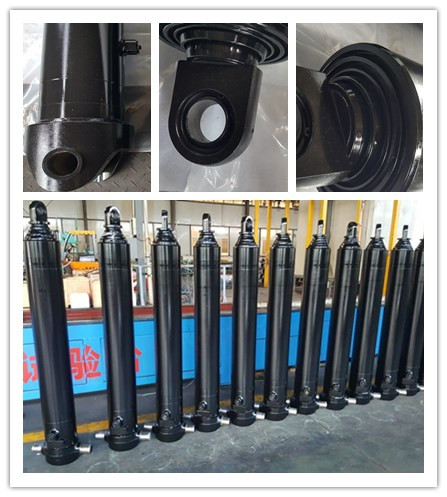

Product Image:

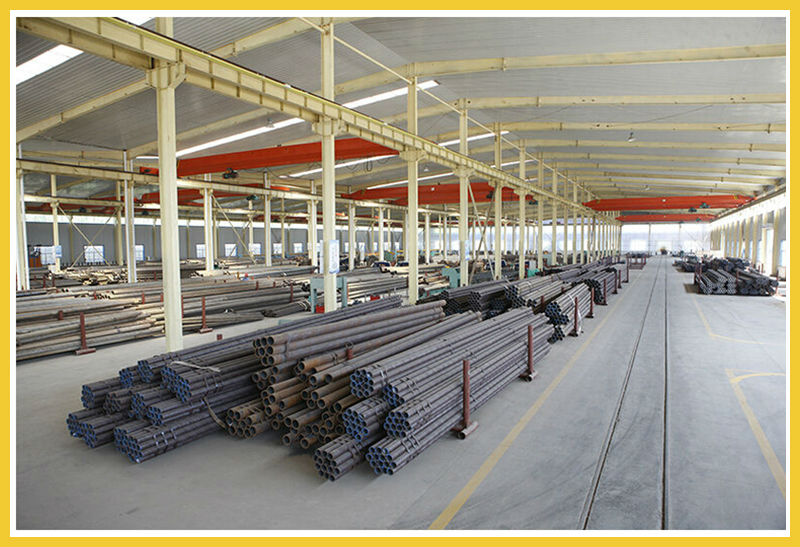

raw material

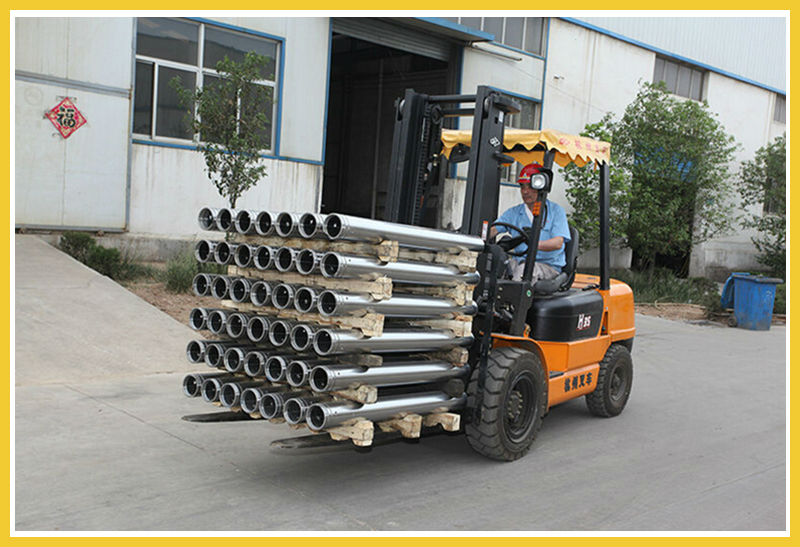

manufactures

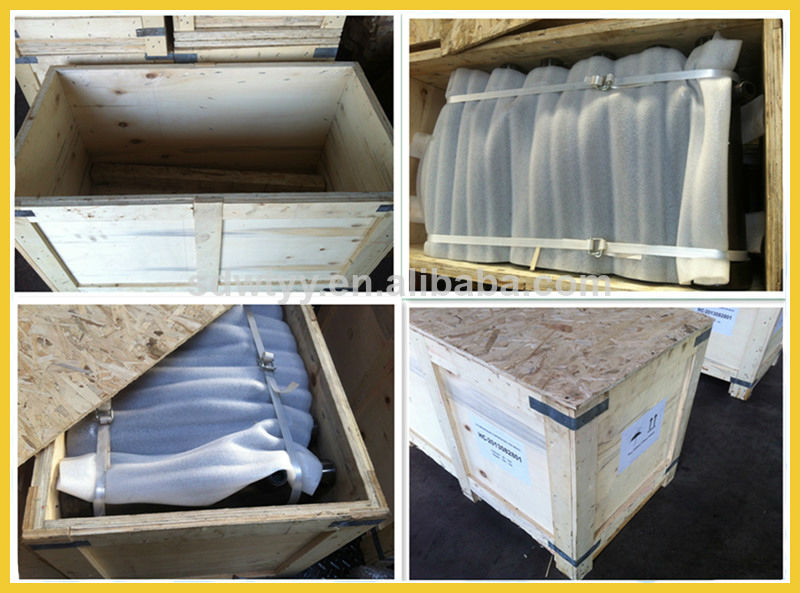

Transport Packaging

pack

____________________________________________________________________________________

Processing and inspection:

1. Cylinder

According to special requirements such as working pressure, working temperature and working conditions, different cylinder barrels are selected.

1.1 Cylinder tube: cold drawn precision seamless steel tube, hot rolled seamless steel tube, forged tube.

1.2 Pipe material: SAE1020(20#), SAE1045(45#), 16Mn(Q345B), 27SiMn, etc.

1.3 Surface roughness: R0.16-0.32μm

1.4 Internal chrome plating: if necessary, chrome-plate the inner pipe.

2. Piston rod

2.1 Rod material: 35#, SAE1045(45#), 35CrMo, 42CrMo4, etc.

2.1 Technical treatment: quenching and tempering. 1.5-1mm, or 1.03mm per millimeter.

3. Seal Kit

According to the customer's requirements and working conditions, we will choose the appropriate sealing kit, including: Hallite, NOK, SKF, Parker, Merker, Trelleborg, China made, Taiwan made. We will provide you with suitable sealing kits to ensure long service life of hydraulic cylinders, easy maintenance and simple repairs.

4. Inspection and testing

4.1 We have a professional quality control department, every step from raw materials to finished products is in the same factory, and each process will be tested by professional inspectors.

4.2 Before the hydraulic cylinder is assembled, measure and clean each component. After the hydraulic cylinder is assembled, carry out a pressure test one by one to ensure that the test pressure is 30%-50% higher than the rated pressure within one year. hours of testing. Every hydraulic cylinder must be tested without any leaks.

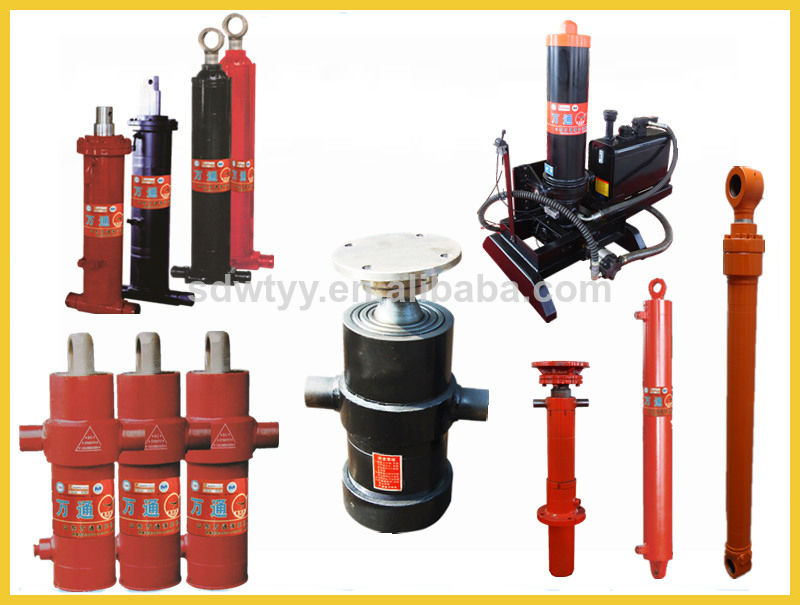

Hydraulic cylinder type:

We specialize in the design and manufacture of hydraulic cylinders for a variety of purposes, including:

• Construction machinery cylinders: loaders, excavators, forklifts, bulldozers, dump trucks, road rollers, cranes, etc.
• Oil cylinders for metallurgical machinery: reducers, tile presses, etc.
• Cylinders for mining machinery: crushers, shearers, etc.
• Cylinders for agricultural and forestry machinery, used for: land preparation machines, harvesters, weeding machines, etc.
