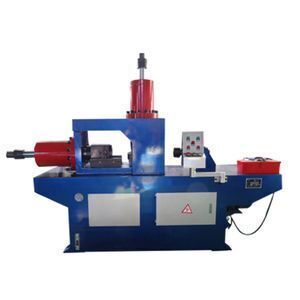

SG50NC shrink and expand reduce tube machine for steel pipe end forming

Supplier: Weifang Haode Power Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr. Gao Lifeng
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power:	Hydraulic;	Year:	2019;
Extra Services:	Machining,End Forming,Swaging;	Brand Name:	deyili;
Automation:	Automatic;	Certification:	ce,tuv;
Material / Metal Processed:	ALLOY,Stainless Steel,Aluminum,Aluminium Alloy,Carbon Steel;	Raw Material:	PIPE;
Product name:	SG50NC Tube end shrinking machine;	Port:	Qingdao/Tianjin/Shanghai/Lianyungang;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Packaging Detail:	inner package : foamed plastic or stretch film outer package: iron frame and wooden case;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	20 Set/Sets per Month;	Machine Type:	Pipe End Forming Machine;
Place of Origin:	Shandong China;	Warranty:	1 Year;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;

Product Parameter

Features of Tube end shrinking machine

1. microcomputer control,Manually or semi-automatic, hydraulic and Servo motor system driven
2 The motion pedal switches, tightly stops, continuously tightly stops, high security.
3 Processing shapes: convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type. The shape of the mould shall be subject to the object to be processed
4 The mold replacement is simple

Model	SG50NC	SG60NC	SG75NC	SG89NC	SG120NC
Max pipe capacity	φ50×3 MM	φ60×3 MM	φ75×6 MM	φ89×8 MM	φ120×8 MM
Pipe cycle	4	4	4	5	6
Applicable to pipe shape	convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type
Applicable to material of pipe	Carbon steel,stainless steel copper pipe, aluminium alloy pipe
Power	5.5	7.5	11	11	18.5
Overall size (L×W×H)m	2.4×0.5×1.6	3×1.1×1.9	3×1.1×1.9	4×1.2×1.9	4×1.2×1.9
Weight T	0.9	1.7	2	3.6	3.8

Terms&Service

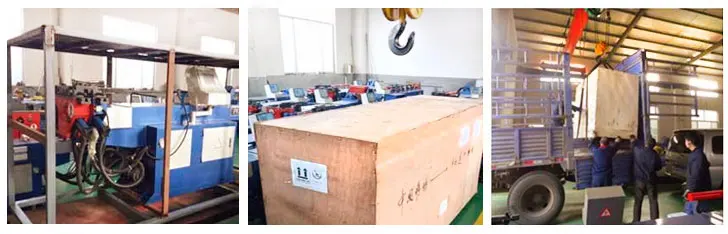

packing	Inner package : foamed plastic or stretch film outer package: iron frame and wooden case
payment	T/T or L/C at sight 30% T/T in advance and 70% before shipment
load port	Qingdao port or as customer's request
delivery time	7-25days after receiving the payment of 30% deposit.
after sale service	Our guarantee time is 1 year for whole machine, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely. Our factory can send our engineer to the customer's factory install, commission and training freely. Customers need to pay engineer tolls and food and accommodation. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by wechat, whatsapp, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.

FAQ

Do you have any Certification with product or your factory?

We have passed TUV certification and our company has passed the ISO9001:2000 international quality system certification, all products have acquired CE certificates of EU.

What are the advantages of you ?

With more than 15 years experience of production and trade, some configurations of equipment can be adjusted according to your requirements .Good quality, reasonable price, best service and on-time delivery can be assured Confidently.

Where is your factory and can we be as your agent in our country?

We are in Weifang City,Shandong province. It is about 150KM far from Qingdao port. If you want to be our agent, welcome to visit our factory and talk about this, or we fly to visit you.

Coopration starts

With years of exporting experience, we will be the best choice for your future cooperation, please feel free to send your message by pressing "SEND" button below.
