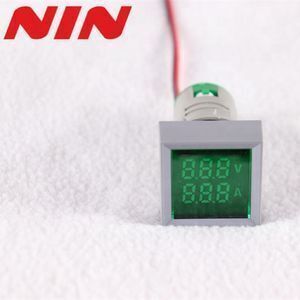

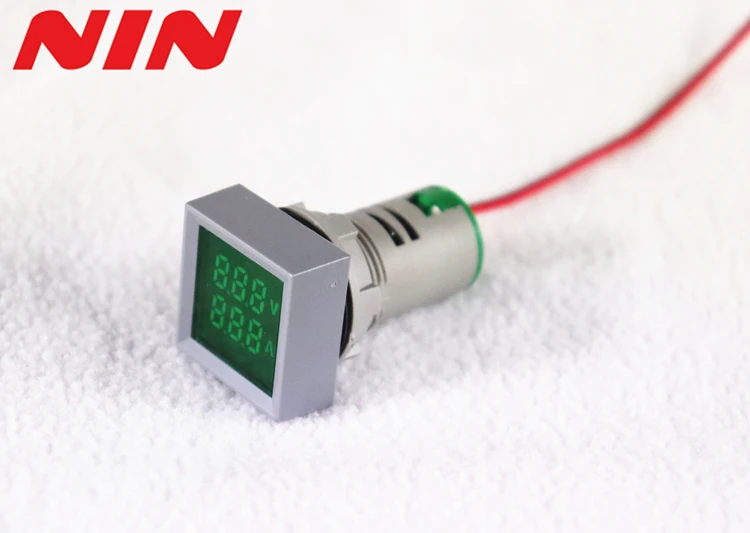

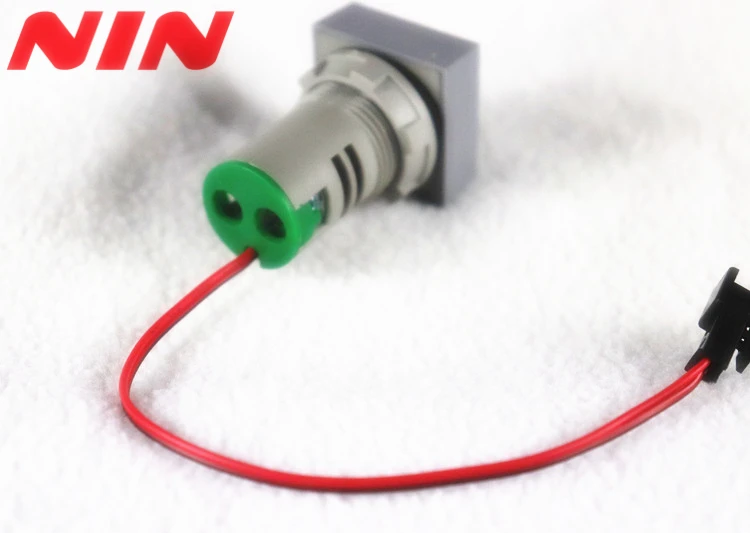

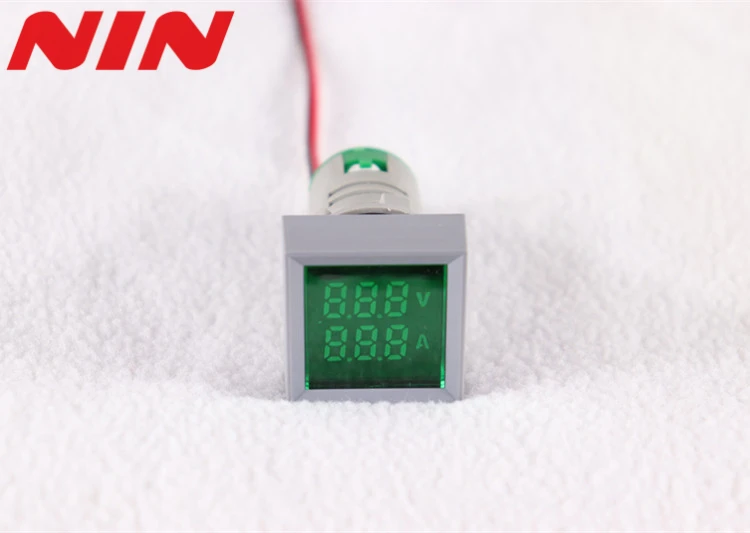

22mm 100A 50~500V AC white green red yellow blue single LED indicator digital voltmeter ammeter

Supplier: Zhejiang Ninuo Electric Co., Ltd.
Region: Zhejiang, China
Price: $2.80 /unit
Min. Order: 1 unit

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Display Type:	Digital Only;
Payment Terms:	T/T;	Measuring Range:	0-100A 50-500V;
Brand Name:	NIN;	Model Number:	AD101-22VAM;

1. Model:
22mm diameter indicator light (pilot light) Volmeter

2. Features:
Lens Material: PC;
Lighting Source: LED;
Color of lamps: R-red, Y-yellow, B-blue, G-green, O-orange, W-white;
Volt.: 50V--500V;
Color of Lens: Red, Orange, Blue, Green
Nature of supply: AC ;
Rated Temp : T90;
Life of continuous working: Typically over 30,000 hours. The end of life for a lamp is not usually a sudden failure;
Certification: ISO9001, VDENEC, CE, EMC, CQC, CCC,ROHS;
Reasonable price and efficient services.

3. Main technical parameters
Environmental Temperature: -25+55;
Working under vibration frequency 2-80Hz,acceleration at 0.7g;
Relative Air Humidity: ≤98%;
Pollution rank is three grade and installation category is III;
Protection Degree: Head IP65(OEM could be IP67);
Voltage of working frequency: 2.5kV (AC valid value), 1min;
Leakage Index: CT1≥100;
Frequency: AC 50-60Hz

Type	Indicator Lights volmeter
Input Voltage	10-600V
Color	Red, Orange, Blue, Green ,White
Diameter	22mm
Life	≥30,000h
Brightness	≥60cd/Square Meters
Lamp Body Material	Plastic
Beam Angle	360°
Colors	red /green /yellow /white
Certifications	Certifications CE
