Lithium ion battery analyzer tester for sale w/ adjustable cell holders & software

Product details
Port:Xiamen Port;Max. measurement cycles:9999 cycles;
Brand Name:TMAX;Usage:Testing;
Accuracy:(0.05% of reading + 0.1% of range);Place of Origin:Fujian China (Mainland);
Packaging Detail:1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;Power Consumption:200W;
Electricity requirement:110V AC or 220V AC selectable for universal use;Model Number:TMAX-JC5V3A;
Data register conditions:Time interval: 1 - 900s;Payment Terms:L/C,D/A,D/P,T/T,Western Union;
Voltage:Range: 0.5 - 5V programmable;Supply Ability:10000 Set/Sets per Month;
Net Weight:11.5kg;Product Dimensions:W245mm *D197mm * H60mm;
Current:Range: 3.0mA - 3000mA;
Product Description

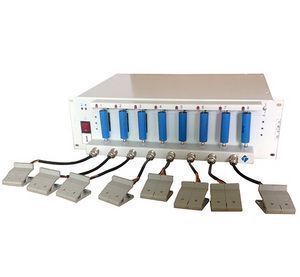

Lithium ion Battery Analyzer Tester for Sale w/ Adjustable Cell Holders & Software



Features

TMAX-JC5V3A is an eight-channel battery analyzer to analyze small coin cells and cylindrical batteries from 6.0 mA to 3000 mA, up to 5V. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software. This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.



Specifications

Electricity requirement

110V AC or 220V AC selectable for universal use

Power Consumption

200W

Current

  • Range: 3.0mA – 3000mA

  • Accuracy: ±(0.05% of reading + 0.1% of range)

Customizable current range

0-1 mA, 0-10 mA, 0-300 mA, 0-2 A, 0-3 A, 0-5 A, 0-20 A, 0-30 A, etc.

Voltage

  • Range: 0.5 - 5V programmable

  • Accuracy: ±(0.05% of reading + 0.1% of range)

Customizable voltage range

0-5 V, 0-10 V, 0-20 V, 0-30 V, 0-50 V, 0-60 V, 0-150 V, 0-300 V, 0-500 V, etc.

Data register conditions

Time interval: 1 - 900s

Max. measurement cycles

9999 cycles

Product Dimensions

W245mm *D197mm * H60mm

Channels

  • Eight independent programmable channels

  • Each channel can set different working modes and functions independently

Programs & Software

  • The software with calibration function is included to set various working modes for measuring capacity and lifecycle for all types of rechargeable batteries

  • Working modes Include constant current discharge, constant current charge, constant voltage charge, constant resistance discharge, rest, cycles, etc.

  • Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc.

  • With real-time monitoring windows and integrated graph/data windows, the testing process can be observed more directly and efficiently

  • During the test, the software will provide instructions and warnings for assistance

  • The calibration software can be used to calibrate the analyzer

Test Reports and Curves for analysis

  • Different types of curves can be created by software base on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)

  • Data reports are created by software. User can easily compare the performance of the batteries tested in channels both visually and statistically

Protection and Auto-recover

If the power failure occurs during testing, the system will shut down all operating channels. Once power is recovered, the system will automatically resume those stopped channels and ensure that the test is normally conducted, so that no cases will lose any data.

Battery Holders

Two types of battery holders are included in the standard package:

  • 8 alligator clips with cable for universal connecting

  • 8 spring load holders with adjustable length for measuring cylinder battery up to 70mm(H)

Compliance

  • CE Certified

Warranty

Two Year limited warranty with lifetime support for the battery analyzer.

Net Weight

11.5 kg (26 lbs)



Certifications

CERTIFICATE

Strength Proof

All our products are passed the inspection standards included SGS, CE, ASTM with 100% quality.

Packaging & Shipping

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
