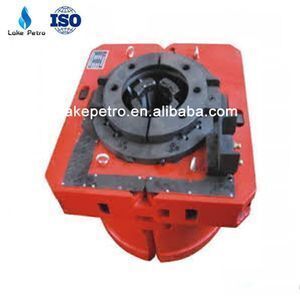

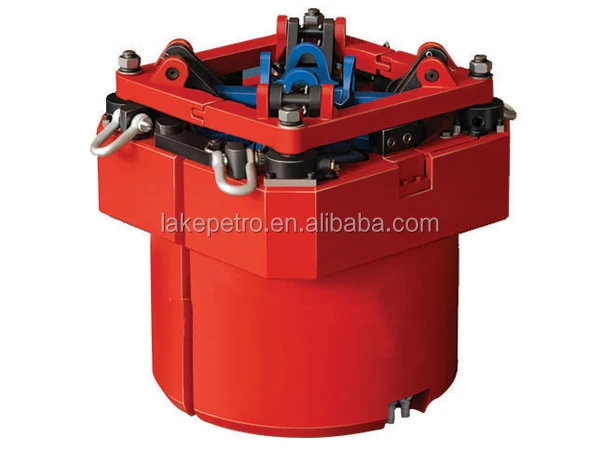

PS pneumatic slips for drilling rig

Supplier: Dongying Lake Petroleum Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Bing Xin
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Shanghai Port, China main ports;	Applicable Industries:	Machinery Repair Shops,Retail,Energy & Mining;
Work pressure:	0.6-0.8 MPa;	Model Number:	Lake;
Supply Ability:	20 Set/Sets per Month;	Model:	PS175, PS205, PS275, PS375, PS560;
Packaging Detail:	Standard export package wooden box as your required;	Applicable Dia. of Tubulars:	2 3/8" - 14";
Payment Terms:	L/C,T/T,Western Union;	Place of Origin:	Shandong China;
Type:	Drill Pipe Slip;	Max. Capacity:	150-500 tons;
Rotary Table size:	17 1/2" - 49 1/2";

PS pneumatic slips for drilling rig

Product Description

PS Series Pneumatic Slips are pneumatic tools which are suitable for all kinds of rotary tables for hoisting drill pipes and handling casings. They are mechanized operating with strong hoisting force and large working range. They are easy to operate and dependable enough. Besides, they can not only reduce the workload but also improve the work efficiency. They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.

Technical parameter

Model	Rotary Table Size (in)	Applicable Dia. Of Tubulars	Rated Capacity (short tons)	Work Pressure (MPa)	Max. Pressure (MPa)
PS175	17 1/2	2 3/8-5 3/4	150	0.6-0.8	1
PS250	20 1/2	2 3/8-5 3/4	250	0.6-0.8	1
PS275	27 1/2	2 3/8-9 7/8	350	0.6-0.8	1
PS375	37 1/2	2 3/8-14	500	0.6-0.8	1
PS16	27 1/2, 37 1/2, 49 1/2	3 1/2-7 3/4	500	0.6-0.8	1
PS Portable	23, 27 1/2, 37 1/2, 49 1/2	2 3/8-5 1/2	250, 350	0.6-0.8	1
PS Slant Hole	For Slant Hole Drilling Rig	2 7/8-13 3/8	250	0.6-0.8	1
PS560	560mm Through Hole	1.9-7	350	0.6-0.8	1
