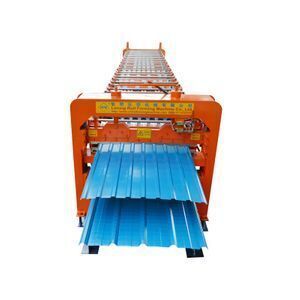

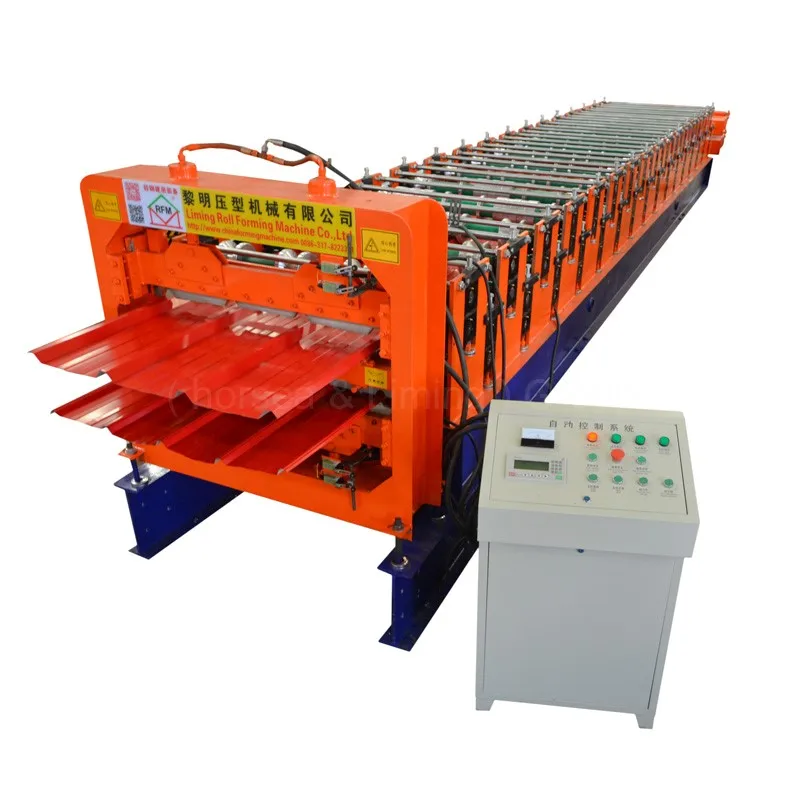

Low Price Metal Steel Double Layer Steel Roof Plate Iron Sheet Tiles Cold Roll Forming Making Machine For Roof Panels
-
Supplier: Horsea Precision Machinery Co., Ltd. -
Region: Hebei, China -
Contact: Mr Horsea Machine -
Price: $7000.00 /set -
Min. Order: 1 set
| Condition: | New; | plc: | mitsubishi/delixi/siemens; |
| operate style: | automatic; | Key Selling Points: | Long Service Life; |
| Place of Origin: | Hebei China; | Tile Type: | Steel; |
| Applicable Industries: | Building Material Shops,Construction works ; | Production Capacity: | 15-55M/Min; |
| color: | as customers requirement; | Type: | Tile Forming Machine; |
| raw material: | ppgi; | Port: | tianjin port; |
| Dimension(L*W*H): | 5000*800*1200Mm; | Payment Terms: | L/C,D/P,T/T,MoneyGram; |
| Packaging Detail: | for the whole production line of roof tile production line, the main machine and its components are fastened in one 40-feet container; | profiles: | as customers requirement; |
| Weight: | 2t; | After-sales Service Provided: | Online support; |
| feeding width: | as customers requirement; | Certification: | Ce Bv Iso Sgs; |
| Voltage: | 380V 50Hz 3Phases; | Use: | Roof; |
| Name: | Metal Steel Double Layer steel; | thickness: | 0.3-0.7mm; |
| Brand Name: | Rfm; | Warranty: | 1 Year; |
| cutting blade material: | cr12 with quenched treatment; | Supply Ability: | 3 Set/Sets per Month; |
| After-sales Service Provided: | Engineers available to service machinery overseas; |
Advantage:
- The double layer roll forming machine consist of one set decoiler, two sets of feeding platforms and two roll forming core,and two cutting dies.

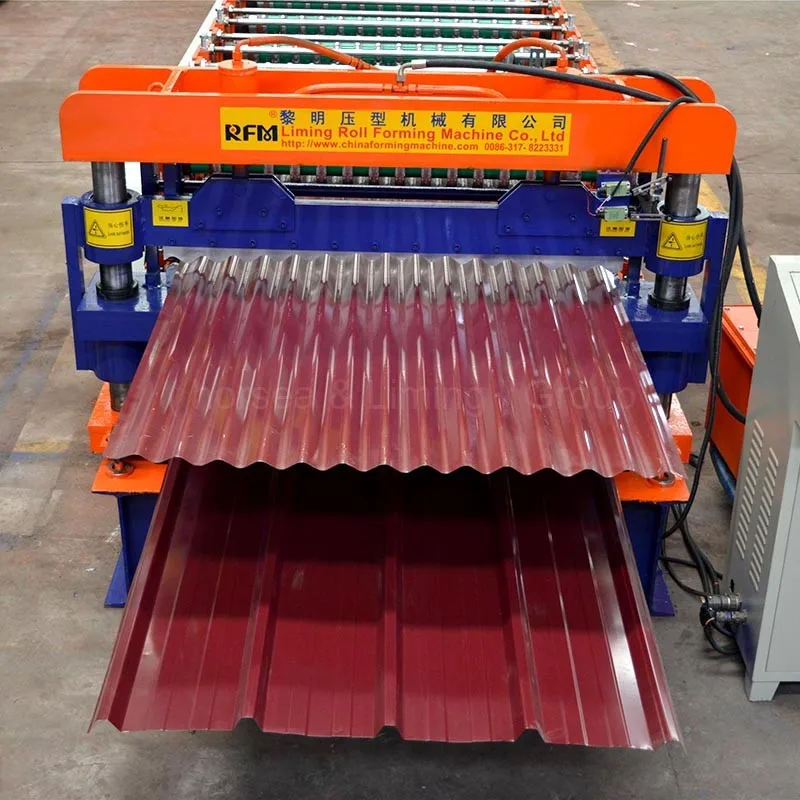

- The double lay forming machine can produce two differents kinds of metal sheet which be trapezoidal panel and the other one is corrugated panel.
- The production size we can design the machine all as customize,customer just show us the profile drawing material thickness width, we can design the machine according as the request
- When we finish the machine, we will test the machine and adjust the machine many times to be sure the machine have a perfect status and when customer receive the machine, the machine can be used very easy
Technical Parameters:
No. | Item | Specification |
1 | Can Formed Material | PPGI,GI,AI |
2 | Equipment operation | Automatic |
3 | Voltage | 380V 60Hz 3Phase or as your requirement |
4 | Thickness of sheet (mm) | 0.5-0.8mm |
5 | Material width(mm) | As your requirement |
6 | Cover Width of the sheet after formed | as your drawing |
7 | The size of the roll forming machine | 6500mmx1600mmx1400mm |
8 | Speed | 8-15m/min |
9 | Diameter of shaft | 70mm |
10 | Weight of the Machine | 6500-7000KGS |
11 | Material of rollers | C45 steel quenched and chromed |
12 | Motor brand | Siemens or Guomao |
13 | PLC | Siemens or Delta or Mitsubushi |
14 | Total power (kw) | 12kw |
15 | Power of hydraulic system | 7.5kw |
16 | Power of main molding core | 4.5kw |
Provide a full set of construction equipment one-stop manufacturing
Promotion of related products :
For more information,welcome to visit our website: www.Horsea.com
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
- 3.All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
-
