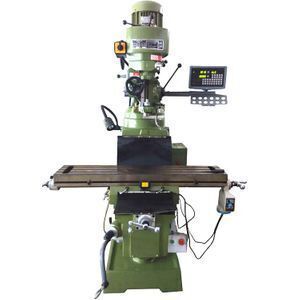

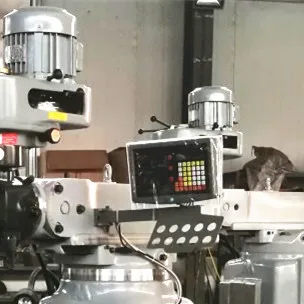

milling machine 5H High spindle vertical turret milling machine price

Supplier: Shandong Chuci Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Michael L
Price: $4100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Function:	Milling Drilling Tapping Routing Chamfering;	Range of Spindle Speed(r.p.m):	80 - 5440;
Spindle motor power:	2.25kw;	After-sales Service Provided:	No after-sales service,Free spare parts,Online support;
Model Number:	4H;	Spindle speed:	65-4500;
Table Travel (mm):	1270*254mm;	Port:	Qingdao Port/Shanghai Port/Tianjin Port;
T- slot number and size:	3*16;	Working table stroke:	780400500;
CNC or Not:	Normal;	Key Selling Points:	Multifunctional;
Brand Name:	CHUCI;	Precision:	High Precision;
Spindle travel:	127mm;	Machine Type:	Veritcal;
Type:	Vertical;	Condition:	New;
Supply Ability:	500 Set/Sets per Month;	Usage:	Metal Processing;
Payment Terms:	T/T;	Power (kW):	3.75;
Weight (KG):	1700;	Warranty:	1 Year;
Applicable Industries:	Manufacturing Plant;

Product Description

Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Feature:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.

Technical specification:

Specifications			Units	4H	5H
Table size			mm	1270x254(10”x50”)	1370x305(54” x 12”)
T- slot number and size			mm	3x16	3x16
Working table stroke		X	mm	780	810
		Y		400	420
		Z		500	500
Telescopic arm stroke			mm	470	500
Spindle nose to working table distance			mm	0-405	0-350
Taper of spindle hole				Standard: R8 Optional: ISO30/ISO40	Standard:ISO40
Spindle speed			r/min	Standard: 16(shift grade)50HZ:65-4500 60HZ:80-5440	Standard: 16(shift grade)50HZ:65-4500 60HZ:80-5440
Spindle speed			r/min	Optional:(variable)65-4000	Optional: Variable 65-3750
Spindle travel			mm	127	127
Spindle feed rate			mm/r	Three steps: 0.04(0.0015”)/ 0.08(0.003”)/ 0.15(0.006”)	Three steps: 0.04(0.0015”)/ 0.08(0.003”)/ 0.15(0.006”)
Spindle motor power			KW/HP	2.25/3HP	3.75/5HP
Head rotation (left - right )			°	90°	90°
Head rotation (front - rear)			°	45°	45°
Packaging size(Lx W x H)	Single package		mm	1516x1550x2080	1566x1650x2080
	Two sets of packaging			1650x1790x2170	1720x1800x2175
	Three sets of packaging			1650x2285x2235
Gross Weight			Kg	1650	1700

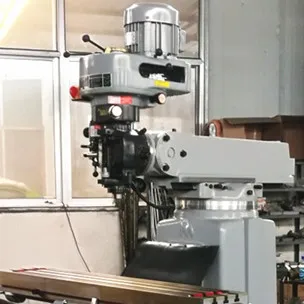

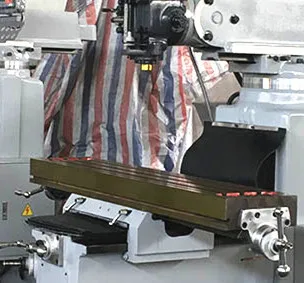

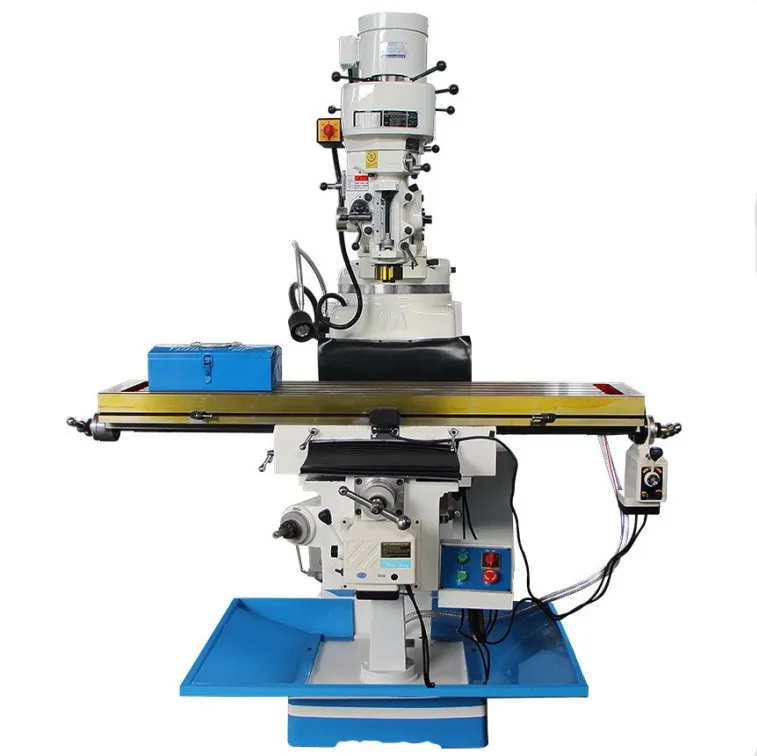

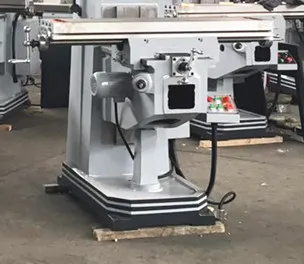

Detailed Images

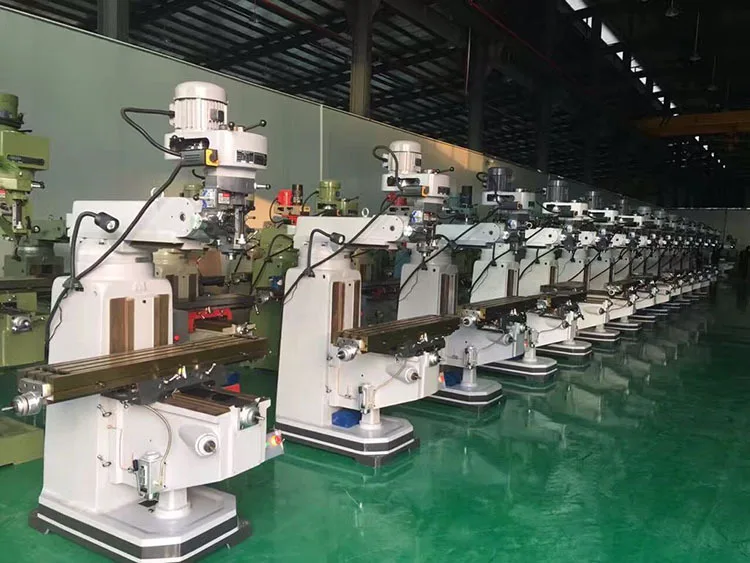

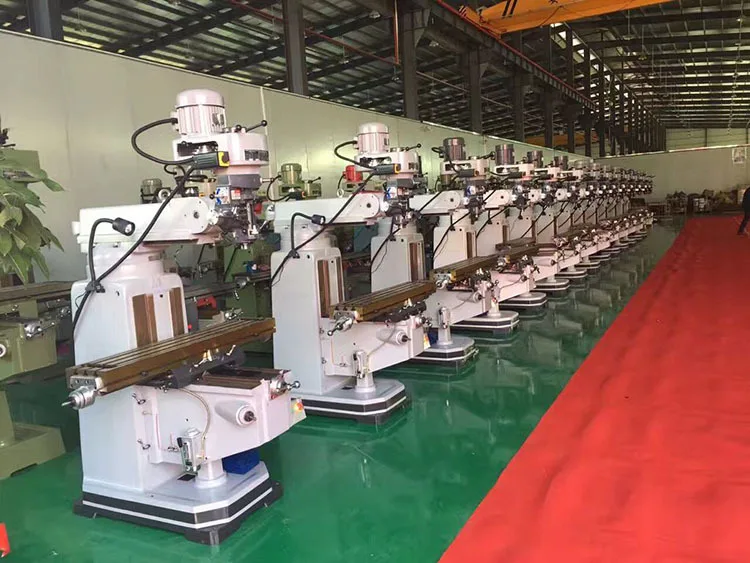

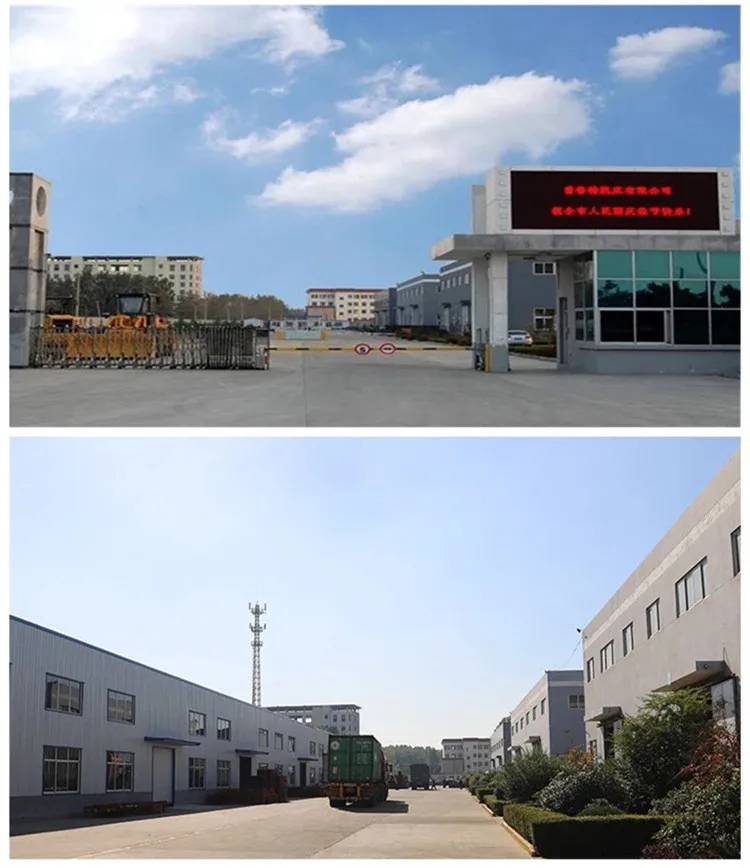

Factory

FAQ

1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.

2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.

3.When is the delivery time?
We will delivery it within 40 days after received your payments.

4. How to handle the warranty period?
During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.

5.Can your company send the technical personnel to our company and direct our workers for free?
When the machine arrive the buyer’s installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

6.What's the trade assurance?
When you look at our alibaba website, you will see the trade security, its purpose is to let every buyer confidence, it can protect your payment, ensure that the suppliers fulfill their commitment to the date of shipment and the quality of the products (as you stated in the purchase order).
If the supplier finds breach of these contractual obligations, alibaba will indemnify you for 100% of your trade guarantee.
Therefore, I believe that through trade guarantees, you will have greater confidence to cooperate with us.

7.Do your products support trade assurance?
Yes, our products are all supported.
