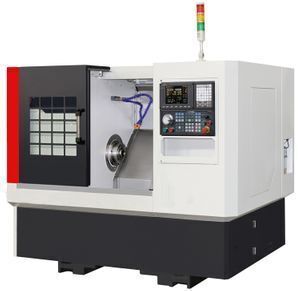

High precision TCK6350 cnc lathe machine price

Supplier: Shandong Chuci Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Michael L
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key Selling Points:	Automatic;	Power (kW):	11;
Weight (KG):	3000;	Port:	Qingdao Port/Shanghai Port/Tianjin Port;
Brand Name:	CHUCI;	Warranty:	2 Years;
After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training;	Model Number:	TCK6350;
Dimension(LWH):	192013501700;	Max. workpiece length:	410mm;
Packaging Detail:	PLY standard exporting package;	Place of Origin:	Shandong China;
Automatic Grade:	Automatic;	Max. Spindle Speed (r.p.m):	4000;
X/Z axis travel:	500/500mm;	Max. Length of Workpiece (mm):	410;
Payment Terms:	L/C,T/T,Western Union;	Certification:	CE;
Max.swing over cross slide:	220mm;	Supply Ability:	100 Set/Sets per Month;
Bar capacity:	55mm;	Max swing over bed:	520mm;
Spindle nose:	A2-6;	Spindle bore:	66mm;
Precision:	High Precision Machine;	Max. Swing Diameter (mm):	520;
Type:	Horizontal;	Condition:	New;
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Machinery;	Function:	Machining Metal;
Chuck size:	10in;	CNC or Not:	CNC;

Product Description

Technical Parameter

Specification	Unit	TCK6350
Max.Swing Over Bed	mm	520
Swing Over Cross Slide	mm	220
Max.Processing Length	mm	410 Gang Tool Post 330 Electric Tool Post
X/Z Axis Travel	mm	500/500
Spindle Unit	mm	200
Spindle Nose		A2-6
Spindle Bore	mm	66
Bar Capacity	mm	55
Max.Spindle Speed	rpm	3000
Chuck Size	in	10
Spindle Motor	Kw	7.5/11
X/Z Axis Repeatability	mm	±0.003
X/Z Axis Feed Motor Torque	N.m	7.5/7.5
X/Z Rapid Traverse	m/min	18/18
Turret type		Gang Tool Post
Cutting Tool Size	mm	25*25
Guide Way Type		45° Guide Way
Total Power Capacity	KVA	14/18
Dimension (LWH)	mm	250016201890
N.W	KG	3000

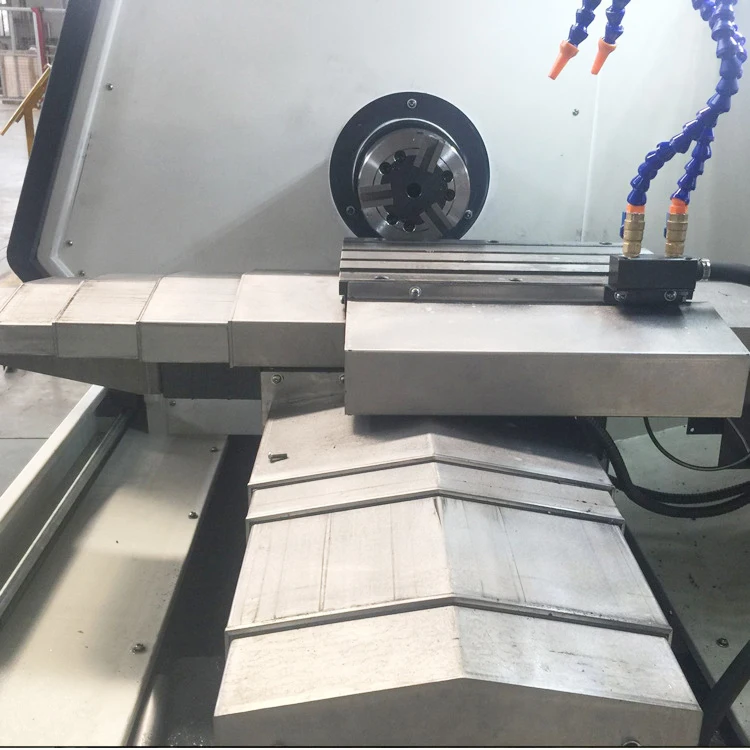

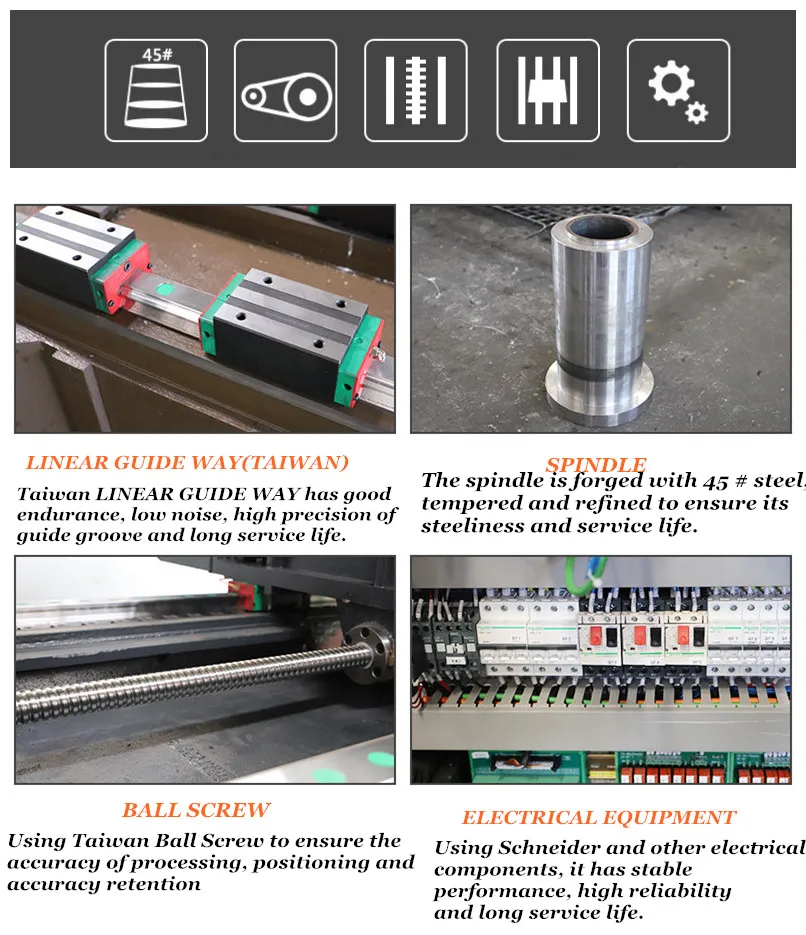

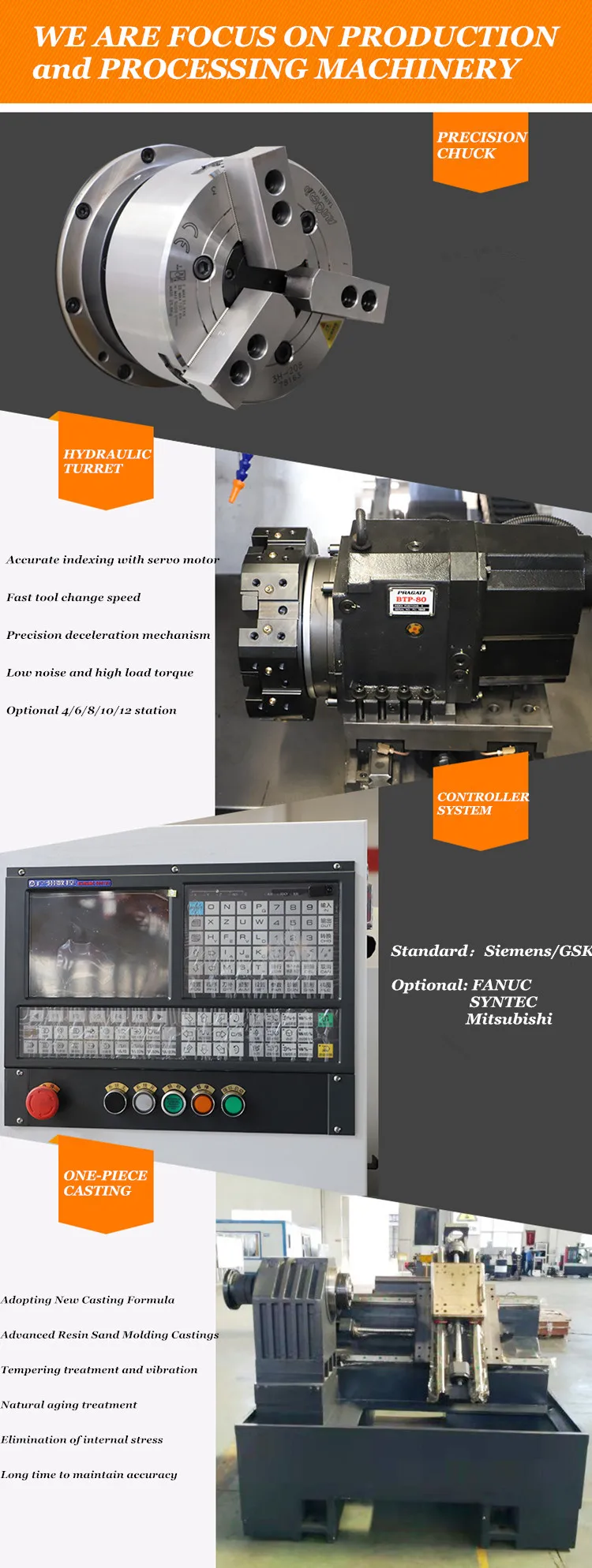

Detailed Images

Company Information

Shandong Chuci Machinery Equipment Co.,Ltd specializes in the design, production and sales of CNC machine tools. The leading products are CNC lathes, turning centers, vertical machining centers, milling machine etc. The company was established in 1998 and covers an area of 12,000 square meters.Has passed CE certification and SGS certification, TUV certification, BV certification, ISO9001 certification.we has won many honors such as national level and upgrade. Our machine are very popular in Africa, South America, Mid-East, Russia, etc.and received customer's consistent high praise.

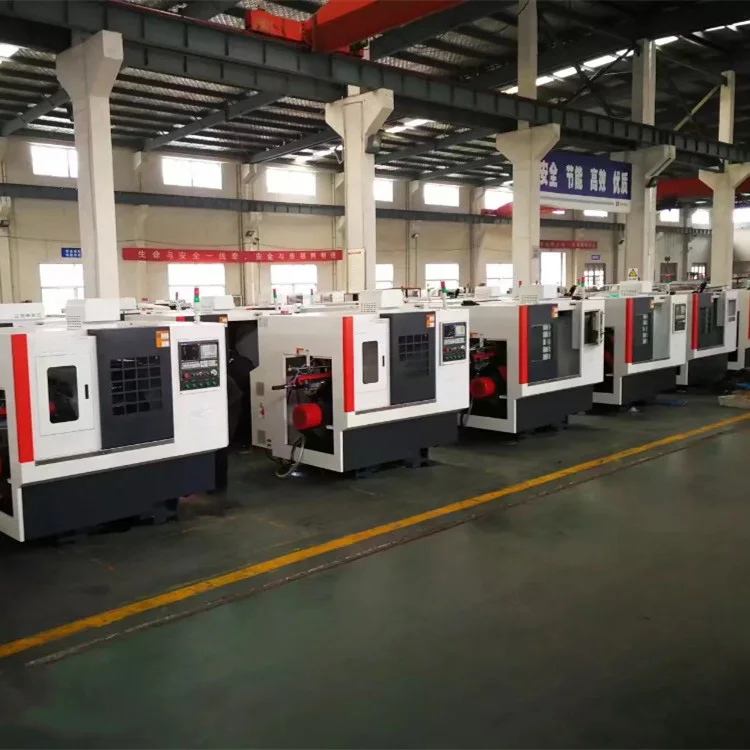

Welcome to our factory!

FAQ

1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.

2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.

3.When is the delivery time?
We will delivery it within 40 days after received your payments.

4. How to handle the warranty period?
During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.

5.Can your company send the technical personnel to our company and direct our workers for free?
When the machine arrive the buyer’s installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

6.What's the trade assurance?
When you look at our alibaba website, you will see the trade security, its purpose is to let every buyer confidence, it can protect your payment, ensure that the suppliers fulfill their commitment to the date of shipment and the quality of the products (as you stated in the purchase order).
If the supplier finds breach of these contractual obligations, alibaba will indemnify you for 100% of your trade guarantee.
Therefore, I believe that through trade guarantees, you will have greater confidence to cooperate with us.

7.Do your products support trade assurance?
Yes, our products are all supported.
