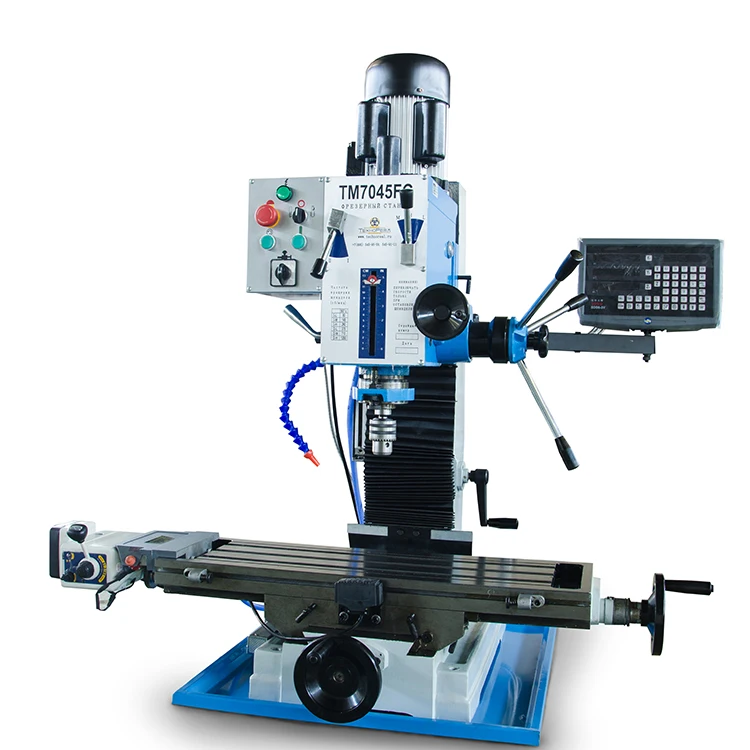

metal vertical milling machine ZAY7032FG/40FG/45FG

Click here to contact
Product details
Certification:CE ISO;CNC or Not:Normal;
Supply Ability:100 Set/Sets per Month;Payment Terms:L/C,T/T,Western Union;
Delivery Detail:35days;Type:Vertical;
Place of Origin:Anhui China;Model Number:ZAY7032FG/ZAY7040FG/ZAY7045FG;
Port:Shanghai;Condition:New;
Voltage:220/380V;Brand Name:NEW DARGON;
Dimension(L*W*H):670*550*860mm/870*550*860mm;Power(W):1.1kw;
Warranty:1 Year;Weight:110/122;
Color:Opitional;Packaging Detail:plywood case;
After-sales Service Provided:Engineers available to service machinery overseas;
Product Description

 High speed  drilling and milling machine





Feature

1) Fast low inertia servo motor transmission in 3 axes, greatly improve the processing efficiency.
2) Automatic lubrication device, prolong its service life.
3) Disk type tool magazine with stable working performance, fast changing tool within 3 seconds.
4) Being equipped with multiple axes, greatly improves the production efficiency and save labor cost. 5. All main body uses meehanite cast iron, high tension casting material, shock absorption power, good wear resistance, after the stress relief and aging treatment, make sure the machine can maintain the best accuracy for a long time.
6) High precision ball screw transmission in 3 axis.
7) Perfect details processing technology:every detail is treated very seriously so that perfect machine could be made.
8) Easy and safe operation and low maintenance cost.Easy and popular operation manual to make the user to learn quickly how to operate the machine safely; Free training in our factory will be offered. Less time and less money will be spent on the maintenance because of the top quality of the machines.
9) Many optional configuration and OEM service available.According to your requirement, different configurations will be offered. OEM service is available for you.

10) Matured and perfect after-sales service system around the clock removes the worries for the future. Free guarantee for one year and lifetime service; Overseas engineer is available for being dispatched.

 Specification



ZAY7032FG

 ZAY7040FG ZAY7045FG

Drilling capacity

(mm)

32

 40 45

Max.face mill capacity(mm)

63

 80 80

Max.end mill capacity(mm)

20

 32 32

Spindle stroke(mm)

130

 130 130

Spindle taper

M.T.3 or R8

 M.T.4 or R8 M.T.4 or R8

Step of spindle speeds

6

 6 6

Range of spindle speeds  50Hz

80-1250 r.p.m



 80-1250 r.p.m 80-1250 r.p.m

Range of spindle speeds  60Hz



95-1500 r.p.m



95-1500 r.p.m



95-1500 r.p.m

Table size

800×240mm

 800×240mm 800×240mm

Forward and backward travel of table

175mm

 175mm 175mm

Left and right travel of table

500mm



 500mm 500mm

Power

0.75KW

 1.1KW 1.5KW

Net weight/Gross weight



320kg/370kg



320kg/370kg



323kg/373kg

Packing size

770×880×1160mm

 770×880×1160mm 770×880×1160mm

Loading amount

 36pcs/20'container

36pcs/20'container

 36pcs/20'container



 Standard accessories

1.Draw bar ,2.wedge, 3.allen wrenches, 4.screw driver 5.drill chuck and arbor

Optional accessories

Machine vice 125mm,

depth scale

mill chuck set

coolant system

58pcs clamping kits

working lamp

stand

oil tray,

boring bar

milling cutter holder with inserts

electric table power feed

 rotary worktable
