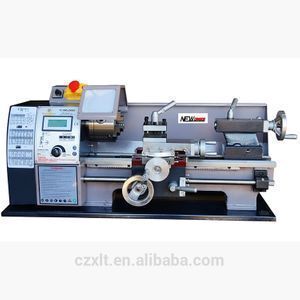

mini metal benchtop variable speed lathe TL180X300V

Supplier: Chizhou New Dragon Machinery Co., Ltd.
Region: Anhui, China
Contact: Mr GUANGQING XU
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Power(W):	450w;
Dimension(LWH):	800480450mm;	Place of Origin:	Anhui China (Mainland);
Packaging Detail:	plywood case;	CNC or Not:	Normal;
Voltage:	220V;	Port:	Shanghai;
Delivery Detail:	35days;	Model Number:	TL-180300V/TL-210400V;
Max. Swing Diameter:	180mm;	Type:	Horizontal;
Brand Name:	NEW DRAGON;	Certification:	CE ISO;
Color:	Customized Option;	Payment Terms:	L/C,T/T,Western Union;
Supply Ability:	100 Set/Sets per Month;	Weight:	60kg;
After-sales Service Provided:	Engineers available to service machinery overseas;	Automatic Grade:	manual;

Product Description

1.widely used, simple operation, and a wide range of processing
2.Guarantee the concentricity of the spindle is less than 0.009mm

3.Chuck runout accuracy of less than 0.05mm

4.Strong power, maintenance-free DC motor
5.After quenching and precision grinding of cast iron bed
6.High precision, quenching spindle

Technical data

Model No.	TL-180×300 V	TL-210×400 V
Distance between centers	300mm	400mm
Swing over bed	180mm	210mm
Width of bed	100mm	100mm
Taper of spindle bore	MT3	MT3
Spindle bore	21mm	21mm
Spindle speeds	50-2500rpm	50-2500rpm
Longitudinal feeds	0.08-0.16mm/r	0.08-0.16mm/r
Imperial threads	10-44TPI	10-44TPI
Metric threads	0.5-3mm	0.5-3mm
Top slide travel	55mm	55mm
Cross slide travel	75mm	75mm
Tailstock quill travel	65mm	65mm
Taper of tailstock quill	MT2	MT2
Max.tool dimension	10mm	10mm
Motor	450W	450W
Packing size	800×480×450mm	910×480×470mm
Net weight	60kg/80kg	76kg/96kg

Standard accessories

Speed display

3-jaw chuck 100mm

Splash guard

Chip tray

Safety chuck guard

Dead centers MT2/MT3

Change gear kits

Operating tools

Optional accessories

4-jaw chuck 100mm

Backplate for 4-jaw chuck

Follow rest

Steady rest

Face plate

Stand

Live center MT2

Turning tools

Quick change tool post

Application

Suitable for turnings of metal, wood, jade, etc.
Ideal for use in labs, workshops, engineering and education.
Can be turned within foreign aid, turning thread, turning taper and so on.
