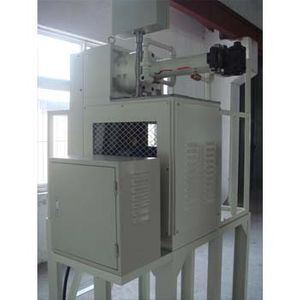

50 vertical silicone line/continuous vulcanization/curing production line

Product details
Condition:New;Voltage:380V;
Motor type:Inverter motor;Place of Origin:China;
Port:Tianjin;Packaging Detail:Wooden case;
Warranty:1 Year;Certification:Patent ZL01224092.3;
After-sales Service Provided:Field installation, commissioning and training;Weight:900kg;
Material:38CrMoAlA;Function:Double-color tube, pipe extruding;
Silicone Extruder:SiliconeTubeAndSiliconeStripMaking MachineHorzontalSiliconeExtruder;Brand Name:Huitian;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;Minimum extruding OD:<0.5mm;
Maximum extruding OD:<200mm;Screw compression ratio:2.5:1;
Screw rod type:single thread, different distance and depth;Supply Ability:100 Set/Sets per Month Vertical extrusion vulcanization equipment;
L/D Ratio:12:1;Self life:15 years;
Dimension(L*W*H):1600*645*1250;Power(W):1.5-22;
Product Description

Product Application of Silicone Extruder

Silicon Rubber Extruder
(National patent: ZL01224092.3)
 The silicone extruder can also extrude and produce hatching line, multi-cavity and multi-colored tubes and strips and pipes.

Unique Design of Silicone Extruder

1. The silicon rubber extruder has many special designs, such as the easy and convenient feeding, good plasticizing and self-cleaning ability of screw

2. The silicone rubber extruder extruded products with high density and stable and identical dimension, the screw and extrusion head can be dismantled and cleaned conveniently

3. When extruding the abnormal rubber strips with all kinds of complex section forms, it can guarantee the accurate dimension and form.

4. To all kinds of soft and hard silicon rubber with the hardness from 30 to 80 degrees, it can guarantee the excellent extrusion and cure effect with high production efficiency and easy operation.

5. The screw L/D ratio is 12: 1, the extruded products have good density.
6. The type of screw is unequally spaced and unequally deep, single screw thread. When the compression ratio is 2.5:1, it can extrude all kinds of soft and hard silicon rubber with the degree of 30 to 80 (Shore A hardness)well.
7. The filter plate which is in the front of screw can be installed with filter screen to reduce impurities of silicone.
8. By adopting the converter moter and FUJI frequency converter, the low speed and high speed of machine and the control ability of machine is very stable and excellent.
9. By adopting the floating type design, the screw can be easy to demount and clean. It is especially applicable to the production which needs to often change the color or Platinum silicone. The screw has excellent self-cleaning ability, and can completely empty silicone in the barrel .
10. The barrel and the cooling trough are in the same body. By using external spiral passage cooling method, the cooling effect is very good and the working temperature is below 40 degree Celsius.

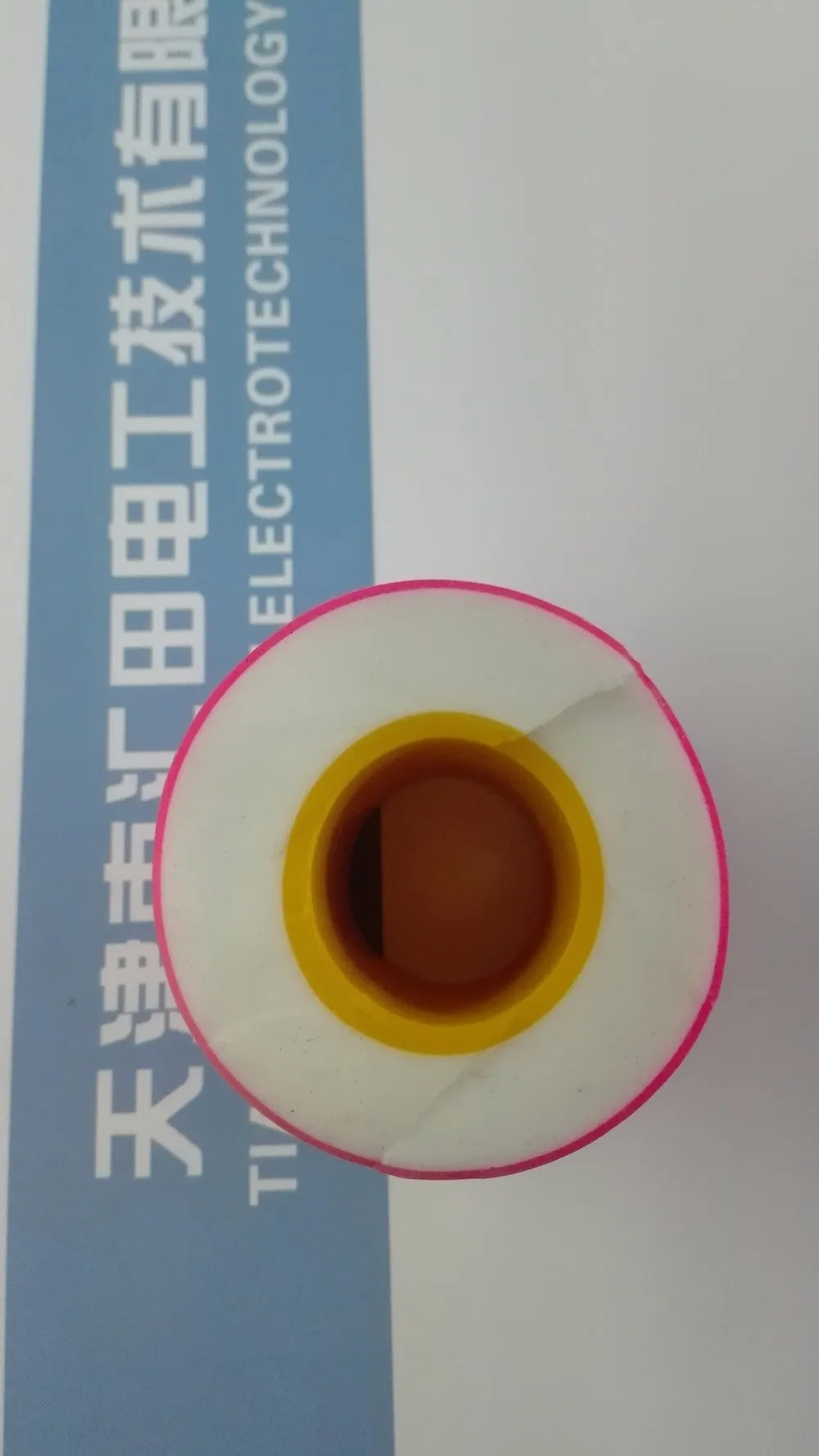

11. It has the function of extruding the hatching line, it can extrude with two colors (three color) and extrude with different silicone such as conduction silicone etc. It is also applicable to the production of extruded products such as silic

Specification
Ф16
Ф30
Ф50
Ф65
Ф75
Ф90
Screw OD
Ф16
Ф30
Ф50
Ф65
Ф75
Ф90
Screw Length-dia Ratio
12:1
Screw Compression ratio
2.5:1
Screw  Type
Single Screw Thread, Unequally Spaced, Unequally Deep
Rotating of Screw(RPM)
0-60/MIN
Motor Power (kw)
1.5
3
7.5
11
15
22
Center Height(mm)
1000
Capacity of the extruder(KG/H)
10
20
50
100
150
200
Size(mm)
Length
650
975
1500
1600
1700
1900
Width
480
620
700
700
700
700
Height
1140
1140
1160
1250
1250
1250
Type of Machine
Moveable Type
Detailed Images

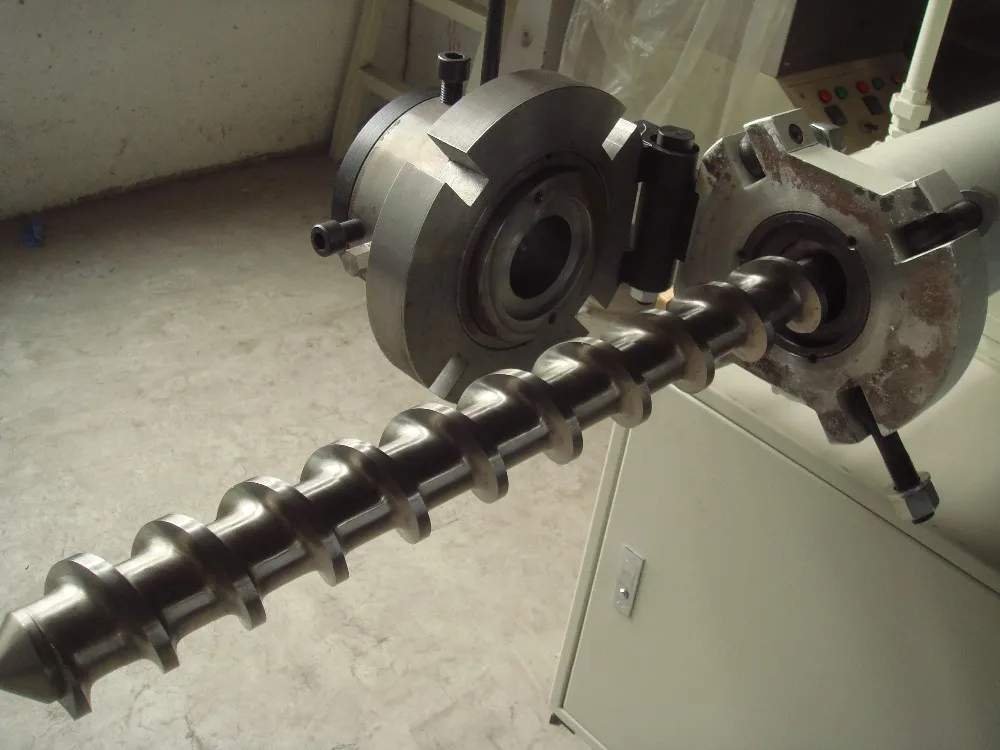

Screw rod

Name: Screw rod of the silicone extruder

Brand: Huitian

Original: China

Patent part of Tianjin Huitian(our factory)

The type of screw is unequally spaced and unequally deep, single screw thread. When the compression ratio is 2.5:1, it can extrude all kinds of soft and hard silicon rubber with the degree of 30 to 80 (Shore A hardness)well.

Main Features

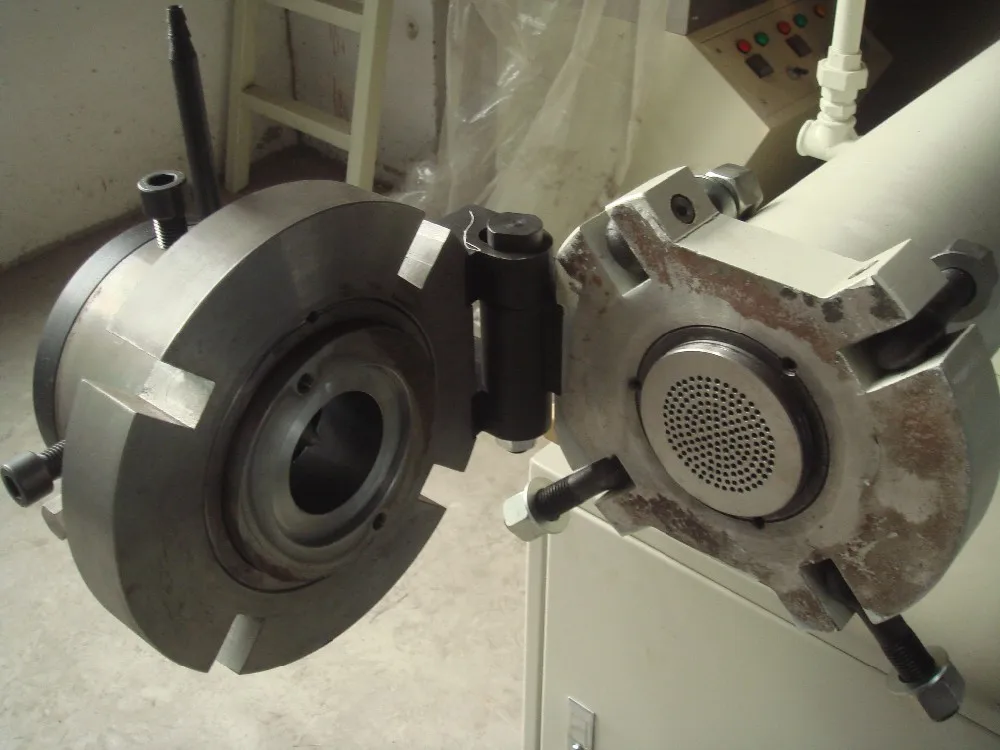

Name: Filter board
Brand: Huitian
Original: China

Main Features

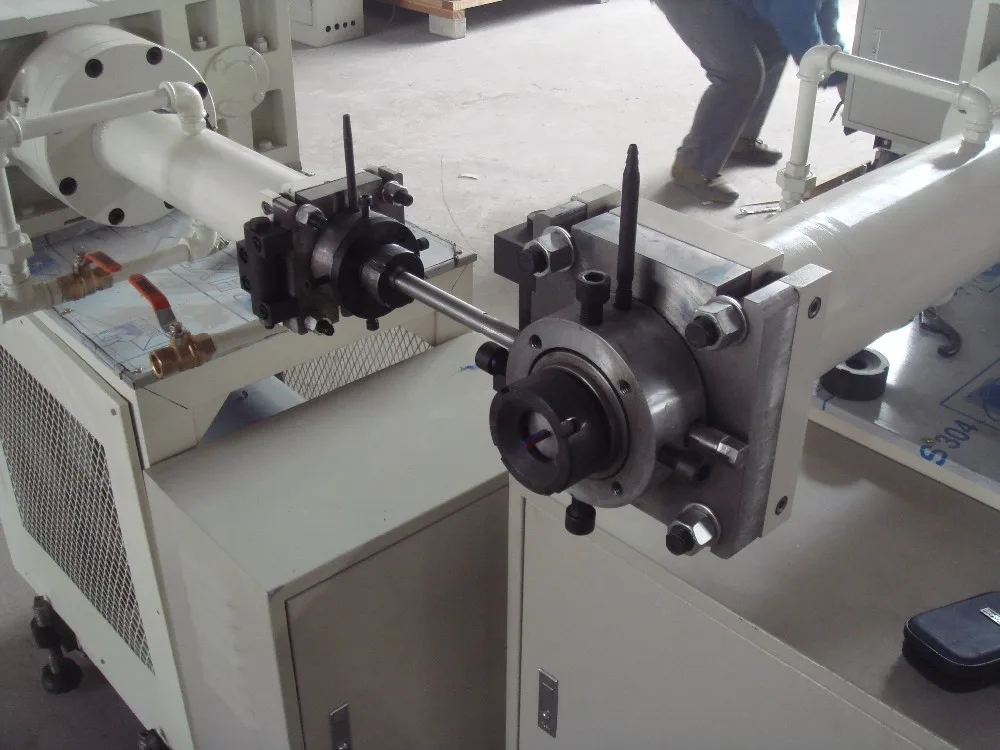

Name: Co-extruder
Brand: Huitian
Original: China

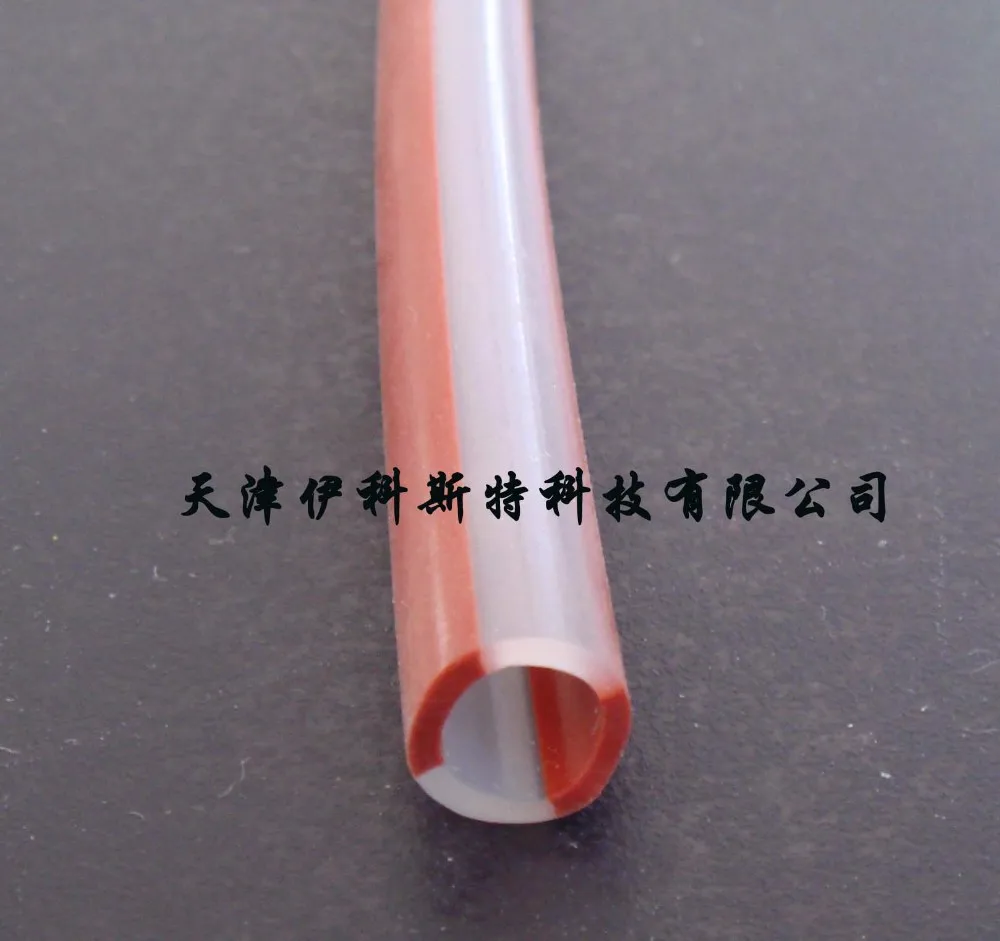

For acchieve two to three colors
