JMC 21m hydraulic truck mounted aerial work platform with Telescopic arm truck

Click here to contact
Product details
Emission Standard:Euro 4;Cab:3+2;
Cabin type:double row;Condition:New;
arm:Folding arm lift;Color:red;white,yellow;
Working height:14m ;16m; 18m;Port:shanghai or any port;
Supply Ability:2000 Unit/Units per Year;Transmission Type:Manual;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;other Brand:jmc;jac;faw;lsuzu;h ino;;
Place of Origin:hubei;Packaging Detail:Container, nude Or according to your request;
Brand Name:JMC;Dimensions (L x W x H) (mm):7900*2160*3150;
truck type:20m Aerial Work Platform Truck;Fuel Type:Diesel;
Product Description
+
Product Name:
20m Telescopic arm aerial work truck
Total mass (Kg)
7800
Dimensions (mm):
7900×2160×3150
Cab seat (person):
3
Number of axes:
2
Wheelbase (mm):
3815
Maximum speed (Km/h):
100
Chassis model:
JX1083TK25
Chasiss Name:
JMC
 tires:
6+1
Fuel type:
diesel
Tire specifications:
7.5R16
Displacement (ml):
2900
Power (Kw):
115
Top part
Boom form:
two-section arm
Material thickness:
5mm
Maximum working radius:
8m;
Working height at maximum working radius
10m
Maximum working height:
20m;
wing:
±360° continuous
Maximum lifting quality:
500Kg
Telescopic boom:
elongation 2m
Hook:
1-1.5t
The maximum lifting range
 10.2m
Leg type:
H-leg
Leg span: longitudinal X transverse (mm):
6150X4000
Rear leg strobe light:
Three-section arm
Rated load
200Kg
Mode of operation:
twist switch
Leveling form:
external drawbar mechanical leveling
Outriggers:
 The legs can be controlled separately, interlocking with each other
Boom action:
two-position operation of turntable and gondola
Use
Electrical line maintenance; high-altitude work such as tree pruning

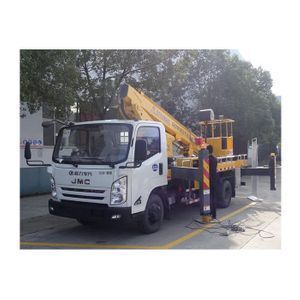

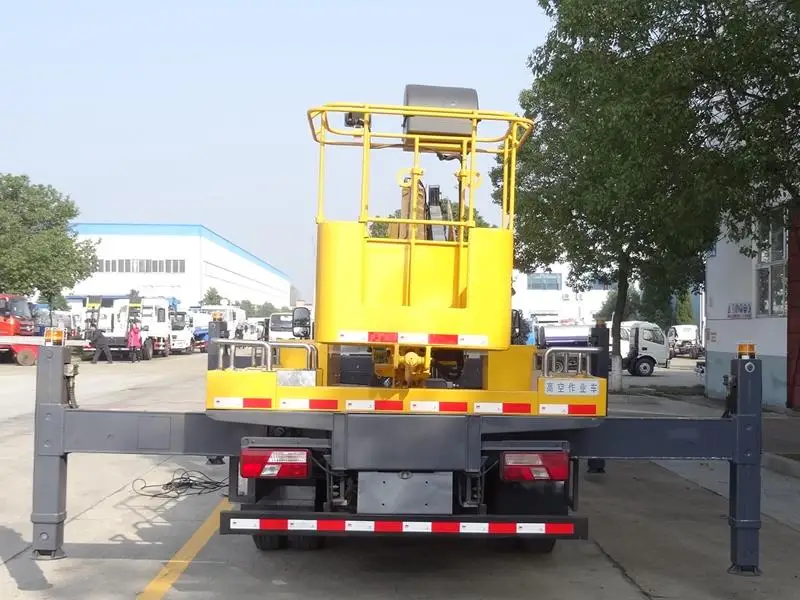

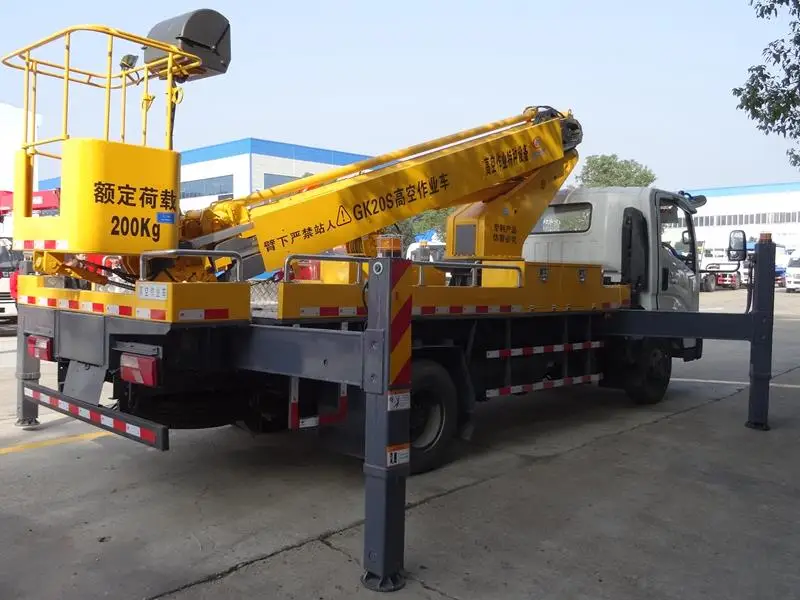

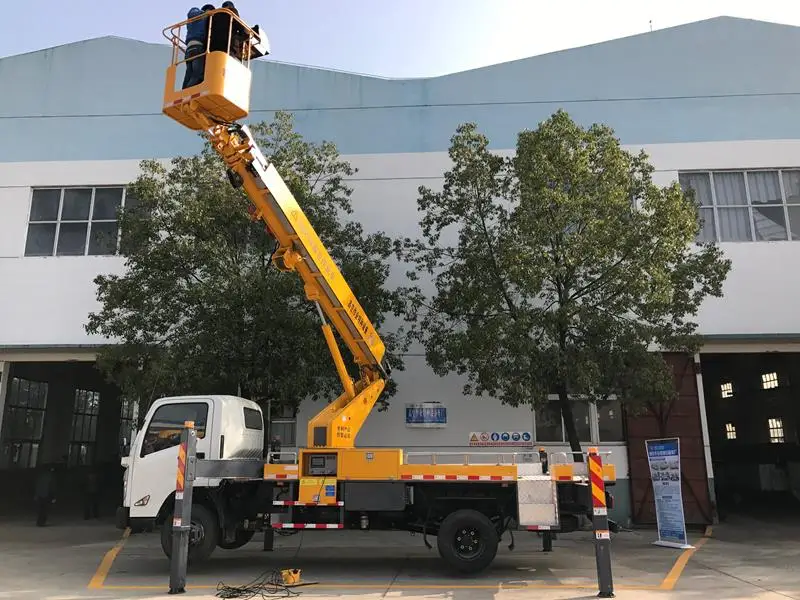

Detailed Images
+
+
+
+
+
+
Packing & Delivery
