low energy and efficient sawdust and cassava starch roller dryer

Supplier: Gongyi Lantian Mechanical Plant
Region: Henan, China
Contact: Ms. Lina Wang
Price: $9500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Name:	rotary dryer;	Weight:	2500kg;
High temperature:	800℃;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash;
Delivery Detail:	Within 10 working day after get deposit;	Voltage:	220v/380v or customization;
Power(W):	18kw;	Dimension(LWH):	Specific Model;
Condition:	New;	Warranty:	1 Year;
Keywords:	rotary dryer;	Rotation speed:	3-8 r/min.;
Type:	Rotary Drying Equipment;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of Origin:	Henan China;	Product name:	continuous sawdust and sand roller dryer;
Packaging Detail:	1.Single machine packed by wood case. 1.Multiplate machine or whole production line load in contioner.;	Capacity:	5.7-7.1t/h;
Certification:	CE ISO;	Color:	Blue,white ,or as your require.;
Voltage:	Customized;	Brand Name:	lantian;
Raw Material:	Sand, sawdust,cassava,ect.;	Application:	Industry;
Port:	Qingdao ,Lianyungang ,Dalian , Shanghai;	Model Number:	lantian series;
Supply Ability:	100 Set/Sets per Month rotary dryer;

Product Description

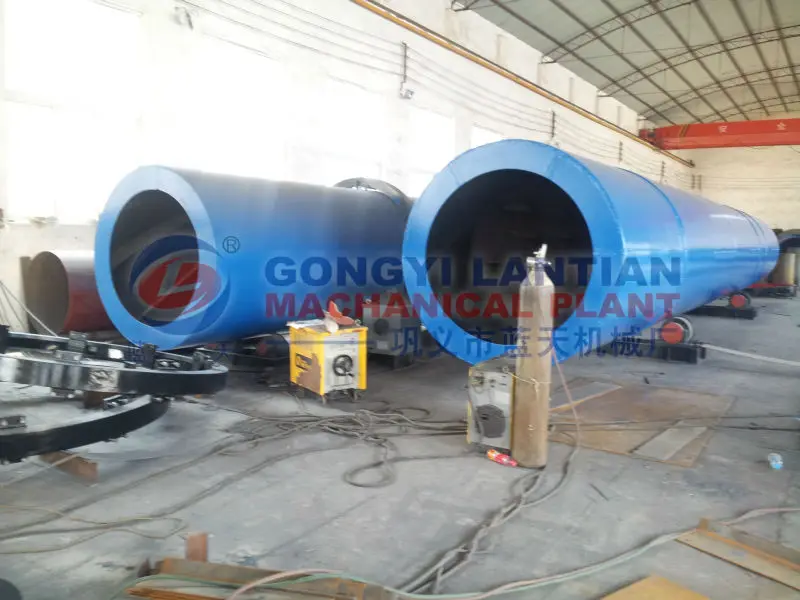

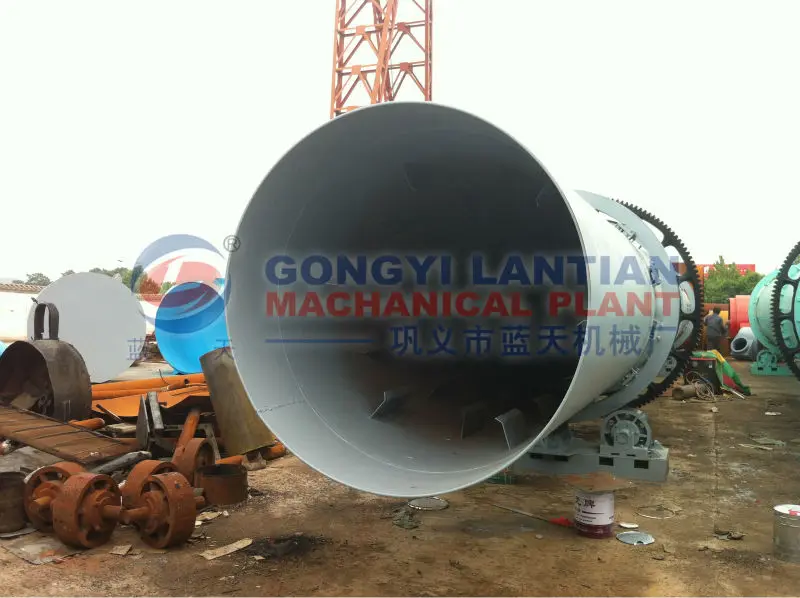

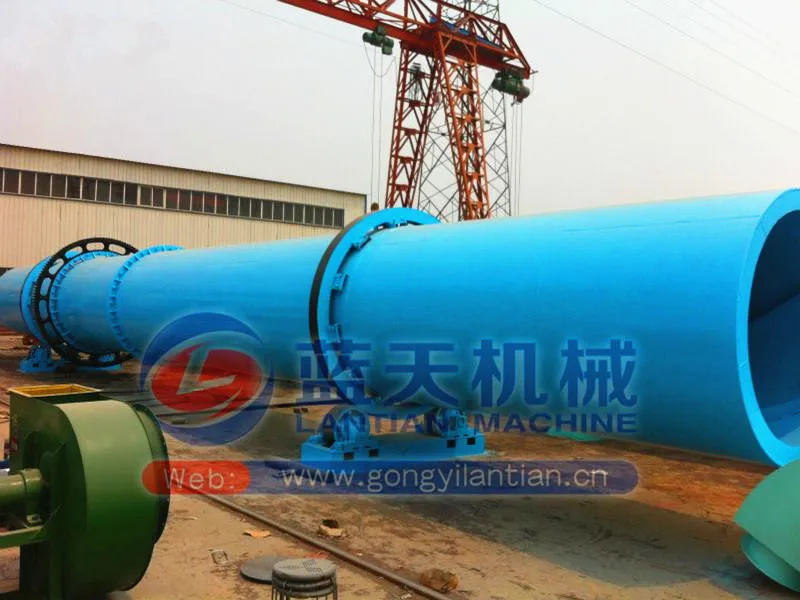

The structure features of roller dryer:

The roller dryer mainly has the rotary body, the lifting plate, the transmission device, the support device and the sealing ring and other components. With reasonable structure, well made, high output, low energy consumption, convenient operation, applicability is wide and can be dry powder, granule, article, block material, large elasticity of operation, production allowed on the product yield have larger fluctuation, without affecting the quality of the products.

Raw material for processing of roller dryer:

Sand/mineral/filter cake drying

River sand, molding sand, mining sand Limestone, gypsum, potash, kaolin clay.

Coal drying

Lignite (brown coal, wood coal), pulverized coal, coal slime.

Animal feed

Green fodder (alfalfa) drying and pelletizing ,Corn cobs,Brewery mash drying (spent brewers grain, distillers’ grain, beer meal residue, etc..) Bean and potato dregs drying ,Tapioca (cassava) residue.

Industrial slime

Coal slime drying ,Municipal sludge drying ,Electroplating sluge drying ,Paper mill sludge drying ,Calcium carbide slime drying. Printing and dyeing and textile sludge drying ,Leather sludge drying.

Industrial solid waste

Steel mill solid waste drying .chemical industry solid waste drying .Industrial residue .Metal chips .Fruit Pomace (apple, grapes, etc.) .Beet pulp, bagasse.

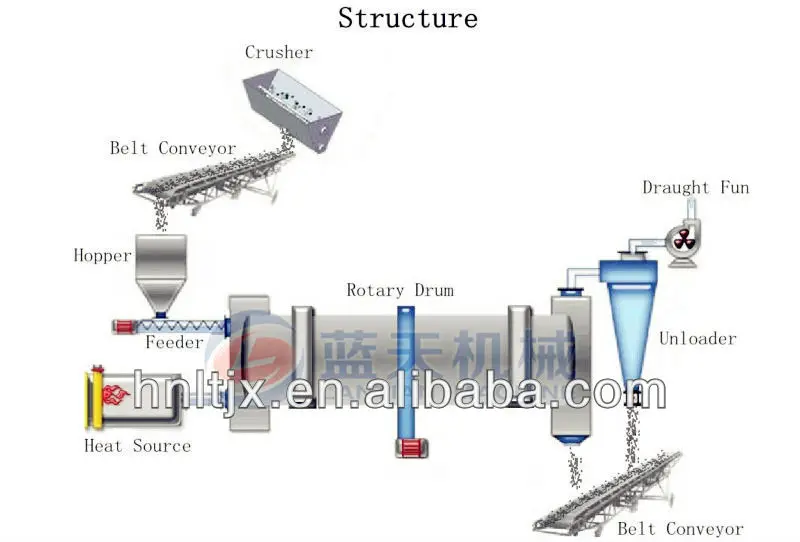

The principle of roller dryer

Rotary dryer’s heat source is a combustion apparatus. It adopts direct flow heating with heat source from firing unit. The material to be dried is pushed back immediately by spiral board after going in the shell from feeding tank or feeding chute. Because the drier is installed in an inclined position, material flows to the back end under gravity and rotation force. At the same time, it is lifted by board repeatedly and thrown down accordingly, which makes the material form an even curtain, so that it can exchange heat sufficiently with the heat flow. At last, water in the material is dried by repeatedly scattering.

Packaging & Shipping

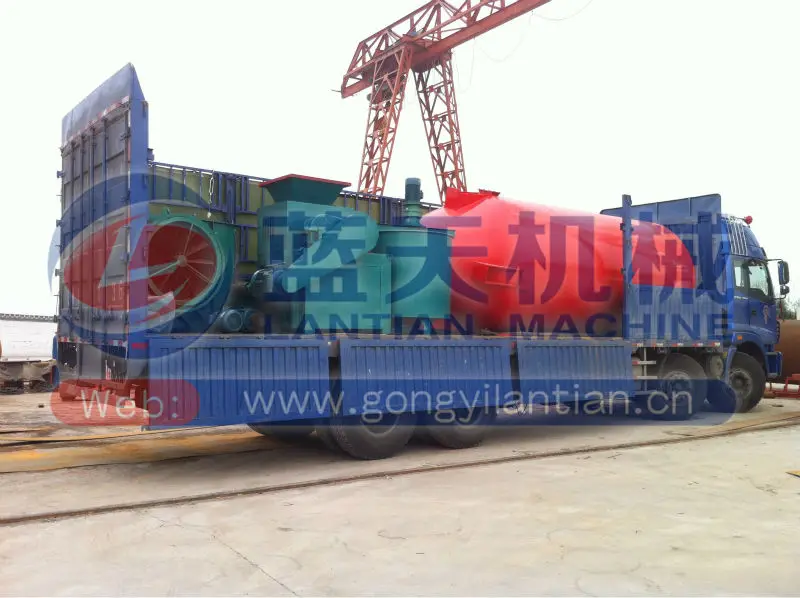

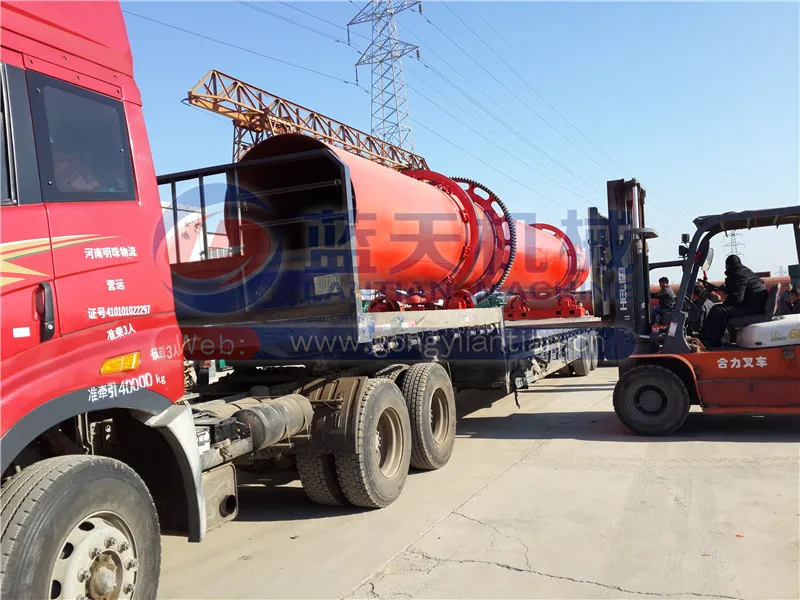

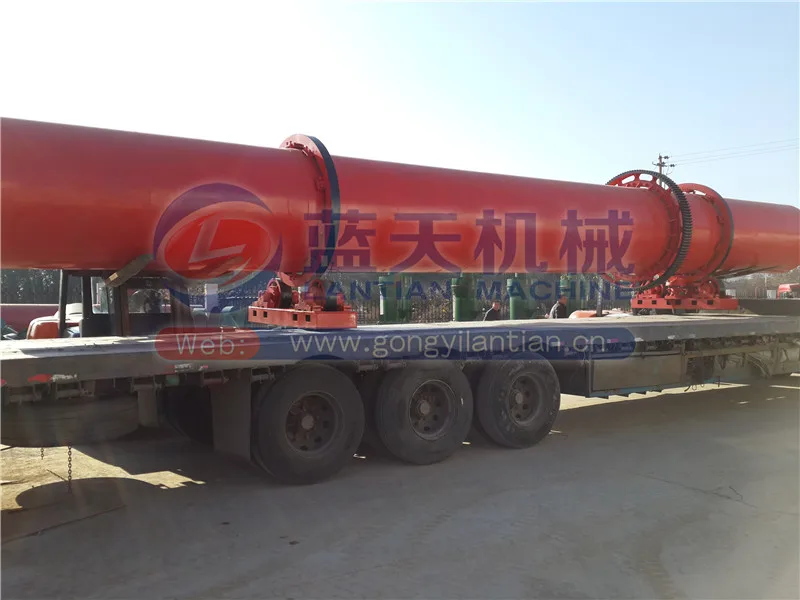

Packing and delievering of roller dryer

1. If the equipments have been finished, it needs 5 days for us to prepare for the delivery
2. If the customer want to make some changes to the finished products, needs 10-15 days to prepare for the delivery.
3. If you want a new set of equipments, we need 20-25 days.

Delivery Time

Shipped in 15 days after paymen

Our Services

1.Presale service:design and manufacture machines for you as your special requirements,provide you with project,process design,and purchase program.

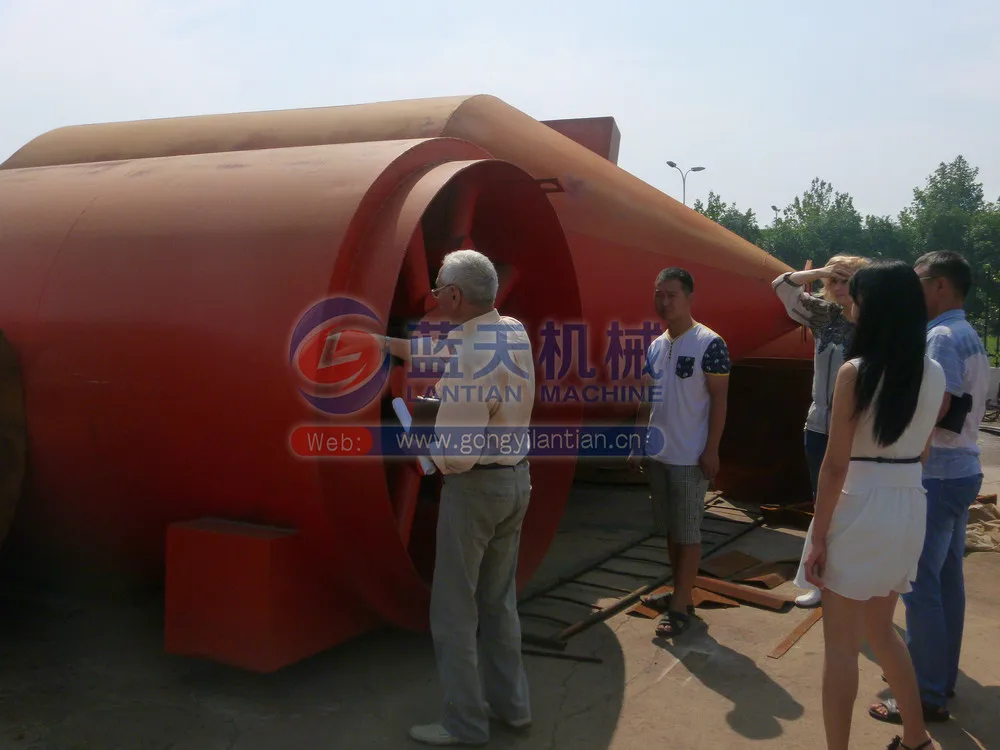

2.Onsale service: accompany with you to look around our factory,explain the manufactureprocess of our machines,and check the working performance of our machines.

3.Aftersale service:engineers are available to install and debugging equipments of the whole production line,besides,commissioning and training operators on site.
