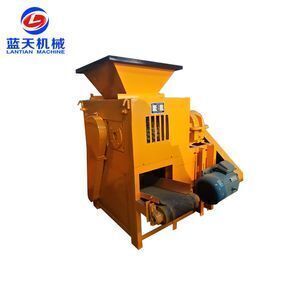

Charcoal and coal powder ball press briquette making machine

Product details
Type:Briquette Machines;Brand Name:Lantian;
Single package size:170X140X170 cm;Quality:Good quality;
Warranty:One Year;Mold:Can be customized;
Weight:According to your types;Installation:Under our engineers' guidance;
Delivery Detail:0 days after payment;Condition:New;
Motor Type:AC Motor;Production Capacity:1-30 T/h;
Selling Units:Single item;Certification:CE ISO;
Color:Any color is available;Shape of final production:Finger,cylinder,etc.;
Type:coal charcoal briquette machine;Package Type:1. Single machine packed with fumigation free wooden case. 2. Multiple or whole production line loaded in standard container.;
Voltage:220v,240v,380v,400v,415v;After-sales Service Provided:Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Dimension(L*W*H):According to types;Application:Coal powder,charcoal powder;
Place of Origin:Henan China (Mainland);Single gross weight:900 KG;
After-sales Service Provided:Engineers available to service machinery overseas;

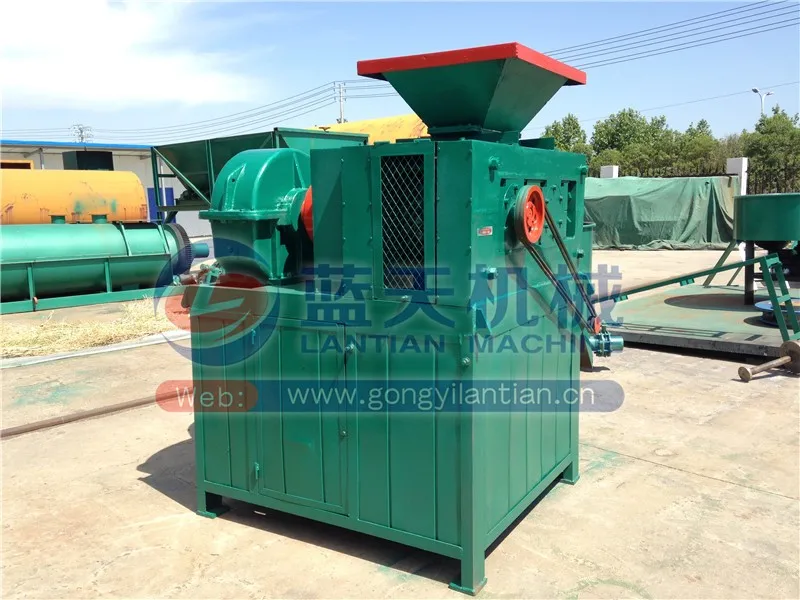

Charcoal and coal powder ball press briquette making machine

Production description of coal charcoal briquette machine

Coal charcoal briquette machine, also named charcoal briquette machine, roller briquette press machine, ball press machine, charcoal making machine, etc.

Gongyi Lantian Mechanical Plant can provide various kinds charcoal briquette machine for making different kinds briquettes, such as pillow shape, ball shape, egg shape, oval shape, heart shape, bread shape, etc.

The shape and size both can be customized according to customers special requirement.

This machine can make 20-60 mm size briquettes, but usually 40mm, 45mm, 50mm are popular size.

The raw materials can be charcoal powder, coal powder, mineral powder, fertilizer, salt, iron powder, AL powder, dry powder and other powders.





Features of coal charcoal briquette machine

(1) We have two classes: mechanical type and hydraulic type.

Hydraulic type has larger pressure, even some not easy shaping materials, such as dry powder, fertilier, AL powder, iron powder, etc, can press good shape, also the pressure can be adjusted according to different raw material.

(2) Different types: 290,360,450,500, 520, 550,650,750,850,1000,etc.

 Take 290 for example, the roller diameter is 290mm, finished charcoal briquette size is 20-60mm.

(3) Customized mold:

The first kind is made of manganese steel material;

The second kind is made of the mixture of manganese and chromium steel.

The third kind is combined rollers, which means one roller can divide into several parts, if one part broken, we just need change that part, not the whole roller.

We will suggest suitable material according to your raw material kindness and hardness.

(4) Four-rollers charcoal briquette machine: in order to reduce density between charcoal powder and make best quality charcoal briquettes, we design four rollers charcoal briquette machine, which can press charcoal powder two times.

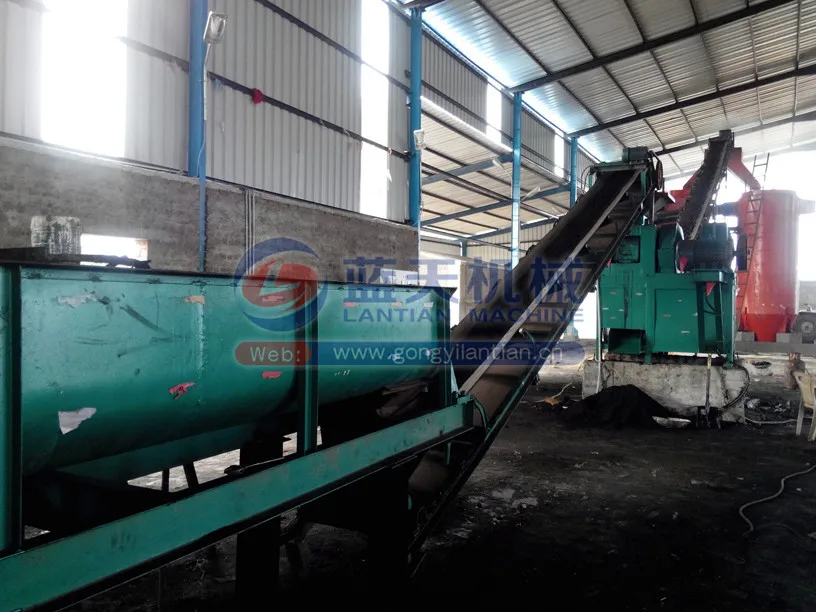

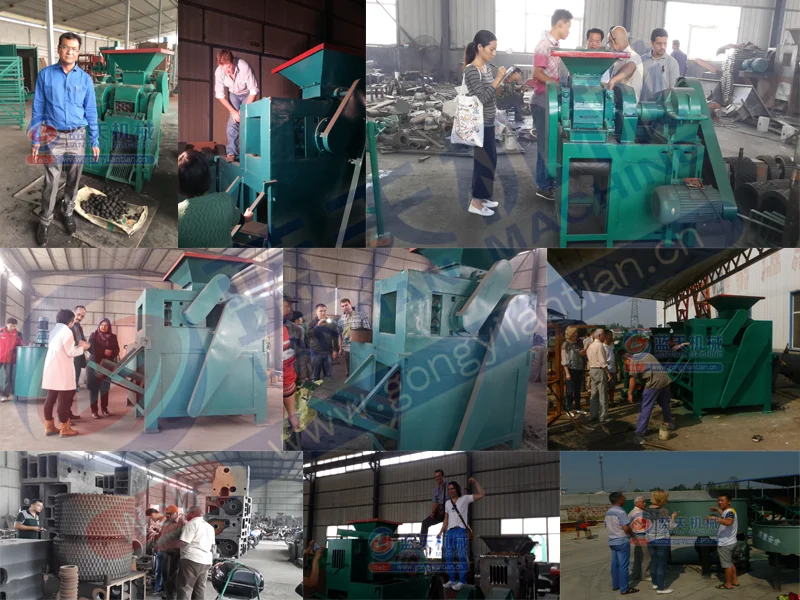

Customer working site



Molds and finished shape of coal charcoal briquette machine

The finished products usually 20-60mm, can be square shape, egg-shaped, ball shape, round shape, oval shape, heart shape, bread shape, pillow shape, etc. What's more, the molds can be customized according to customers' special demands.

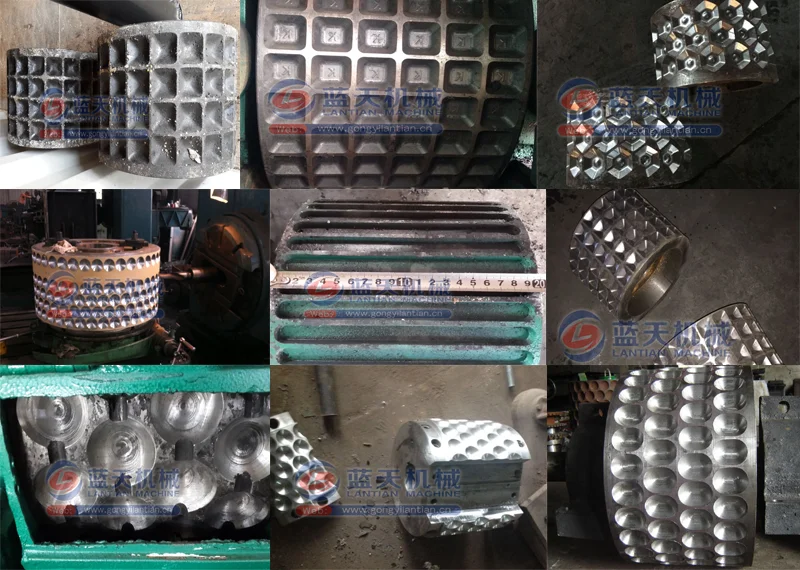

Different molds

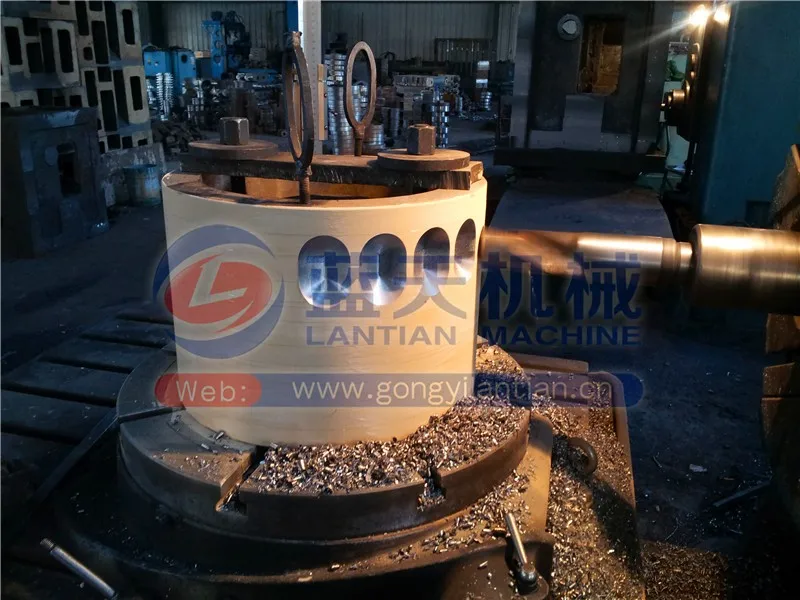

Roller producing process

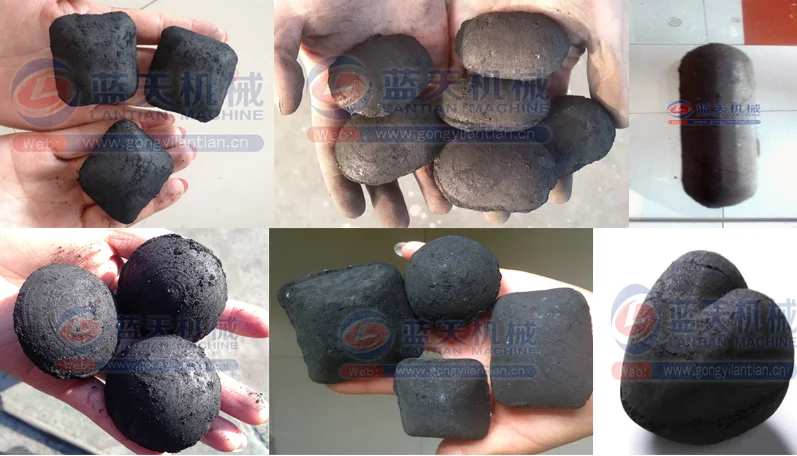

Finished shape



Some demands of coal charcoal briquette machine

(1) Inlet raw material need less than 3mm, as all know, the smaller the material, the better the briquettes.

(2) The material can't be mixed with metal material, or the mold is easily damaged.

(3) The raw material moisture need be controlled between 12%-15%.

(4)  A certain proportation of liquid binder and charcoal powder, we will offer the proportation formula after we finished the order for free.

Advantages of "Lantian" brand coal charcoal briquette machine

(1) Special binder formula: 30 years development and numerous tests, we have got 6 kinds special binder formula, 100% natural, smokeless and smelless. We offer this formula to our customers for free.

(2) Combustion improver formula: add this formula on the charcoal briquette surface, the charcoal briquettes can be ignited instantly, also length the burning time to 3 hours( ordinary just 1-1.5 hours).

Within 30 seconds, it has some smoke, 30 seconds passed, not smoke.

(3) Water-proof technique: our factory has special water-proof technique, to prevent the charcoal briquettes become wet, even put in the water, not moisture in it.

(4) In later period: we dispatch erection workers install machines overseas.

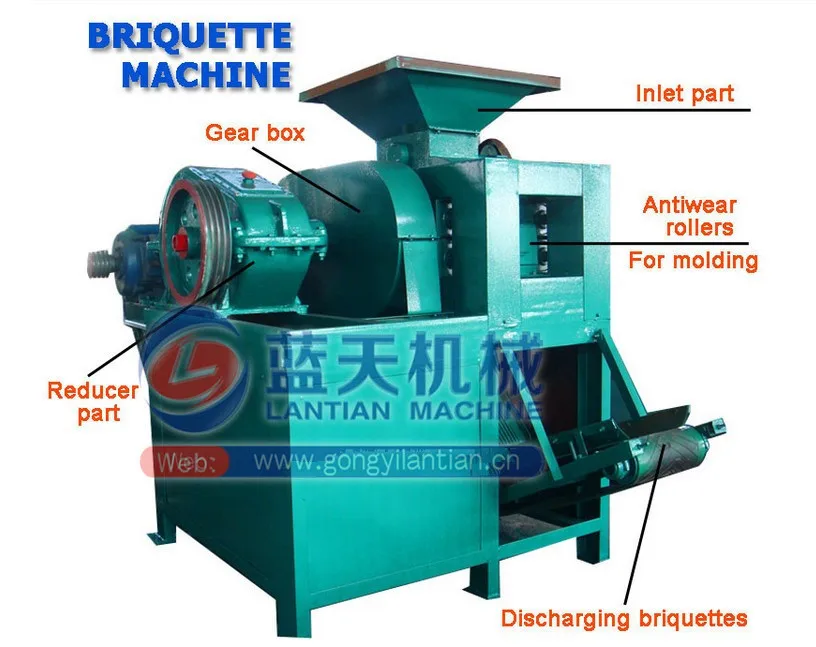

Working process of coal charcoal briquette machine

(1) Through reducer transmitting the powder material to two rollers, and making them rotated in opposite directions.

(2) The powder materials naturally enter into the roller molds.

(3) When the materials rotating to two rollers line contact points, materials pressure reached a peak.

(4) Under enormous pressure, the powder materials are suppressed into finished briquettes.



Parameter information of coal charcoal briquette machine

Model



(unit)

Power



(kw)

Capacity



(kg/hr)

Rollers

Diameter

(mm)

Briquette

diameter

(mm)

Max feeding

size

(mm)

Material

of Roller



Packing Dimension



LTQ-290

5.5

1500-3000

  290

Less than 50

     3

  Mn65

customized

LTQ-360

7.5

2500-5000

  360

Less than 50

     3

  Mn65

customized

LTQ-450

22

5000-8000

  450

Less than 50

     3

  Mn65

customized

LTQ-650

30

8000-16000

  650

Less than 50

     3

  Mn65

customized

LTQ-1000

55

18000-25000

 1000

Less than 50

     3

  Mn65

customized



Automatic production line of coal charcoal briquette machine

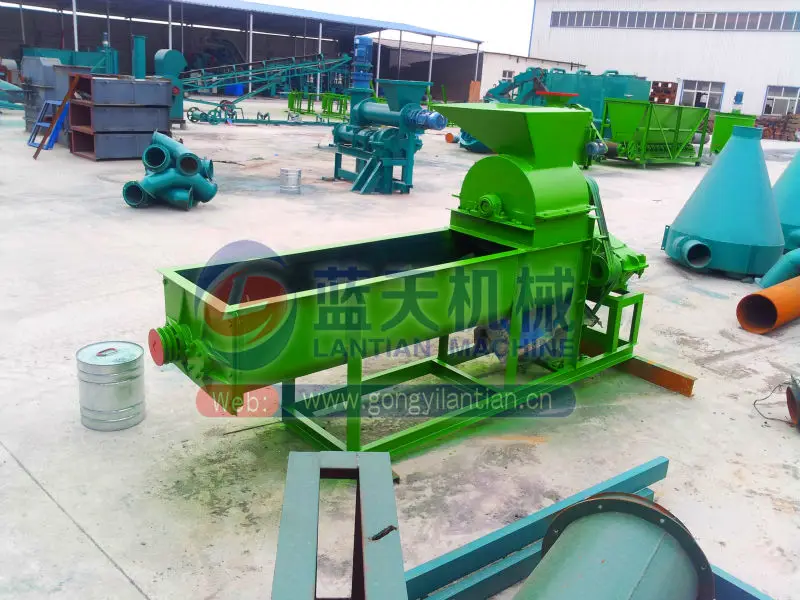

(1) Crusher and mixer

If your coal powder is larger than 3mm, it needs to crush them into powder less than 3mm. So it needs a crusher and mixer, which is one machine has two functions: crushing and mixing.





(2) Conveyor belt

If you want to achieve automation, this machine can save manpower largely.

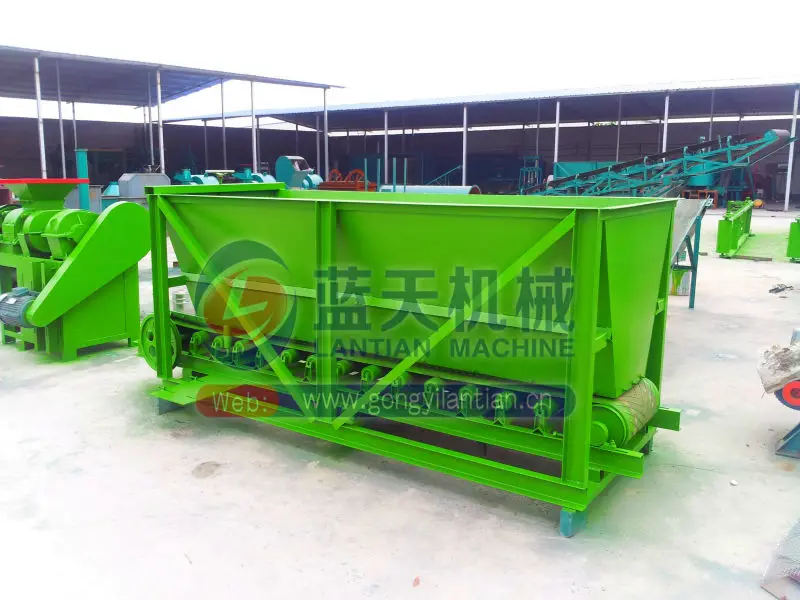

(3) Quantitative feeder

In order to prevent feed more or less one time, this feeder is better choice, the speed can be adjusted according to your capacity demands.

(4) Charcoal coal briquette machine

I am very willing to suggest suitable types if you share me your ideal capacity requirements.

(5) Vertical dryer

This vertical dryer, we can customize suitable size for you according to your capacity demands, besides, if you need, we can dispatch engineer install to your country.

We will suggest suitable brick heating stove size and offer installation drawing to you, if you can install by yourself.

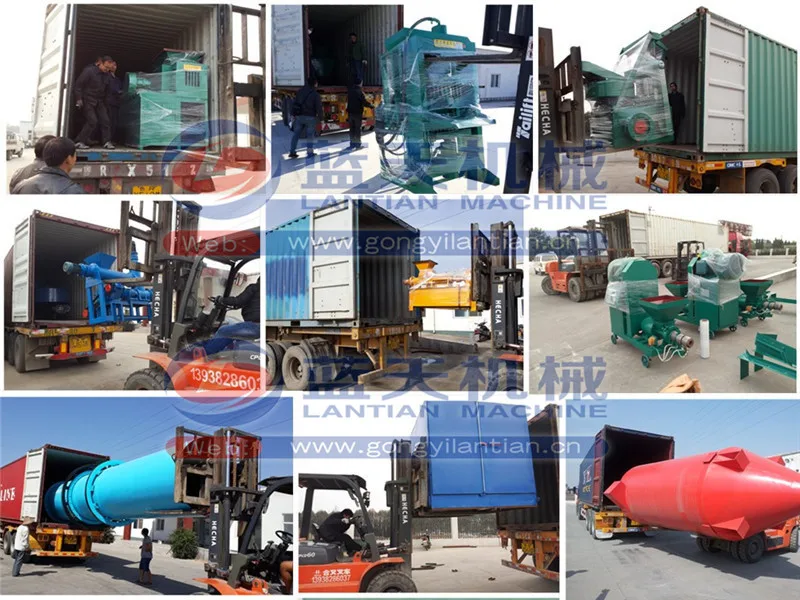

Our hot selling products delivery



Through 30 years development, our customers from Chinese to Foreigners overseas, so our machine already became internationalized, it also demand we must guarantee our product quality and after-sales service at the same time. Below are some pictures we exported to different countries, please check it.



Payment receipt from clients overseas





Our factory



We are a 30 years factory located in "mechanical city" Gongyi city, Henan province, China. 30 dedicated development, we have become to a factory including design, manufacture, sale and after-sales service. Good product quality and finest after-sales service are our intention and goal.

Our main products are different kinds briquette machines, coal briquette machine, charcoal briquette machine, shisha charcoal briquette machine, biomass briquette machine, and other auxiliary machine crusher, dryer, feeder, conveyor machine, mixer, etc.

Certificates

Customers

If you are interested in our products, please contact me freely.
