Coal Comb Factory Coal Briquette Making Machine Price

Supplier: Gongyi Hengyuan Industry Co., Ltd.
Region: Henan, China
Contact: Ms Cate Wan
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Name:	honeycomb charcoal coal making machine price	type:	briquette machine
Dimensions (LWH):	22001600800MM	brand:	Hengyuan
application:	Pressed or extruded briquettes	Production capacity:	1-30 tons/hour
Install:	under the guidance of an engineer	color:	custom made
Mechanical test report:	if	Packaging Details:	Honeycomb charcoal briquette forming machine wooden box
Length of final briquettes:	5-30cm	place of origin; place of origin:	Henan, China
Voltage:	220V/380V/415V/460V	Health status:	new
Ball diameter:	50mm	Supply capacity:	50 honeycomb charcoal forming machines per month
Warranty:	1 year	Core Components Warranty:	1 year
Weight (kg):	1000	Marketing Type:	normal product
Showroom location:	not any	Core components:	Bearings, motors
briquettes shape:	Hexagonal, round, honeycomb, etc.	Raw materials:	Coal or charcoal powder, less than 3 mm in size
Applicable industries:	Farms, Food and Beverage Stores, Charcoal Manufacturing Plants	Motor Type:	AC motor
capacity:	1-1.25 tons/hour	payment terms:	L/C, Western Union, T/T, Cash
port:	Qingdao, Dalian, Tianjin, Shanghai, Guangzhou, etc.	Video external inspection:	if

Product Description

brief introductionHoneycomb charcoal briquette forming machine

We have two types of briquettes machines for making coal/charcoal briquettes. The first is the extrusion type, which has a small capacity but an outdated working condition. The briquettes of different shapes can be made by changing the mould. The machine can also be equipped with automatic cutters and conveyors, which can work continuously. By adjusting the cutters, briquettes of different lengths can also be made.

The second is the push type. The capacity of this machine is higher than that of the pressing work type. Under normal circumstances, the maximum length of briquettes that can be produced by this machine is 13cm, and the commonly used length is 8-10cm. You can also make briquettes of different shapes by changing the mold, the most popular shapes are hexagonal, round,Square, Honeycomb, etc.

Technical parameters of honeycomb charcoal forming machine
job type	Model	coal capacity	Charcoal Capacity	strength
Extruded	MBJ-1	200-250 kg/h	500 kg/h	11+0.55kw
		MBJ-2	250-500 kg/h	500-1000kg/hour	18.5+1.1kw
		MBJ-1-2	1500 kg/h	Not suitable for charcoal	22+3kw
push type	HY-140	1.86-2 tons/hour	0.93-1 ton/hour	7.5kW
		HY-160	1.86-2 tons/hour	0.93-1 ton/hour	11kW
		HY-220	1.25 tons/hour	2.5 tons/hour	15kW

main featureHoneycomb charcoal briquette forming machine

1 One machine can process coal and charcoal powder, raw materials are easily available.
2 The cost of raw materials is low, and the profit of finished briquettes is high.
3 Energy saving, environmental protection and low power consumption.
4 The finished briquettes are easy to transport and store.
5 different models of machines to choose freely, to give customers correct advice.

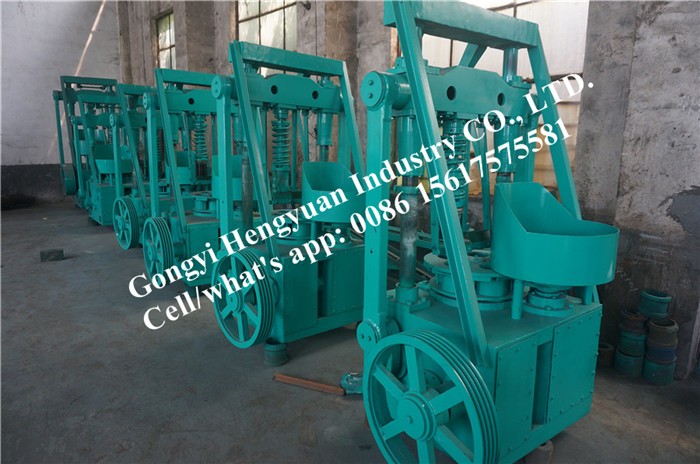

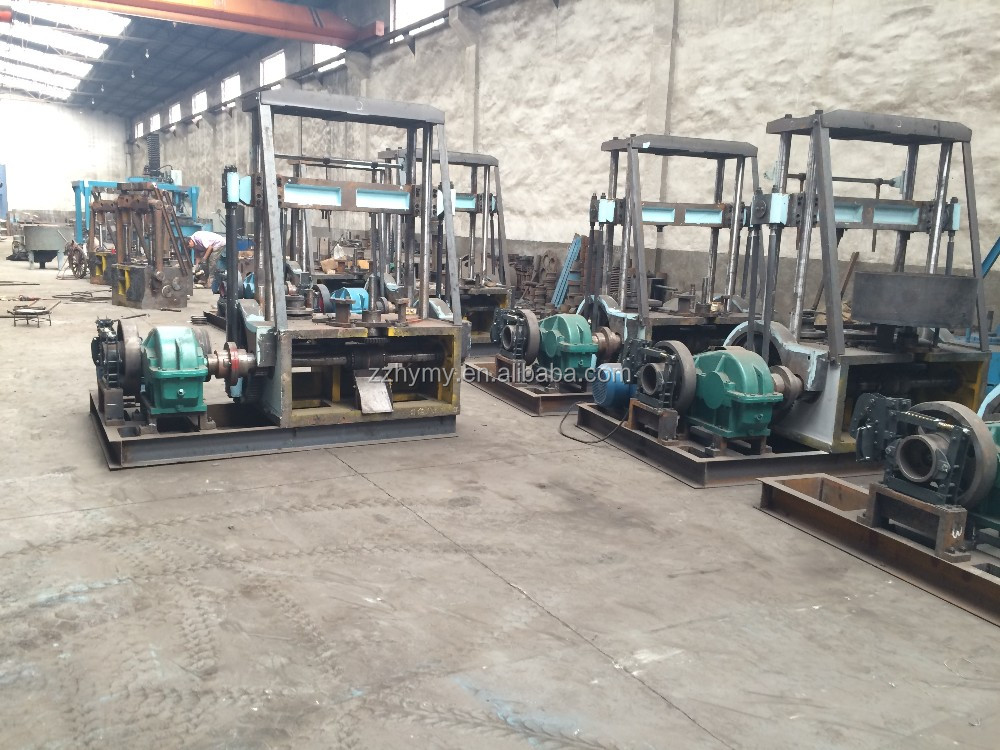

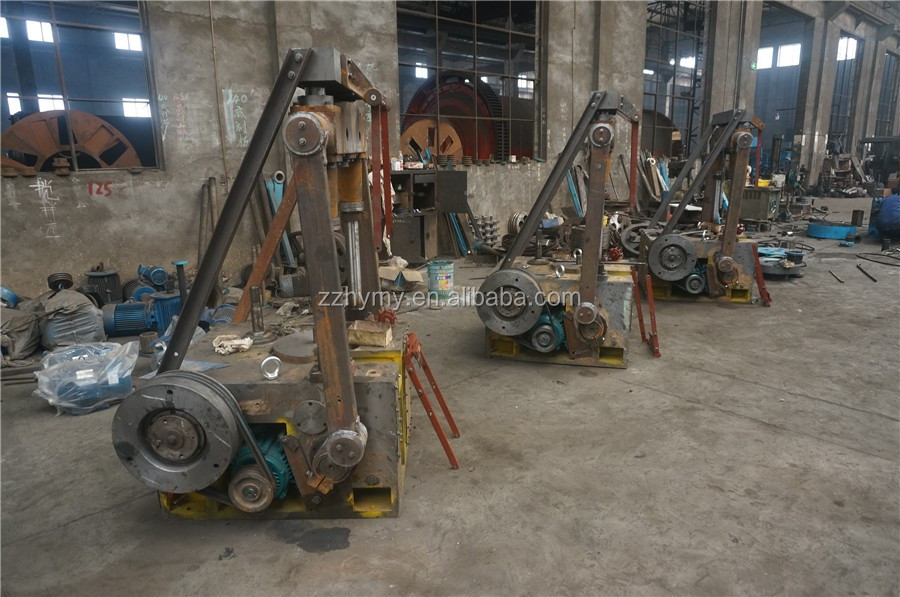

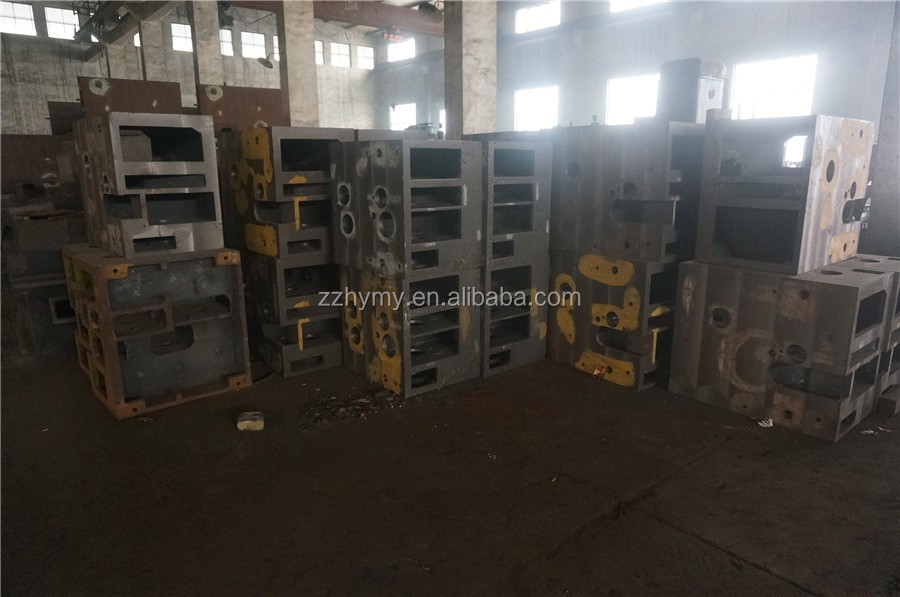

Semi-finished machine

detailed image

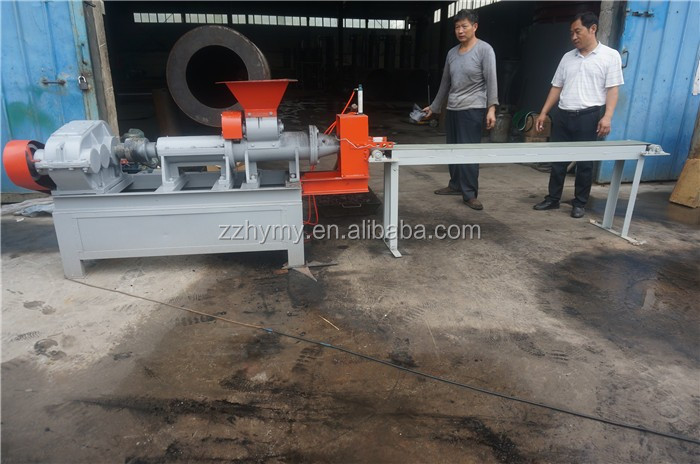

Honeycomb charcoal briquette forming machine

Name:MBJ-1

capacity:200-250kg/h for making carbon block;500kg/h for making briquette

strength:11kW

This machine extrudes coal/charcoal powder into coal, but is used to input coal/charcoal powder size.It needs to be less than 3mm, tThe length of the final briquette can also be changed by adjusting the cutter.

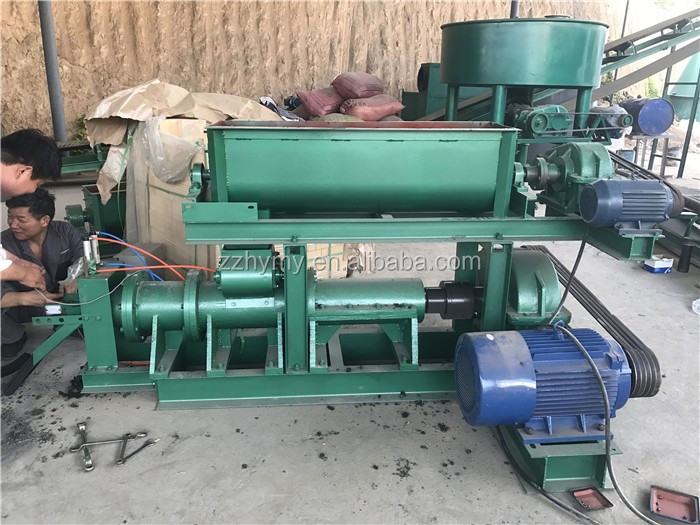

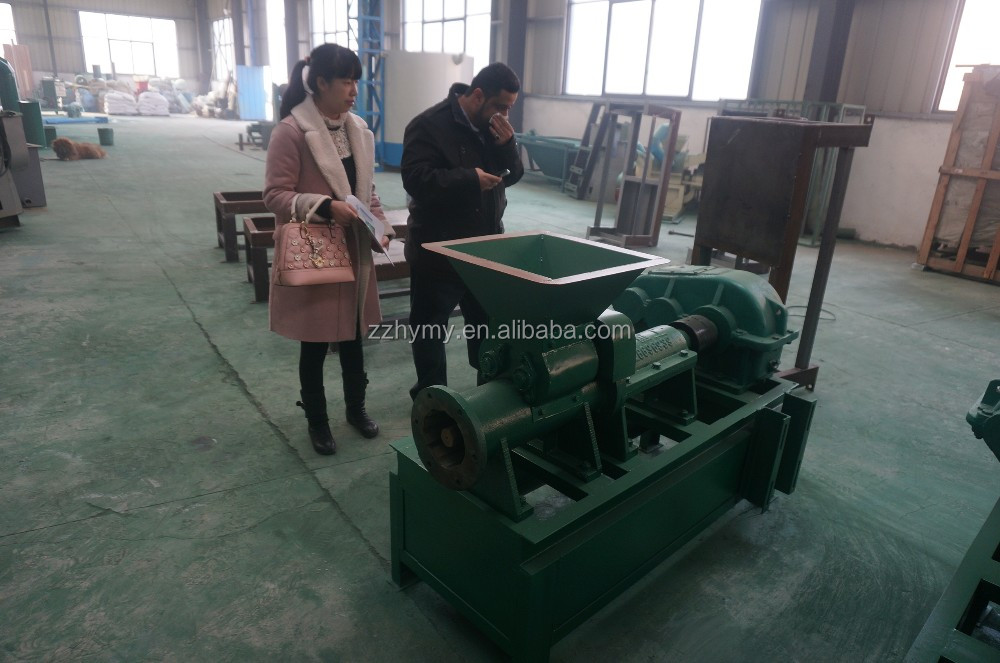

Honeycomb Charcoal Coal Making Machine

Model:MBJ-1-2
capacity:1500 kg/h
strength:22+3kw

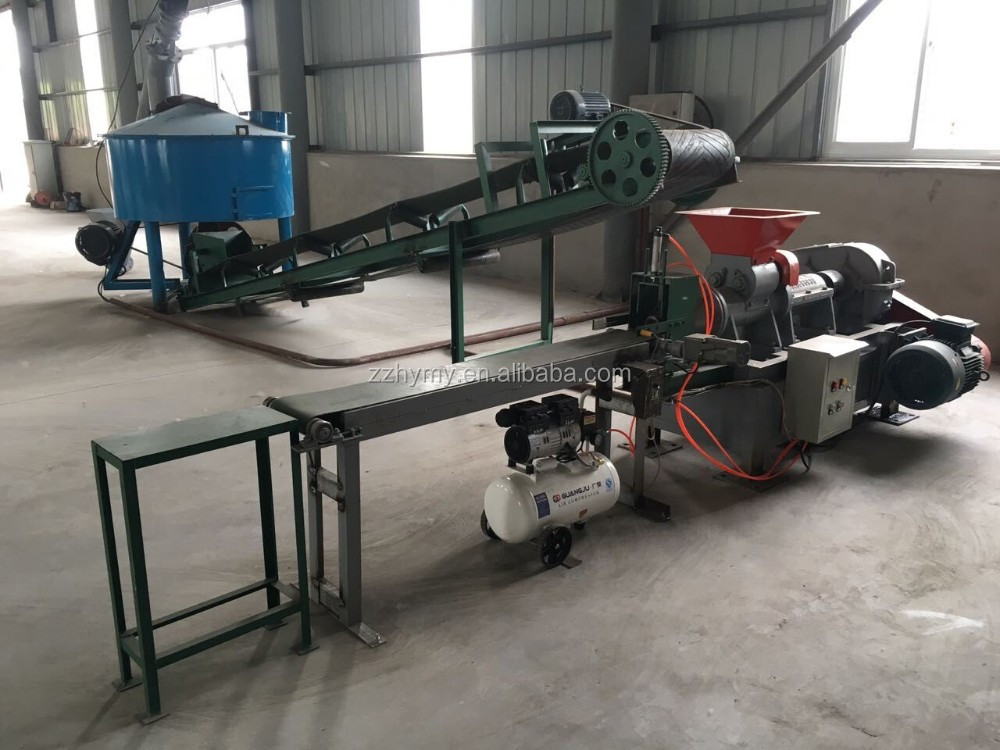

You can make 2 briquettes at a time.This machine is an integrated machine of mixer and briquettes. It can mix pulverized coal and water without purchasing additional mixers. The mixer and briquettes machine can work synchronously.

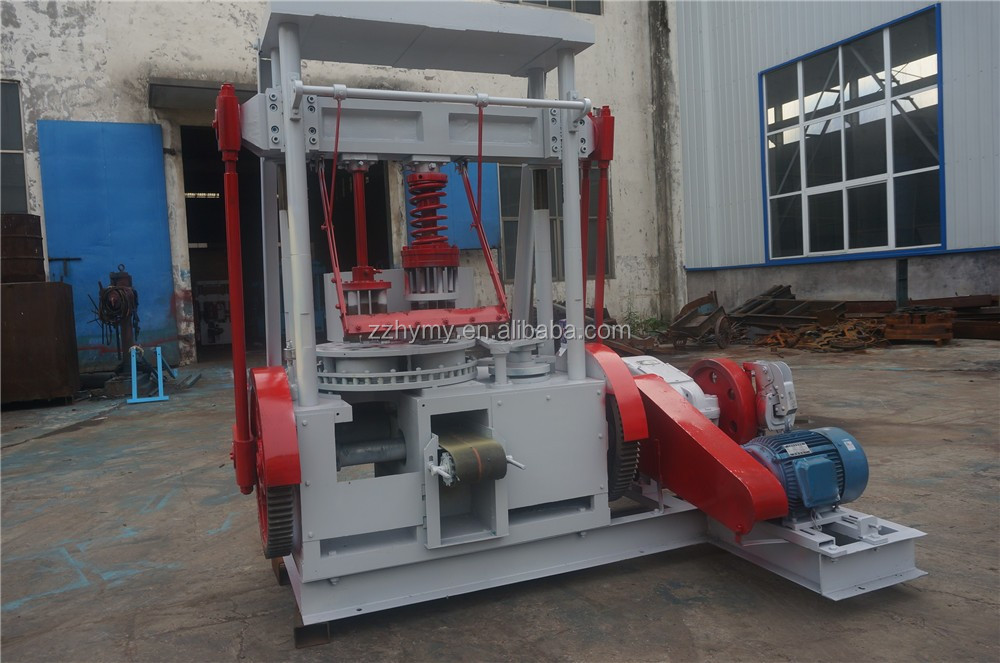

Honeycomb Charcoal Coal Making Machine

Model:HY-140
ability:1.86-2 tons/hour
strength:7.5kW
this machineCan produce 3 pieces/time, 40-45 times/min,The production capacity is 7200-8100pcs/h. It can press briquettes of different shapes, cylinders, hexagons, squares, circles, honeycombs, flower shapes, etc.

Honeycomb Charcoal Coal Making Machine

Model:HY-220
capacity:1.25-2.5 tons/hour
strength:15kW
This machine can produce 7 pieces/time,26 times/min, the capacity is 10,920pcs/h. Processing charcoal 1.25 tons/hour, processing coal 2.5 tons/hour.
