T Die Mold Force Feed Rubber Extruder Machine

Supplier: STRONG BASIC ENTERPRISE LTD.
Region: Taiwan, China
Contact: Ms. IRIS CHEN
Price: $55000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Warranty:	1 Year;
Port:	TAICHUNG SEA PORT;	Place of Origin:	Taiwan, China;
Payment Terms:	L/C,T/T;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Online support;
Voltage:	220v, 380v, 440v;	Applicable Industries:	Manufacturing Plant;
Packaging Detail:	by CFS, the package is in a wooden crate case with plastic shrinkage wrap inside by FCL, iron pallet to fix in the container.;	Key Selling Points:	High Productivity;
Advantage:	High Production;	Brand Name:	TUNG SHENG;

Product Description

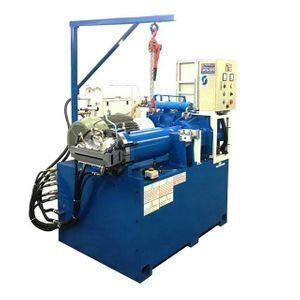

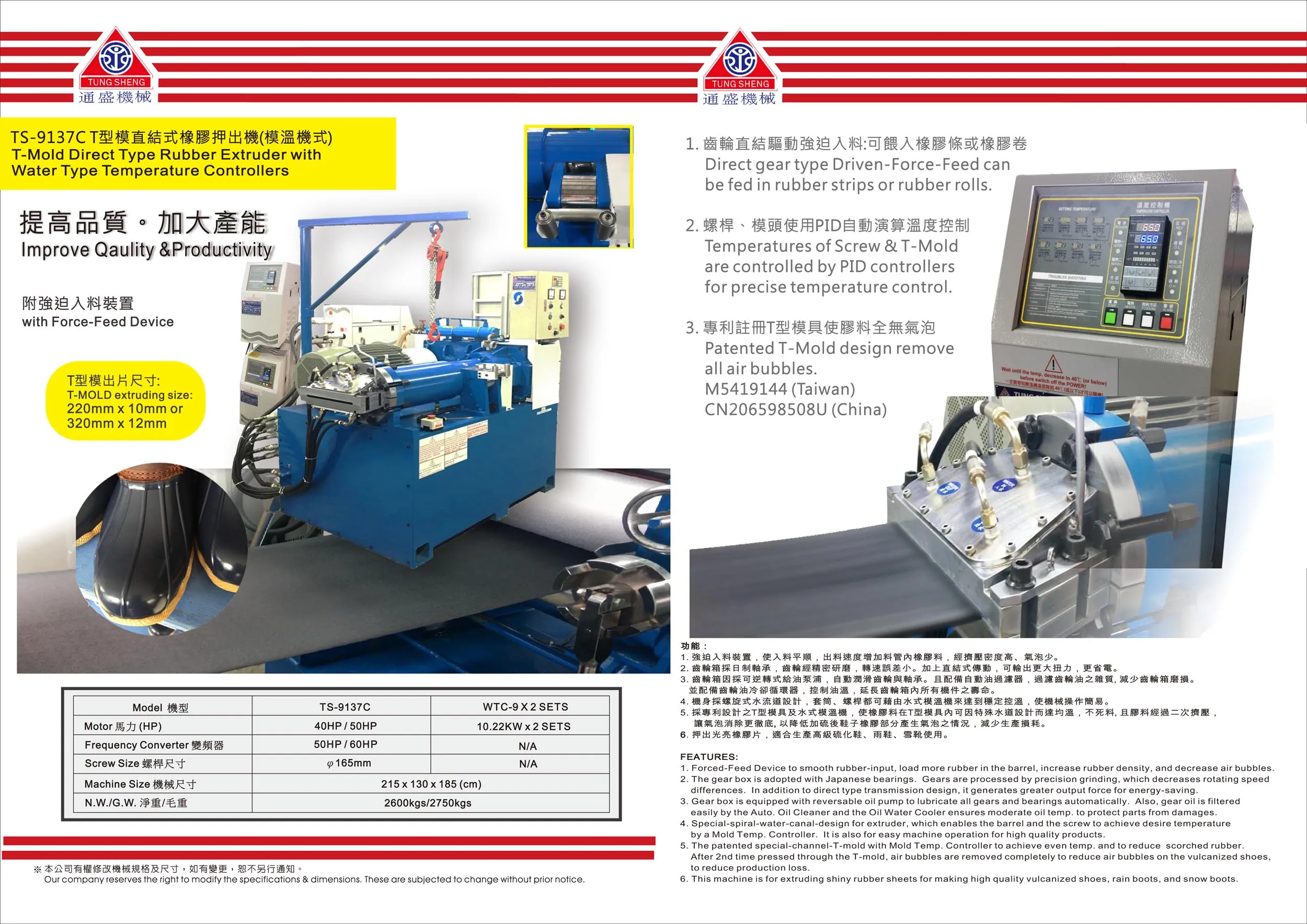

TS-9137CWTC

T-MOLD FORCE FEED RUBBER EXTRUDER

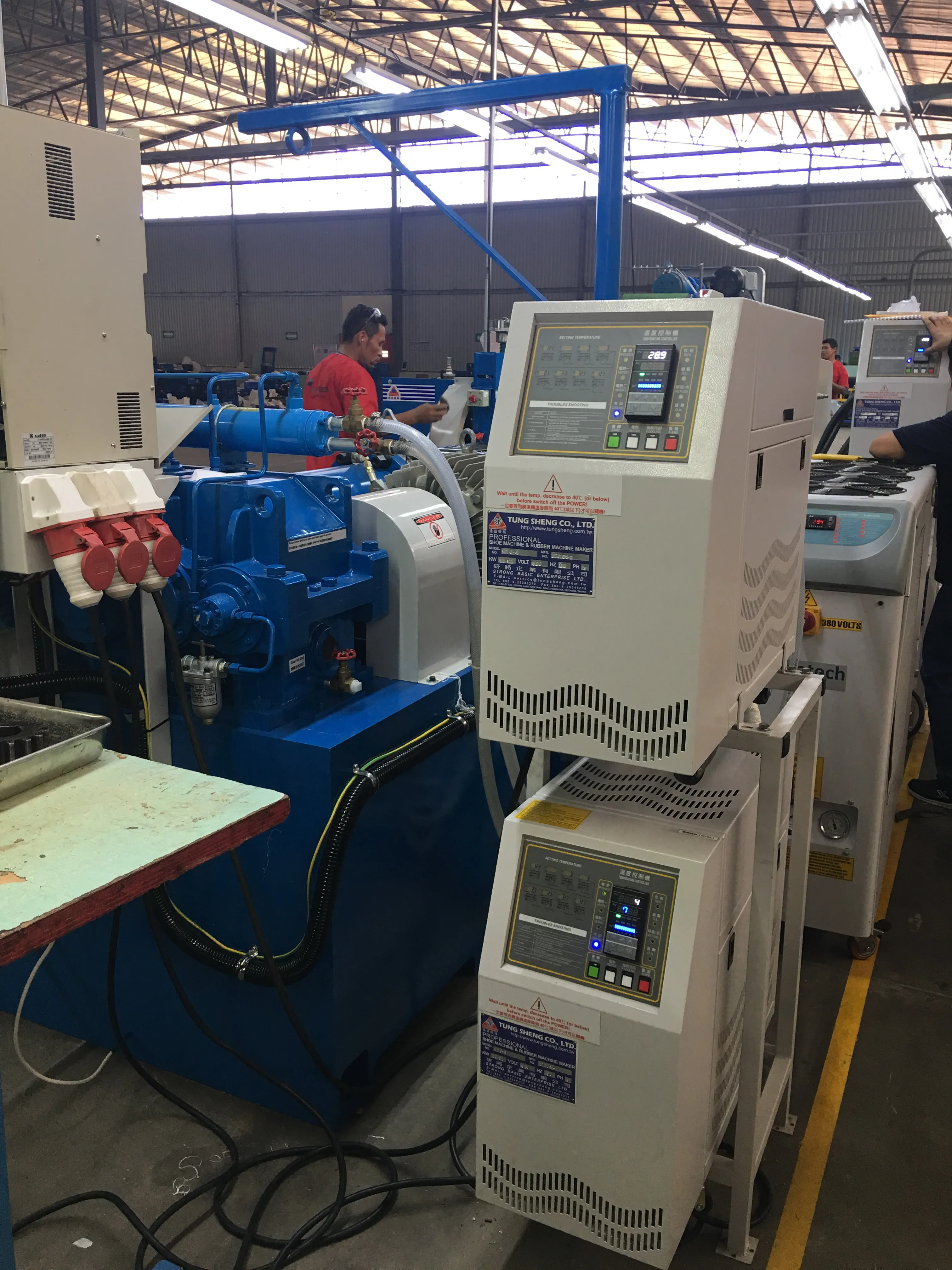

(WATER TYPE MOLD TEMPERATURE CONTROLLERS)

FEATURES:

1. Equipped with Forced-Feeding Device to smooth raw-material-input process and to accelerate extruding speed 2 to 3 times.

2. The gear box is adopted with Japanese bearings. Gears are processed by precision grinding, which decreases rotating speed

differences. In addition to direct type transmission design, it generates greater output force for energy-saving.

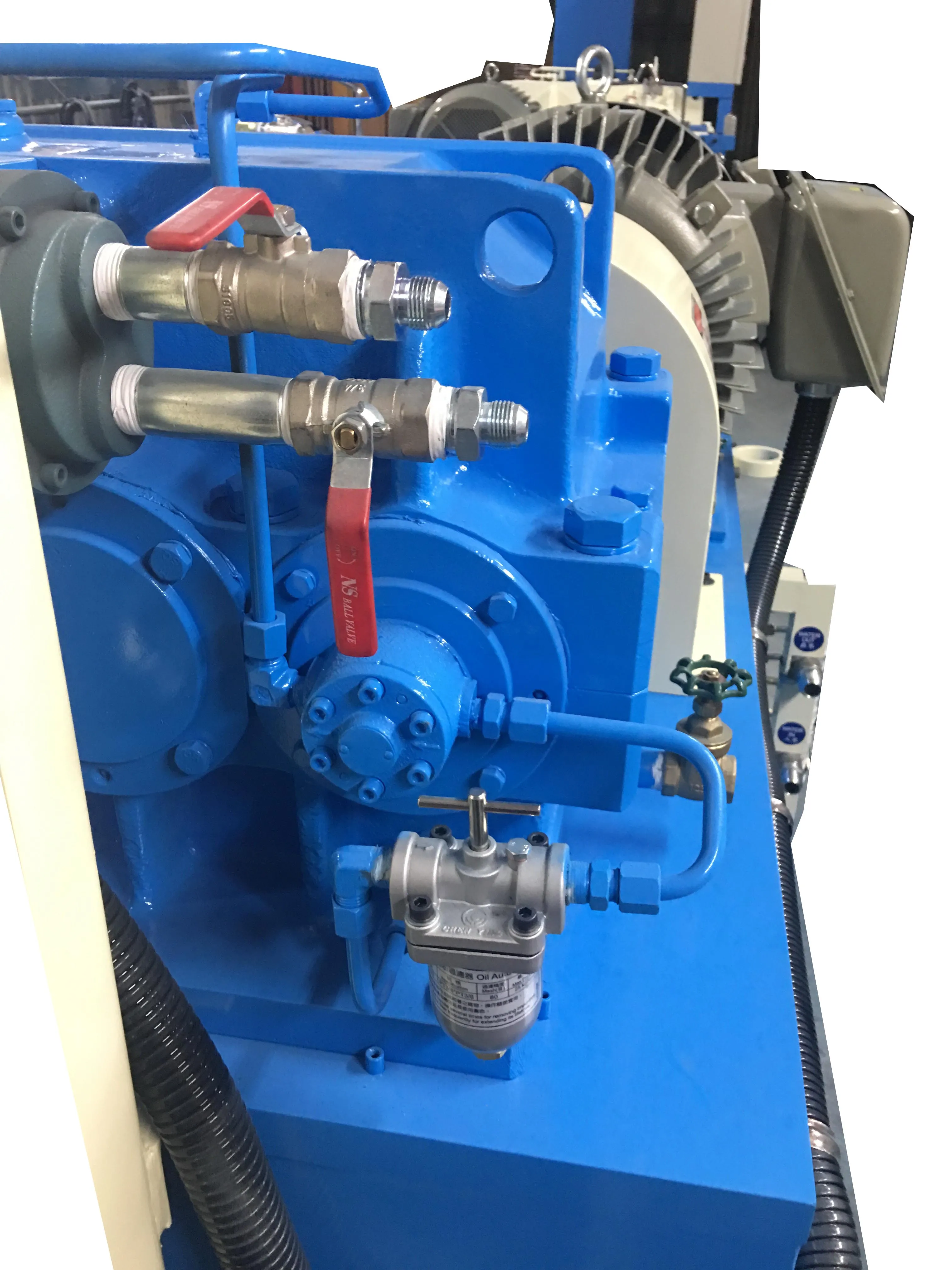

3. Gear box is equipped with reversable oil pump to lubricate all gears and bearings automatically. Also, gear oil is filtered easily by the Auto. Oil Cleaner and the Oil Water Cooler ensures moderate oil temp. to protect parts from damages.

4. Special-spiral-water-canal-design for extruder, which enables the barrel and the screw to achieve desire temperature by a Mold Temp. Controller. It is also for easy machine operation for high quality products.

5. Long screw to enhance better air bubble-removal and higher density rubber.

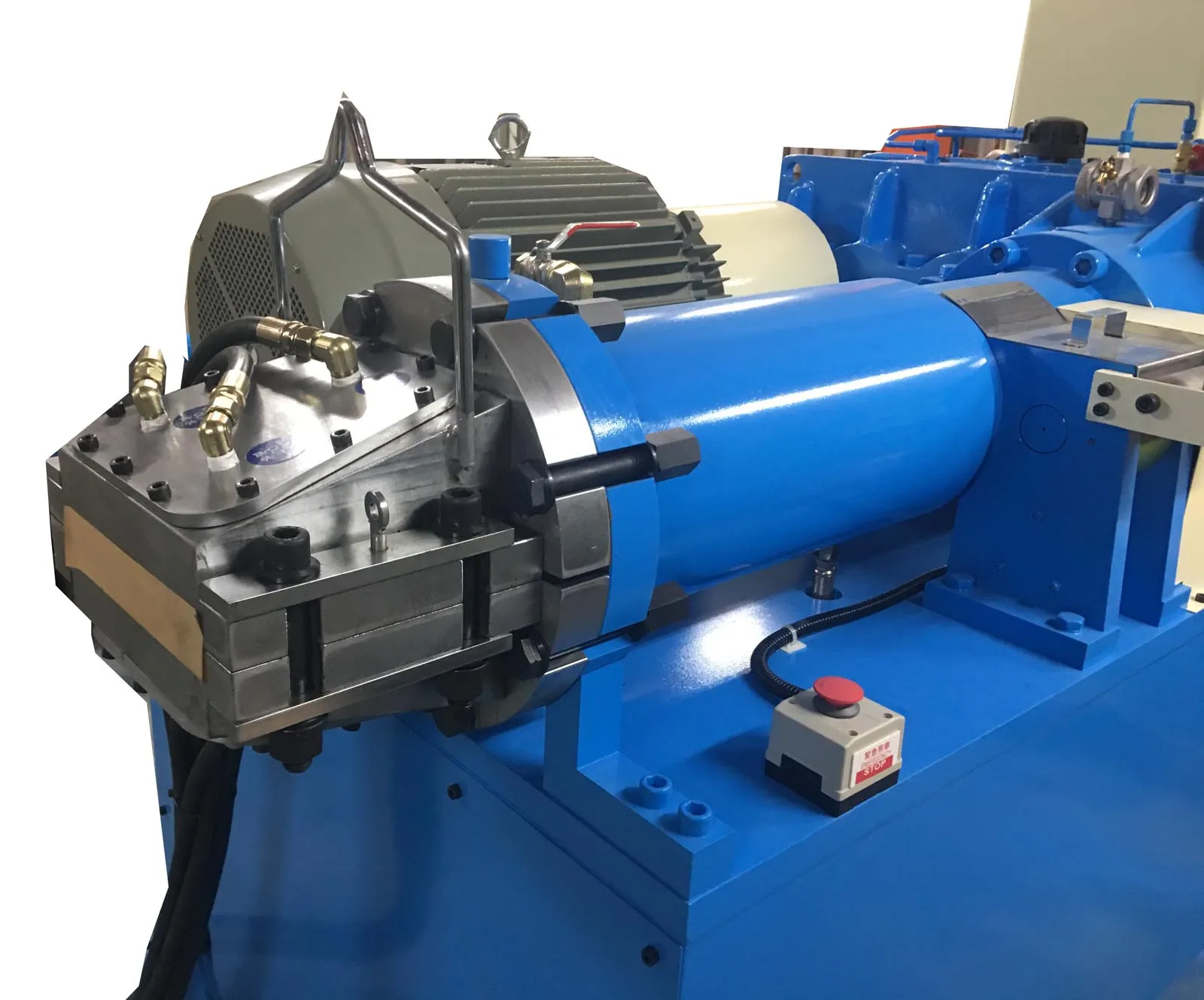

6. The patented special-channel-T-mold with Mold Temp. Controller to achieve even temp. and to reduce scorched rubber. After 2nd time pressed through the T-mold, air bubbles are removed completely for extruding shiny rubber sheets.

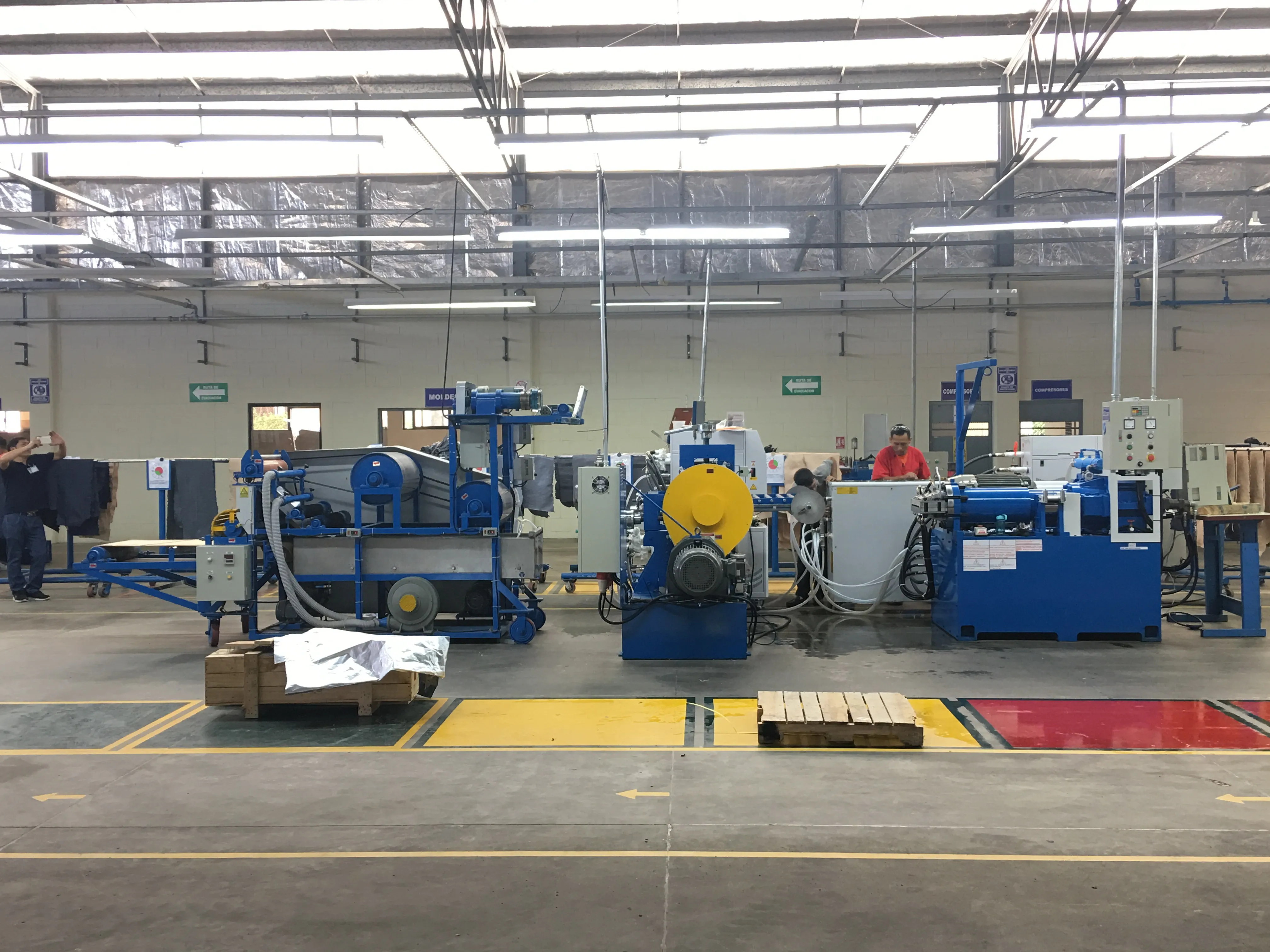

This machine is suitable for making high quality vulcanized shoes, rain boots, and snow boots.

We manufacture rubber extruders for:
1. Rubber process to remove air bubbles
http://www.tungsheng.com.tw/pages/9137C.pdf

2. Making rubber sheets
http://www.tungsheng.com.tw/pages/9137C.pdf

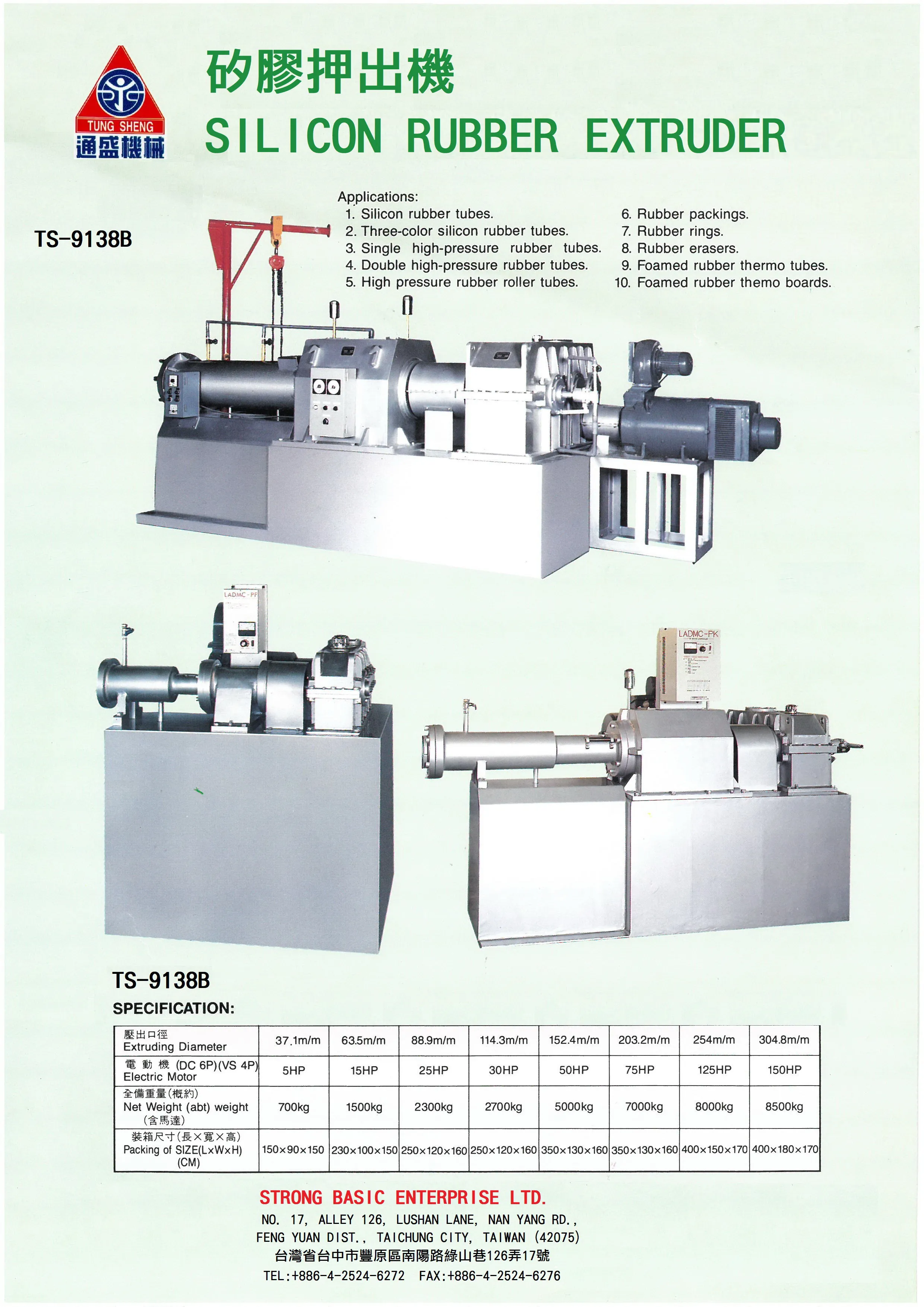

http://www.tungsheng.com.tw/oldversion/9138.pdf

3. Making rubber tubes
http://www.tungsheng.com.tw/oldversion/601.htm

4. Strainer
http://www.tungsheng.com.tw/pages/9137D.pdf

Materials:

1. Rubber

2. Silicon

3. EPDM

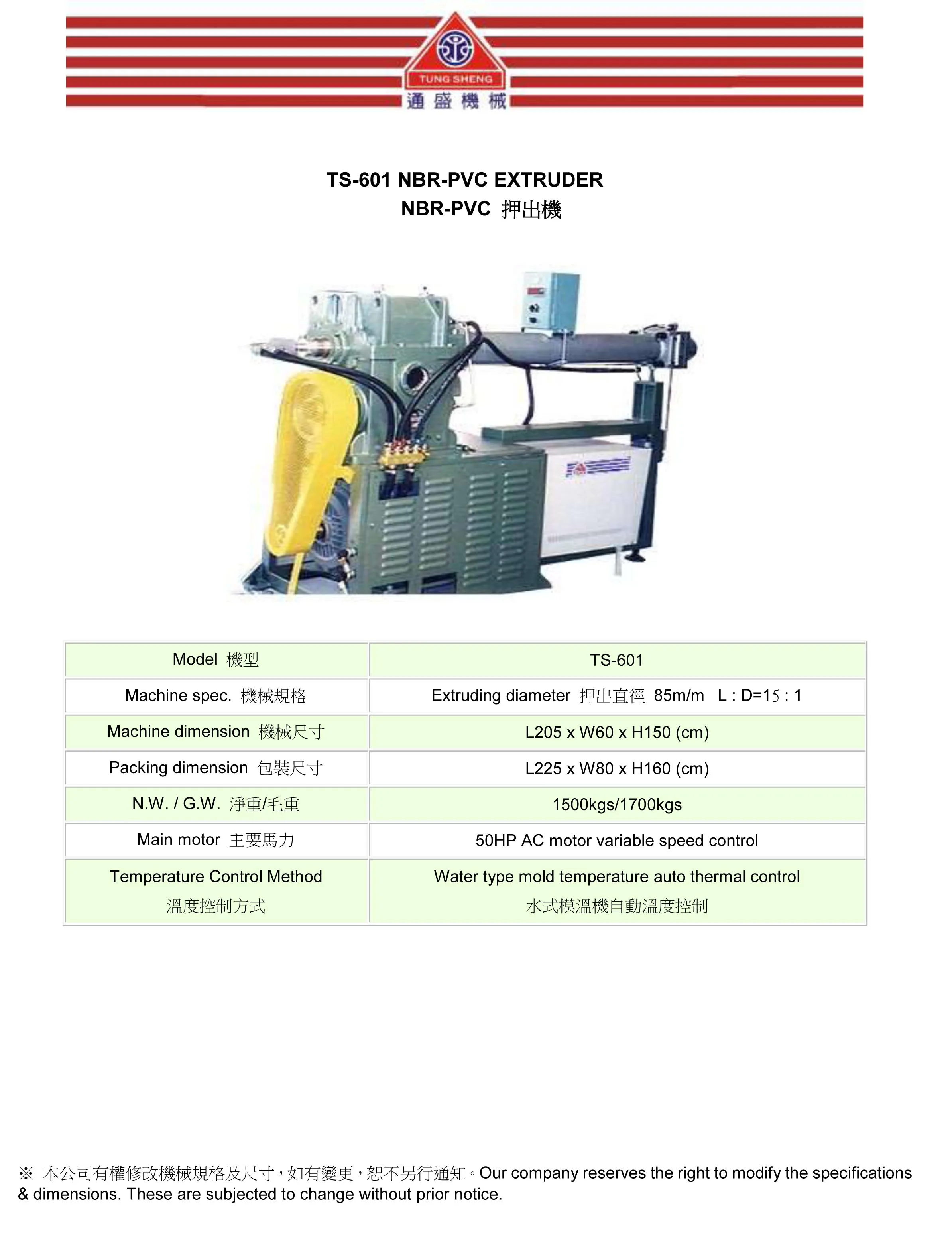

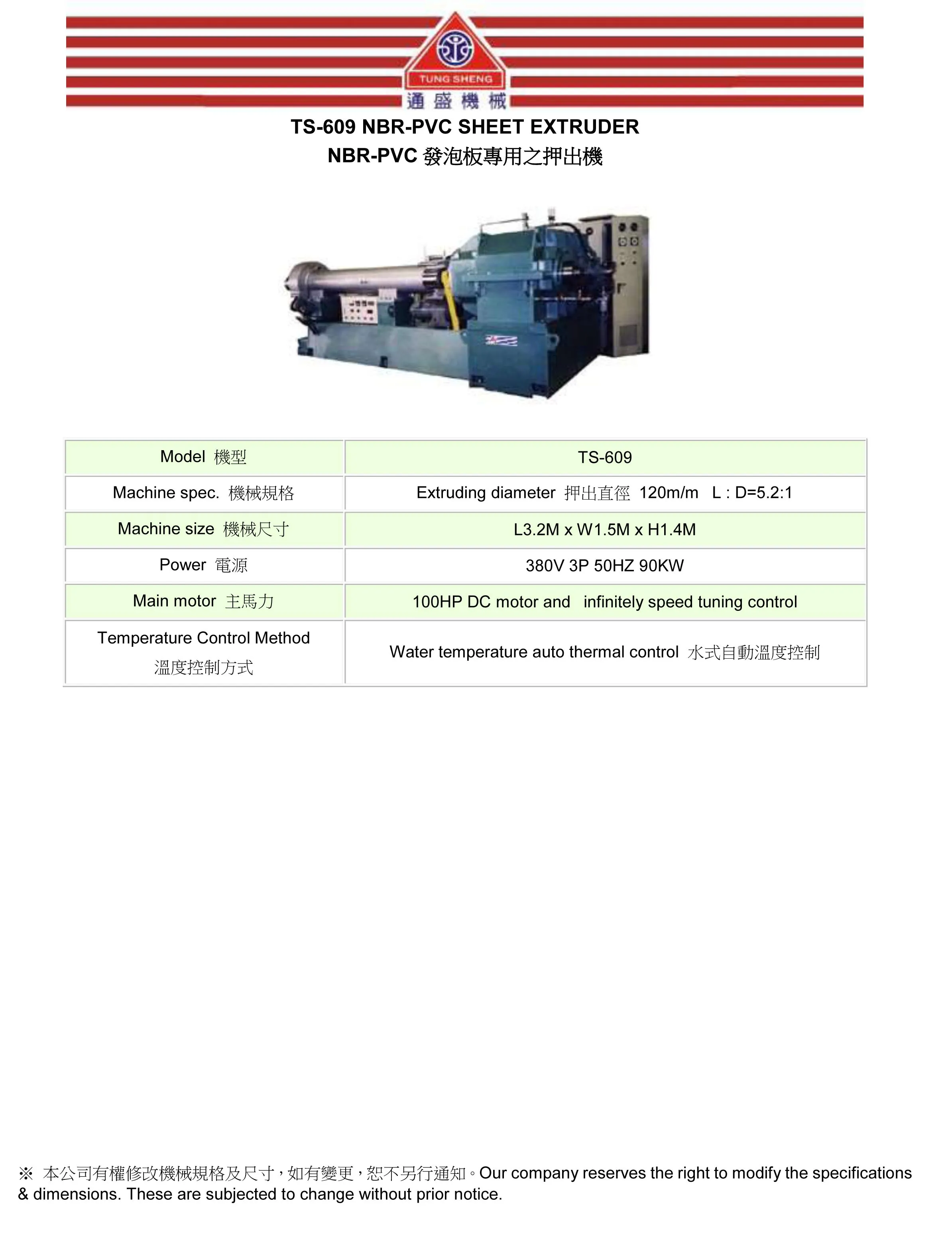

4. NBR-PVC

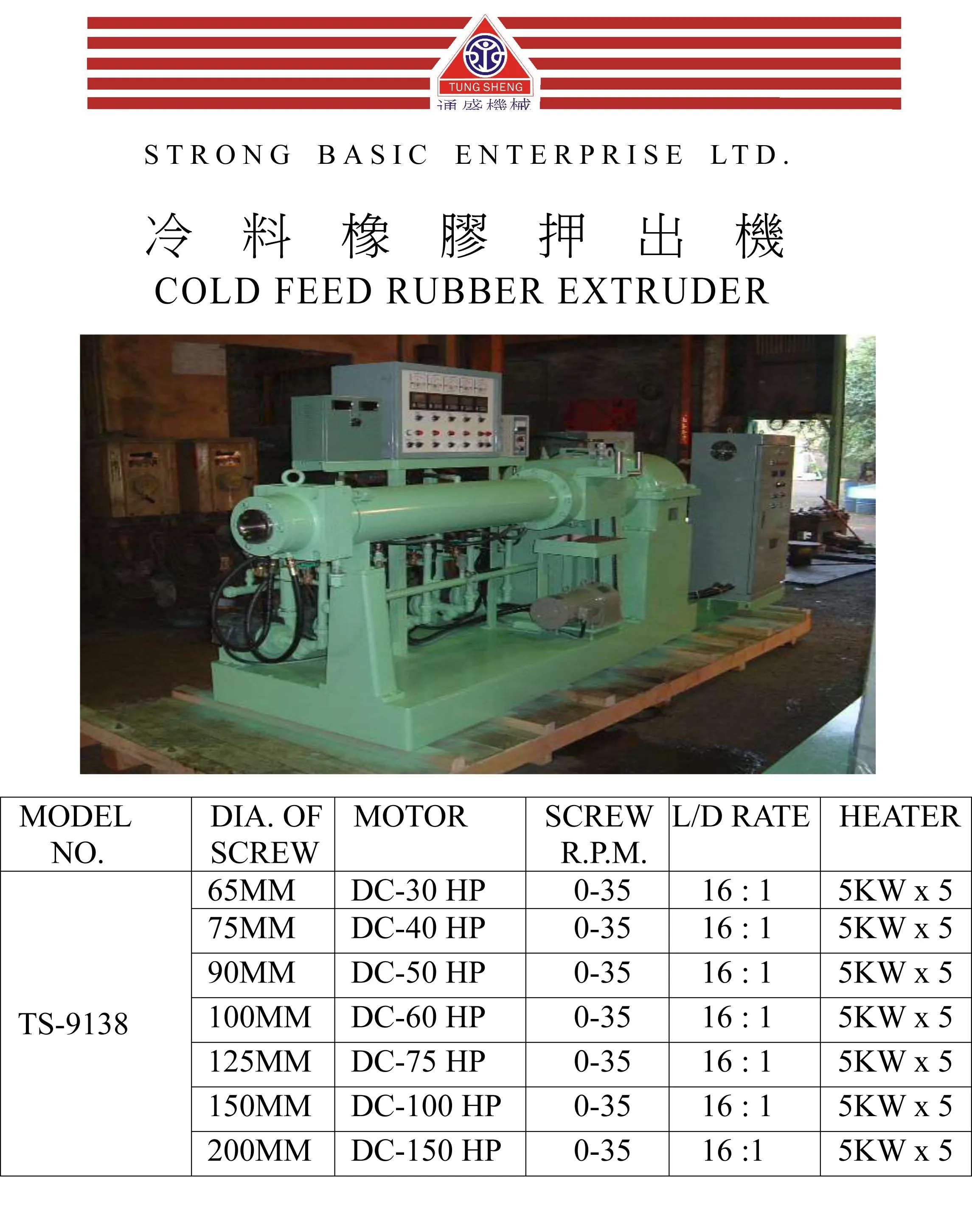

Machine Types:

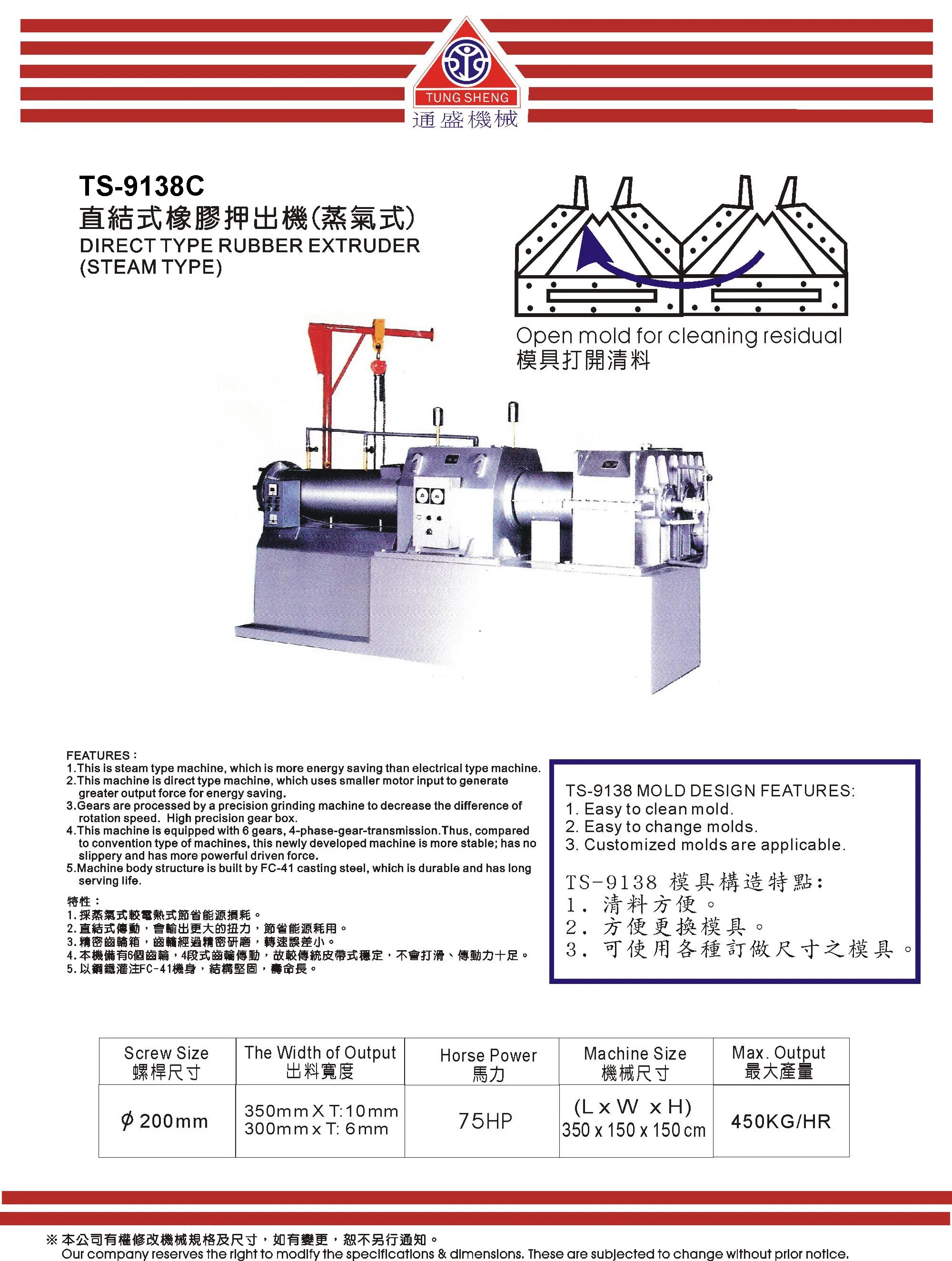

1. Steam type

2. Electrical type

3. Water Temperature Controller Type
