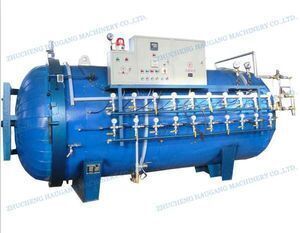

Cold tire retreading curing chamber

Supplier: Zhucheng Huagang Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Daisy Zhang
Price: $11300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	HG;	Place of Origin:	Shandong China;
Weight:	3 ton;	Dimension(LWH):	320023001900mm;
Voltage:	380V, 50HZ;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	According to user need wooden cases packing cold tire retreading curing chamber;	Temperature:	95~120℃;
Port:	Qingdao;	Payment Terms:	L/C,T/T,Western Union;
Color:	According to customer need;	Condition:	New;
Power(W):	7.5kw;	Curing time:	2.6~3h;
Vulcanizing pot pressure:	0.5-0.6Mpa;	Material:	Carbon steel;
Model Number:	cold tire retreading machine;	Supply Ability:	5 Set/Sets per Month Cold tire retreading curing chamber;
Delivery Detail:	25days delivery cold tire retreading curing chamber;

Product introduction

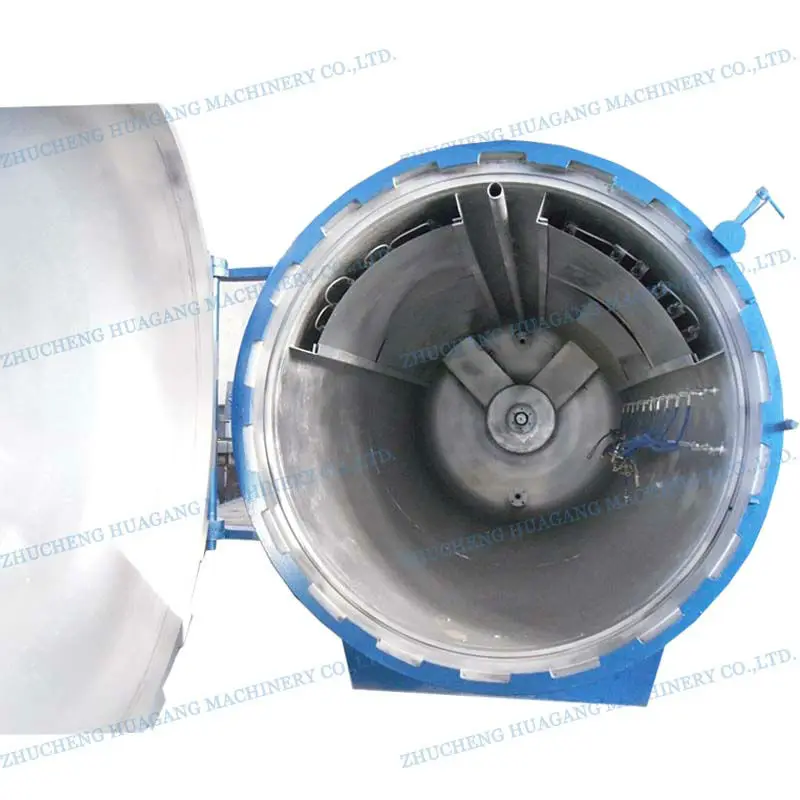

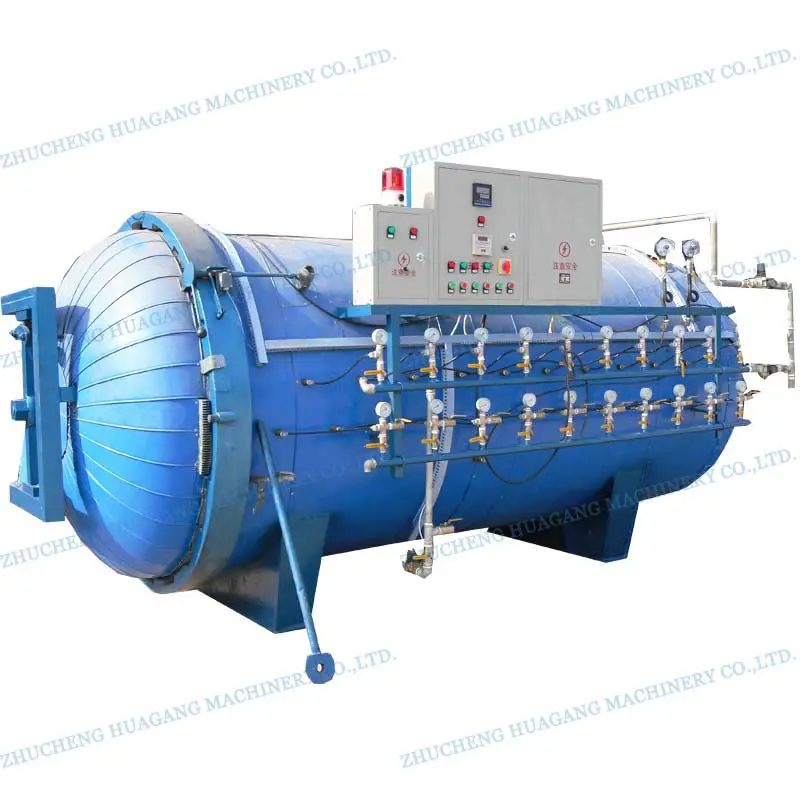

Tire retreading curing chamber are safe and reliable curing equipment, this tank chain device is the

guarantee quality the first points qualified products.

The equipment is available electricity or steam, heat conduction oil heat. Equipment operation in control panel before you can adjust on the pressure, temperature, time.

Operation

Manual closing, vulcanizing pot after is open, the power is connected by hand motor door-close button, vulcanizing pot began to enter into automatic control.
1) miniature cooling motor startup
2) the circulation fan startup
3) heater or steam heating begin
4) vacuum pump start-up
5) 0.75 M afraid of filtering dry air valve opens(into the cans of compressed air should be no oil dry compressed air) until vulcanizing pot pressurized

to setting value, to date, heater, self-control after fan, EPS value to package sets the set pressure

value will suffer. Vulcanizing pot in which meets the above conditions launched. After timer General

vulcanization time is 2.6-3 hours. Achieve time vulcanizing pot automatic vent, until the compressed

air all platoon tank to tank clean, pressure value zero, open the door motor automatically start make

pot the doors opened, as the entire system without electricity, vulcanization ended.

Specification

1.Tire retreading curing chamber line design and manufacture in strict accordance with the national standard of steel pressure vessel, and according to the country" pressure vessel safety design review project "the relevant requirement of inspection.
2. According to the heating mode can be divided into steam pressure, electrical heating and heat conduction oil heating three forms.
3. According to different division control circuit for PLC control and PLC control add touch screen display two kinds.
