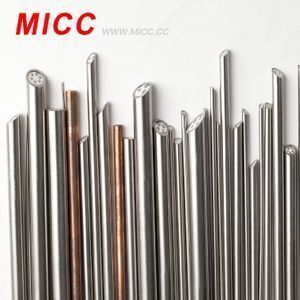

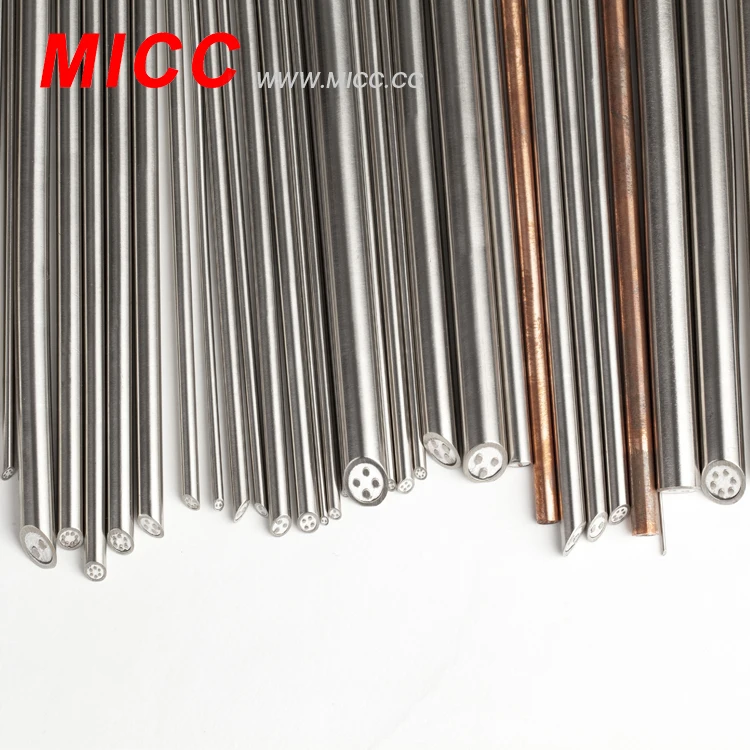

MICC mi cable type K CIM Inconel

Supplier: MICC TECH. LIMITED
Region: Jiangsu, China
Contact: Mr Jackie Chan
Price: $1.00 / >=100 meters
Min. Order: 100 meters

Click here to contact

Product details

Jacket:	SS321(SS304),SS316,SS310,INCL600;	Port:	Shanghai;
Insulation Material:	99.6%high purity Mgo;	Eco-friendly:	Yes;
Place of Origin:	Jiangsu China;	Supply Ability:	500000 Meter/Meters per Month MICC mi cable type K CIM Inconel;
Brand Name:	MICC;	Jacket:	Stainless steel sheath or copper sheath;
Number of Conductors:	2,4,6;	Application:	industrial;
Dia:	from 0.25mm to 12.7mm;	Theory:	Temperature Sensor;
Packaging Detail:	Carton or wooden box for MICC mi cable type K CIM Inconel;	Customizable:	Yes;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Certificate:	ISO,CQC;
Usage:	Industrial;	Conductor Material:	NiCr-NiSi, NiCrSi-NiSi;
Insulation Material:	MgO,Magnesium oxide,aluminum oxide;	Function:	high temperature maintenance;
Application:	connecting with thermocouple and instrument machine;	Model Number:	K,N,E,J,T;

Quick detail

Name: MICC mi cable type K CIM Inconel
Type: K, N, E, J, T
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, INCL600, Nicrobell
Dia(mm): from 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Jiangsu, China (Mainland)
Eco-friendly: Yes
MOQ: 100m
Certificate: ISO,CQC
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Advantage: Competitive price and best service

Product Name

Code

Type

Sheath material

Outer dia.(mm)

Temperature

Ni Cr - Ni Si

SS304

0.5-1.0

400

SS321

1.5-3.2

600

SS316

4.0-8.0

800

0.5-1.0

500

SS310

1.5-3.2

800

INCL600

4.0-6.4

900

8.0-12.7

1000

Ni Cr Si - Ni Si

SS304

0.5-1.0

400

SS321

1.5-3.2

600

SS316

4.0-8.0

800

0.5-1.0

500

SS310

1.5-3.2

800

INCL600

4.0-6.4

900

8.0-12.7

1000

Ni Cr -Konstantan

SS304

0.5-1.0

400

SS321

1.5-3.2

500

SS316

4.0-8.0

800

Fe - Konstantan

SS304

1.0

300

SS321

1.5-3.2

500

SS316

4.0-8.0

800

Cu - Konstantan

SS304

1.0

-200-100

SS321

1.5-3.2

100-200

SS316

4.0-8.0

100-350

Name

Type

Class of Accuracy

III

Tolerance

Temperature

Tolerance

Temperature

Tolerance

Temperature

Ni Cr - Ni Si

1.5℃ or 0.4%t

-40~1000

2.5℃ or 0.75%t

-40~1000

2.5℃ or 0.75%t

-200~40

Ni Cr Si- Ni Si

-40~1000

-200~40

Ni Cr - Konstantan

-40~800

-200~40

Fe - Konatantan

-40~750

---

Cu - Konstantan

1.5℃ or 0.4%t

-40~350

1℃ or 0.75%t

-40~350

1℃ or 0.75%t

-200~40

Pt Rh 10 - Pt

1℃ or 1+(t-1100)x0.003

0~1600

1.5℃ or 0.25%t

0~1600

---

Pt Rh 13 - Pt

0~1600

Pt Rh 13 - Pt Rh 6

---

600~1700

4℃ or 1.5%t

600~1700

Wall thickness table

Outer Sheath(mm)		Core Wire Dia.(mm)		Sheath Material				Length(m)
Out Dia.	Wall Thickness	K,N,E,J,T Types	S,R,B Types	K,N Types	E,J,T Types	S,R Types	B Types	Length(m)
0.5	0.05-0.10	0.08-0.12	---	SS304, SS321, SS316, SS310, INCL600	SS304, SS321, SS316	INCL600, INCL800	INCL600, INCL800	500
1.0	0.10-0.20	0.15-0.20	---					300
1.5	0.15-0.25	0.23-0.30	---					200
1.6	0.16-0.26	0.26-0.36	---					200
2.0	0.25-0.35	0.40-0.50	0.25-0.30					180
3.0	0.38-0.48	0.50-0.60	0.30-0.40					80
3.2	0.48-0.58	0.58-0.68	0.30-0.40					75
4.0	0.52-0.62	0.60-0.70	0.35-0.40					70
4.8	0.73-0.83	0.75-0.85	0.40-0.45					40
5.0	0.78-0.88	0.80-0.90	0.40-0.45					40
6.0	0.98-1.08	0.90-1.10	0.45-0.50					30
6.4	1.05-1.15	1.02-1.12	0.45-0.50					30
8.0	1.30-1.44	1.30-1.40	0.45-0.50					20
12.7	1.75-1.90	1.95-2.05	---					10
