MICC 220V electric silicone heat pad with thermocouple
- 1.00 piece
| Place of Origin: | Zhejiang China; | Payment Terms: | L/C,T/T,Western Union; |
| Size Deviation: | ±0.5%; | Dimension(L*W*H): | 20*20 mm; |
| Certification: | CE RoHS; | product: | silicone heater; |
| Packaging Detail: | Export carton, wooden case For silicone heater; | Insulation Resistance: | ≥5 MΩ; |
| Port: | shanghai or ningbo; | Type: | Air Heater; |
| Minimun Size: | 20*20 mm; | Brand Name: | micc for silicone heater; |
| Rated Voltage: | 12-380V; | Voltage: | 220V; |
| Supply Ability: | 10000 Piece/Pieces per Month for silicone heater; | band name: | MICC; |
| Condition: | New; | Power Source: | Electric; |
| Maximum Size: | 1000-1200 M; | Thickness: | 1.5-4 mm; |
High Effiency silicone heater
General Introduction of Diesel Oil Heater
Oil Pipe Heater can be manufactured from etched foil or from resistance wire as a wire wound circuit. The circuit pattern is vulcanized between two layers of silicon rubber and can be easily mounted to heat sinks or devices that need to be heated.
Silicon rubber's flexility can make your Silicon Rubber Heater in the shape of flat, spiral wrap, blanket, and molded to shape. Silicon rubber heater can be supplied with thermistors , thermostats, thermal fuses and thermocouples.
Silicon rubber's flexility will assemble the heater to your application through the process of vulcanization and the use of silicon and pressure sensitive adhesives.
Featrues of Diesel Oil Heater
Product | High Effiency Silicone Rubber Material Diesel Oil Heater |
Size | 20*25mm~500mm*5000mm, thickness1.5mm(can be customized) |
Resistance wire | nickel 80% wound wire or nickel 80% foils(thickness 0.05 mm~0.10mm)inside |
Shape | variety of shapes, can be customized |
Power design | 3~5w/cm2,fast heating |
Working Temp. | -60~200 degree |
Wire Length | Standard 200mm |

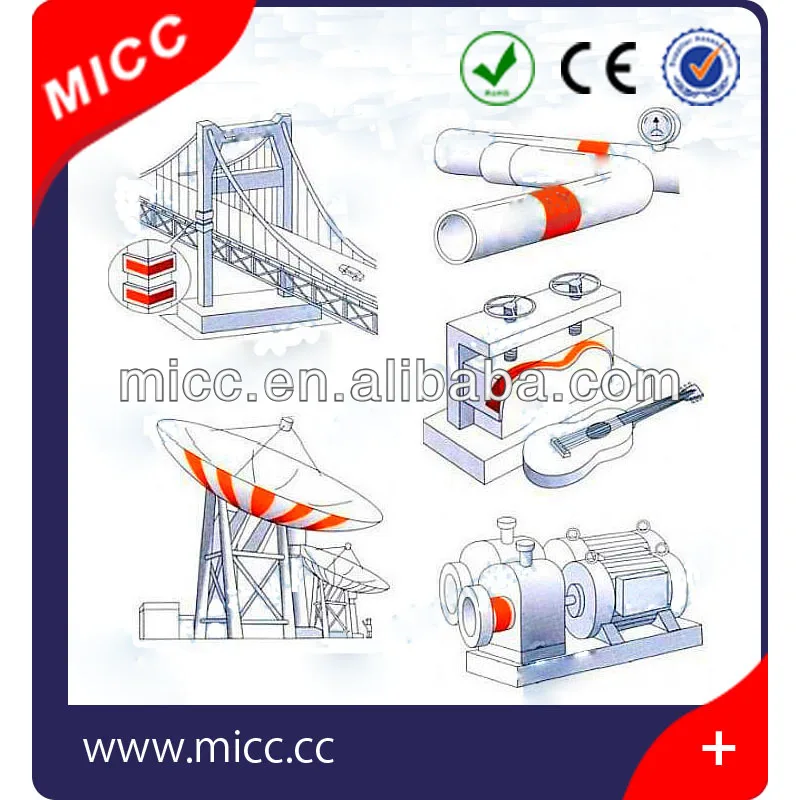

Applications of Diesel Oil Heater
1 | Industrial equipment, pipelines, barrels, tanks, etc. |
| 2 | Outdoors telecommunication equipment |
| 3 | Outdoors electronic devices |
| 4 | Medical equipment and devices |
| 5 | Thermal imaging of imaging equipment |
| 6 | Case protection under cold and moist environment |
| 7 | Industrial ovens and thermal processing equipment |
| 8 | Ventilator supports |
| 9 | Laminating equipment |
| 10 | Vessels |

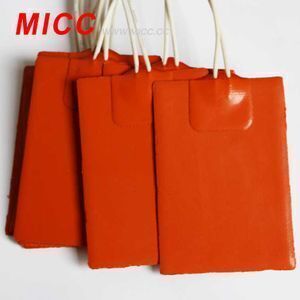

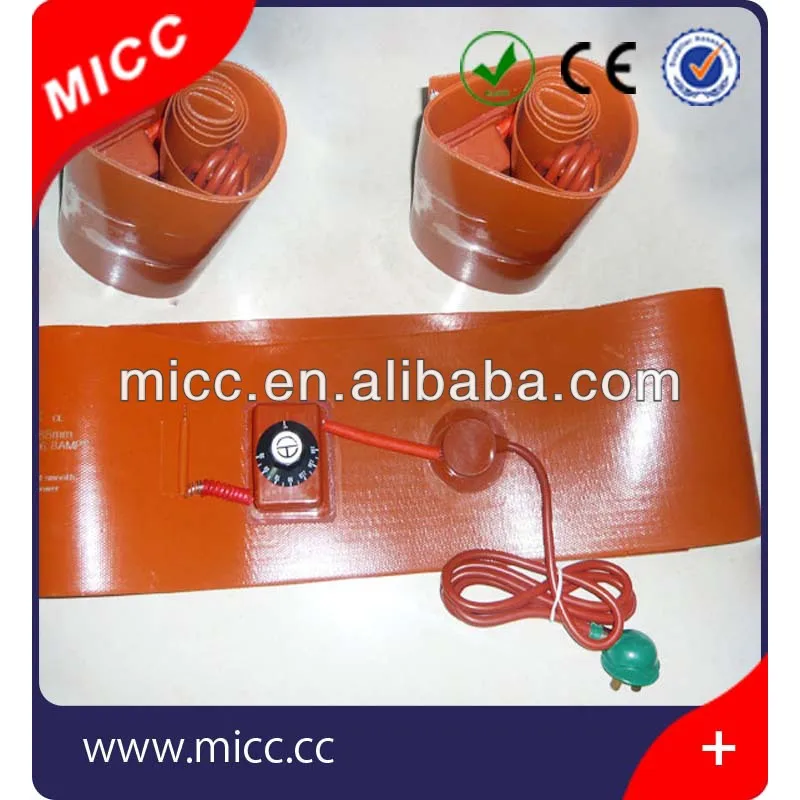

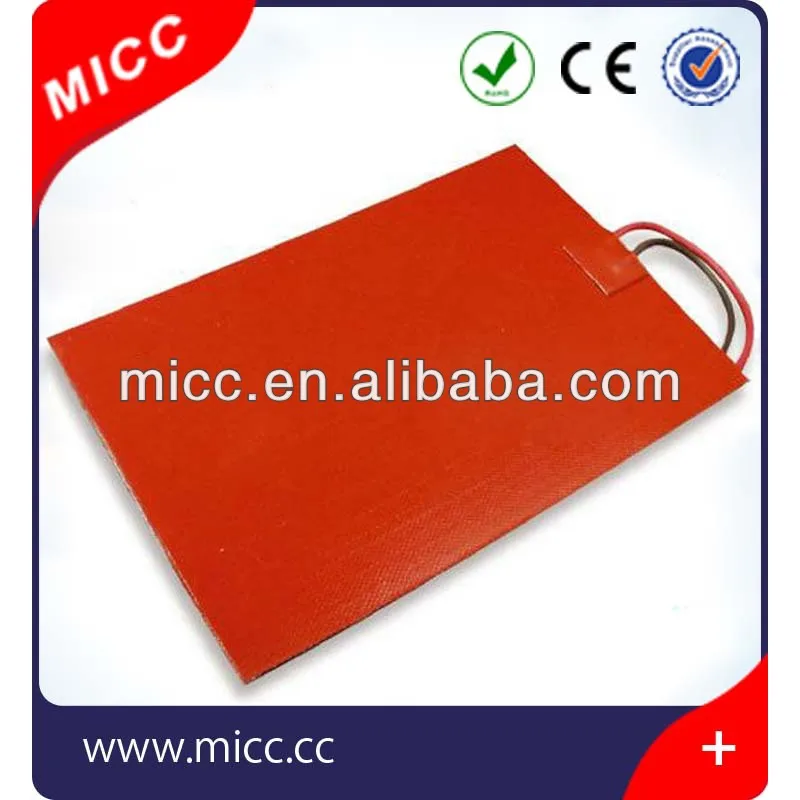

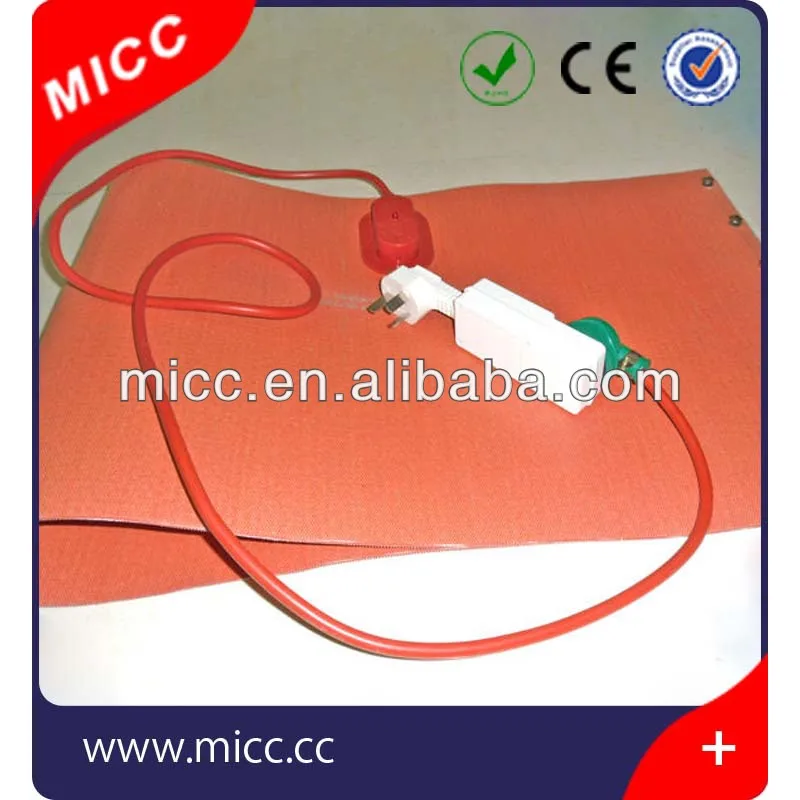

Pictures of Silicone Heater
silicone heater transportation:
