MICC professional silicone rubber heating pad with pt100 probe for pizza cooler
- 8.00 1 - 49 pieces
- 7.60 50 - 99 pieces
- 7.00 >=100 pieces
| Condition: | New; | Name: | silicone rubber heater; |
| Supply Ability: | 10000 Piece/Pieces per Month silicone rubber heater; | Dimension(L*W*H): | customized,Custom Size; |
| Power Source: | Electric,Electric; | Packaging Detail: | Carton, wooden case for silicone heat bed for silicone rubber heater; |
| Type: | Band Heater; | Brand Name: | MICC; |
| Key Selling Points: | Accurate temperature control; | Port: | shanghai; |
| After-sales Service Provided: | Online support; | Voltage: | 220V,12-480v; |
| Certification: | CE ROHS; | Video outgoing-inspection: | Provided; |
| Rated Voltage: | 12-380V; | Size Deviation: | ±0.5%; |
| band name: | MICC; | Showroom Location: | None; |
| After Warranty Service: | Online support; | Core Components: | heating element; |
| Minimun Size: | 20*20 mm; | Place of Origin: | Jiangsu China; |
| Warranty of core components: | 1 Year; | Weight: | customized; |
| Local Service Location: | None; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,paypal; |
| Insulation Resistance: | ≥5 MΩ; | Marketing Type: | New Product 2020; |
| Machinery Test Report: | Provided; | Warranty: | 1 Year; |
| Applicable Industries: | Manufacturing Plant; | product: | silicone heater; |
MICC professional silicone rubber heating pad
General Introduction
Silicon rubber can be manufactured from etched foil or from resistance wire as a wire wound circuit. The circuit pattern is vulcanized between two layers of silicon rubber and can be easily mounted to heat sinks or devices that need to be heated.
Silicon rubber's flexility can make your Silicon Rubber Heater in the shape of flat, spiral wrap, blanket, and molded to shape. Silicon rubber heater can be supplied with thermistors , thermostats, thermal fuses and thermocouples.
Silicon rubber's flexility will assemble the heater to your application through the process of vulcanization and the use of silicon and pressure sensitive adhesives.
Features
|
Product |
High Effiency Silicone Rubber Material Diesel Oil Heater |
|
Size |
20*25mm~500mm*5000mm, thickness1.5mm(can be customized) |
|
Resistance wire |
nickel 80% wound wire or nickel 80% foils(thickness 0.05 mm~0.10mm)inside |
|
Shape |
variety of shapes, can be customized |
|
Power design |
3~5w/cm2,fast heating |
|
Working Temp. |
-60~200 degree |
|
Wire Length |
Standard 200mm |
|
Maximum temperature resistant of insulation |
200c |
other features:
1.Beat continuous working temperature as 150c, max temperature as 230c momentarily.
2.Power deviation :8% insulation resistance :>=5MU
3.Compressive strength:1500v/5s
4.standard dimension: width:20mm-1000mm;Length:25mm-1000mm;lead wire length:200 mm
Applications
|
1 |
Industrial equipment, pipelines, barrels, tanks, etc. |
| 2 | Outdoors telecommunication equipment |
| 3 | Outdoors electronic devices |
| 4 | Medical equipment and devices |
| 5 | Thermal imaging of imaging equipment |
| 6 | Case protection under cold and moist environment |
| 7 | Industrial ovens and thermal processing equipment |
| 8 | Ventilator supports |
| 9 | Laminating equipment |
| 10 | Vessels |

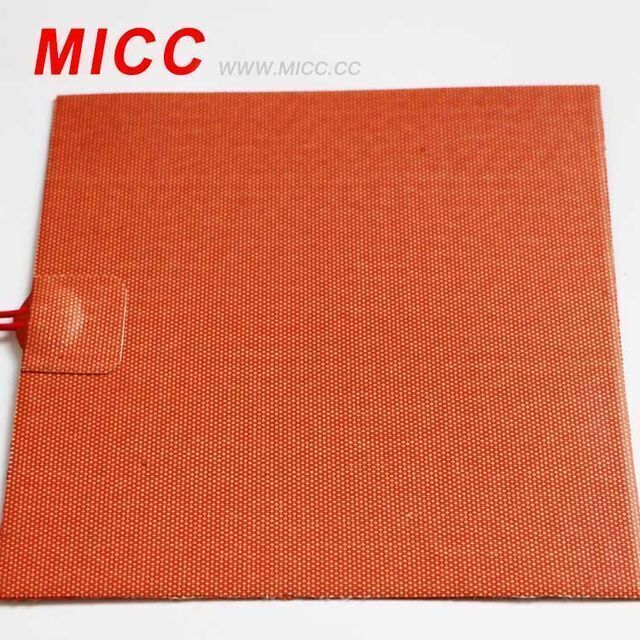

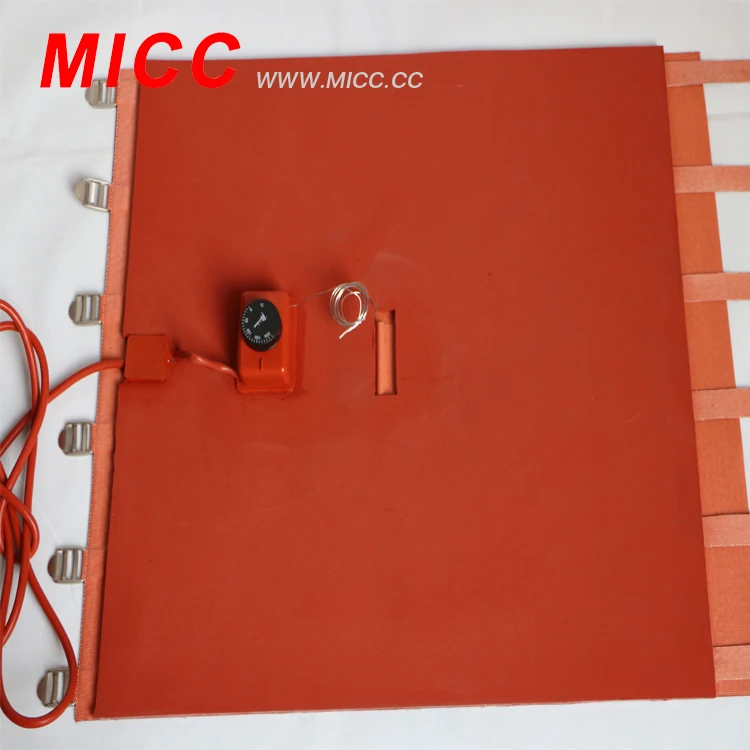

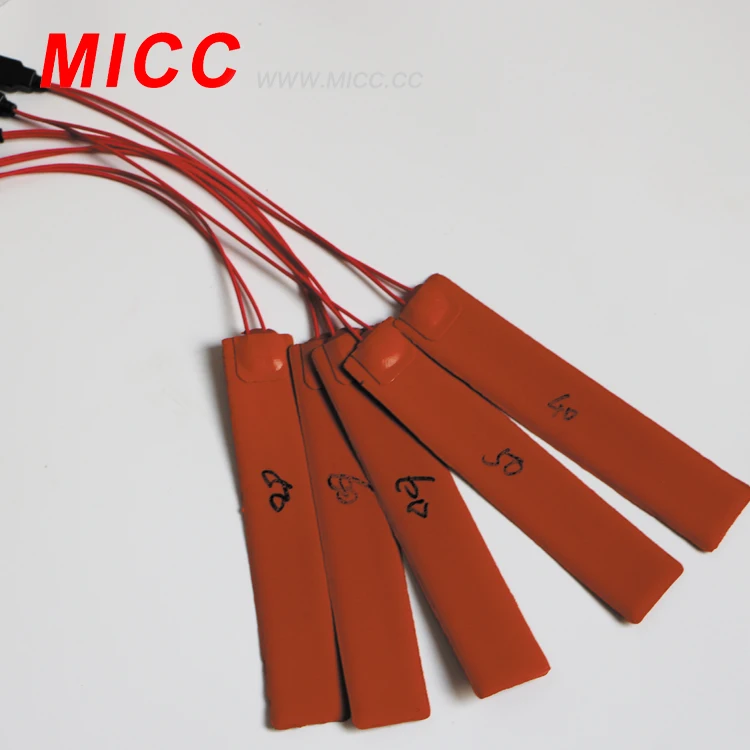

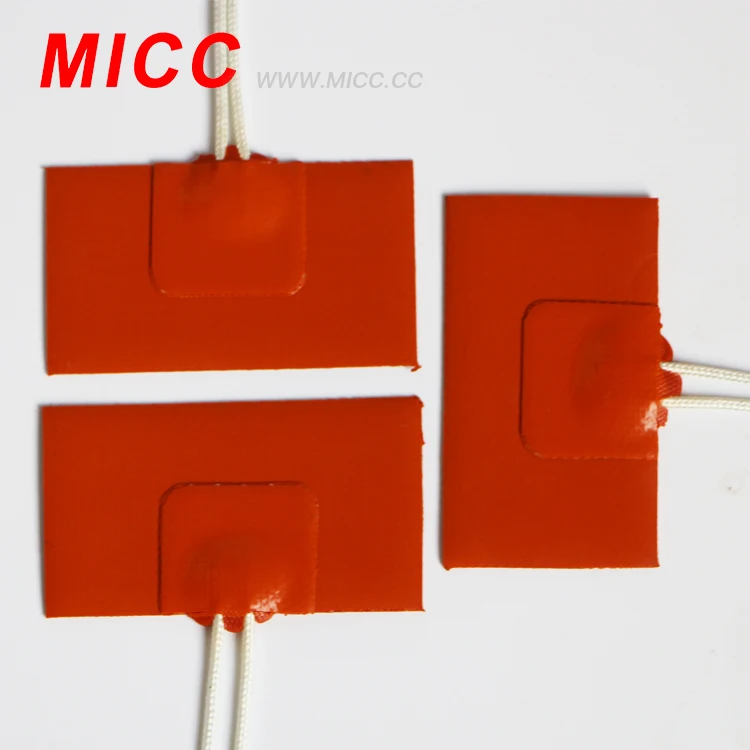

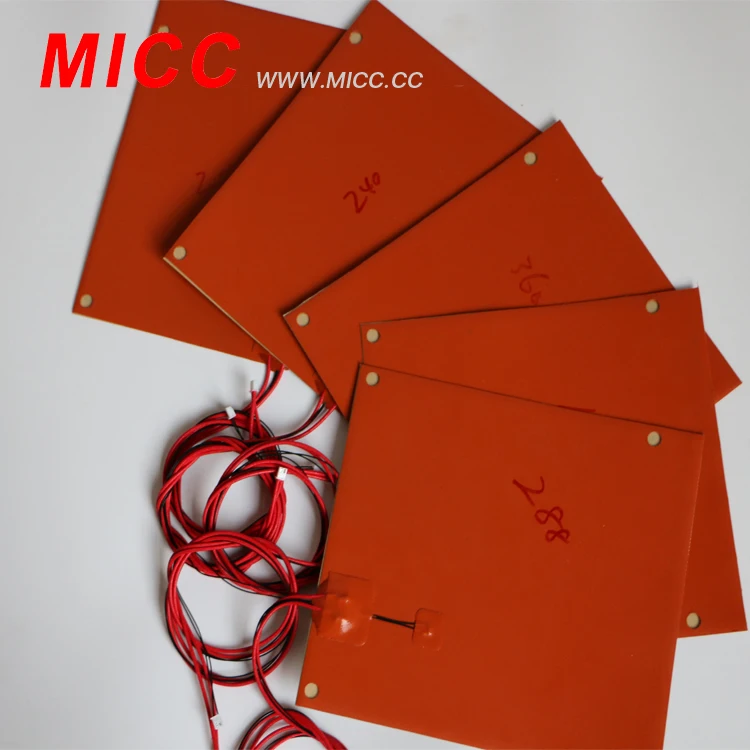

Pictures of Silicone Heater
silicone heater transportation:
