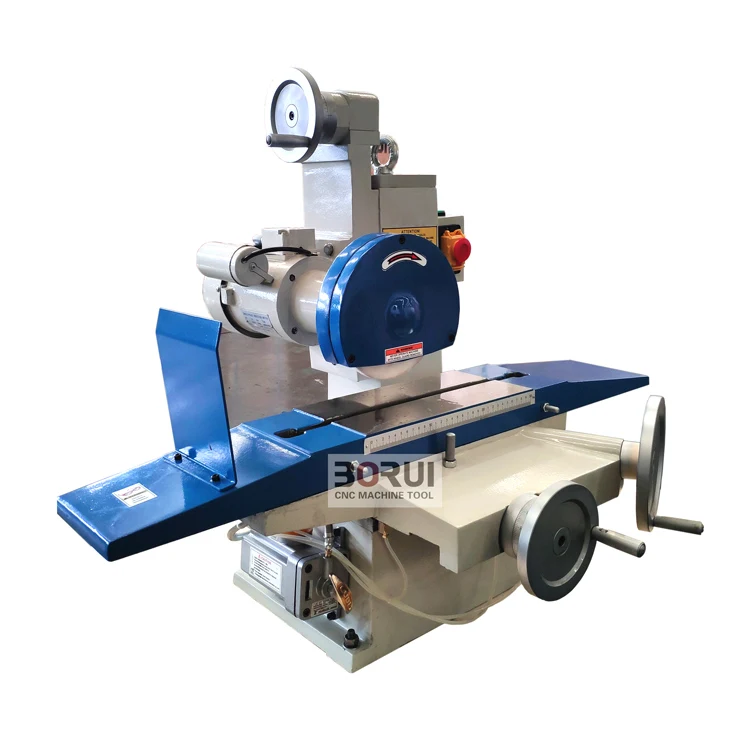

Small surface grinding machine MJ7115 mini surface grinder

Supplier: Tengzhou Borui CNC Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Mr hemingway hu
Price: $1450.00 / >=10 sets
Min. Order: 10 sets

Click here to contact

Product details

Condition:	New;	Model:	MJ7115;
Place of Origin:	Shandong China;	Weight:	260kg;
Key words:	Optical Grinding Machine;	CNC or Not:	Normal;
Certification:	CE ISO;	Usage:	General;
After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Application:	Stainless Steel;
Voltage:	220V/380V;	Warranty:	1 Year;
Max. Grinding Diameter:	210;	Max. Grinding Length:	340;
Port:	Qingdao,shanghai;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Name:	Surface Grinder;	Color:	White;
Type:	Surface Grinding Machine;	Power(W):	550W;
Dimension(LWH):	950850750mm;	Packaging Detail:	tooling venner package, case dimension of machine(LWH):9307801480MM; case dimension of stand (LWH):720550550MM.;
Keywords:	Universal Grinder Machine;	Product name:	Vertical Surface Grinding Machine;
Brand Name:	BORUI;	Supply Ability:	1000 Set/Sets per Month;

Small surface grinding machine MJ7115 mini surface grinder

Product Description

tooling is designed to grind various horizontal and vertical surfaces of the workpieces and end faces of the grinding wheel. It can also grind various contoured workpieces with shaped wheel or craftsmanship apparatus

Main features:

1)Integrated grinding head of high quality, high rigidity and accuracy.

2)Small size, light weight, easy operation & maintenance.

3)Centralized lubrication for oil pump.

SPECIFICATIONS	Metric	Inch
Longitudinal stroke	340mm	14
Lateral stroke	170mm	7
Grinding height	210mm	8
Area of table	152mm×304mm	6×12
Width of T-slot	1-12mm	1-0.47
Cross feed per graduation	0.02mm	0.001
Cross feed per round	2.54mm	0.1
Vertical feeds per graduation	0.025mm	0.001
Vertical feed per round	1.25mm	0.05
Roughness	1.6μm
Grinding wheel	180mm×32mm×13mm
Power of motor	0.55kw
N. W. / G.W.of machine	210/258kg
N. W. / G.W.of stand	30/54kg
Overall dimension of machineL×W×H	930×780×730mm
Case dimension of machineL×W×H	930×780×1480mm
Case dimension of standL×W×H	720×550×550mm

Standard configuration:

Grinding wheel, grinding wheel adaptor, grinding wheel dresser, pad irons, tools, etc.

Special configuration:

Stand, permanent magnetic chuck, precision flat vise.Ball leadscrew model

Detailed Images

Company Information

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

We want to know:

1.What’s your Industrial Voltage?

2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!

3.If need CIF Price, please kindly tell us the port of destination.
