XCMG 180HP Motor Grader GR1803 15400kg Road Graders Ripper Price China Small Mini Motor Grader

Supplier: Evangel Industrial (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Teresa Xuan
Price: $67500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Warranty:	1 Year;	Maximum lift above ground:	450mm;
Engine Brand:	other;	Single gross weight:	15,400 KG;
Moldboard width X height:	3965*610mm;	Applicable Industries:	Construction works ;
Forward Speed(km/h):	38;	Engine:	190HP SC8D190G2B1;
Dimension(LWH):	890026253470mm;	Condition:	New;
After-sales Service Provided:	Overseas service center available,Engineers available to service machinery overseas,Overseas third-party support available;	Colour:	Yellow,White,or customized;
Maximum depth of cutting:	500mm;	Certification:	ISO;
Brand Name:	Evangel;	ravelling speed ,forward:	5,8,11,19,23,38 km/h;
Package Preview:	https://sc01.alicdn.com/kf/HTB18v1.aOYrK1Rjy0Fdq6ACvVXaJ.jpg_640x640.jpg;	Single package size:	890X265X350 cm;
Reverse Speed(km/h):	23;	Place of Origin:	Jiangsu China;
Max. gradeability:	30%;	UNIQUE SELLING POINT:	Fully hydraulic system;
Package Type:	Nude Packge Dismantle Into 40HQ / RORO Shipment / Bulk Shipment;	Selling Units:	Single item;
Tractive force(f=0.75):	84KN;	Travelling speed ,reverse:	5,11,23 km/h;

XCMG 180HP Motor Grader GR1803 15400kg Road Graders Ripper Price China Small Mini Motor Graderader

Product Description

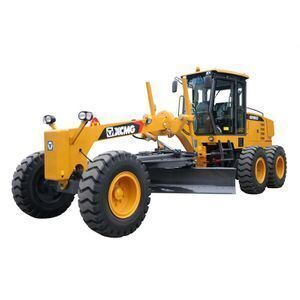

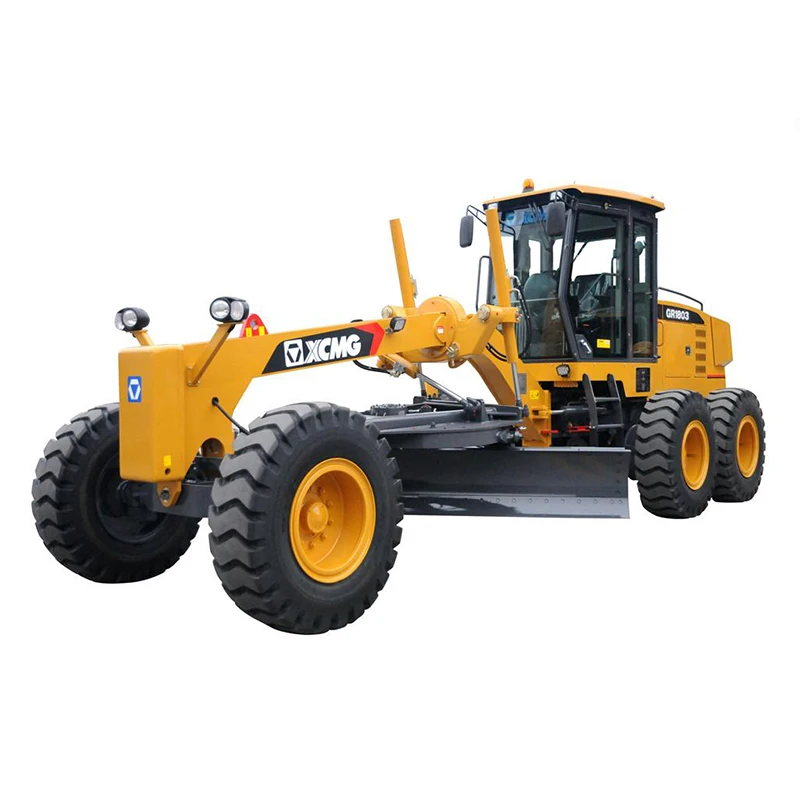

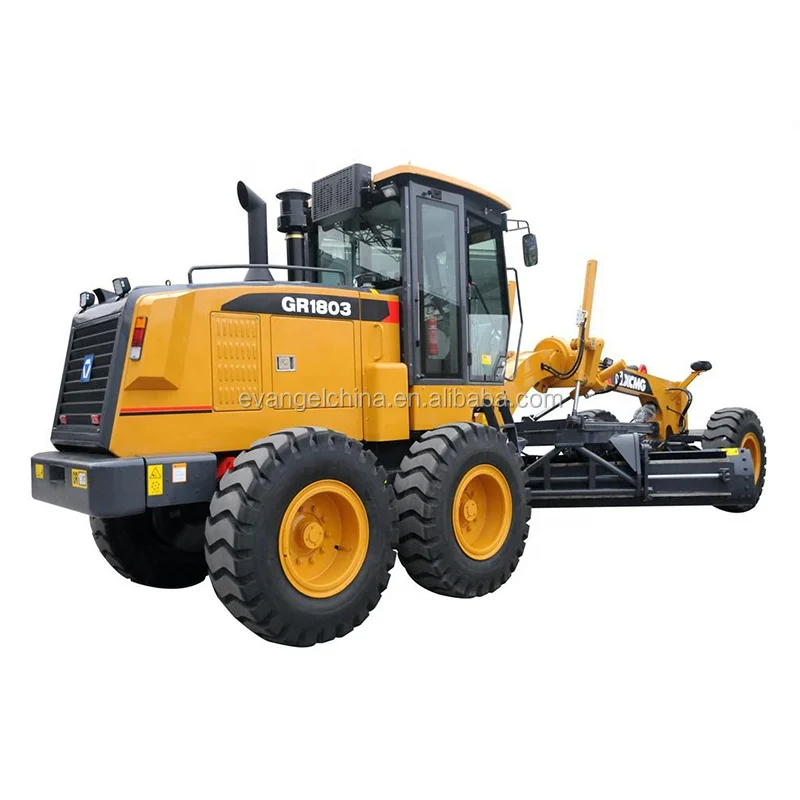

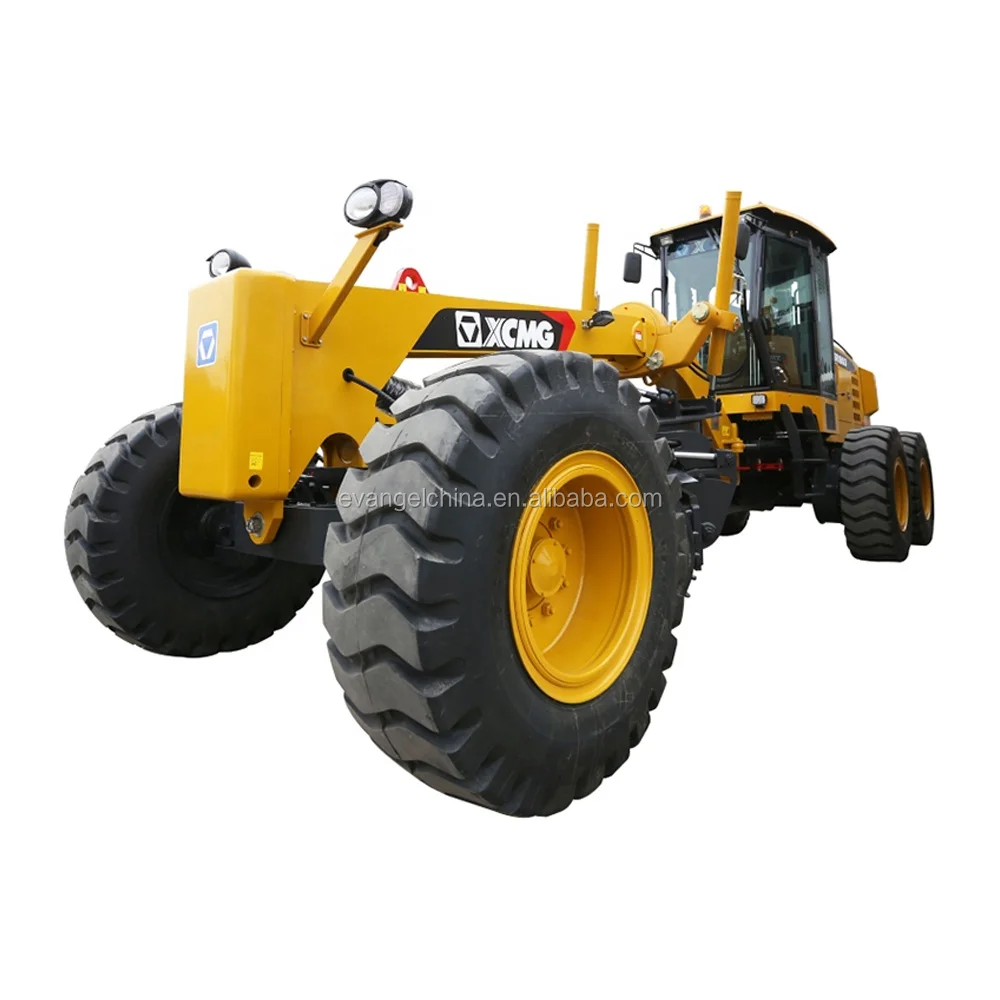

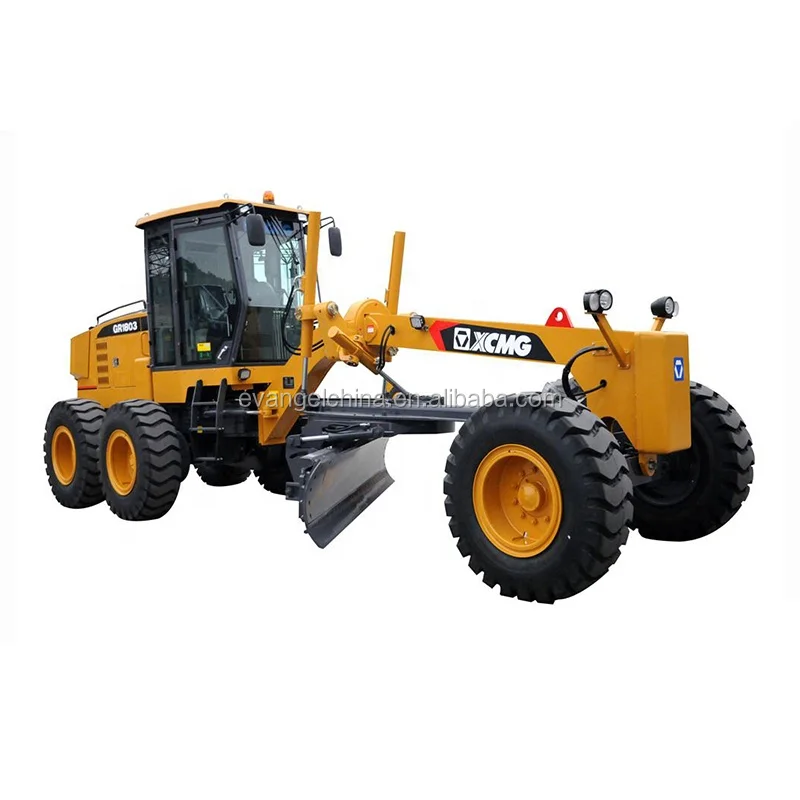

GR1803 Motor Grader
GR Series Motor Graders are mainly used in ground leveling, canalling, slope scraping, earthmoving, scarification or snow removal work on road, airfield, farmland, and so on. They are necessary construction machines for national defense engineering, mine construction, town and country roads building, and farmland improvement..

Main parameters:
Operating weight :15.4 tons ,
Moldboard : 3965×610mm,

Detailed configuration
* Shangchai SC9DK200.1G3 engine,
* Meritor riving axle ,
* Air conditioner driving cabin ,
* Imported differential mechanism .

Advantages
Strong power ,Comfortable driving environment .
Adopt imported hydraulic parts .Great working performance .

Optional parts
* Front mouldboard ,
* Rear scarifier ,
* Shovel blade

OUR SERVICE
* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.
* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts with good prices, quick response and professional service.

Item		Parameters	Unit
General Data	Engine model	SC9DK200.1G3	-
	Rated power	147/2000	(kw/rpm)
	Dimension (standard)	8900×2625×3420	(mm)
	Weight (standard)	15400	(kg)
Performance Data	Front speed	5,8,11,19,23,38	(km/h)
	Reverse Speed	5,11,23	(km/h)
	Break force f=0.75	80	(kN)
	max grade ability	0.2	%
	mini turning radius	7.3	(m)
	blade lenght&height	3965×610	(mm)
