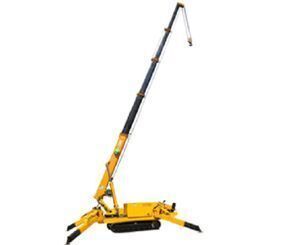

3 Ton Mini Telescopic Spider Crawler Crane KB3.0

Supplier: Evangel Industrial (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Teresa Xuan
Price: $3000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Marketing Type:	New Product 2020;	Local Service Location:	none;
Max. Lifting Height:	9m;	Rated Loading Capacity:	3ton;
Showroom Location:	none;	Condition:	New;
Warranty of core components:	1 Year;	Certification:	ISO CE;
Rated Lifting Moment:	9m&3.5m;	Span:	8.3m;
Core Components:	Pump;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand Name:	KEBU;	After Warranty Service:	No service;
Application:	Narrow Space;	Packaging Detail:	Container or RORO shipment or Bulk Break shipment;
Boom length:	9m;	Machinery Test Report:	Provided;
Feature:	Other,other;	After-sales Service Provided:	Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;
Applicable Industries:	Building Material Shops;	Port:	Shanghai;
Place of Origin:	Henan China;	Supply Ability:	50 Unit/Units per Month;
Video outgoing-inspection:	Provided;	3 Ton Crane:	3 Ton Crane;
Warranty:	1 Year;

3 Ton Mini Telescopic Spider Crawler Crane KB3.0

Feasures

Mini crane is also named spider crane.It's mainly used in electric power industry,indoor construction,workshop maintenance and other narrow spaces.It's also suitable for subway construction as an important supplement to standard crane.

Parameters

1.Machine characteristics

Compact frame

Imported parts

Advanced technology

Flexible operation

Profection system

2.Machine Specification

Model		KB3.0
Specifications		3.0t×1.3m
Dimensions( L×W×H )		2850mm×800mm × 1500mm
Weight		2050kg
Maximum working radius		8.3m
Maximum lifting height		9.2m
Maximum hook speed		0-6.5m/min(4 Times)
Hoist rope type		Φ8mm×45m
Telescopic system	Boom type	Full automatic 5 section
	Boom length	8.92m
	Telescopic speed	6.04m/22sec
Slew system	Slew angle/speed	360° continuous/1.0rpm
Boom hoist system	Hoist angle/speed	0°-75°/14 sec
Outrigger system	Type	Automatic for the 1 section,manual adjustment for 2,3 section.
Outrigger system	Maximun extended dimensions	3800mm ×3540mm
Traction device	Drive	Hydraulic motor driven,stepless speed changer
	Travel speed	0-2km/h
	Ground length ×width	1010mm ×200mm
	Grade ability	20°
	Ground pressure	51kpa

3.Application and Qur Customers

Road construction,Glass curtain wall installation

Electric power industry

Internal lifting

Workshop maintenance

Shipyards, marinas & port
