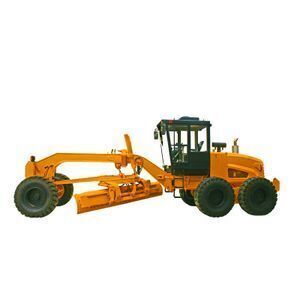

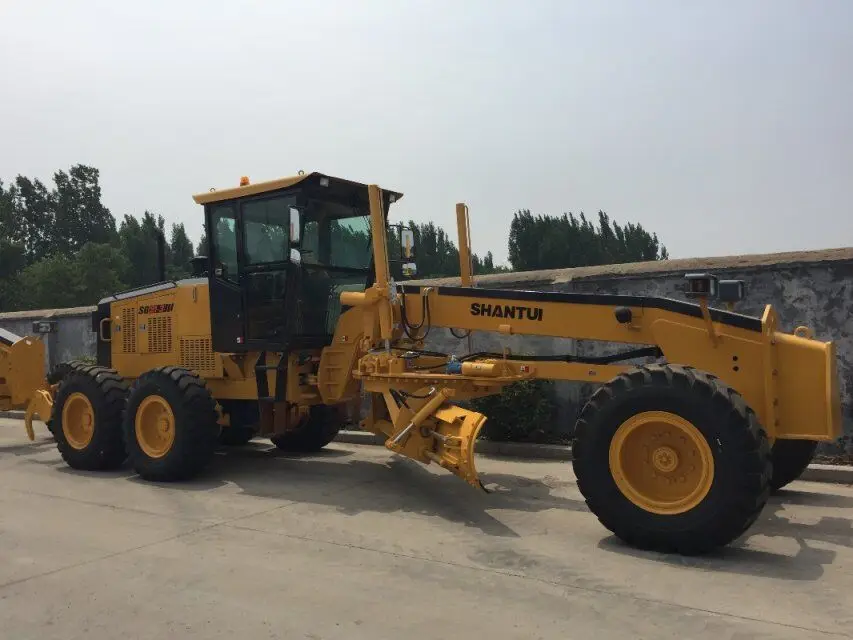

Shantui new hot sale motor grader SG14/SG16-3/SG18-3/SG21-3/SG24-3 for sale

Click here to contact
Product details
Warranty:1 Year;Maximum cutting depth:500mm;
Port:Qingdao, Shanghai, Lianyungang, Tianjin;Hydraulic Pump Brand:top brand;
Blade height:635mm;Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Brand Name:SHANTUI;Certification:ISO;
Packaging Detail:Nude package, attached parts and tools into standard export box or carton;Working diameter:3660/3965 mm;
Maximum torque/speed:770 N m/1500 rpm;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Warranty of core components:1 Year;Min. turning radius:7800mm;
Forward Speed(km/h):39.7;Showroom Location:Egypt,Turkey,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia,Morocco;
UNIQUE SELLING POINT:High operating efficiency;Tyre:17.5-25PR12;
Marketing Type:Ordinary Product;Hydraulic Cylinder Brand:top brand;
Engine Brand:top brand;Supply Ability:100 Unit/Units per Month;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
After-sales Service Provided:Video technical support,Online support,Field maintenance and repair service,Field installation, commissioning and training,Free spare parts;Dimension(L*W*H):8900*2625*3470mm;
Machinery Test Report:Provided;Piston displacement:5.9L;
Color:yellow;Place of Origin:Shandong China;
Condition:New;Minimum fuel consumption:206 g/kW h;
Local Service Location:Egypt,Turkey,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan;Package Preview:;
Maximum lift above ground:440mm;Video outgoing-inspection:Provided;
Hydraulic Valve Brand:top brand;Reverse Speed(km/h):25.6;
Number of cylinders:6(102X120mm);



Shantui new hot sale motor grader SG14/SG16-3/SG18-3/SG21-3/SG24-3 for sale

Product Description

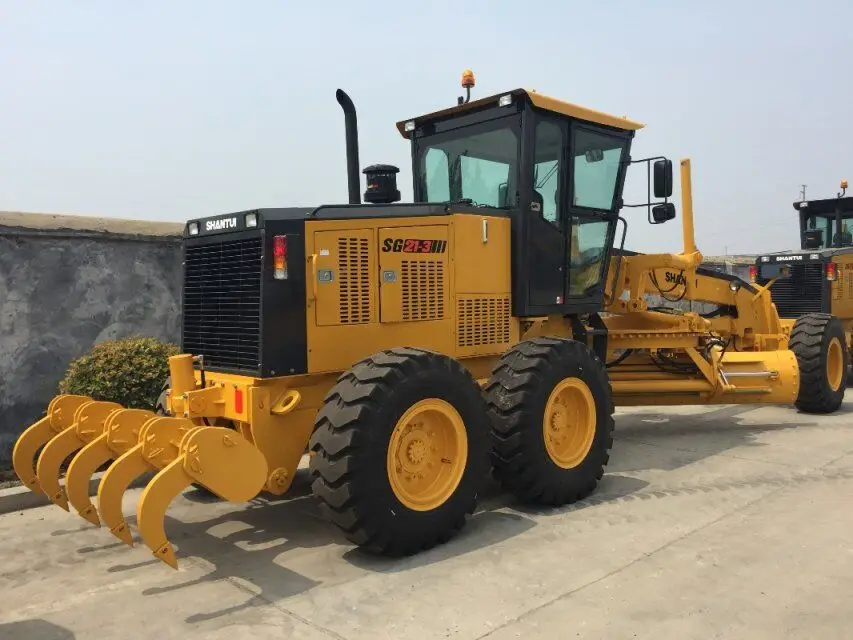

SHANTUI SG21-3 motor grader:

Engine Engine model Cu-m-mins 6BTAA5.9-C180
Rated power/speed 132   kW/2200 rpm
Engine type In-line,   water-cooled, 4-cycle, direct injection, turbocharged
Number of cylinders 6(102X120mm)
Piston displacement 5.9L
Maximum torque/speed 770   N·m/1500 rpm
Minimum fuel consumption 206 g/kW·h
travel speed Transmission and torque converter: Electronic controlled transmission with 6 forward gears   and 3 reverse gears.
Gear 1st 2nd 3rd 4th 5th 6th
Forward 0~5.4   km/h 0~9.3   km/h 0~12.2   km/h 0~20.7km/h 0~25.6   km/h 0~39.7   km/h
Reverse 0~5.4   km/h 0~12.2   km/h 0~25.6   km/h
TRAVEL Tire   Type 17.5-25PR12
Steering system Max.   steering angle of front wheel  ±45°
Max. tilting angle of front wheel ±17°
Max. oscillating angle of front axle ±15°
Steering angle of frame ±25°
Max. oscillating angle of rear axle ±15°
Min. turning radius 7800 mm
Operation weight Operating   weight (standard configuration) 16200 kg
Front axle load 4800 kg
Rear axle load 11400 kg
Blade Blade   length  3660/3965   mm
Blade height 635 mm
Blade rotational angle 360°
Cutting angle adjustment range 44~91°
Maximum cutting depth  500 mm
Cutting force per dozing  24.47 kN/m
Maximum lift above ground  440 mm
Maximum blade lateral extension (left/right)  1900/1950   mm





SHANTUI SG16-3 motor grader:

+
Engine Engine model Cu-m-mins 6BTAA5.9-C160
Rated power/speed 118 kW/2200 rpm
Engine type In-line,   water cooled,4 -cycle, direct injection, turbocharged
Number of cylinders 6(102X120mm)
Piston displacement 5.9L
Maximum torque/speed 670 N·m/1500 rpm
Minimum fuel consumption 205 g/kW·h
travel speed Transmission and torque converter: Electronic controlled transmission with 6 forward gears   and 3 reverse gears.
Gear 1st 2nd 3rd 4th 5th 6th
Forward 0~5.4   km/h 0~8.4   km/h 0~13.4   km/h 0~20.3   km/h 0~29.8   km/h 0~39.6   km/h
Reverse 0~5.4   km/h 0~13.4   km/h 0~29.8   km/h
TRAVEL Tire   Type 17.5-25PR12
Steering system Max.   steering angle of front wheel  ±45°
Max. tilting angle of front wheel ±17°
Max. oscillating angle of front axle ±15°
Steering angle of frame ±25°
Max. oscillating angle of rear axle ±15°
Min. turning radius 7800 mm
Operation weight Operating   weight (standard configuration) 15400 kg
Front axle load 4600 kg
Rear axle load 10800 kg
Blade Blade   length  3660/3965   mm
Blade height B 635 mm
Blade rotational angle 360°
Cutting angle adjustment range 44~91°
Maximum cutting depth  500 mm
Cutting force per dozing  23.5 kN/m
Maximum lift above ground  440 mm
Maximum blade lateral extension (left/right)  1900/1950   mm





Kindly contact me:

Teresa Xuan / Sales

Evangel Industrial (Shanghai) Co., Ltd.

Evangel International Machinery Ltd.
(CHINESE LEADING CONSTRCUTION MACHINERY AND SPARE PARTS EXPORTER)

Email: teresa at evangelchina.com

Mobile/Whatsapp/Viber: +86-17705652725

Skype: live:1451669342

Wechat: xuanmin36

Web: http://www.evangelchina.com
