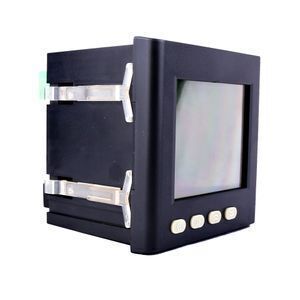

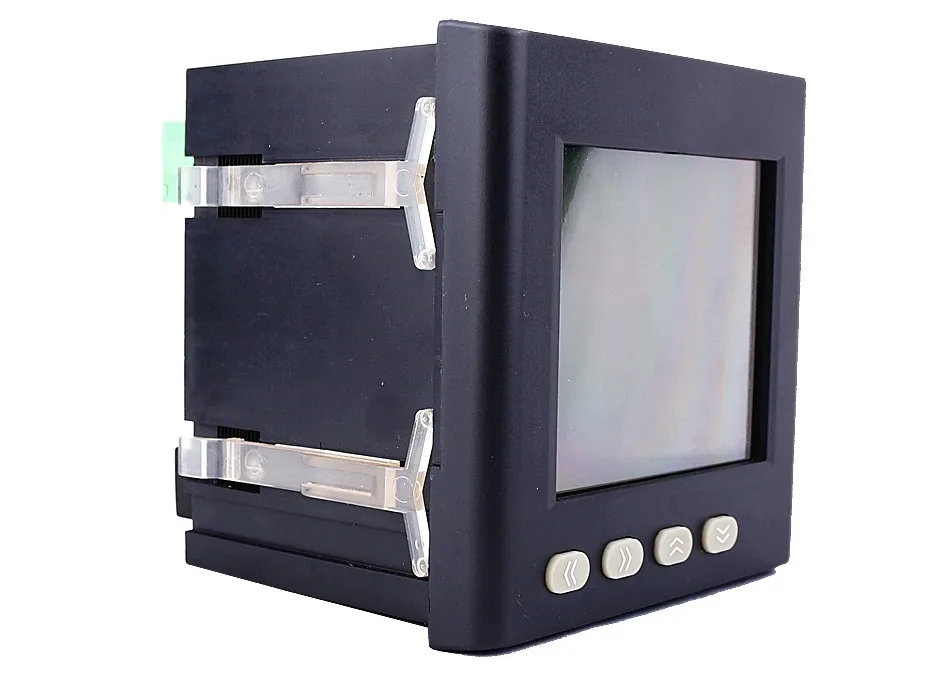

strong force electricity measure instrument,multifunction digital electric power meter

Supplier: Guangzhou Hanke Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Judy Huang
Price: $12.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Delivery Detail:	15 days after order confirmed;	Port:	Guangzhou;
Dimensions:	96X96mm;	Place of Origin:	Guangdong China;
Operating Temperature:	10~+60;	Name:	measure instrument multifunction digital electric power meter;
Accuracy Class:	0.5S;	Brand Name:	Hanke;
Measuring Voltage Range:	0-400V,10KV,35KV...;	Supply Ability:	1000 Piece/Pieces per Day;
Packaging Detail:	Various sizes of carton with blister card, anti-shock, anti-static;	Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram;
Model Number:	HKDZ-3DY;	Measuring Current Range:	0-120%I;

strong force electricity measure instrument,multifunction digital electric power meter

Product Description

A, Electrical performance parameters

Performance			Parameters
Input Measurement Display	Distribution network		Single phase, three-phase, three wire, three-phase four wire
	Voltage	Rating	AC110V, 220V, 380V(Please specify when ordering)
		Overload	Measuring: 1.2 times instantaneous: 2 times / 10s
		Power consumption	<0.1VA (Each phase)
		Impedance	>1MΩ
		Accuracy	Accuracy class: 0.5S, RMS (True RMS) measuring
	Current	Rating	AC1A, 5A (Please specify when ordering)
		Overload	Measuring: 1.2 times instantaneous: 10 times / 1s
		Power consumption	<0.4VA (Each phase)
		Impedance	<10MΩ
		Accuracy	Accuracy class: 0.5S, RMS (True RMS) measuring
	Frequency		40∼65Hz, accuracy class: ±0.02Hz
	Power		Three-phase active power, reactive power, accuracy:0.5S
	Electricity		Four quadrant electric energy metering, active power accuracy 0.5S, reactive power accuracy 1
	Display		Switch, cycle 3 rows LCD display (programmable setting)
	Event		Real-time cycle save 50 event records (type 72 without)
	Multiple rates		With multiple rates (type 72 without)
Power Supply	The scope of work		AC, DC 85V∼265V
	Power consumption		≤4VA
Output	Digital interface		RS-485, MODBUS-RTU Agreement
	Pulse Output		2 way power pulse output
	Switch input		4 way switch input (expandable to 6 way), dry contact method
			Ri<500Ω Turn on Ri>100kΩ turn off
	Switch output		2 way relay output (expandable to 4 way)
			Relay contact capacity : 5A/250V AC; 5A/30V DC
	Analog output		Current 4∼20mA, load<390Ω
			Voltage 0∼10V, load>100kΩ
Environment	Working environment		-10∼55°C altitude≤2000m, 93%RH, not condensation, non corrosive gas
	Storage environment		-30∼70°C
Safety	Withstand voltage		Input and power supply > 2kV Input and output > 2kV Power and output > 2kV
	Insulation		Input, Output, Power supply to the chassis>5mΩ
Executive standard			GB/T 17215.211-2006 GB/T 17215.322-2008 GB/T 17215.323-2008

B, Installation dimensions

(unit : mm)

Shape Model	Frame Size	Screen Size	Hole Size	Install the Total Length	Remarks
Type 72	72×72	66×66	67×67	71
Type 80	83×83	75×75	76×76	75
Type 96	96×96	90×90	91×91	75
Type 42	120×120	110×110	111×111	75
