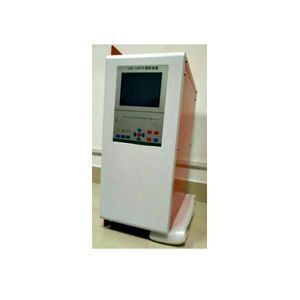

Industrial spot welder control board, point welding machine controller
-
Supplier: Guangzhou Hanke Electronic Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Judy Huang -
Price: $120.00 /set -
Min. Order: 1 set
| Supply Ability: | 1000 Set/Sets per Month; | Brand Name: | Hanke; |
| Rated Capacity: | 25/35/50 KVA; | Payment Terms: | L/C,D/A,T/T,Western Union,MoneyGram; |
| Usage: | Spot Welding; | Port: | Guangzhou; |
| Condition: | New; | Dimensions: | 120mm*345mm*255mm; |
| Rated Duty Cycle: | 50%; | Place of Origin: | Guangdong China; |
| Weight: | 5kg; | Certification: | CE ISO; |
| Max. Welding Thickness: | 8mm; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Type: | Upright; | Packaging Detail: | bubble bag,cardboard,carton box,anti-shock, anti-static; |
| Voltage: | 110v/220v; | Warranty: | 2 Years; |
| Power(W): | 10KVA; | Delivery Detail: | 15 days after order confirmed.; |
Our products are customized, if you are interesting, please kindly contact us.
Industrial spot welder control board, point welding machine controller
| Seletion Table | |||
| Name | Model | Maximum Current | Input Voltage |
| Power Frequency Resistance Welding Controller | KDS-001 | two phase power 380V | |
| RSW-001 | two phase power 380V | ||
| Intermediate Frequency Resistance Welding Controller | IDW-400 | 400A | three phase power 380V |
| IDW-800 | 800A | three phase power 380V | |
| IDW-1200 | 1200A | three phase power 380V | |
| IDW-1600 | 1600A | three phase power 380V | |
| IDW-2400 | 2400A | three phase power 380V | |
| Frequency Conversion Resistance Welding Controller | IAW-400 | 400A | three phase power 380V |
| IAW-800 | 800A | three phase power 380V | |
| IAW-1200 | 1200A | three phase power 380V | |
| IAW-1600 | 1600A | three phase power 380V | |
| IAW-2400 | 2400A | three phase power 380V | |
| Intermediate Frequency Transformer | 90KVA | 24KA | two phase power 500V |
| 160KVA | 42KA | two phase power 500V | |
| 250KVA | 48KA | two phase power 500V | |
Intermediate Frequency Resistance Welding Controller Parameter
| Controller Basic Technical Parameter | |
| Input Voltage (V) | 3 phase 380V, power fluctuation +10%, -20%, 50Hz±1% |
| Output Voltage (V) | Single phase PWM, peak value 540V |
| Max. Output Current (A) | IDW-400 (400A), IDW-800 (800A) |
| The Electromagnetic Valve Output Rated Voltage (V) | DC24V±10% |
| The Electromagnetic Valve Output Rated Current (A) | ≤0.15A/each road |
| Input Cable | 50mm2 |
| Cooling Water Request | 6L/min (IDW-400), 8L/min(IDW-800) ≥0.15Mpa, Temp.≤40ºC |
| Working temp.rang (ºC) | Water cooled -5ºC∼50ºC |
| Working Environment Humidity (%) | ≤80% |
| Working Altitude (Km) | 1 |
| Insulation Grade | F Grade |
| Shell dimension (mm) | 390×227×576 (IDW-400/800) |
table 1: Controller Basic Technical Parameter
| Controller Working Parameter | |||
| Start Singal | Start Switch 1, Start Switch 2 | ||
| The electromagnetic valve drive | 3 groups | ||
| Specified storage quantity | 128 groups | ||
| Pre-pressing time (MS) | 0∼9999 | ||
| Pressurized time (MS) | 0∼9999 | ||
| Slow raising time (MS) | 0∼99 | ||
| Pre-heading time (MS) | 0∼999 | ||
| Cooling time (MS) | 0∼9999 | ||
| Welding time (MS) | 0∼999 | ||
| Tempering time (MS) | 0∼999 | ||
| Slow decline time (MS) | 0∼99 | ||
| Pressure maintaining time (MS) | 0∼9999 | ||
| Stop time (MS) | 0∼9999 | ||
| Current Control | |||
| Current 1 | CC1(primary constant current) | Primary current 0-9999 (unit: ×1A) | |
| CC2(secondary constant current) | Secondary current 0-9999 (unit: ×10A) | ||
| Current 2 | CC1(primary constant current) | Primary current 0-9999 (unit: ×1A) | |
| CC2(secondary constant current) | Secondary current 0-9999 (unit: ×10A) | ||
| Current 3 | CC1(primary constant current) | Primary current 0-9999 (unit: ×1A) | |
| CC2(secondary constant current) | Secondary current 0-9999 (unit: ×10A) | ||
table 2: Controller Working Parameter
GuangZhou HanKe Electronics Co., Limited is a collection of the development and manufacture of electronics products.
We are focus on electronic control board ODM and OEM manufacture with more than 10 years experience in electronic circuit design, PCB design, PCB assembly and components sourcing.
The microcomputer controller we developed recently has been widely used in industrial spot welding machine, tobacco machine, reversing radar, heater, air conditioning, electric rice cooker, thermostat, health care products, toys, and other fields.
We have cooperated with some famous brands in China, such as MIDEA,OTLAN,etc.
1 One stop service.
Product design requirements build --> Circuit design --> PCB design --> MCU program --> Sample making and testing --> Component sourcing and purchase --> Small quantity produce --> Bulk quantity produce --> Inspection --> Packing and shipment.
2 More than ten years electric design
Our company can design software and hardware independently. We are proficient in digital, analog circuits, and proficient the software for design, such as PROTEL, POWER PCB, etc. We are familiar with MCU, such as ATMEL, MICROCHIP, ST, TI and SAMSUNG, etc. We have the perfect laboratory equipment. We have unique theory and experience for EMC and EMI.
Ten years we designed products cover a wide field of intelligent home appliances, automotive electronics, industrial control equipment, intelligent instruments, etc. We often provide unique and constructive suggestion to customer according to new products’ design demand. So that let the new products get better cost – effective and more competitive.
3 Improved manufacture equipment.
We have several own automation production lines, with SMT machine, reflow welding machine, wave welding machine, and other automatic production equipment. Fully meet customer requirements for production efficiency and capacity.
4 Improved management system.
We set up from the feed (IQC), process (IPQC), final inspection (FQC), to the shipment (OQC), and the management system of improvement of quality, fully meet the requirements of customer to our products quality.
