DLD1-1.2A Single Plate Electromagnetic Clutch

Supplier: Anhui Lixin Clutch Company
Region: Anhui, China
Contact: Mr jiayi yu
Price: $27.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Model Number:	DLD1;	Brand Name:	Lixin;
Place of Origin:	Anhui China (Mainland);	Supply Ability:	10000 Piece/Pieces per Week;
Delivery Detail:	3 days;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
material:	DT4;	Packaging Detail:	carton box/wooden box;
installation:	Flange;	Port:	shanghai;
insulation grade:	B or F,H;

This is Lixin Electromagnetic Clutch Co., Ltd. from China, which is a professional manufacturer of electromagnetic clutch and electromagnetic brake over 20 years experience in this field.

If you have any inquiry about clutch and brake, please kindly send your picture/drawings with detailed requirements for studying,we can also develope your new own product.We will give you our competitive price for reference and satisfactory services.

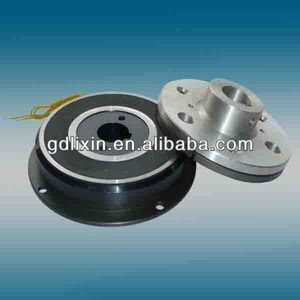

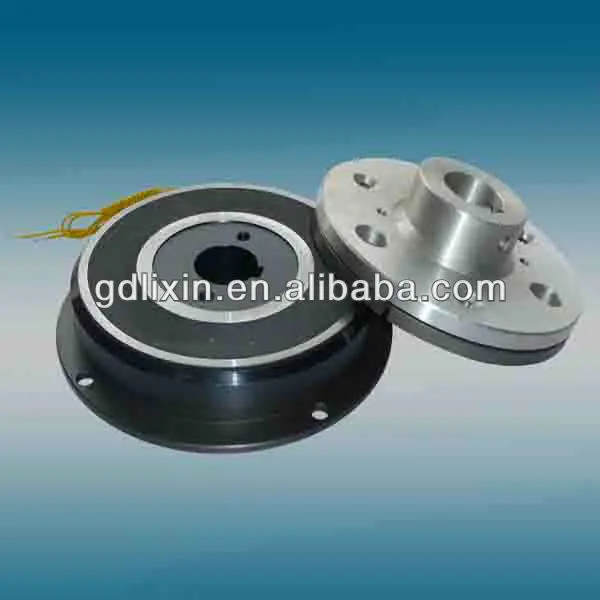

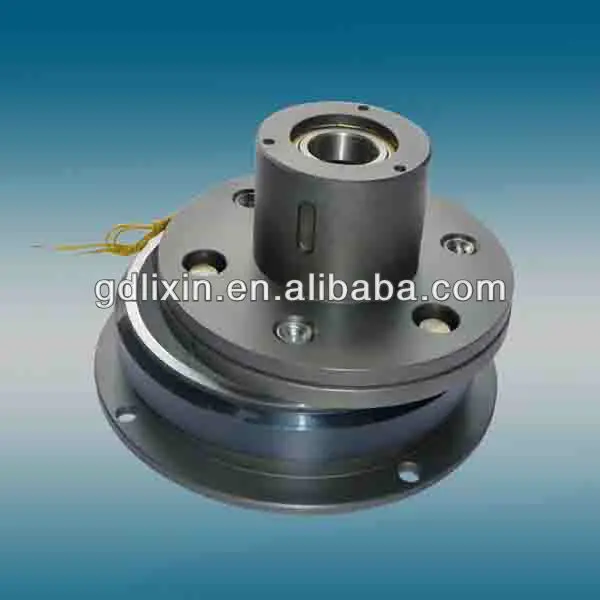

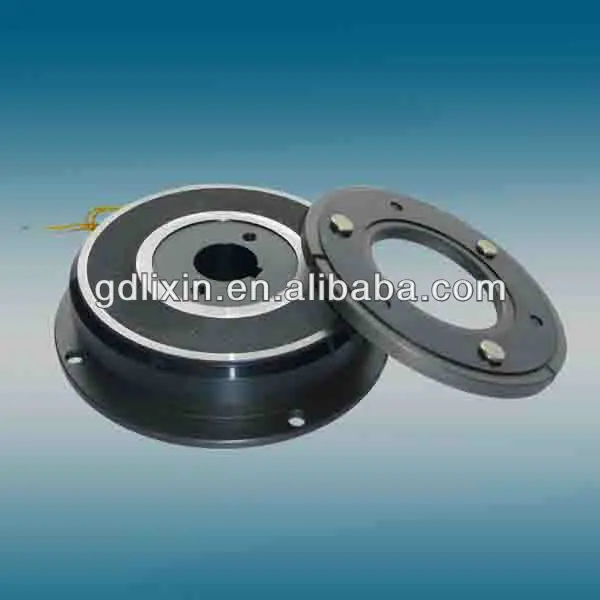

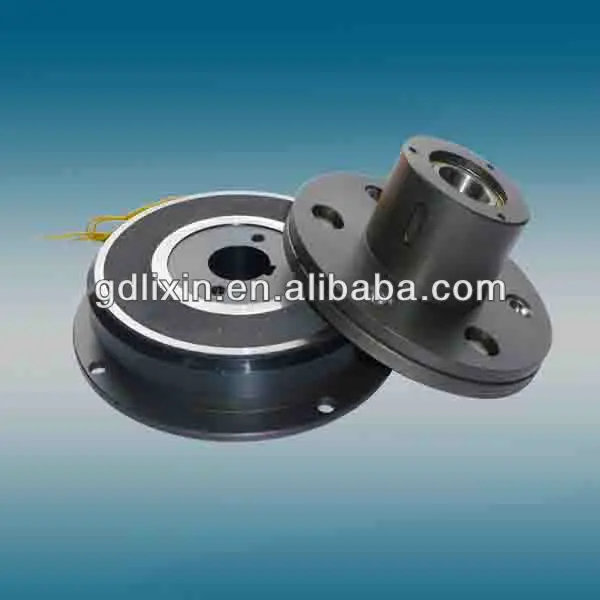

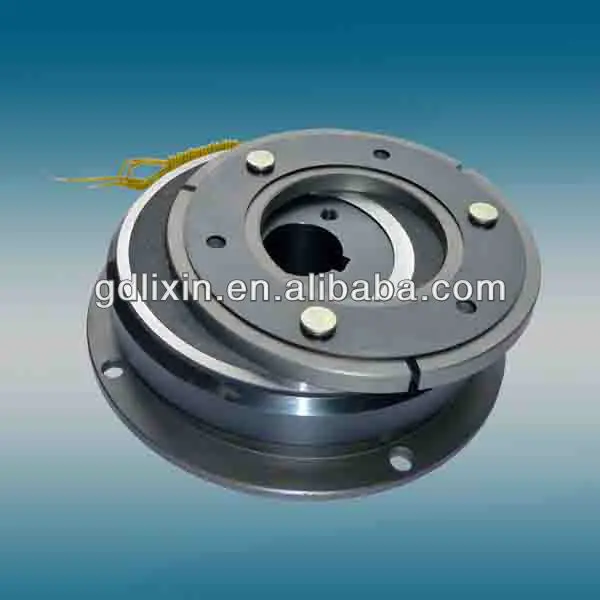

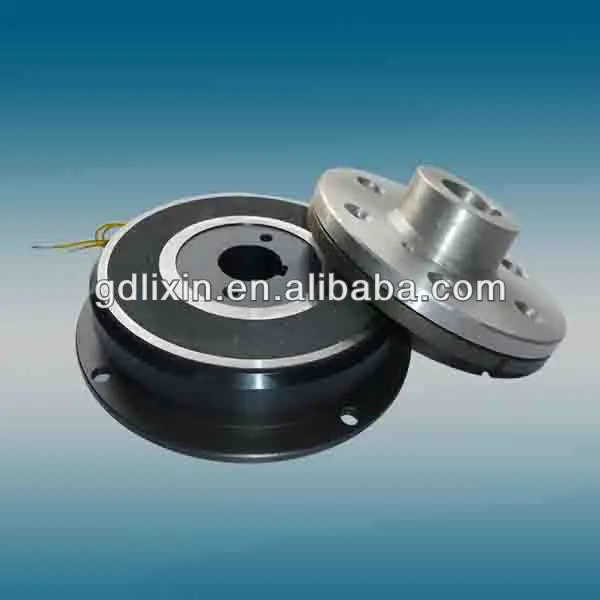

DLD1-1.2A Plate Electromagnetic Clutch

A.working voltage:12V or 24V dc

B.Rating torque:12N.m

C.Power:16W

D.Max Speed:5000

DLD1 basic Clutches are singledisc clutches for dry operation,without sliping,the coil not rotating.High transmitting torque,quick

response and no drag torque.They are widely used in packing machines,printing machines,textile machines etc.,to realize the

engaging and disengaging the driven and driving shaft while the latter is running.

Contents Specification	DLD1 -0.6	DLD1- 1.2	DLD1 -2.5	DLD1 -5	DLD1 -10	DLD1 -16	DLD1 -25	DLD1 -32	DLD1 -50	DLD1 -100
Rated Torque(N.m)	6	12	25	50	100	160	250	320	500	1000
Rated Power(W)	13	16	20	32	40	45	54	60	80	100
Rated Voltage(V dc)	24
Engaging Time(≤ms)	55	75	120	140	230	250	303	380	450	505
Disengaging Time(≤ms)	15	25	35	45	60	90	170	200	260	330
Allowable Max Speed(rpm)	3600	3600	3600	3600	2500	2500	2500	2000	2000	1500

Size Part No.	D1	D2	D3	D4	D5	d	h	b
DLD1-0.6	80	72	35	50	68.5	15	17.3	5
DLD1-1.2	105	95	42	66	90	20	2.8	6
DLD1-2.5	130	110	52	80	112	25	28.3	8
DLD1-5	158	147.5	62	101	145	30	33.3	8
DLD1-10	190	175	80	120	169	35	38.3	10
DLD1-16	230	215	100	158	213	43	46.3	12
DLD1-25	270	258	110	182	245	50	53.8	14
DLD1-32	290	270	120	210	267	55	59.3	16
DLD1-50	310	290	130	220	286	60	64.4	18
DLD1-100	440	420	200	315	424	70	74.9	20
