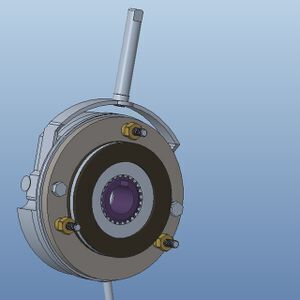

Supply DHM3-15FB Spring Applied With Manual Release electromagnetic brake
- 28.00 >=5 pieces
| Brand Name: | Lixin; | material: | DT4; |
| Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Energy & Mining; | Package Preview: | ; |
| insulation grade: | F; | Place of Origin: | Anhui China; |
| Single package size: | 13X13X5 cm; | Selling Units: | Single item; |
| Single gross weight: | 2.7 KG; | Packaging Detail: | carton box or wooden box; |
| voltage: | 24V dc or 99V dc; |
The DHM3-15F brake is a fricative brake,which is auto-matically set to work when an AC power lost occurs. It is mainly used with Y series motort to create YEJ series three-phase motors. It's widely applicable in machine tools and in machineries for metallurgy,construction,chemistry,food-prompt and accurate braking effect.
Because of its small size,light weight,low noise and high reliab-ility,it is widely accepted as an ideal piece of automation equipment .It can be add protection circle to increase protection grade to IP54.
Wooden box ,ship by Sea or Air
24 h/ 7days
Lixin Electromagnetic Clutch Co., Ltd. is a professional manufacturer of electromagnetic clutches and electromagnetic brakes with over 20 years' experience in this field. For more information, you are welcome to visit our homepage: www.gdlixin.com, which shows our latest products online and you will find our products are both excellent in quality and reasonable in prices.
DHM3-04 | DHM3-05 | DHM3-08 | DHM3-15 | DHM3-30 | DHM3-40 | DHM3-80 | DHM3-150 | |
d | 12 | 14.8 | 19.8 | 24.8 | 29.5 | 29.5 | 39.5 | 44.5 |
b | 4 | 5 | 6 | 8 | 8 | 8 | 12 | 12 |
h | 13.8 | 16.2 | 21.6 | 28.1 | 32.8 | 32.8 | 42.8 | 47.8 |
D1 | 47 | 53 | 65 | 95 | 80 | 90 | 104 | 120 |
D2 | 61 | 78 | 92 | 97 | 116 | 130 | 150 | 179 |
D3 | 72 | 90 | 105 | 114 | 133 | 150 | 170 | 202 |
D4 | 84 | 101 | 118 | 128 | 147 | 166 | 187 | 222 |
D5 | 8 | 10 | 10 | 10 | 10 | 12 | 12 | 14 |
B1 | 89 | 106 | 126 | 136 | 155 | 174 | 195 | 230 |
L | 18 | 20 | 20 | 25 | 30 | 30 | 30 | 35 |
H1 | 39 | 49 | 51.3 | 56 | 58 | 60 | 67 | 75 |
H2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3.5 |
H3 | 14 | 21 | 23 | 23 | 25 | 25 | 30 | 33 |
H4 | 98 | 104 | 124 | 126 | 134 | 162 | 175 | 232 |
H5 | 53 | 61 | 69 | 74 | 82 | 94 | 108 | 130 |
H6 | 20 | 20 | 20 | 25 | 30 | 30 | 30 | 35 |
H7 | 8 | 8 | 12 | 12 | 13 | 13 | 15 | 15 |
M | 3*M4 | 3*M5 | 3*M5 | 3*M6 | 3*M6 | 3*M8 | 3*M8 | 4*M10 |
β | 12° | 12° | 12° | 12° | 12° | 12° | 12° | 12° |
δ | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 |
