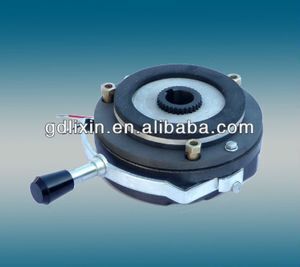

Supply DHM3-40 Power Off Electromagnetic Brake With Manual Release

The DHM3-40 brake is fricative brakes,which are auto-matically set to work when an AC power lost occurts.They are mainly used with Y series motort to create YEJ series three-phase motors. it's widely applicable in machine tools and in machineries for metallurgy,construction,chemistry,food-prompt and accurate braking effect.
Because of its small size,light weight,low noise and high reliab-ility,it is widely accepeted as an ideal piece of automation equipment .It can be add protection circle to increase protection grade:IP54.





	DHM3-04	DHM3-05	DHM3-08	DHM3-15	DHM3-30	DHM3-40	DHM3-80	DHM3-150
d	12	14.8	19.8	24.8	29.5	29.5	39.5	44.5
b	4	5	6	8	8	8	12	12
h	13.8	16.2	21.6	28.1	32.8	32.8	42.8	47.8
D1	47	53	65	95	80	90	104	120
D2	61	78	92	97	116	130	150	179
D3	72	90	105	114	133	150	170	202
D4	84	101	118	128	147	166	187	222
D5	8	10	10	10	10	12	12	14
B1	89	106	126	136	155	174	195	230
L	18	20	20	25	30	30	30	35
H1	39	49	51.3	56	58	60	67	75
H2	2	2	3	3	3	3	3	3.5
H3	14	21	23	23	25	25	30	33
H4	98	104	124	126	134	162	175	232
H5	53	61	69	74	82	94	108	130
H6	20	20	20	25	30	30	30	35
H7	8	8	12	12	13	13	15	15
M	3*M4	3*M5	3*M5	3*M6	3*M6	3*M8	3*M8	4*M10
β	12°	12°	12°	12°	12°	12°	12°	12°
δ	0.2	0.2	0.3	0.4	0.4	0.5	0.5	0.6
