10kw 96v high torque 80km/h speed electric motor factory price electric car conversion kits

Product details
Speed(RPM):3000-8000rpm;Port:Shunde;
Protection grade:IP54;Motor:three phase,AC,brushless motor;
Type:Alternating Asynchronous;Insulation grade:H;
Duty:S2-60min;Voltage:96v;
Rated speed:4500rpm;Supply Ability:1000 Set/Sets per Month;
Battery voltage:96v DC;Power:10kw;
Noise:45dB;Brake:hydraulic/mechanics;
Max system torque:120N.m;Payment Terms:T/T,Western Union;
Packaging Detail:Plywood box for axles and motors. Carton for controllers and others.;

We provide the key parts of the electric vehicle( motor, controller, rear axle, gear box and etc ), moreover we provide one-stop service and integrated solutions!



96V 10KW drive kits for electric sightseeing bus,shuttle bus with 24 seats or more









The advantages of drive kits of the Green Motor are as below:



1.Heartbeat price:  Collaborative pricing strategy of motor, electric controller and axle, cutting  extra profit for customers.



2.Integrated performance:  Integrated drive assembly could solve the matching problem of the power  transmission system components.



3. One-time delivery:  Integration of all components of the production cycle, could improve the  efficiency of supply chain.



4. One-stop service:  The integrated service of providing assembly parts including pre-sale service,  sale service, and after- sale service.





Technology









The power of motor10KW
insulation gradeH
Battery voltage96V,DC
Protection gradeIP54
Rated  speed4500rpm
DutyS2-60min
Outer diameterφ227
length331
Rated output current(60mins)350A
Maximum output current(2mins)800A
Digital input8
Analog input2
Contactor drive3
Sensor interfaceAvailable
CAN AssemblyAvailable
Controller temperature range-40~50°C
Controller protection gradeIP65
Rear axle ratio(can be designed as customer's requirement)12.49:1
18.12:1
10.25:1
Spring center distance (can be designed according to customer requirements)0° 660
Bias(Could be designed as customer's requirement)125/130/52/80/51
BrakeHydraulic pressure/Mechanics
Brake drum surface distance (can be designed according to customer requirements)970/1270/1140/1100/1240
Tread (can be designed according to customer requirements)1200MM
From 0 km·h to 100 km·h6.8s
Maximum Ramp time(5°,10°,15°20°)2min
The highest temperature rise65°C
noise53dB
Vibrationunder 5.9m/s2
The maximum torque / system load120N.m











We will suggest a suitable program according to your vehicle information!





View Pictures





 Pictures of driving system

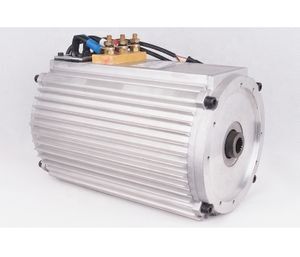

Pictures of AC motor



Pictures of controller



Pictures of rear axle(with gearbox)





Our Services





  1. One year guarantee.
  2. Long time freely technical support.
  3. 24 hours technical support by e-mail.
  4. English software to program, user manual.
  5. Free program design for your electric vehicles.
