electric car conversion kit 200kw for electric truck
- 4000.00 >=10 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Port: | Ningbo/Shanghai Port; | Supply Ability: | 1000 Sets per Week; |
| contoller voltage: | 280-420V; | Payment Terms: | L/C,D/P,D/A,T/T; |
| Speed(RPM): | 1500/5000; | Torque: | 225Nm; |
| Max power: | 75kw; | Rated power: | 40kw; |
| Type: | Permanent Magnet Synchronous; | contoller current: | 450A; |
| Peak torque: | 500Nm; | Packaging Detail: | In wooden pallet.; |
| Voltage: | 280-420V; |

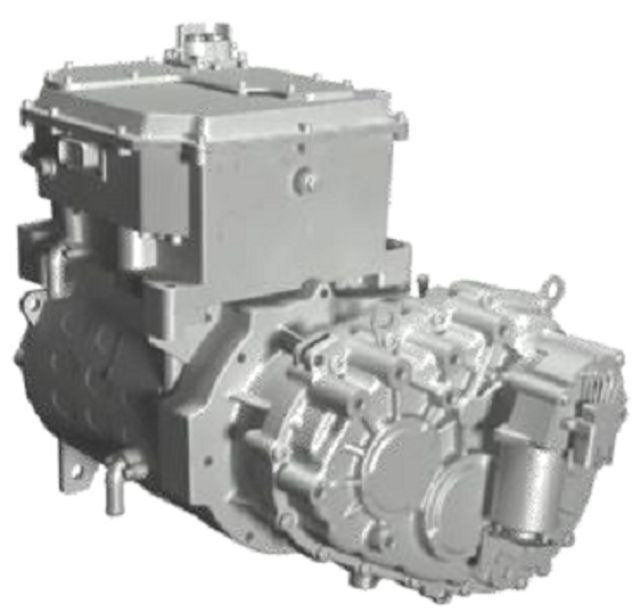

Direct drive system solution configuration
Technical Data
Motor Parameters | ||||||
Rated power | 40kw | Peak power | 75kw | |||
Rated torque | 225N.m | Peak torque | 500N.m | |||
Rated speed | 1500rpm | Peak speed | 5000rpm | |||
Volume(mm) | φ306*300mm | Weight(kg) | 80kg | |||

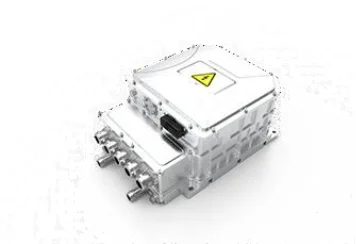

Controller Parameter | ||||||
Voltage range | 280-420V | Current module | 450A | |||
Volume(mm) | 350x270x166 | Weight(kg) | 18kg | |||

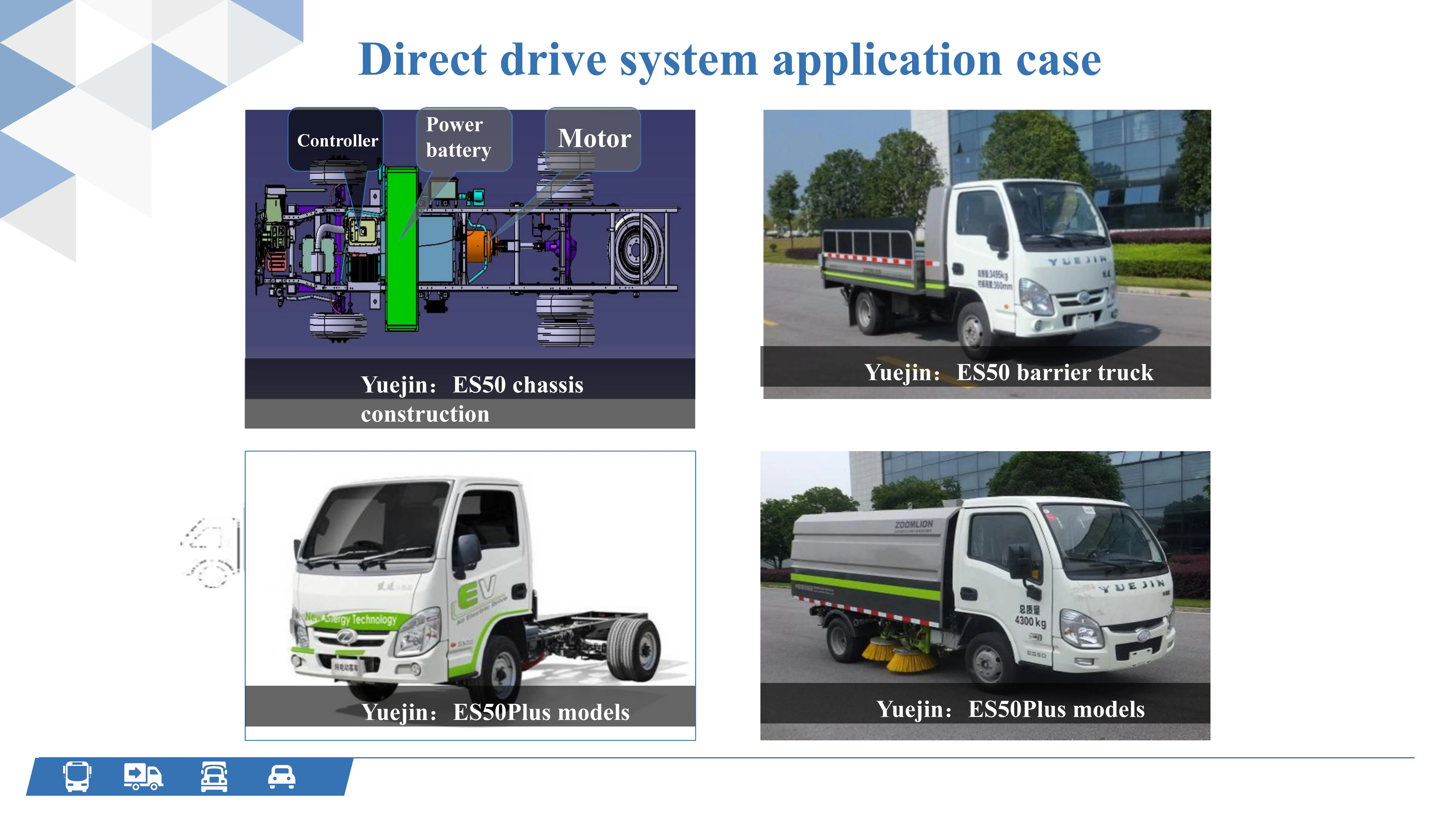

Application
Advantages
