Electric Auto Conversion Kits for Modified Car motor motor controller battery pack
- 6000.00 >=10 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Voltage: | 450-750V; | Product Name: | Conversion Kits for Modified Car motor motor controller battery pack; |
| Speed ratio: | 10.63; | contoller voltage: | 450-750V; |
| Output torque(N.m): | 2*4060; | Max power: | 2*74kw; |
| Rim installation end face distance(mm): | 1575; | Type: | Permanent Magnet Synchronous; |
| Payment Terms: | L/C,D/P,D/A,T/T; | Rated power: | 60kw; |
| Port: | Ningbo/Shanghai Port; | Packaging Detail: | In wooden pallet.; |
| Motor: | 2 permanent magnet synchronous motors; | Supply Ability: | 500 Set/Sets per Month; |
| Speed(RPM): | 960; | Protection level: | IP67; |
| Maximum wheel speed(rpm): | 940; |

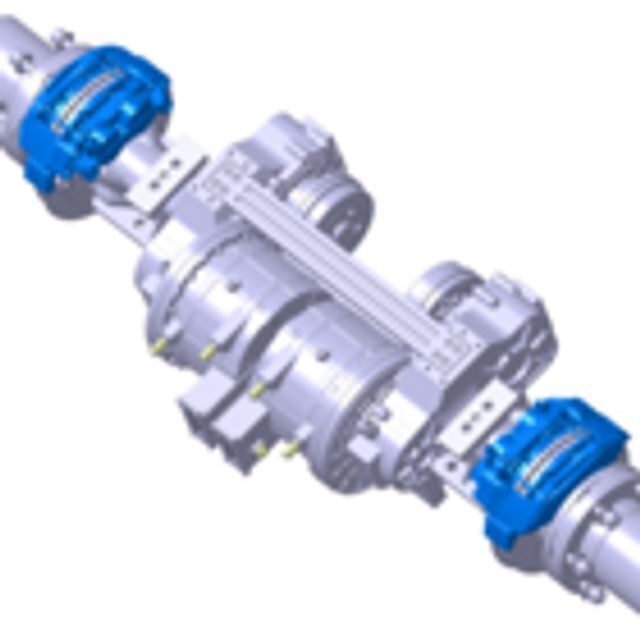

Direct drive system solution configuration
Electric Auto Conversion Kits for Modified Car motor motor controller battery pack

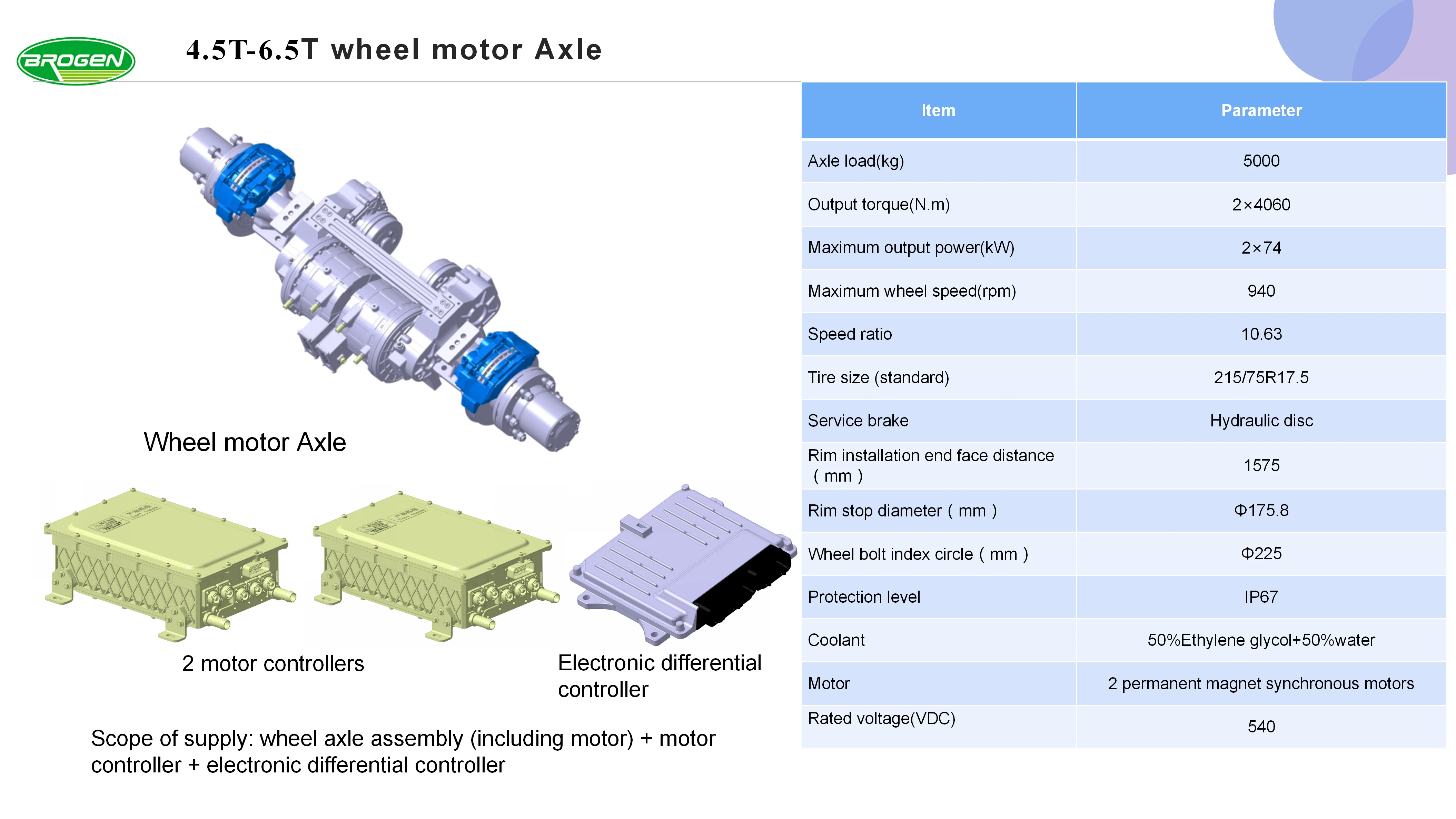

Technical Data
Parameters | ||||||
Axle load(kg) | 5T | Peak power | 2×74kw | |||
Output torque(N.m) | 2×4060 | Maximum wheel speed(rpm) | 940 | |||
Speed ratio | 10.63 | Tire size (standard) | 215/75R17.5 | |||
Service brake | Hydraulic disc | Rim installation end face distance（mm） | 1575 | |||
Protection level | IP67 | Motor | 2 permanent magnet synchronous motors | |||
Rim stop diameter（mm） | Φ175.8 | Wheel bolt index circle（mm） | Φ225 | |||
Application
Advantages
