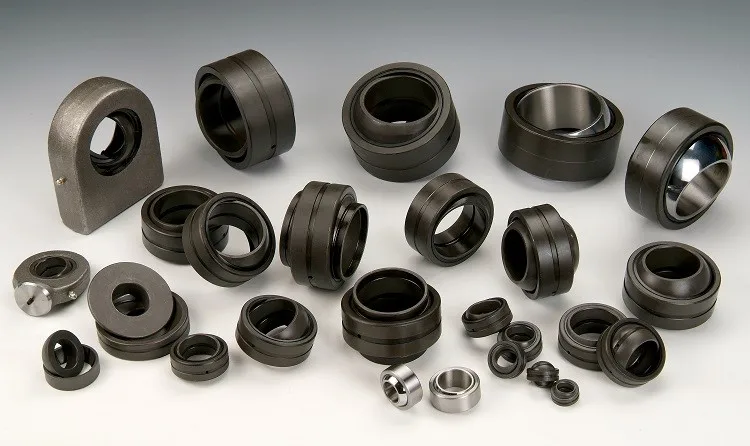

High precision spherical plain bearing with good quality

Supplier: Shanghai Chenghui Bearing Co., Ltd.
Region: Shanghai, China
Contact: Mr Jason Zhou
Price: $0.10 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Bore Size:	3 - 1000 mm;	Brand Name:	C&H / OEM;
Place of Origin:	Shanghai China;	Type:	Rod End;
Precision Rating:	High Precision;	Model Number:	spherical plain bearing;
Port:	Shanghai;	Certificate:	ISO9001:2000;
Supply Ability:	100000 Piece/Pieces per Month spherical plain bearing;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Packaging Detail:	Industry and Retail Packing;

Description

• The C&H plain bearings are made from high extra clean through-hardened steel, precision ground. 100% inspecting by various parameters before delivering to customer.

• The high quality plain bearing are used in pivoting, high load bearing applications where angular misalignment is required. Most typically, C&H spherical plain bearings are employed in hydraulic cylinder rod ends, vehicle steering linkage suspensions, heavy equipment articulated joints, and other severe duty uses.

C&H can offer the following variants:

Maintenance type	maintenance-free, maintenance required
Outer ring	chrome steel 52100(100Cr6), stainless steel AISI 304L/AISI 316L
Self lubricating material	China PTFE, TOARY PTFE, DUPONT PTFE, PTFE composite
Balls	chrome steel, stainless steel
Dimension	metric and inch ( bore 5 mm - 1000 mm )
Radial Metric	GE, GEG, GE-LO, GE-HO-2RS, GE-UK, GE-UK-2RS,
Inch	GEZ, GEGZ, GEZM, GACZ, GEFZ
Thrust	GE-AX, GE-AW
Angular contact	GE-SX. GE-SW
Extruded outer ring	COM, COM-T
